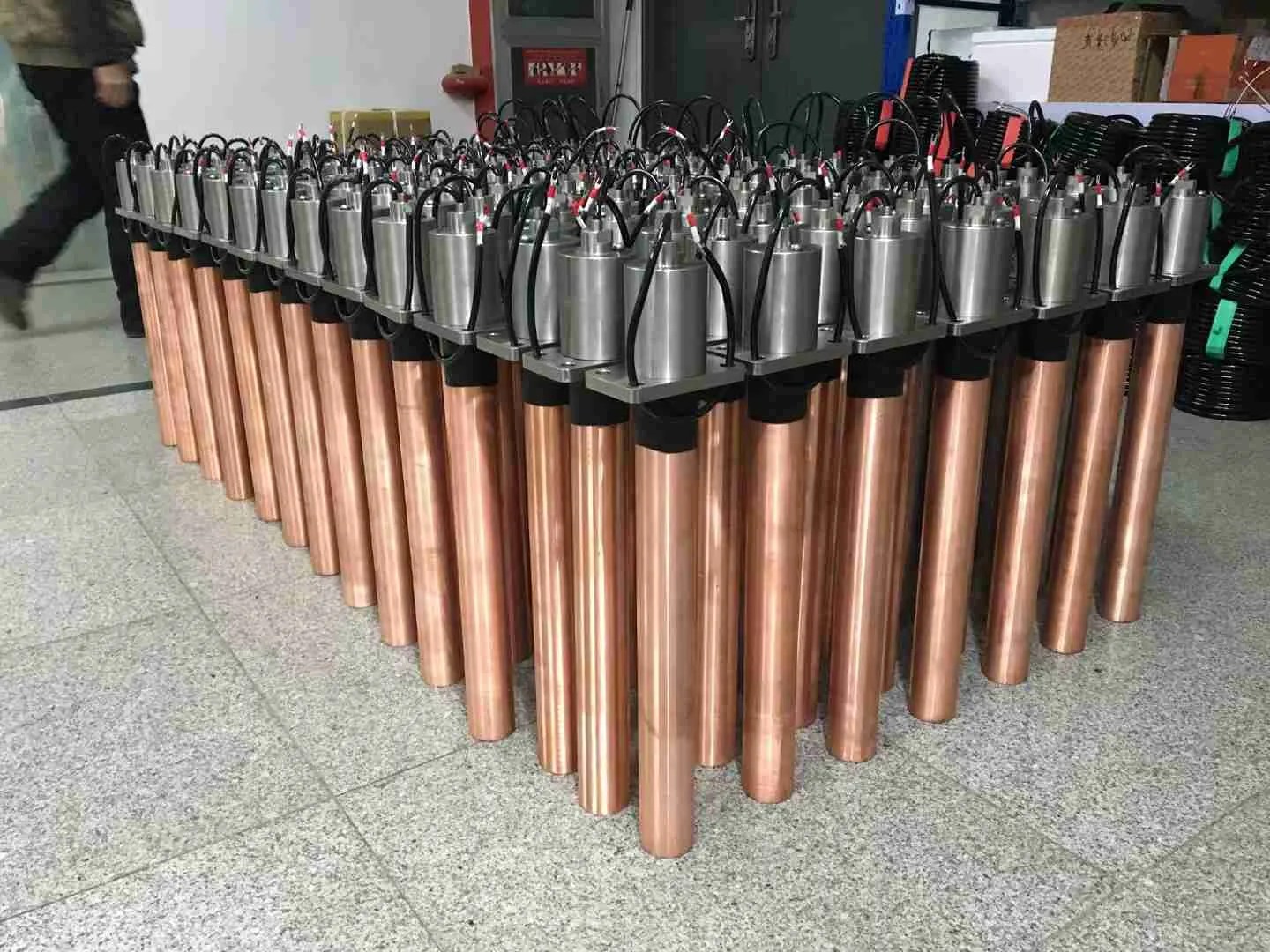

Copper MGPS Anodes
Define alloy, diameter, active length, rated/operating current, consumption basis, mount, cable and anti-fouling duty.
MGPS / ICAF · Sea Chests · Seawater Cooling Systems
Copper, Aluminum and Iron MGPS Anodes
Copper, aluminum and iron MGPS anodes for drawing-based replacement and project integration, reviewed against system role, material, active length, current duty, controller, mounting, cable/gland, seawater flow and vessel documentation.
Important boundary: System boundary: MGPS/ICAF anodes operate with a controlled DC supply. They are not ordinary sacrificial cathodic-protection anodes, and an aluminum or iron MGPS anode must not be assigned a universal role without the original system design and OEM data.
Selection Basis
Match the Anode to Its Function in the Existing MGPS

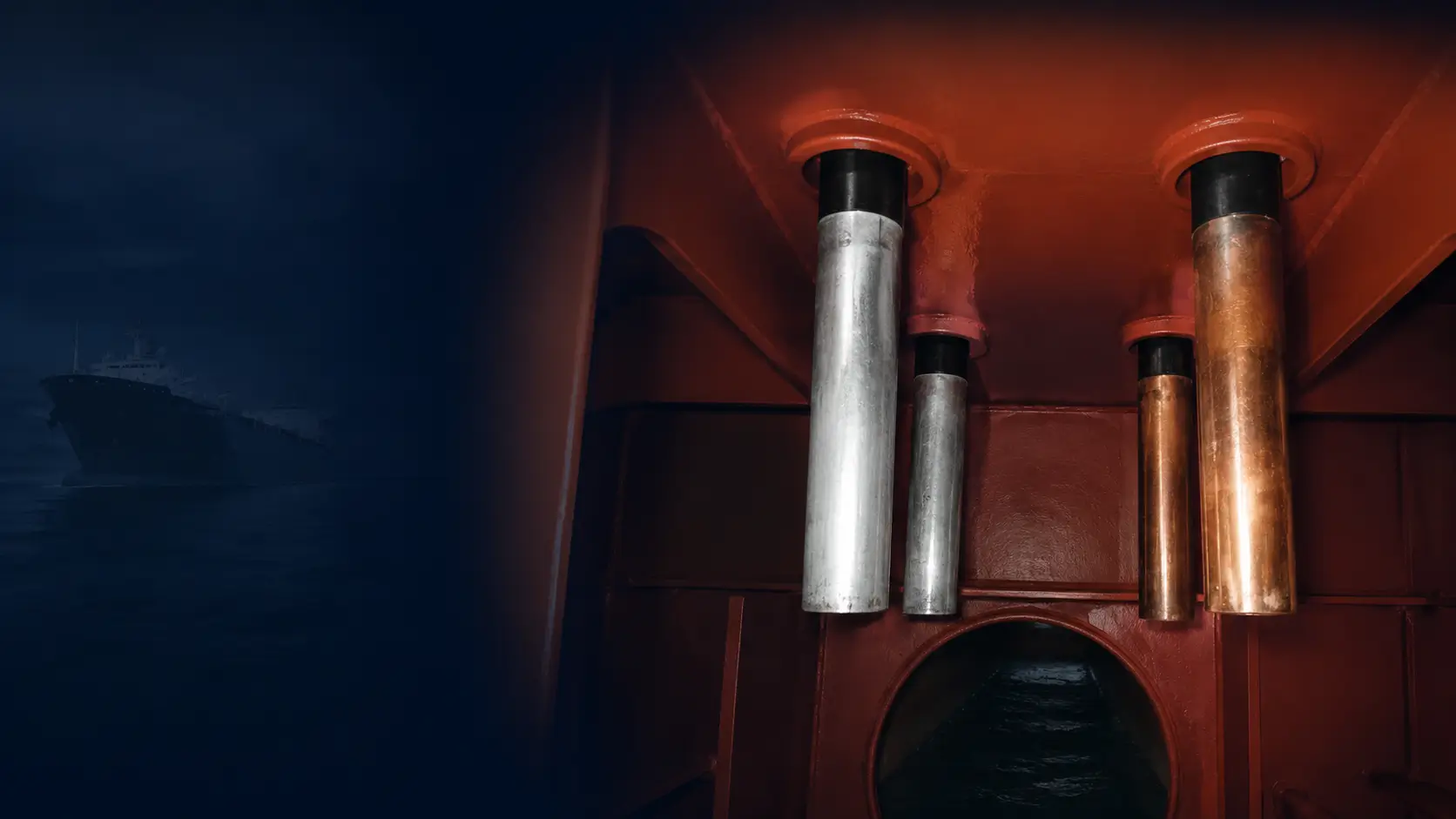

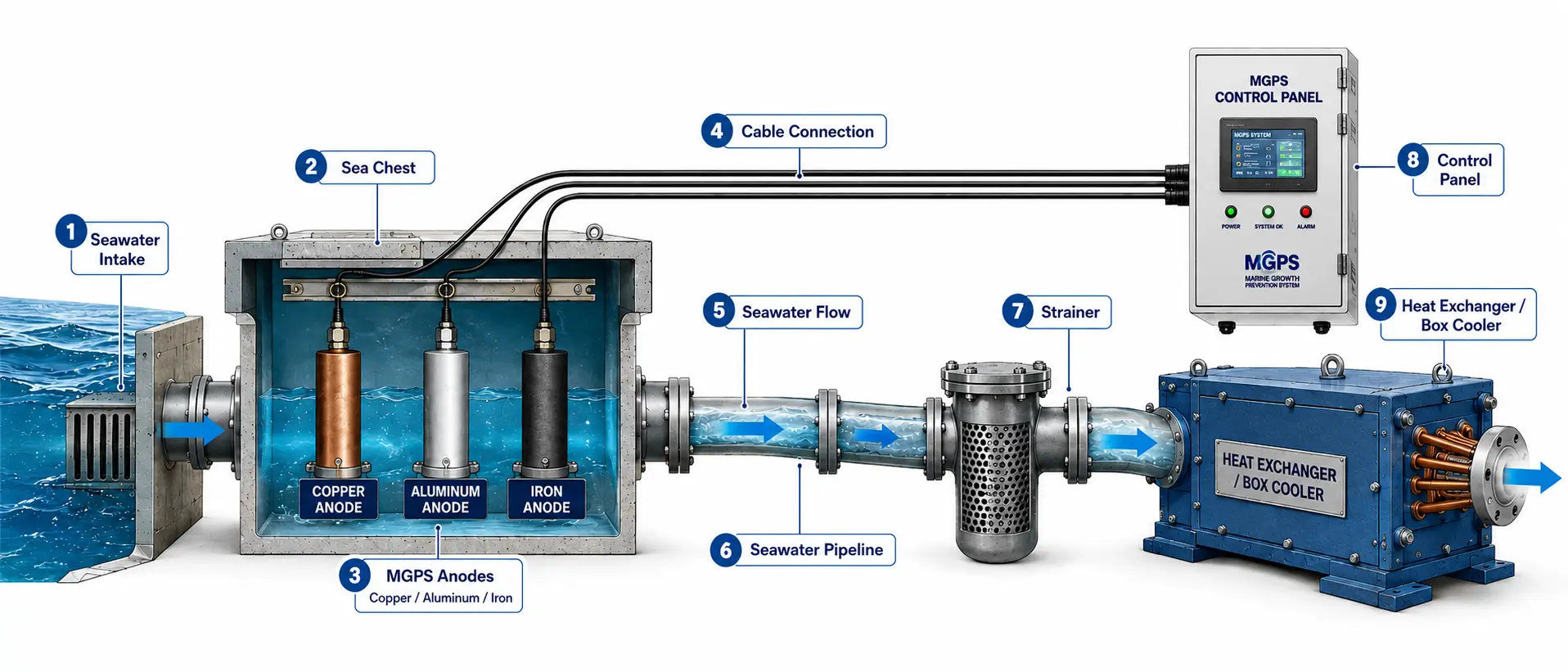

MGPS/ICAF systems apply controlled direct current to anodes installed in sea chests, strainers or seawater circuits. Copper commonly supports anti-fouling ion generation, while aluminum or iron may serve system-specific conditioning/corrosion-control functions. Exact roles, current and consumption must follow the original design and controller.

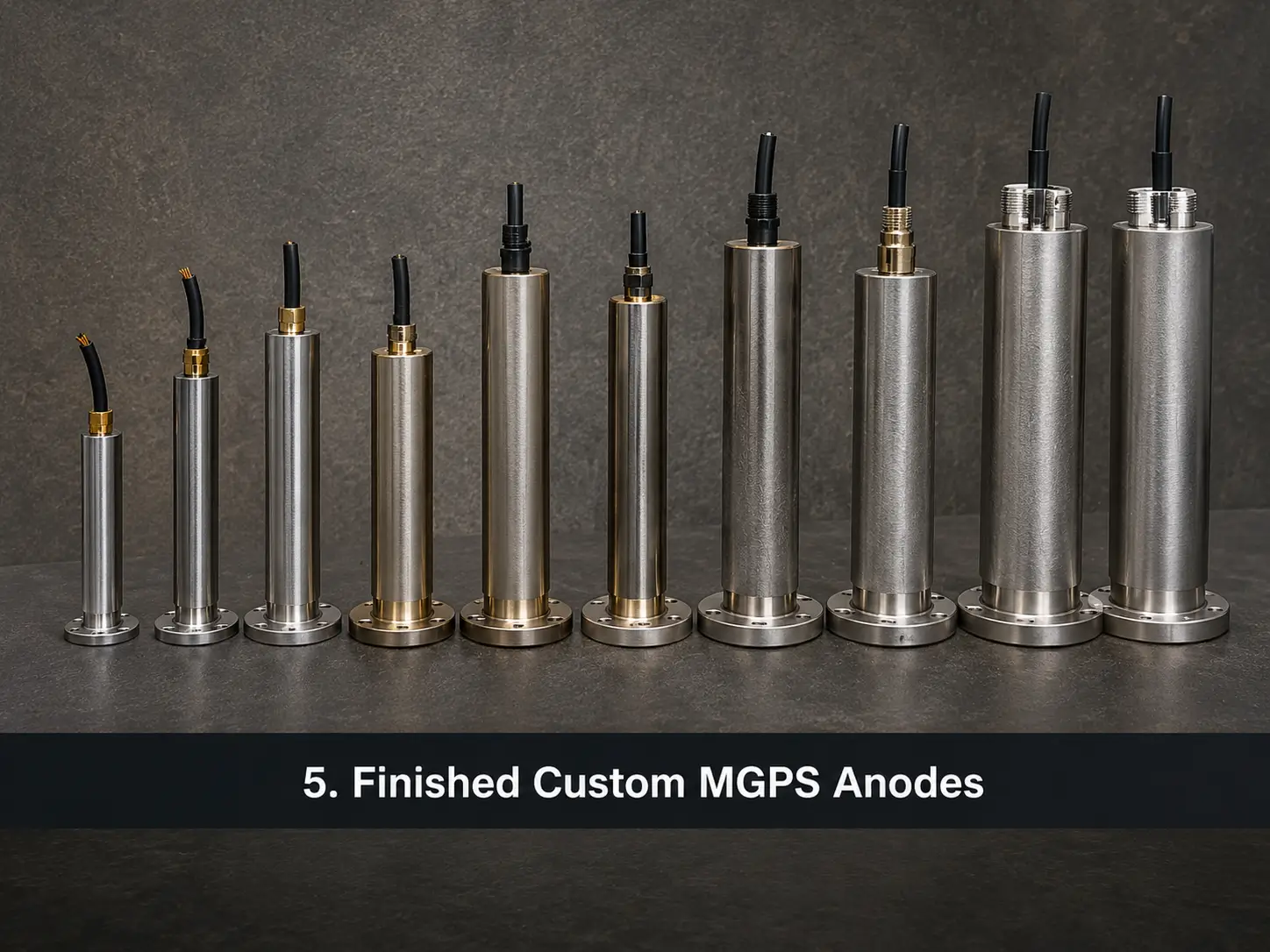

Products & Configurations
Configurations Defined by Duty and Interfaces
These are engineering configuration families, not interchangeable catalogue claims. Final supply follows the approved project data and drawing.

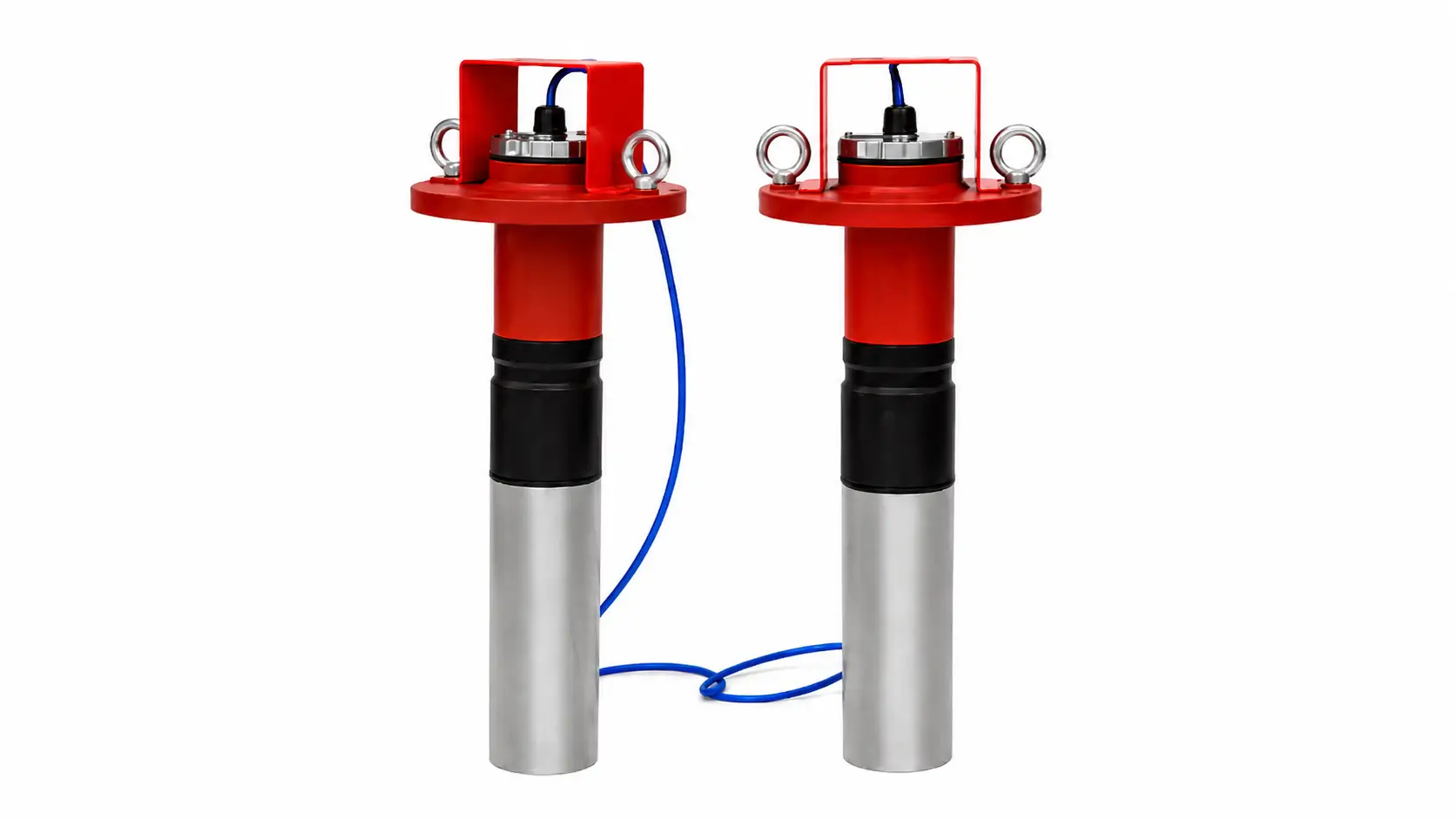

Aluminum MGPS Anodes
Confirm original system role, material, dimensions, current, pairing, seawater conditions and controller setting.

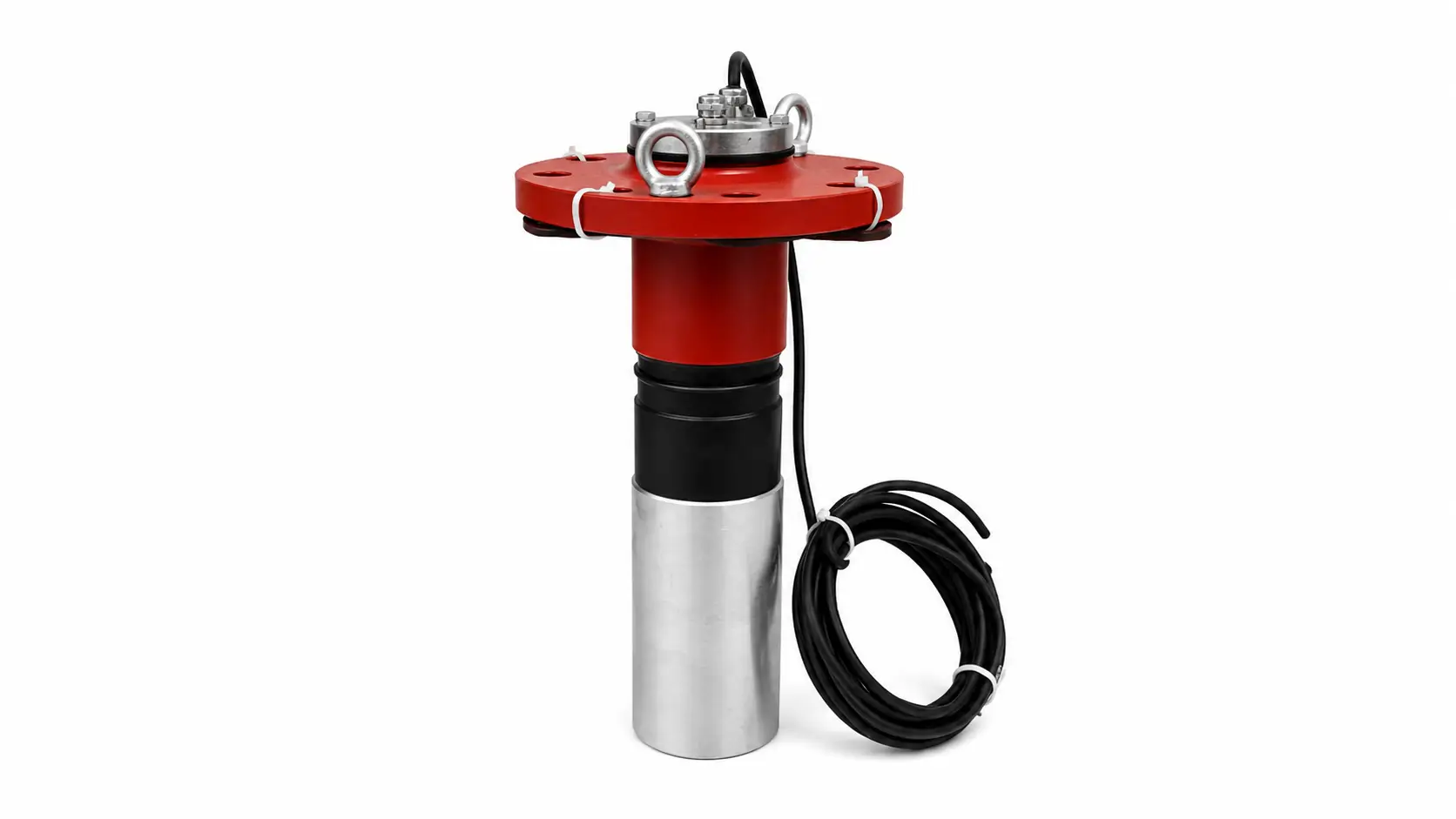

Iron MGPS Anodes
Confirm ferrous-anode function, composition, active length, current duty, consumption, mounting and system compatibility.

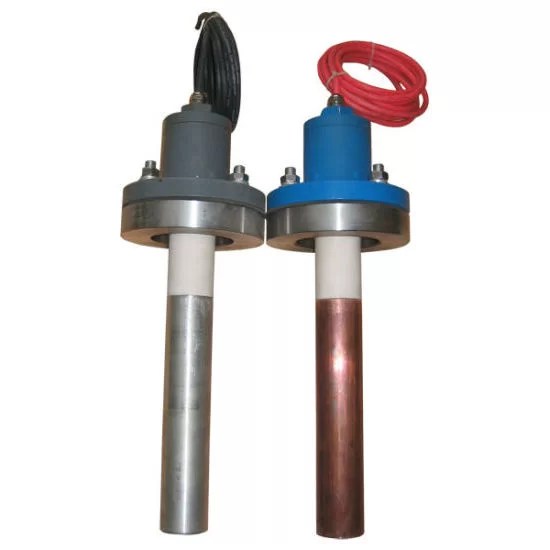

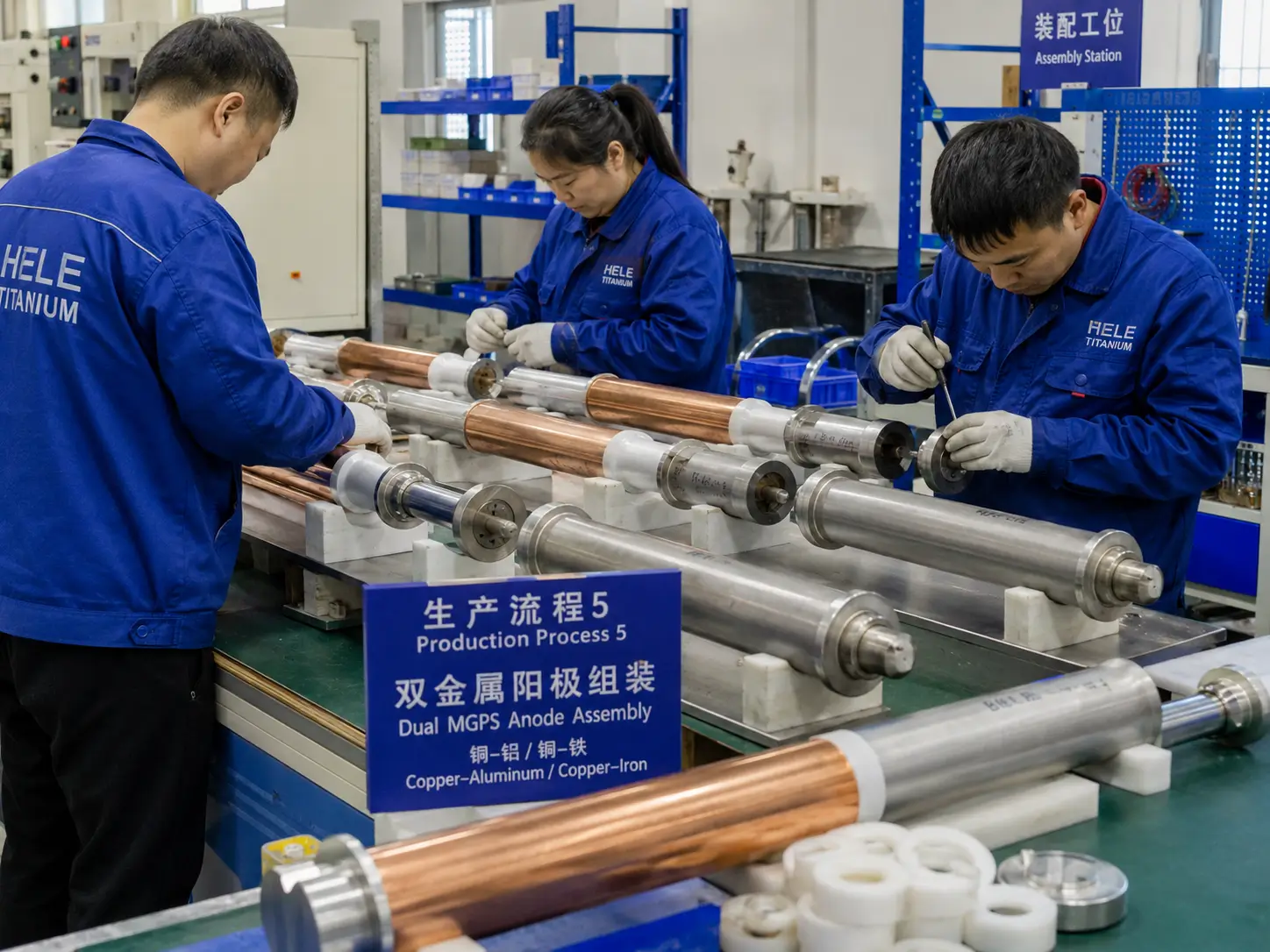

Combination / Dual Anodes
Freeze Cu-Al or Cu-Fe arrangement, isolation, individual feeds, controller channels, mounting envelope and replacement method.

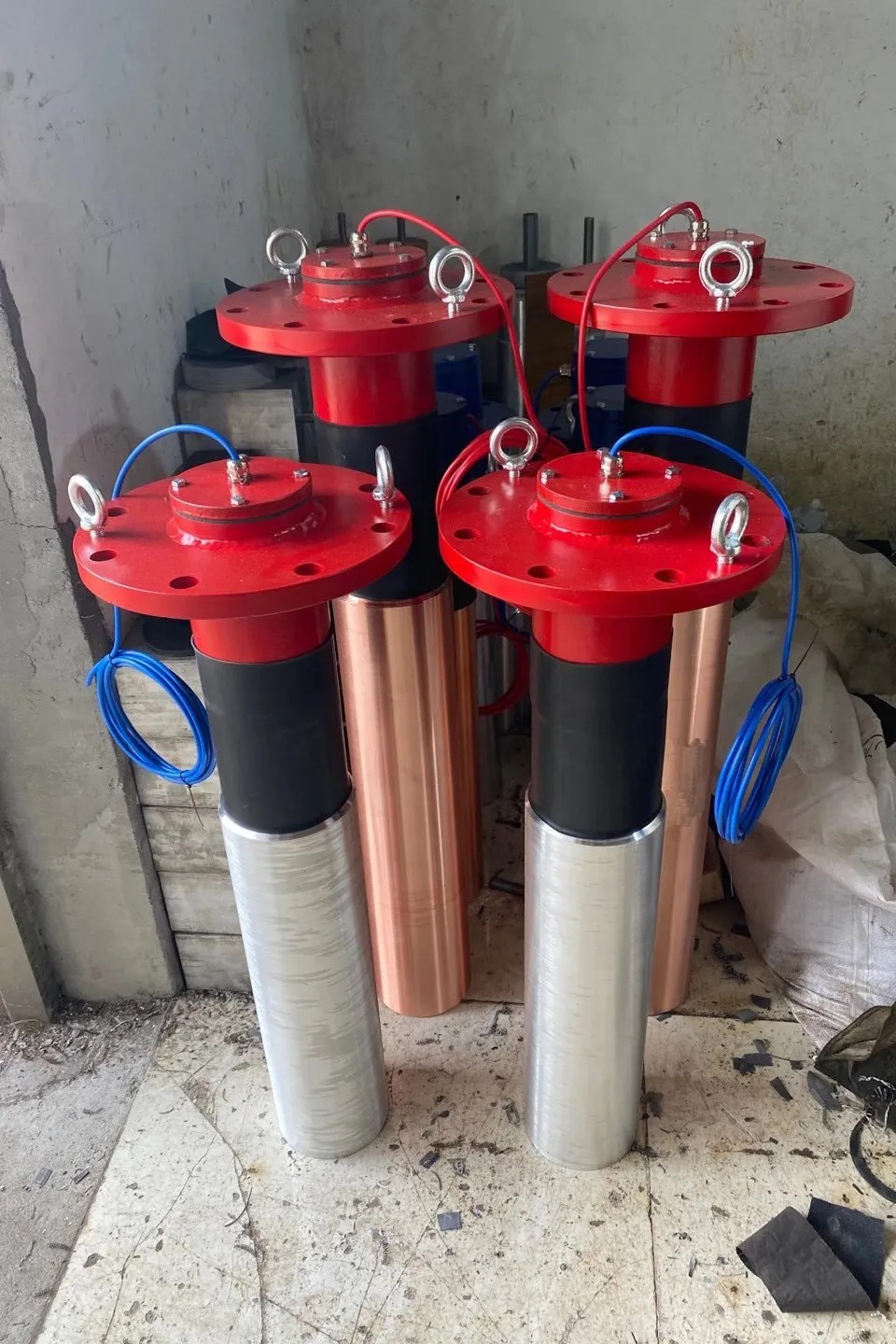

Flanged MGPS Anodes
Define flange standard, face, bolt pattern, pressure boundary, sleeve, insulation, seal, insertion length and cable gland.
Threaded / Compact Anodes
Control thread, shoulder, sealing, active length, access, cable exit and mechanical/electrical isolation.

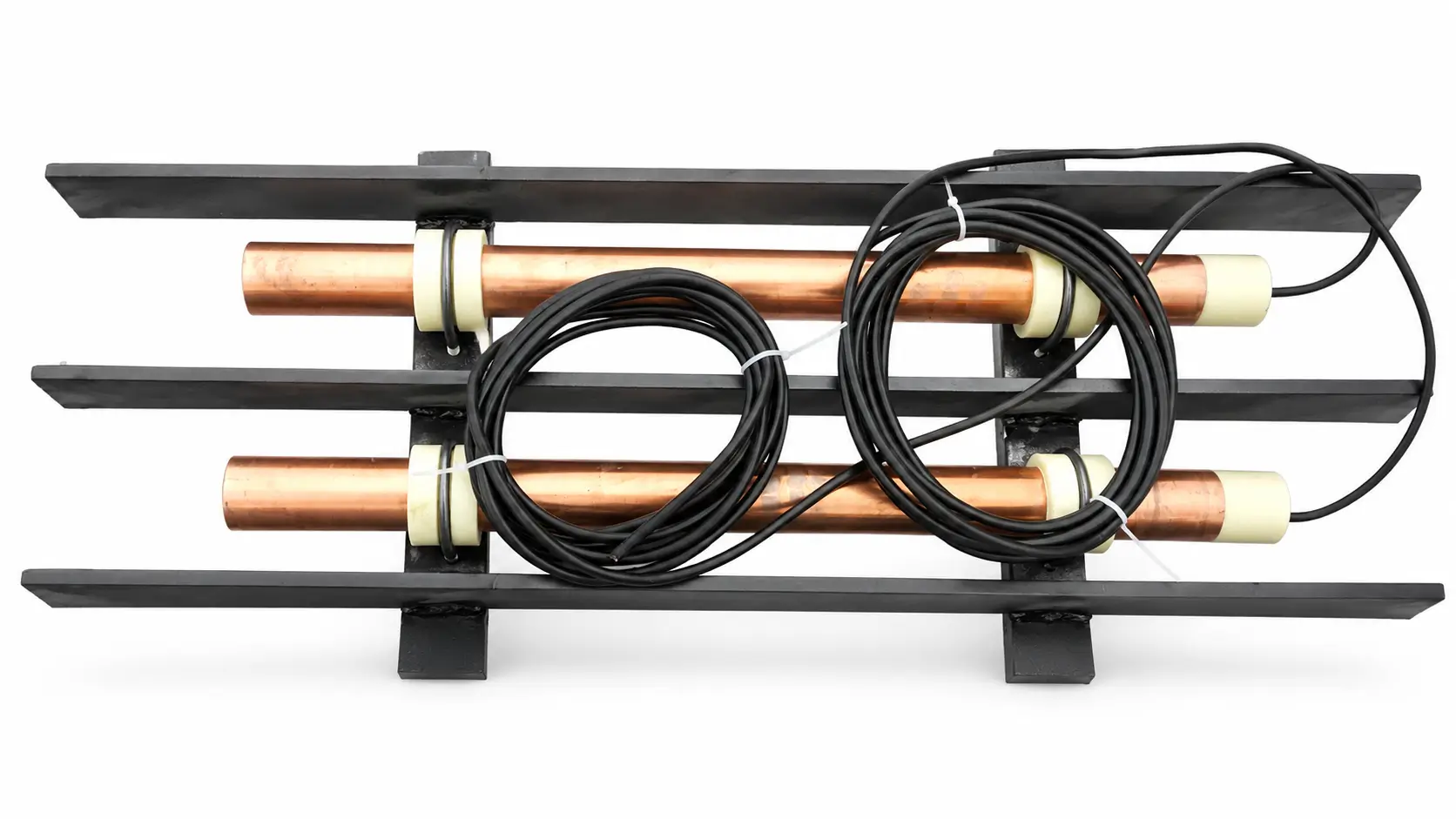

Box-Cooler Anodes
Review submerged mounting, flow, exposure, cable route, protection, current distribution and retrieval/replacement access.

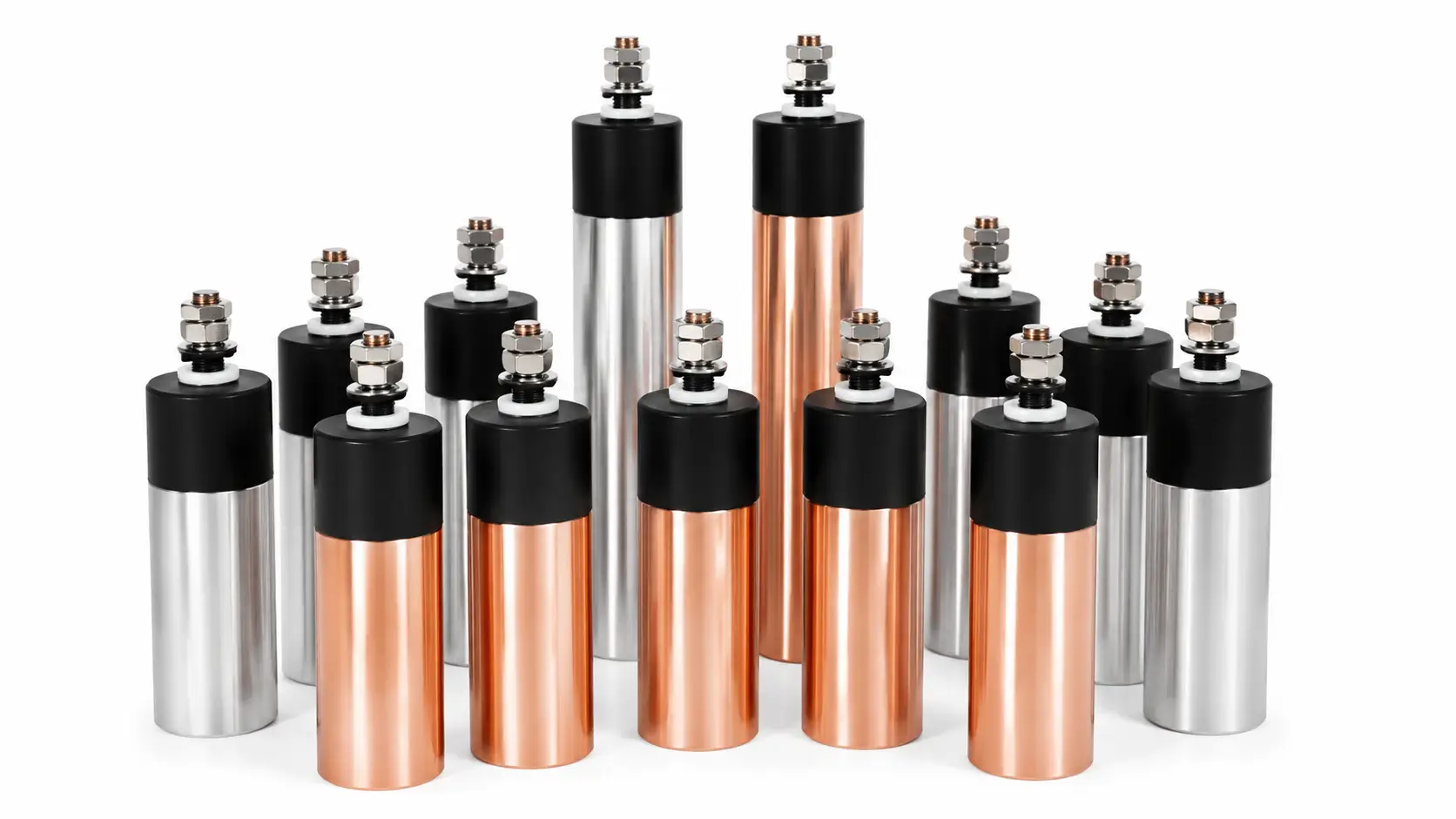

Drawing-Based Replacement Anodes
Use original drawing, sample, system data and operating history; outside dimensions alone do not establish equivalence.
RFQ Specification
Convert Requirements into Measurable Acceptance
Every claimed characteristic needs a definition, method, units, sampling, acceptance and relationship to the delivered product or system.
| Characteristic | RFQ / PO definition | Evidence when ordered |
|---|---|---|
| Role / material | Copper, aluminum or iron duty as defined by the original MGPS/ICAF design | Material/chemistry certificate where ordered |
| Geometry | Diameter, active length, total length, mass/consumption allowance and tolerances | Approved drawing and dimensional report |
| Electrical duty | Rated/operating current, controller channel, current-density basis and expected consumption conditions | System calculation or agreed functional evidence |
| Mounting | Flange/thread/sleeve, pressure boundary, insulation, seals, insertion and service access | Drawing, material and leak/pressure evidence as applicable |
| Cable / gland | Conductor, length, termination, insulation, gland, seal, strain relief and wet/dry boundary | Continuity/resistance and visual inspection |
| Compatibility | System make/model, controller, pair arrangement, sea chest/flow, vessel rules and replacement basis | Deviation/equivalence review and document package |
Applications
Application Names Are Starting Points, Not Performance Guarantees
Final selection depends on project inputs, system interfaces, acceptance evidence and responsibility boundaries.

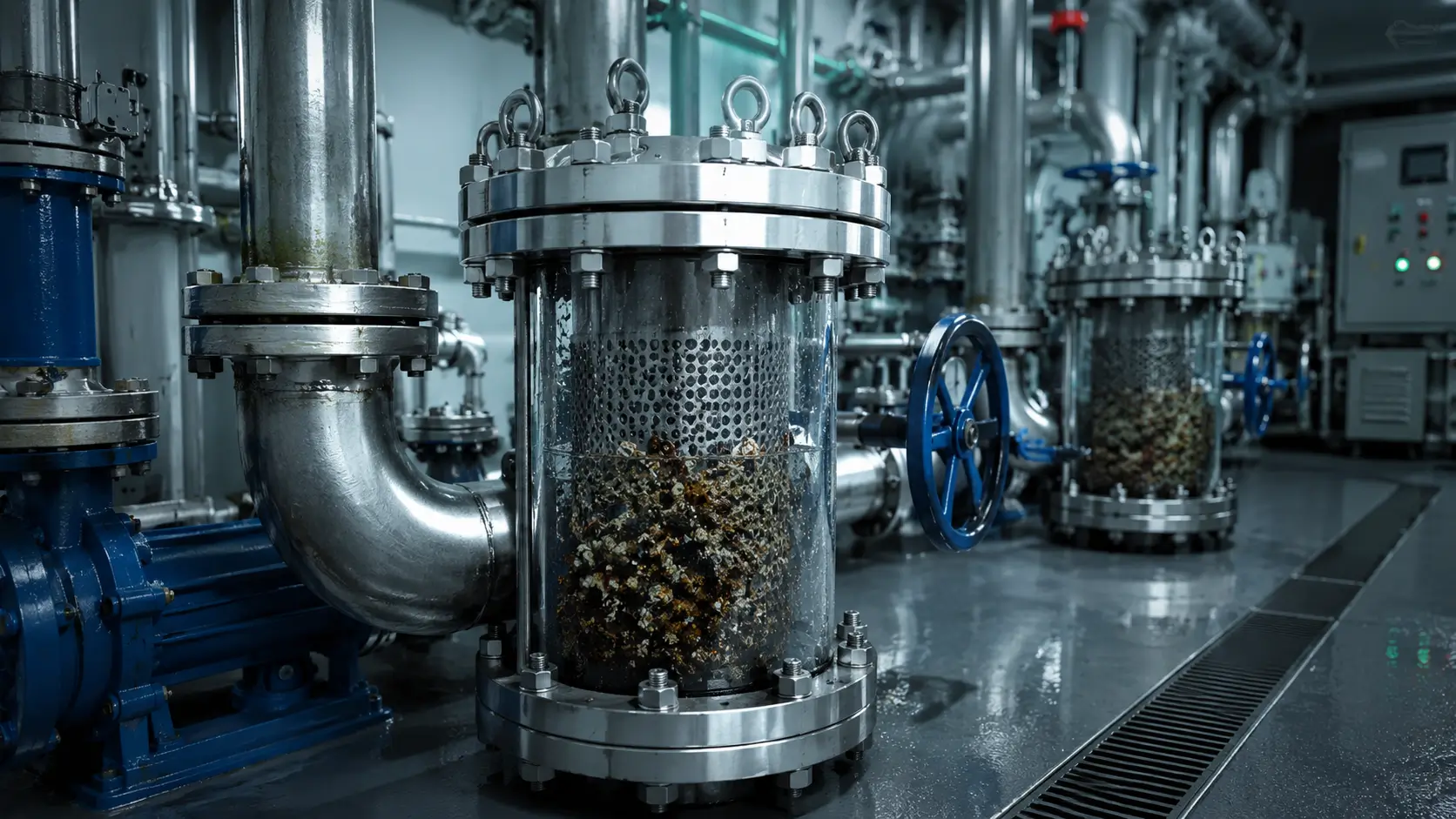

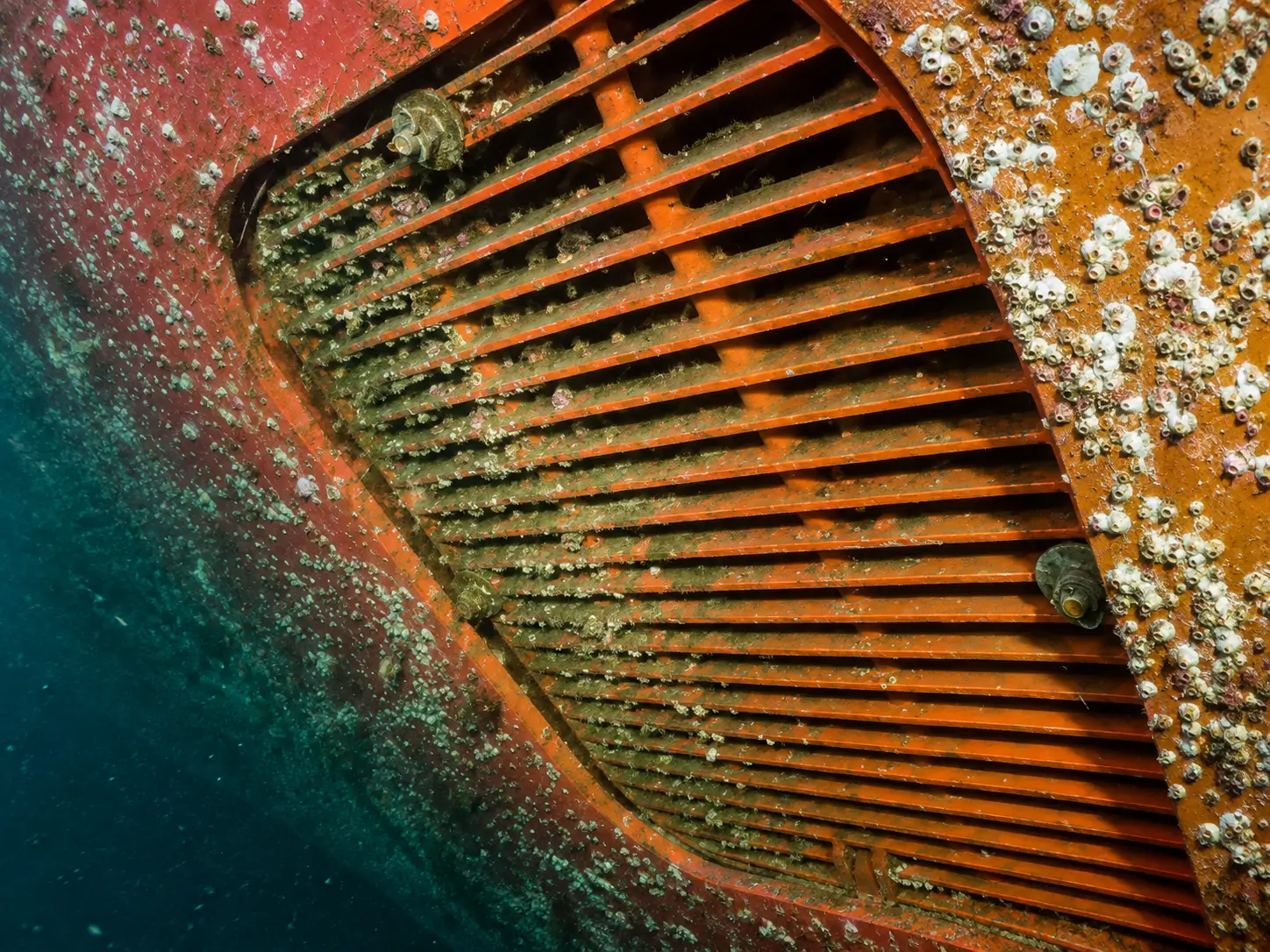

Sea Chests & Strainers
Define sea chest volume/flow, inlet arrangement, material/coating, anode location, controller channels and inspection access.

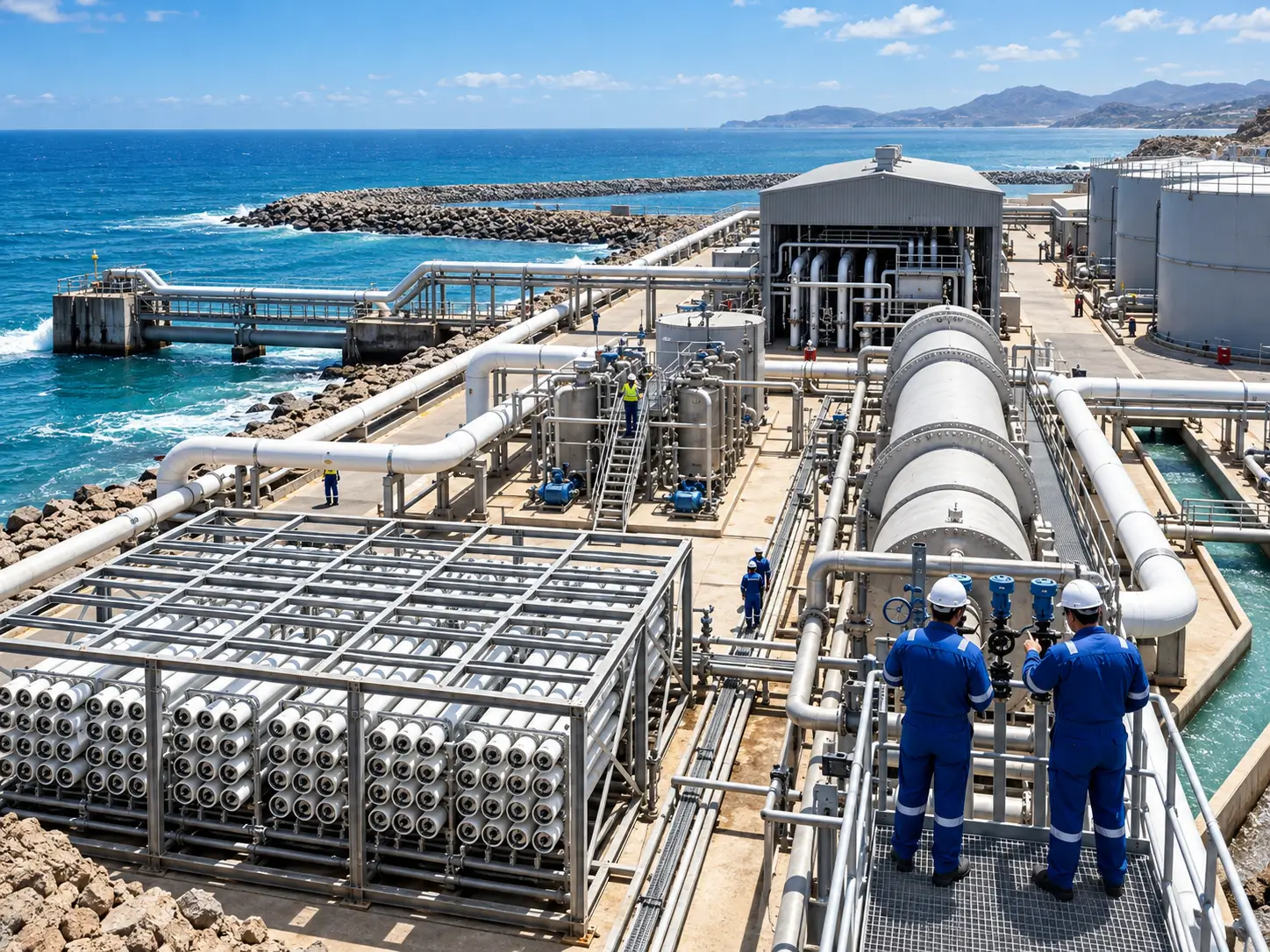

Offshore Seawater Intakes
Review continuous/intermittent flow, seawater conditions, intake geometry, current distribution, access and offshore documentation.

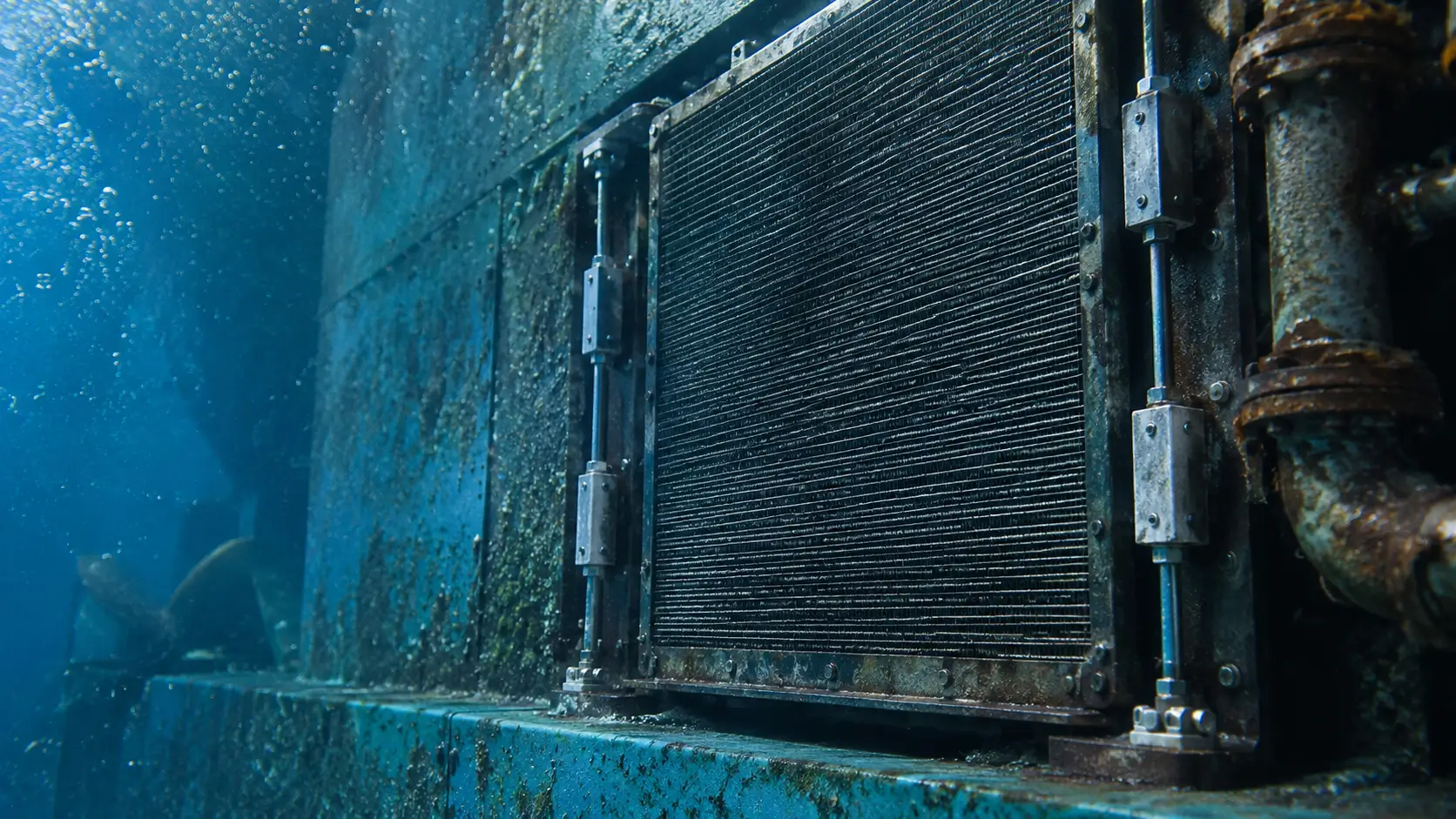

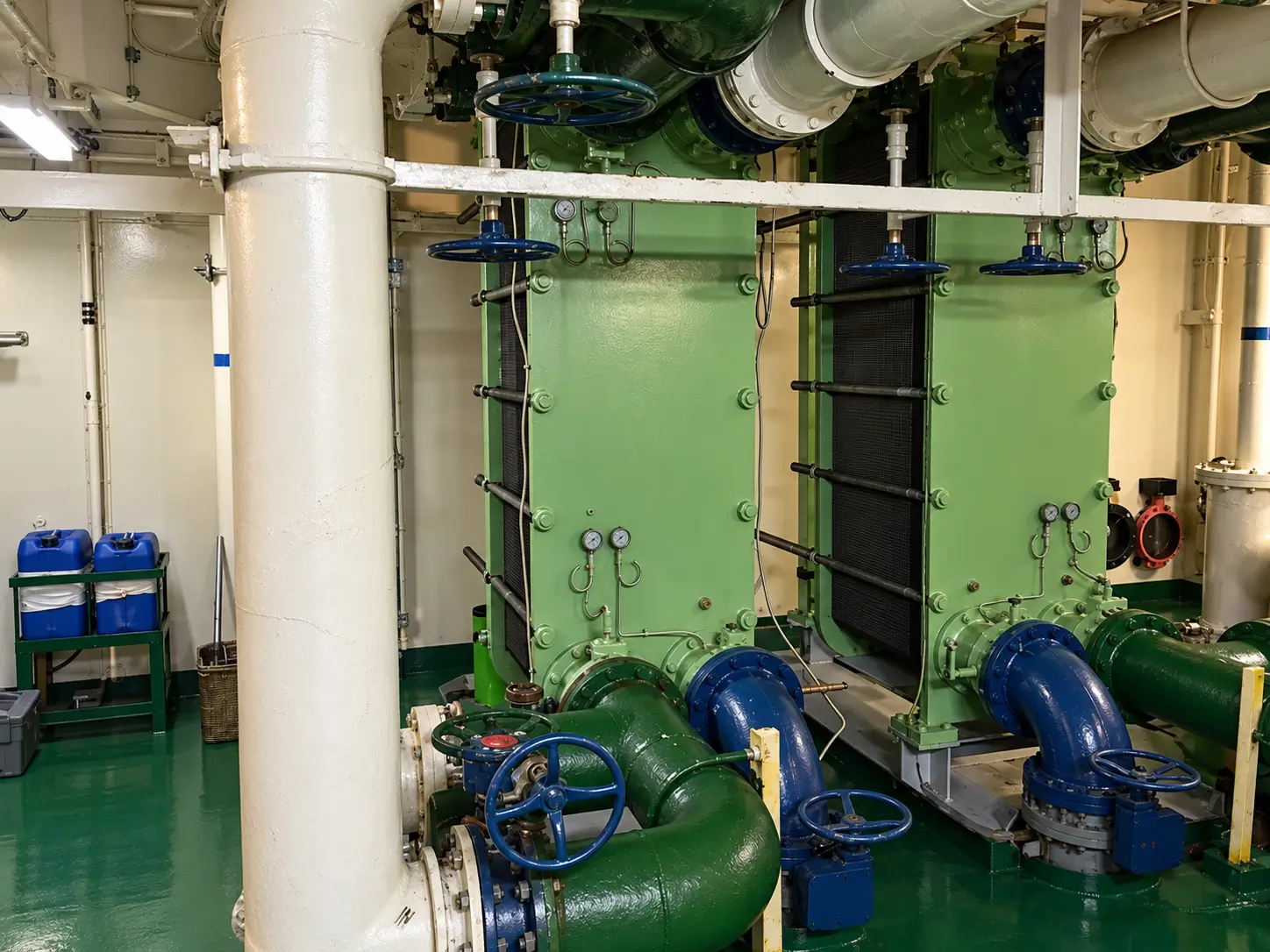

Box Coolers & Heat Exchangers
Map ion transport, flow path, cooler materials, anode placement, concentration risk and maintenance/retrieval.

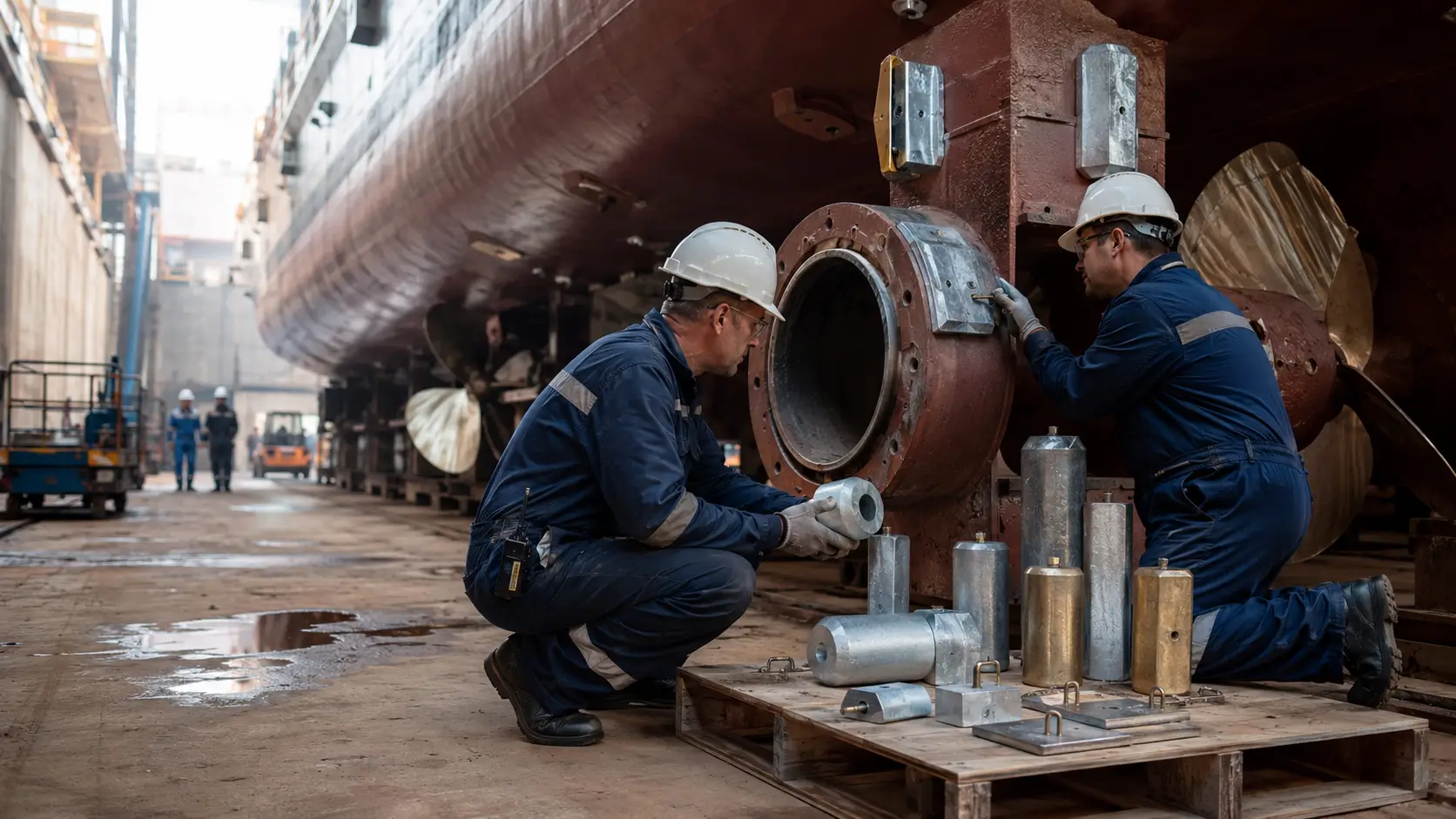

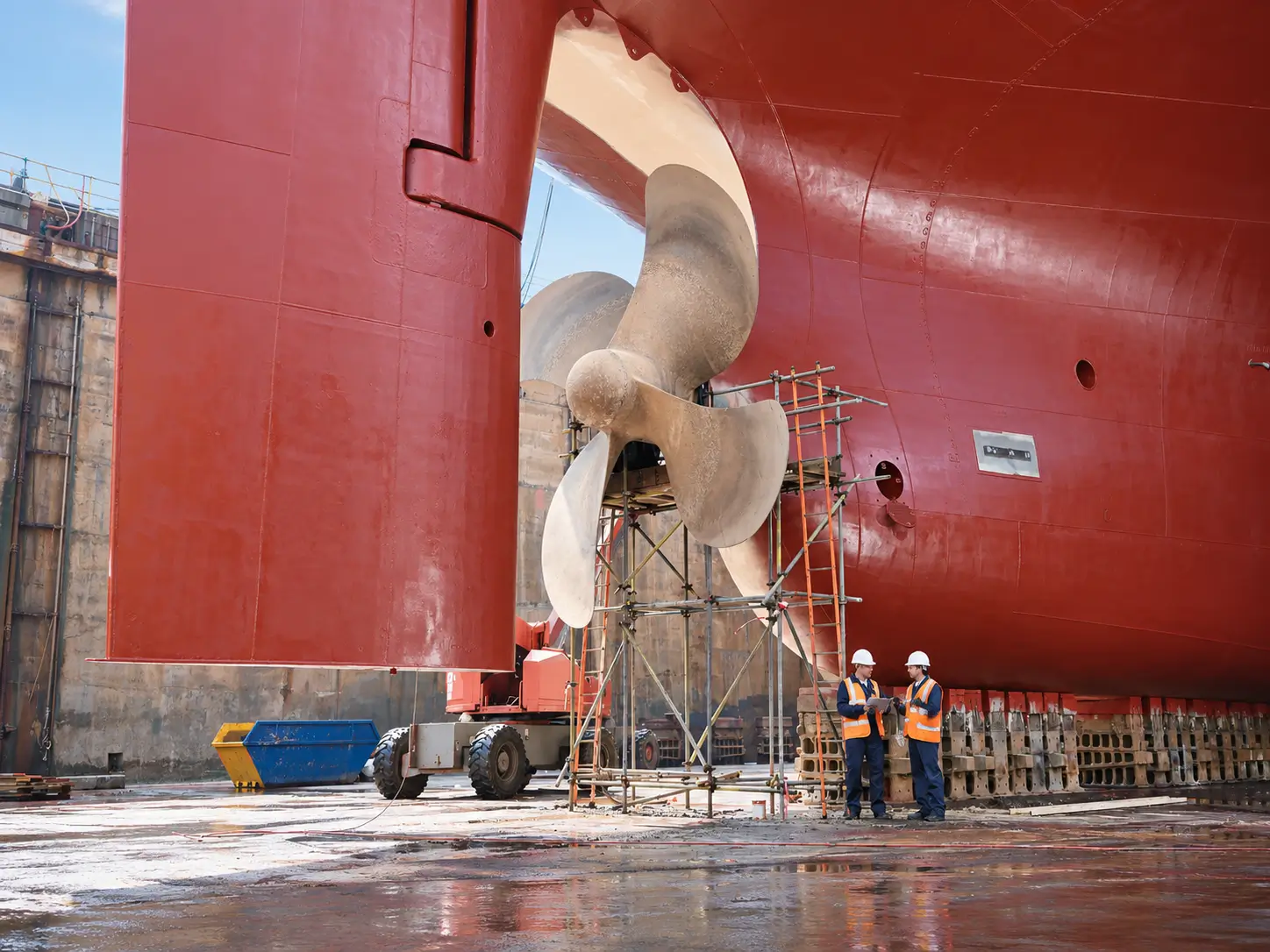

Retrofit & Fleet Maintenance
Use vessel/system records, drawings, controller data, remaining anodes and failure/consumption history to qualify replacements.
Technology Boundary
MGPS / ICAF Is Not Sacrificial Cathodic Protection

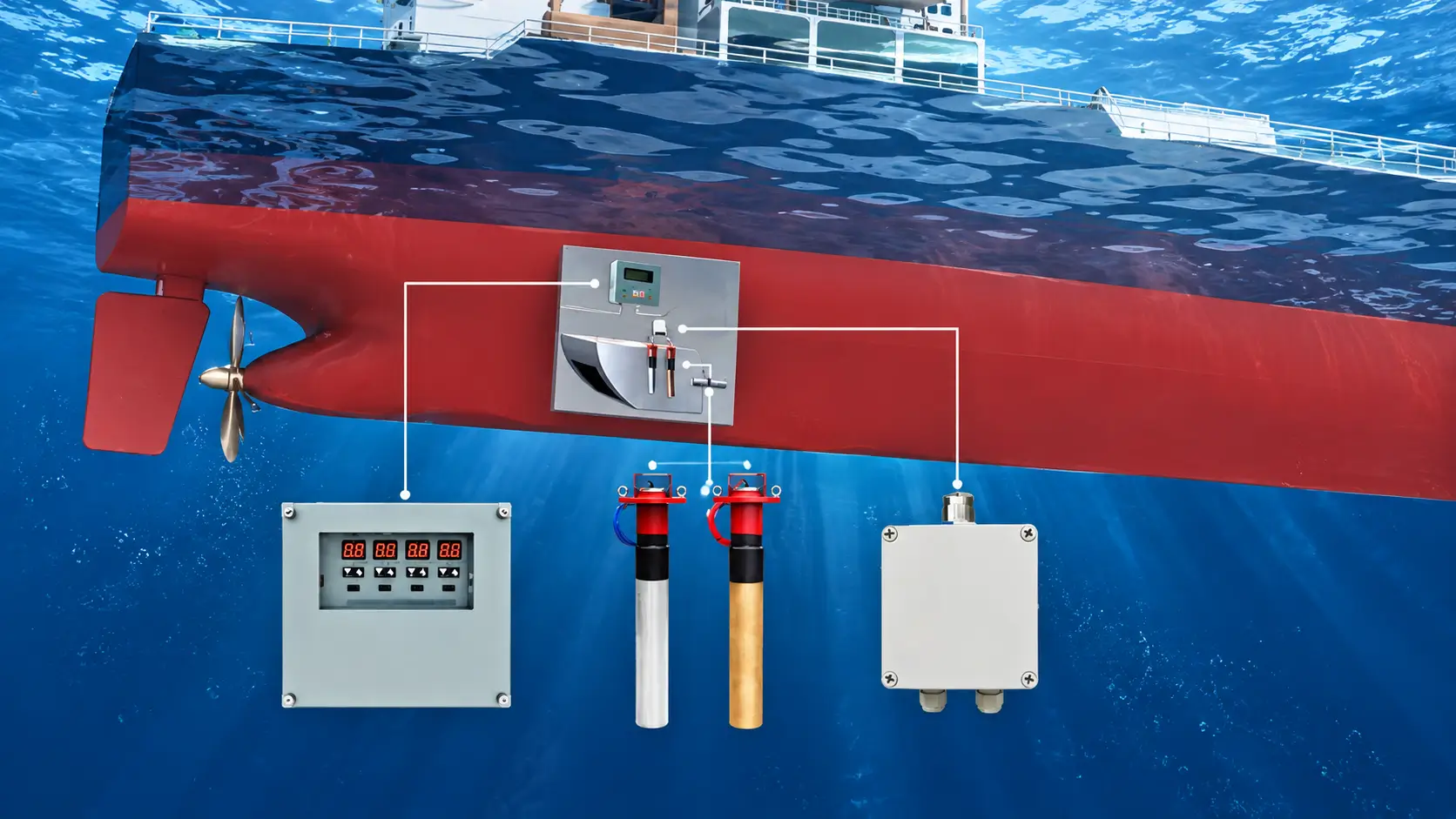

MGPS uses a power/control unit to apply current to anti-fouling and system-specific anodes. ICCP protects submerged metal structures against corrosion, while sacrificial anodes operate without an external rectifier. These systems may coexist but must not be conflated in drawings, wiring, controls or maintenance.
Before comparison
Align operating conditions, included equipment, measurement basis, acceptance method, documents, responsibility, exclusions and commercial terms. A product name or headline number is not a normalized quotation.
Manufacturing & Supply Scope
What HELE Can Manufacture, Match and Document for Existing MGPS
HELE can review new or replacement MGPS anodes against their electrochemical function, material, controller duty, seawater circuit, mounting, cable and sealing interfaces. The approved drawing and existing-system evidence control equivalence.
01 · System Review
Identify the Existing MGPS Duty
Review vessel or asset, seawater circuit, controller channel, operating current, flow, piping material and replacement history.
Typical order output: System-input summary and compatibility questions.

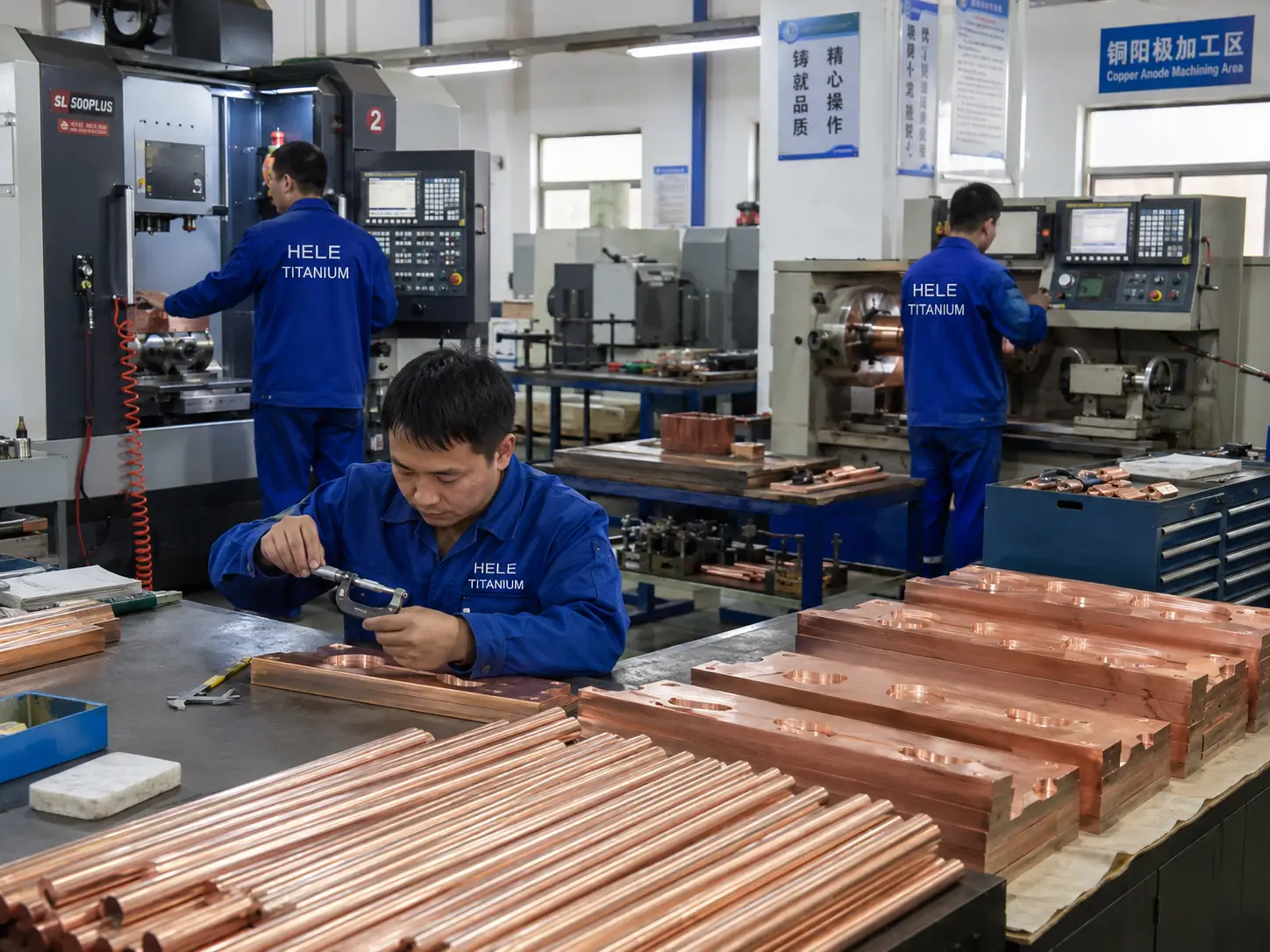

02 · Material Function

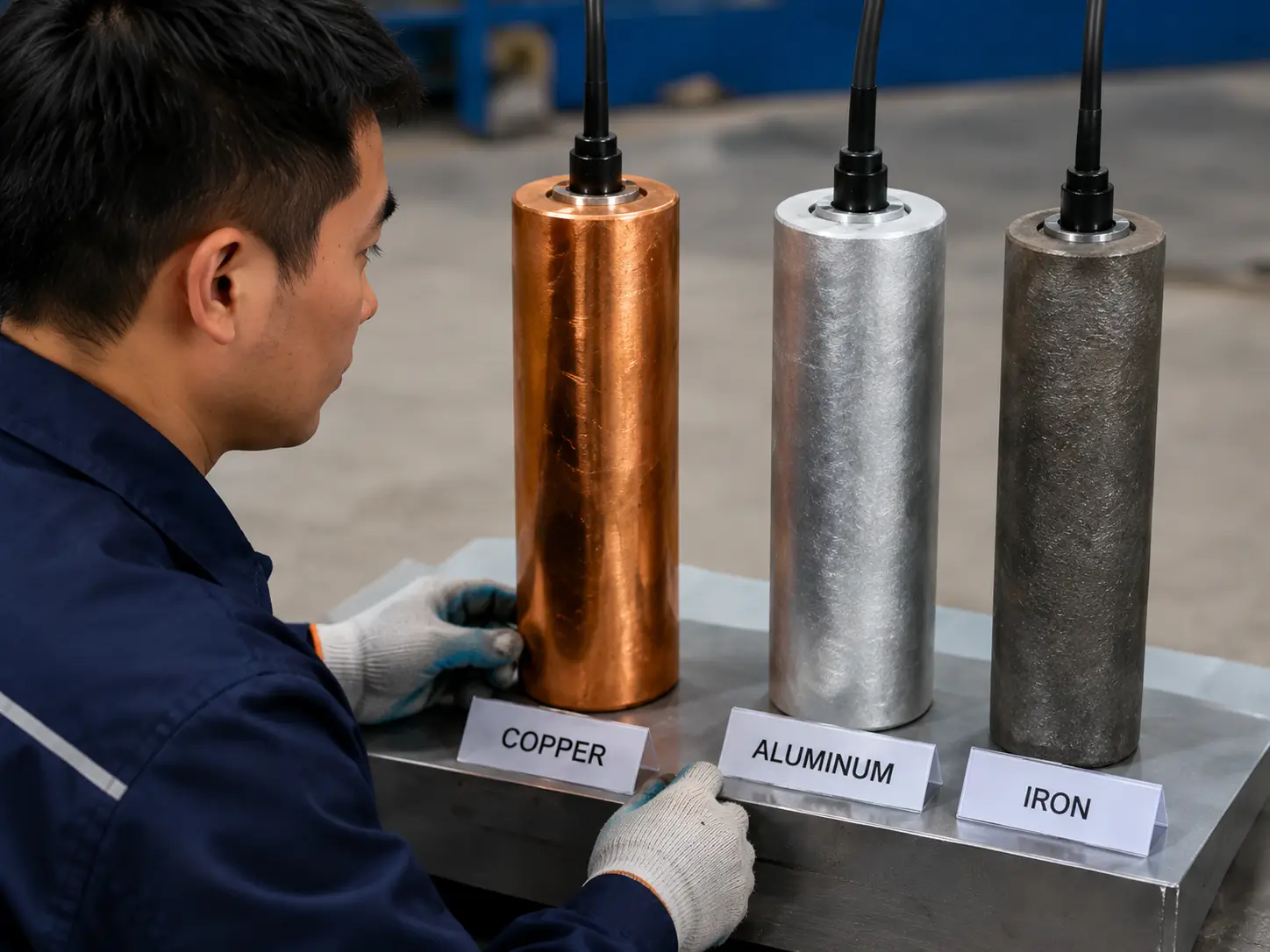

Match Copper, Aluminum or Iron
Confirm the anode material and its anti-fouling or conditioning role rather than treating different metals as interchangeable.
Typical order output: Approved material and functional definition.

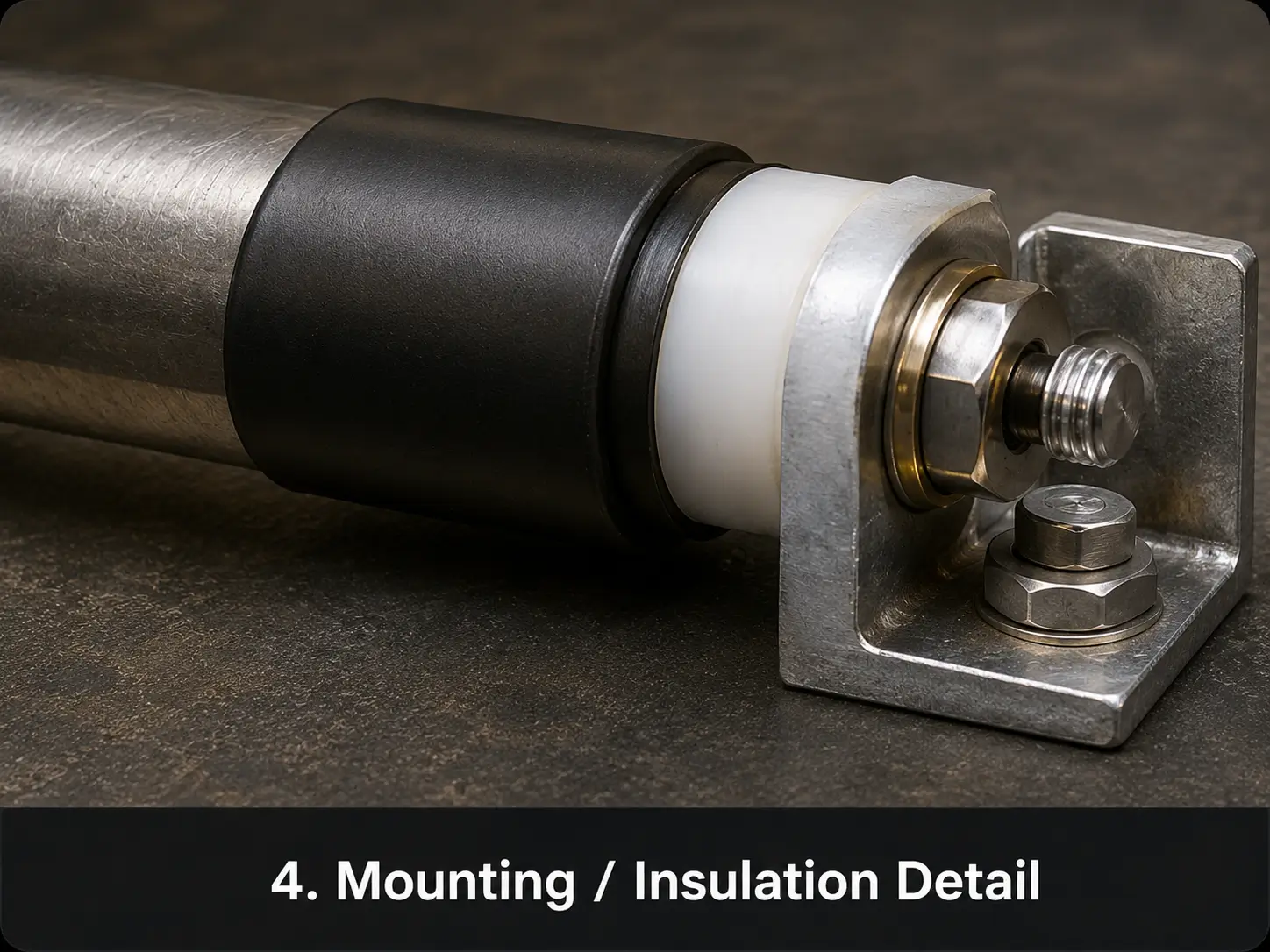

03 · Mechanical Match
Freeze Geometry and Mounting
Control active length, diameter, flange or thread, insertion, housing, insulation, sealing and removal access against the drawing.
Typical order output: Reviewed replacement drawing and dimensional points.

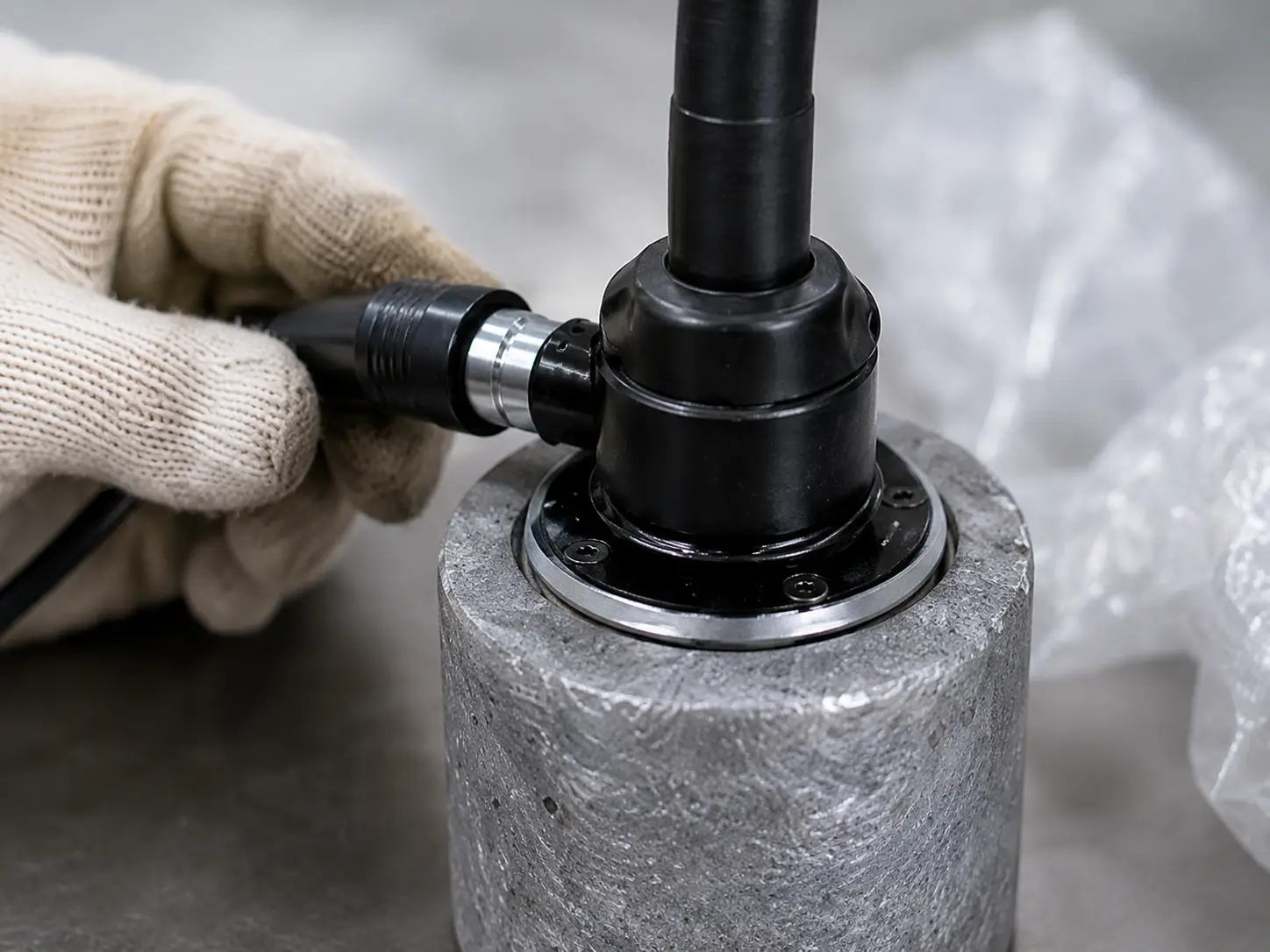

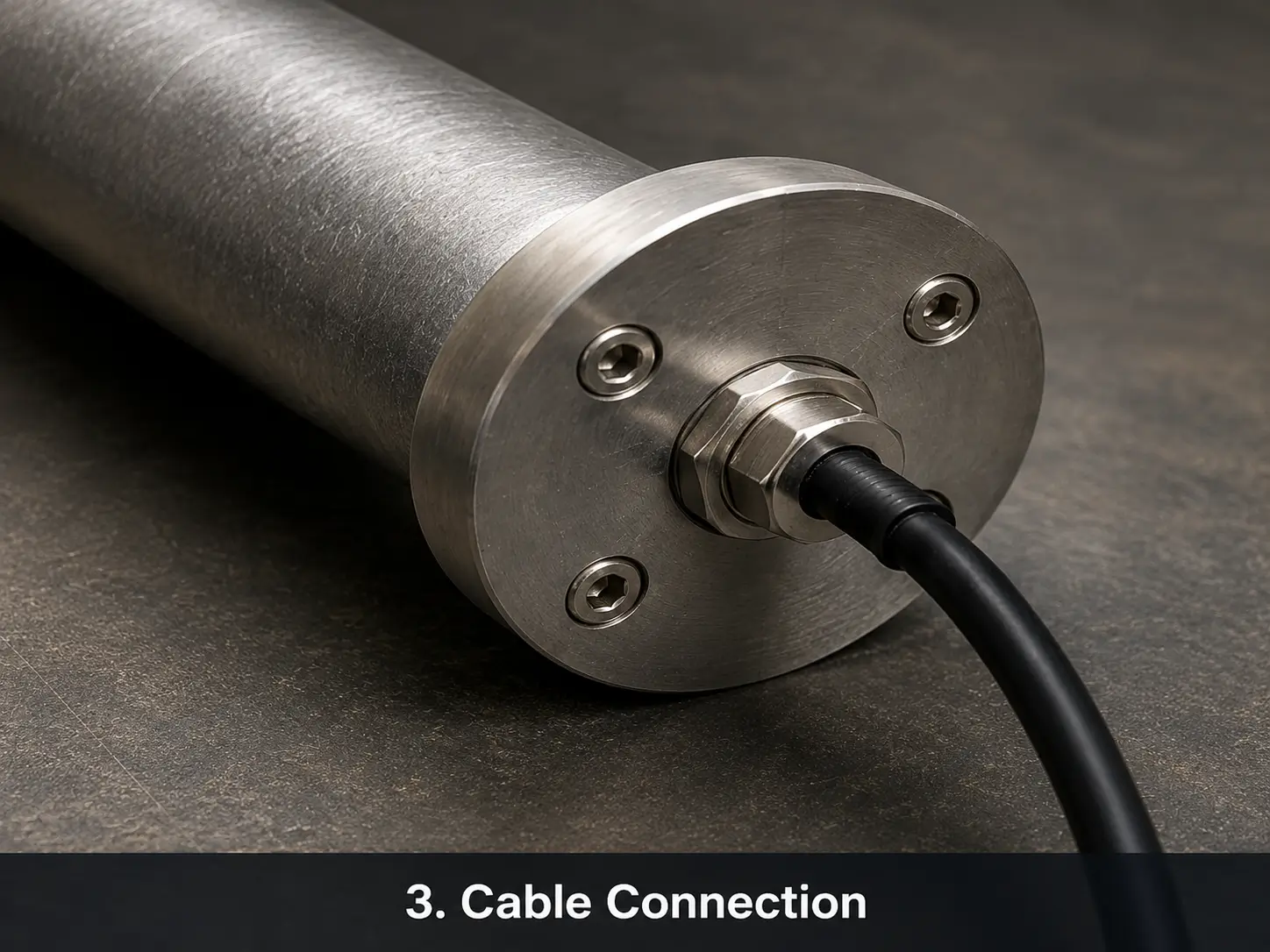

04 · Cable & Connection
Control the Electrical Interface
Define conductor, cable length, gland, seal, strain relief, termination, insulation, continuity and controller connection.
Typical order output: Connection schedule and inspection basis.

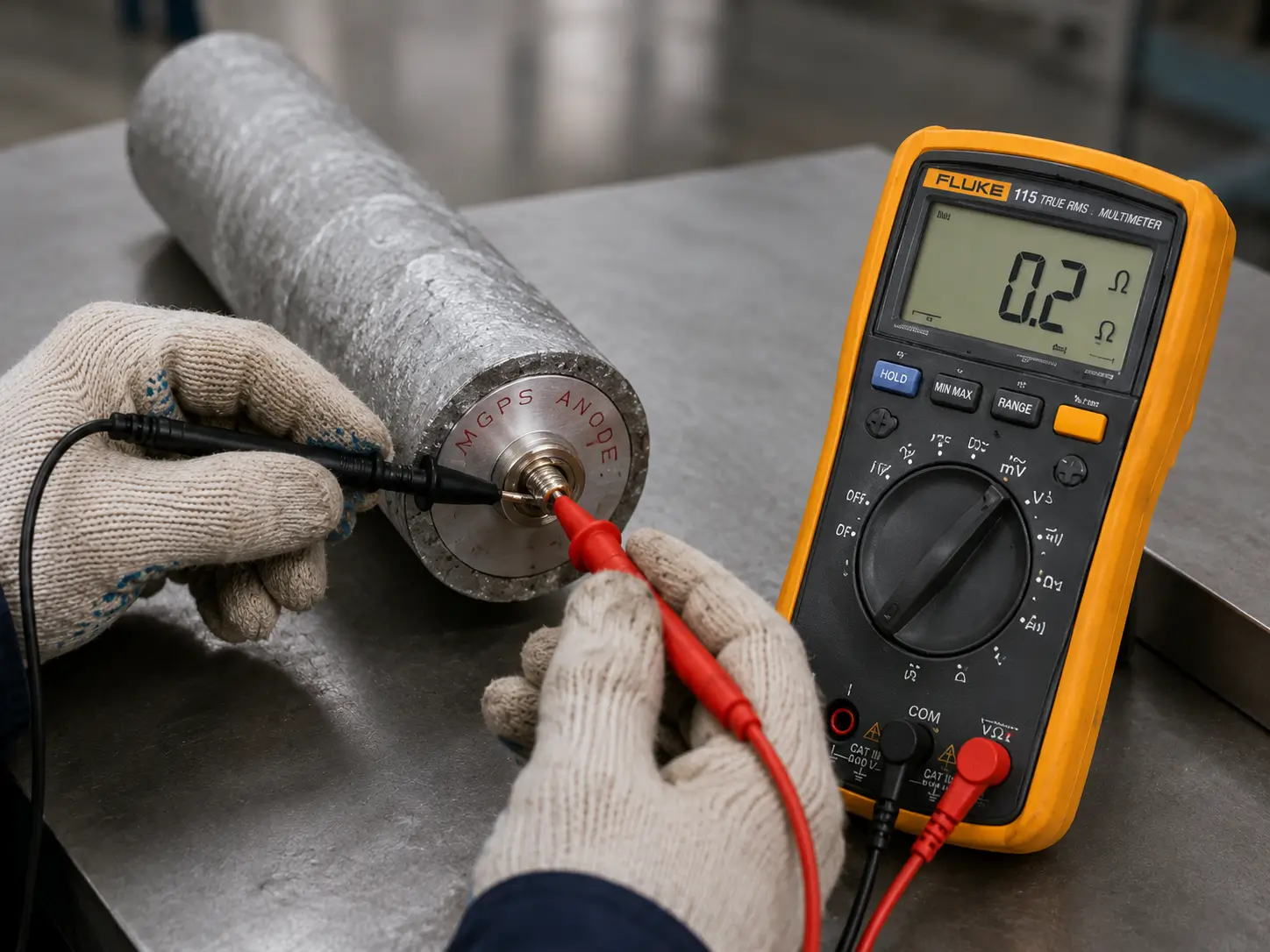

05 · Verification
Inspect the Ordered Anode

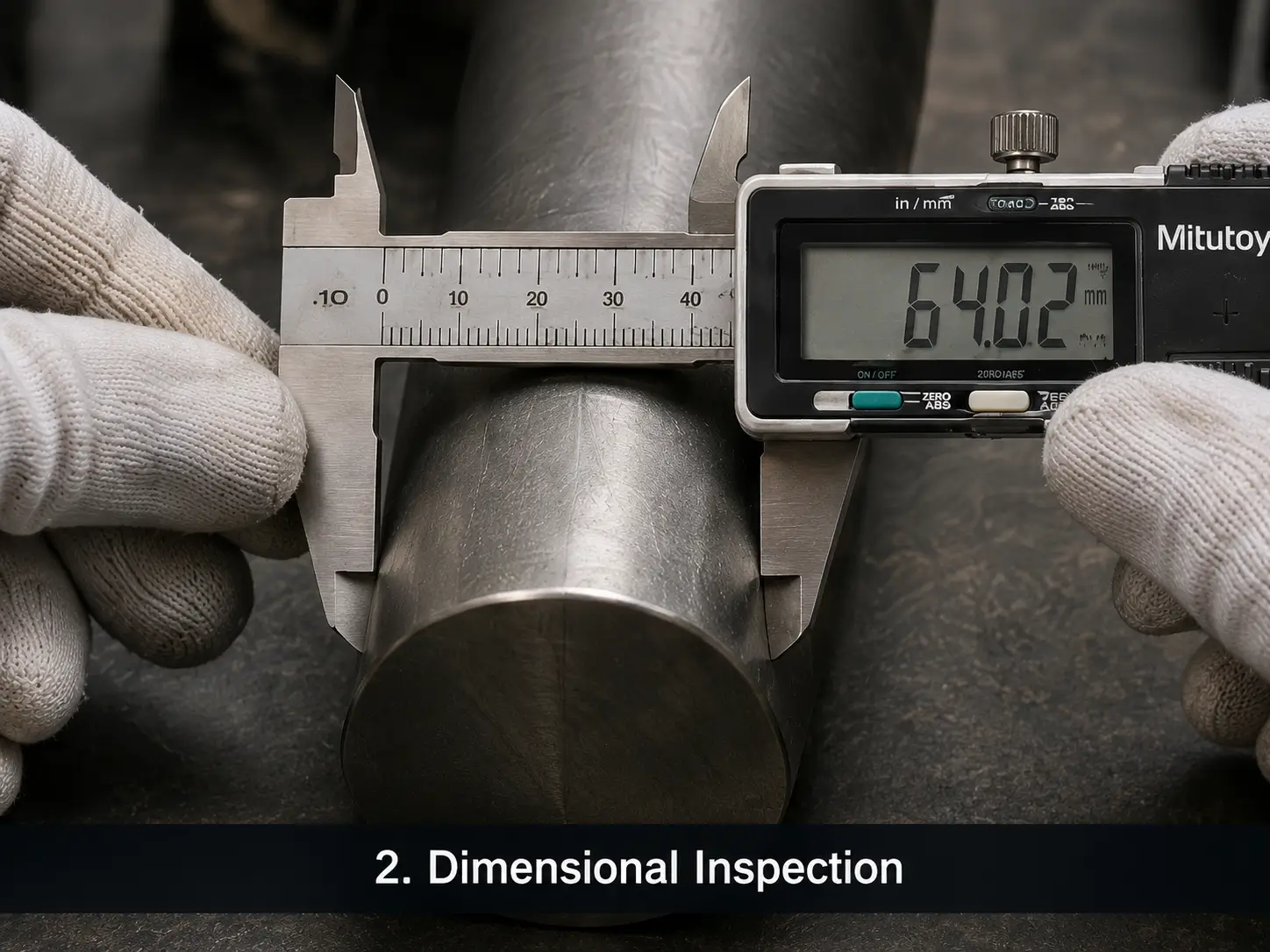

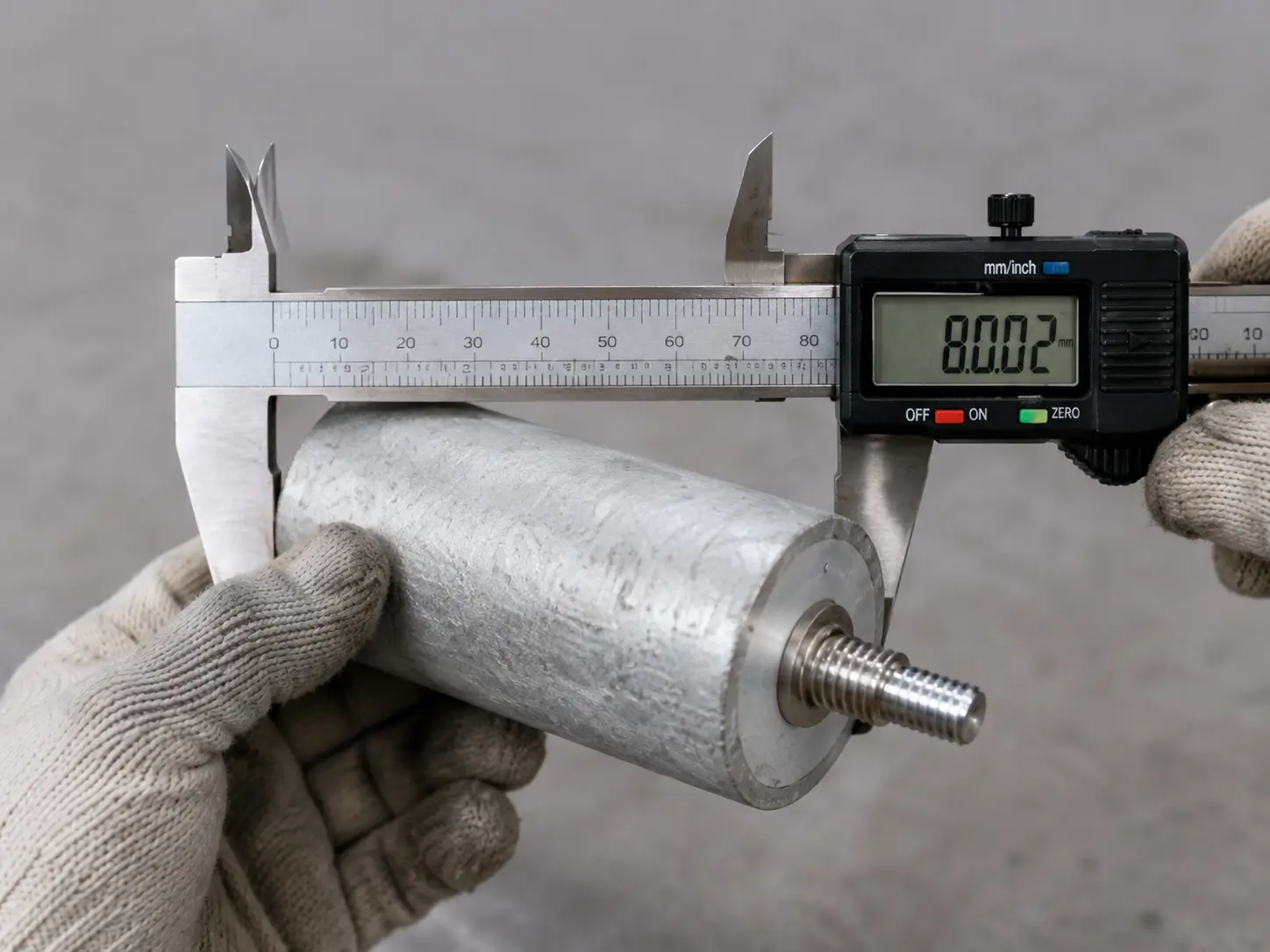

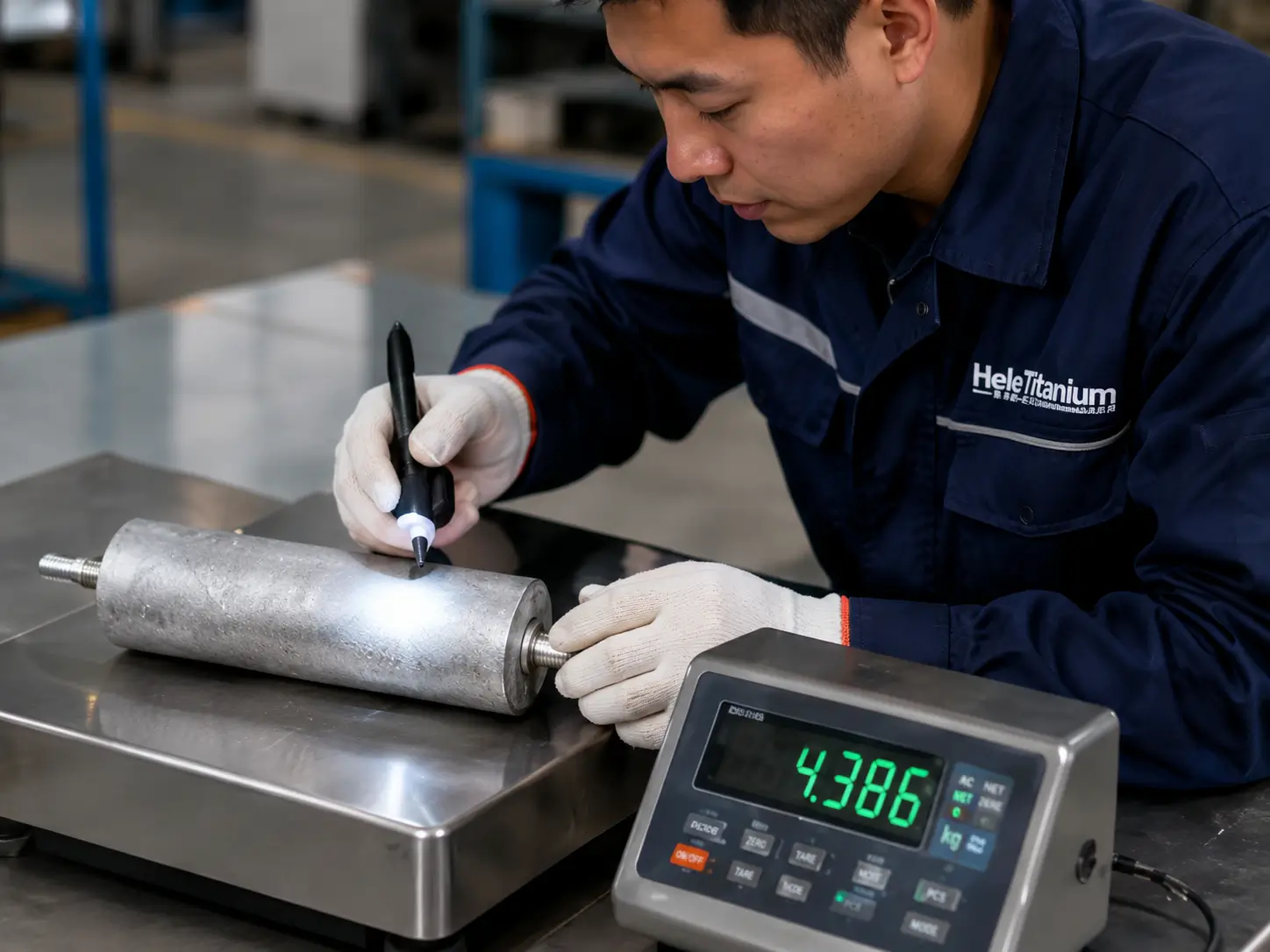

Verify material identity, dimensions, mounting, sealing, cable, connection, marking and order-specific electrical requirements.
Typical order output: Inspection and traceability records.

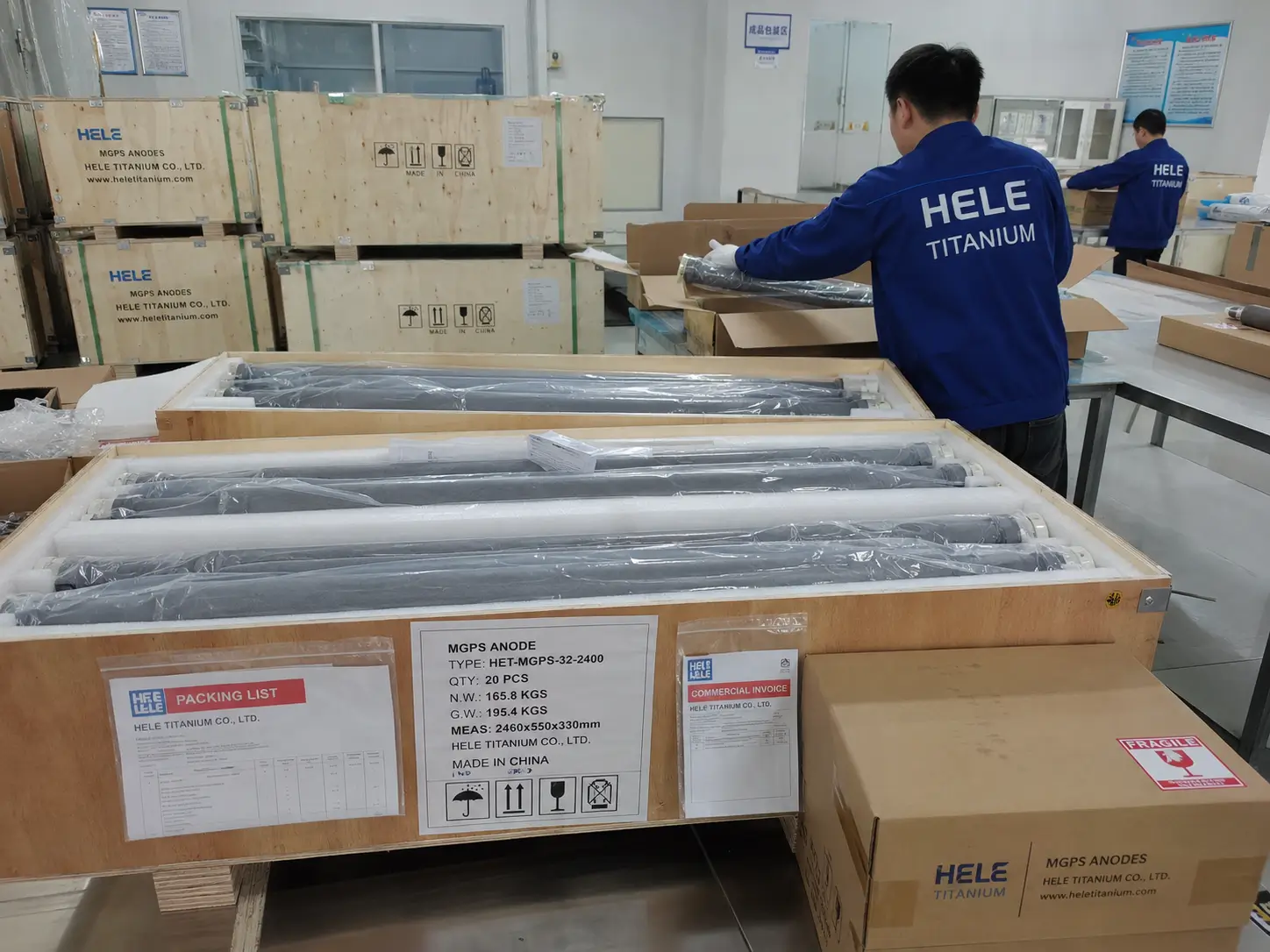

06 · Release
Link the Anode to the Vessel and Channel

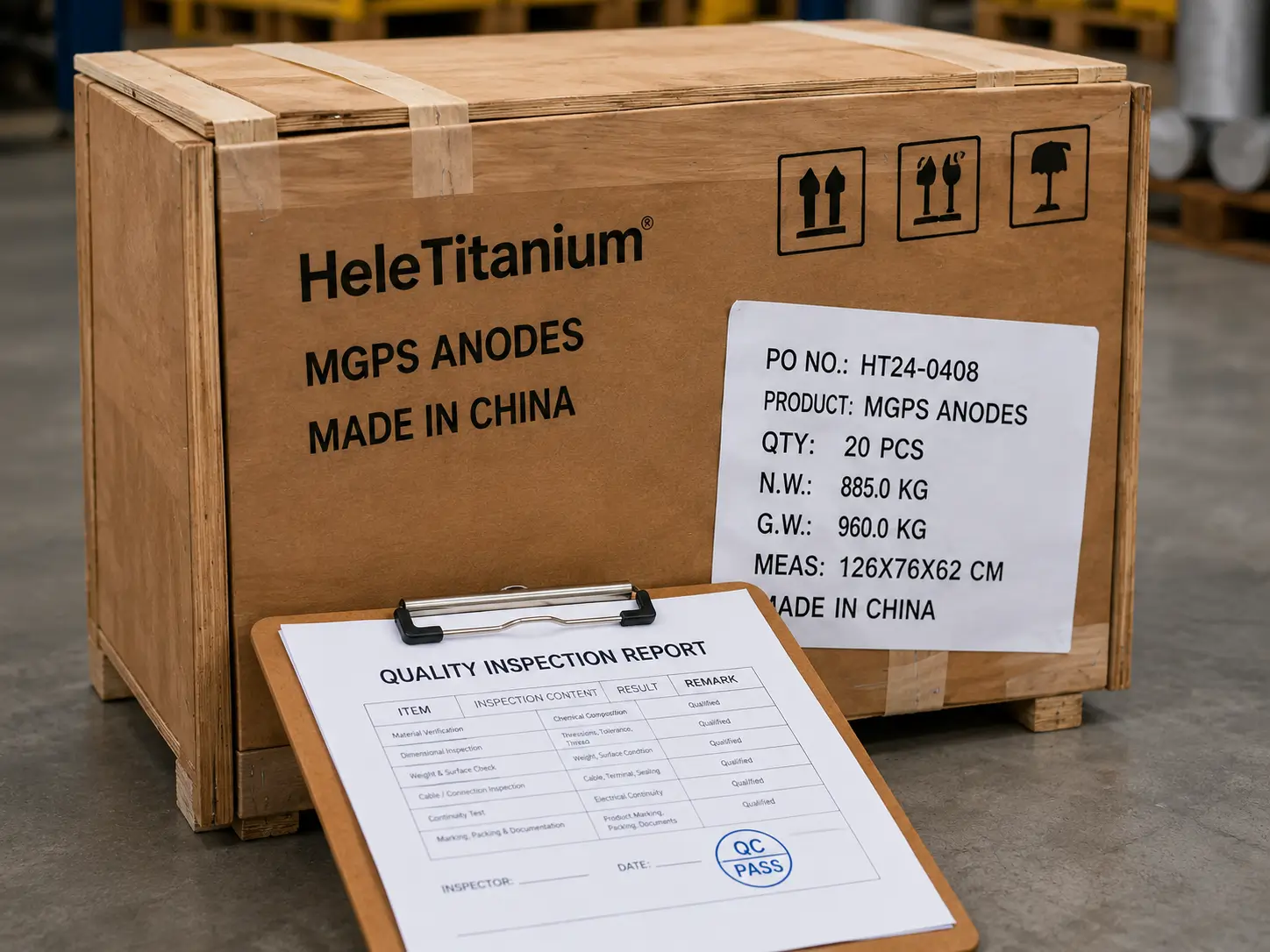

Coordinate anode identity, drawing, controller or channel reference, packing, vessel documents and replacement records.
Typical order output: Order-specific release and packing package.
Responsibility Boundary
Define What Is Included Before Order Release
Outside dimensions alone do not prove compatibility. Consumption, ion release and anti-fouling performance depend on controller output, seawater conditions, flow, anode distribution, operating time and the condition of the existing MGPS.
Order rule: only the signed quotation, approved drawings, equipment or material schedule, inspection plan and responsibility matrix define the final HELE supply.
Before Requesting a Quote
Define the Existing MGPS Function and Interface Before Quotation
Replacement MGPS anodes should be matched to their electrochemical role, controller, housing, seawater circuit and mechanical interfaces. Dimensions alone do not establish functional compatibility.
- Confirm whether copper, aluminum or iron is required and its system function.
- Provide controller output, channel arrangement and operating-current history.
- State seawater conditions, flow, piping material and protected equipment.
- Freeze dimensions, flange or housing, sealing and pressure-boundary interfaces.
- Define cables, glands, terminals, inspection evidence and replacement records.
Do not release a purchase order with only:
- An “MGPS anode” request with no material or functional role
- A replacement copied from dimensions alone
- Copper, aluminum and iron anodes treated as interchangeable
- Replacement interval stated without current, operating time or consumable mass
- Controller and cable compatibility assumed without interface data
FAQ
Procurement FAQs
Are MGPS anodes sacrificial anodes?
Not in the ordinary galvanic CP sense. MGPS/ICAF anodes operate with a controlled DC supply and system-specific anti-fouling or conditioning functions.
What is the role of a copper MGPS anode?
Copper anodes commonly support anti-fouling ion generation, but output, placement and concentration depend on the complete system design and seawater flow.
Are aluminum and iron MGPS anodes interchangeable?
No. Their role, material, current, pairing and compatibility depend on the original MGPS/ICAF design and controller.
Can a replacement be copied from dimensions only?
No. Material, active length/mass, current, controller channel, mounting, insulation, cable/gland, pressure boundary and system role must also match.
How is replacement interval determined?
It depends on active mass/length, material, operating current and hours, seawater conditions, flow, controller behavior and the defined replacement threshold.
What documents are needed for a vessel project?
Confirm drawing, material/inspection records, cable/connection evidence, marking, packing, class/owner witness and the vessel’s technical-document requirements.
Requirement Review
Send the Project Data You Already Have
A drawing, process note, water analysis, existing-system record or specification is enough to begin. Unknown items can remain open rather than being replaced by generic performance claims.
- ✓ Configuration and operating-window review
- ✓ Specification and interface checklist
- ✓ Testing and documentation boundary
- ✓ Quotation assumptions and exceptions
