Ru-Ir MMO Titanium Anodes for Chlorine Evolution
HELE manufactures custom Ru-Ir MMO titanium anodes for chlorine-evolution duties, with coating requirements, active area, geometry, electrical connection and inspection scope reviewed against chloride chemistry and operating conditions.
- Ru-Ir Coating
- Chlorine Evolution
- Custom Geometry
- Current Density Review
- Coating Verification
Ru-Ir MMO Anodes Engineered for Chlorine Evolution Conditions
Ru-Ir MMO anodes should be selected from the target anodic reaction, chloride chemistry, current density, temperature and operating duty—not from coating name or outside dimensions alone.

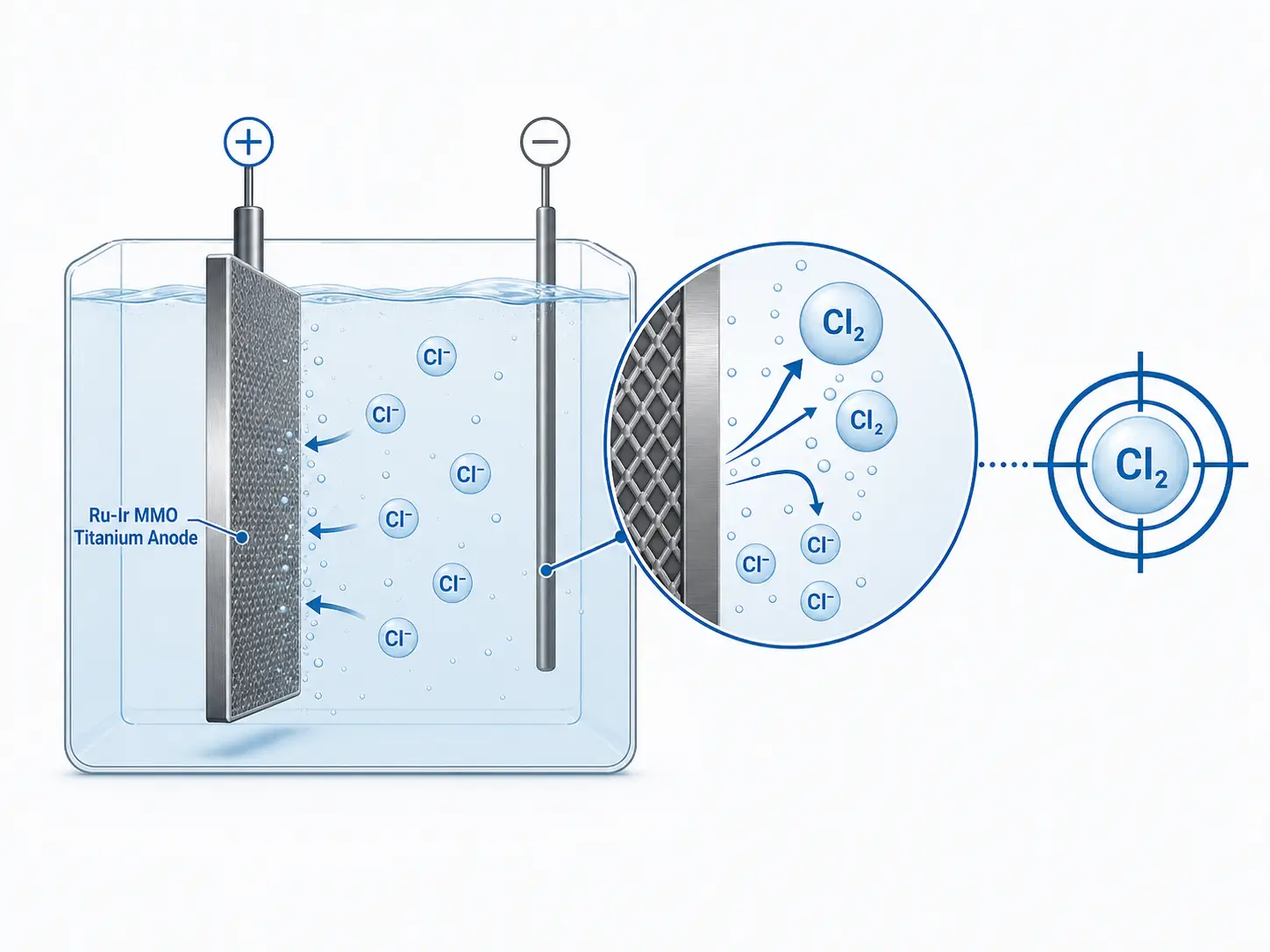

Confirm the Target Anodic Reaction
First confirm that chlorine evolution is the intended anodic reaction and identify competing reactions that may influence coating selection and current efficiency.
Review: CER Duty · Chloride Media · Competing Reactions · Process Objective

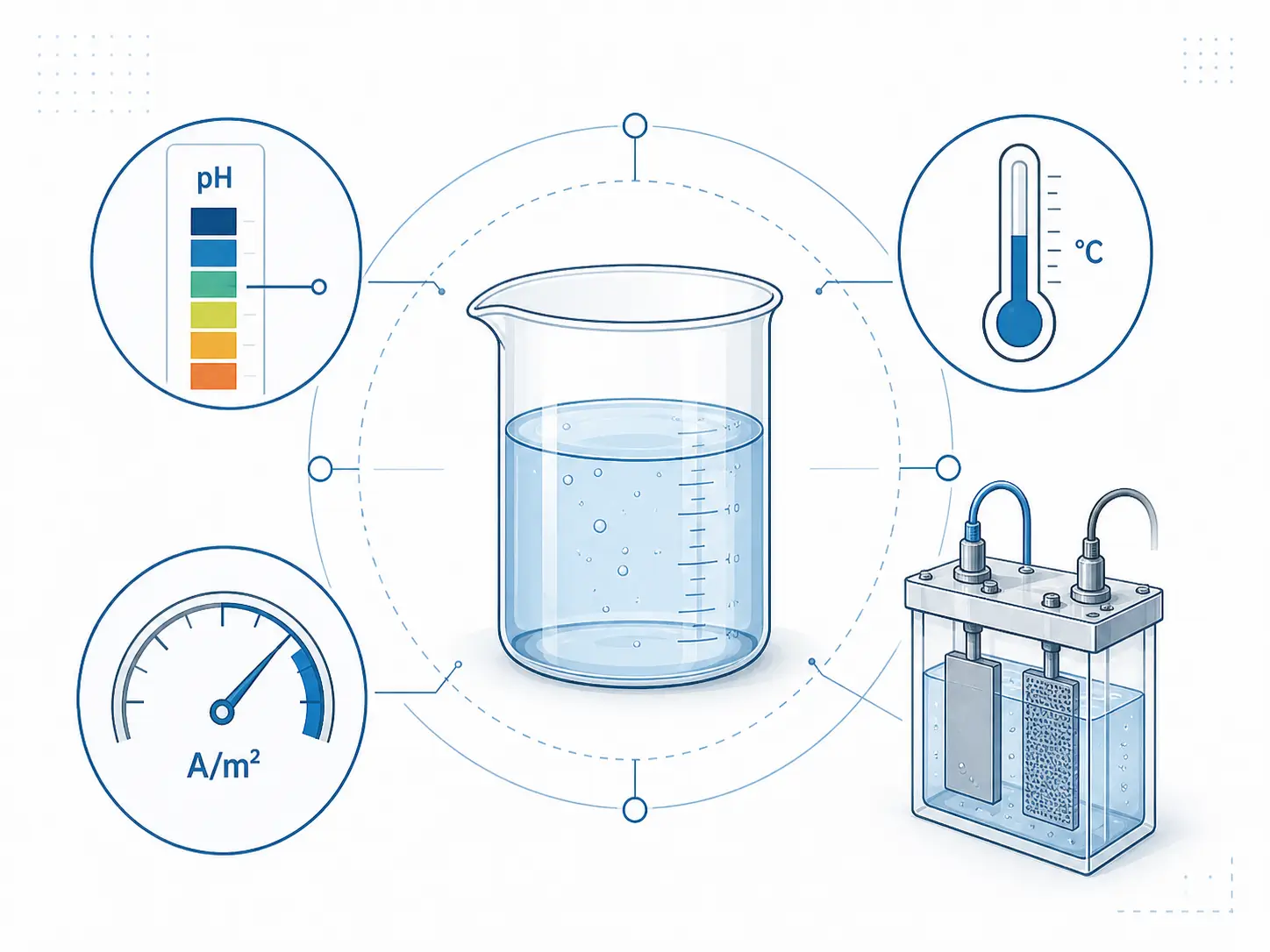

Define Chloride Chemistry
Chloride concentration, pH, temperature, conductivity, additives and contaminants should be reviewed before the Ru-Ir coating specification is confirmed.
Review: Chloride Concentration · pH · Conductivity · Additives · Contaminants
Define Current Density & Active Area
Current density, total current and effective coated area should be reviewed together because the actual electrical load influences coating duty, current distribution and anode design.
Review: Current Density · Total Current · Active Area · Electrode Spacing
Review Temperature & Operating Duty
Operating temperature, flow conditions, continuous or batch duty and target service requirements should be reviewed together with chloride chemistry and electrical loading.
Review: Temperature · Flow / Agitation · Duty Cycle · Operating Hours · Design-Life Target
Coating Selection
Based on chlorine evolution
Current Density Review
Matched to operating conditions
Batch Documentation
Records based on order requirements

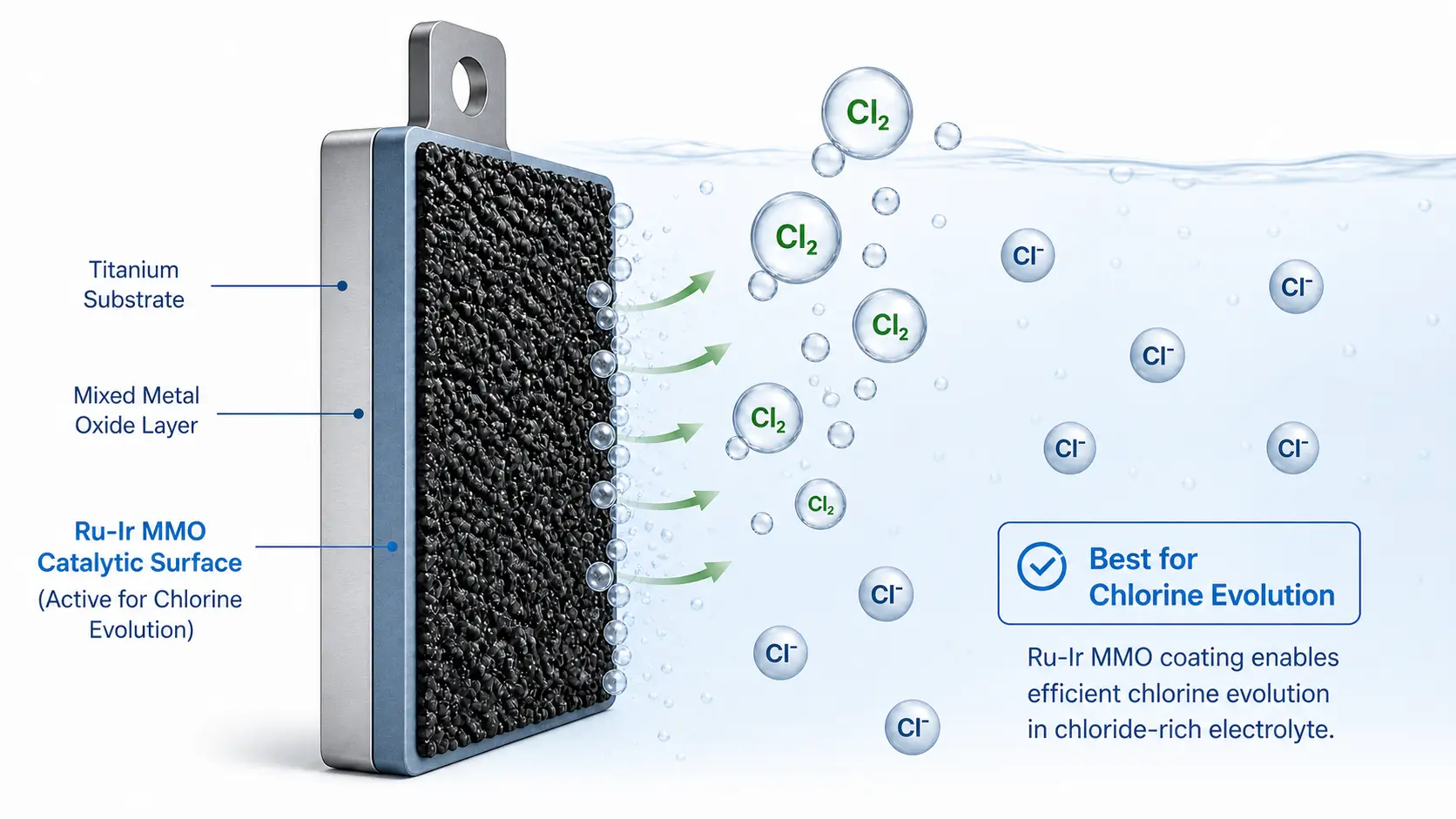

Why Ru-Ir MMO for Chlorine Evolution?
Ru-Ir mixed-metal-oxide coatings are primarily reviewed for chlorine-evolution duties in chloride-containing electrolytes. Final selection depends on the dominant anodic reaction, chloride chemistry, current density, temperature and operating duty.
Chlorine-Evolution Focus
Ru-Ir MMO coatings are commonly reviewed when chlorine evolution is the intended anodic reaction in a defined chloride-containing electrolyte.
Typical Application Direction
Electrochlorination · Hypochlorite Generation · Brine / Chloride Electrolysis

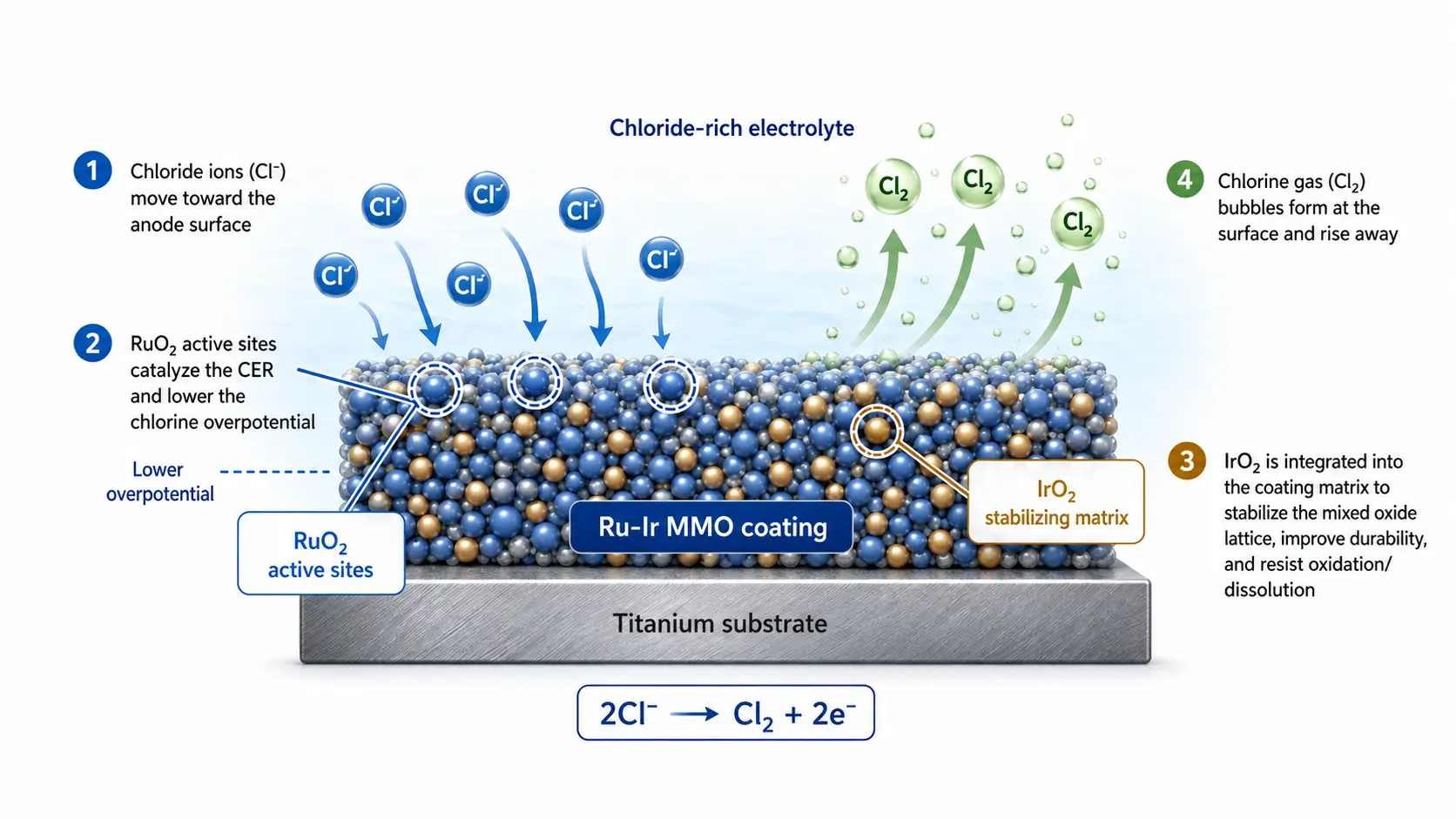

Ru-Ir Mixed-Oxide Formulation
Ruthenium- and iridium-based oxides are combined in mixed-oxide coating systems to provide the required chlorine-evolution activity and coating stability under defined operating conditions.
A Ru:Ir ratio alone does not define the complete anode specification.
When to Re-Evaluate the Coating Direction
Ru-Ir should not be selected solely because chloride is present in the electrolyte. Re-evaluate the coating direction when oxygen evolution dominates, the process is primarily sulfate- or acid-driven, aggressive contaminants are present, or the actual anodic reaction is uncertain.

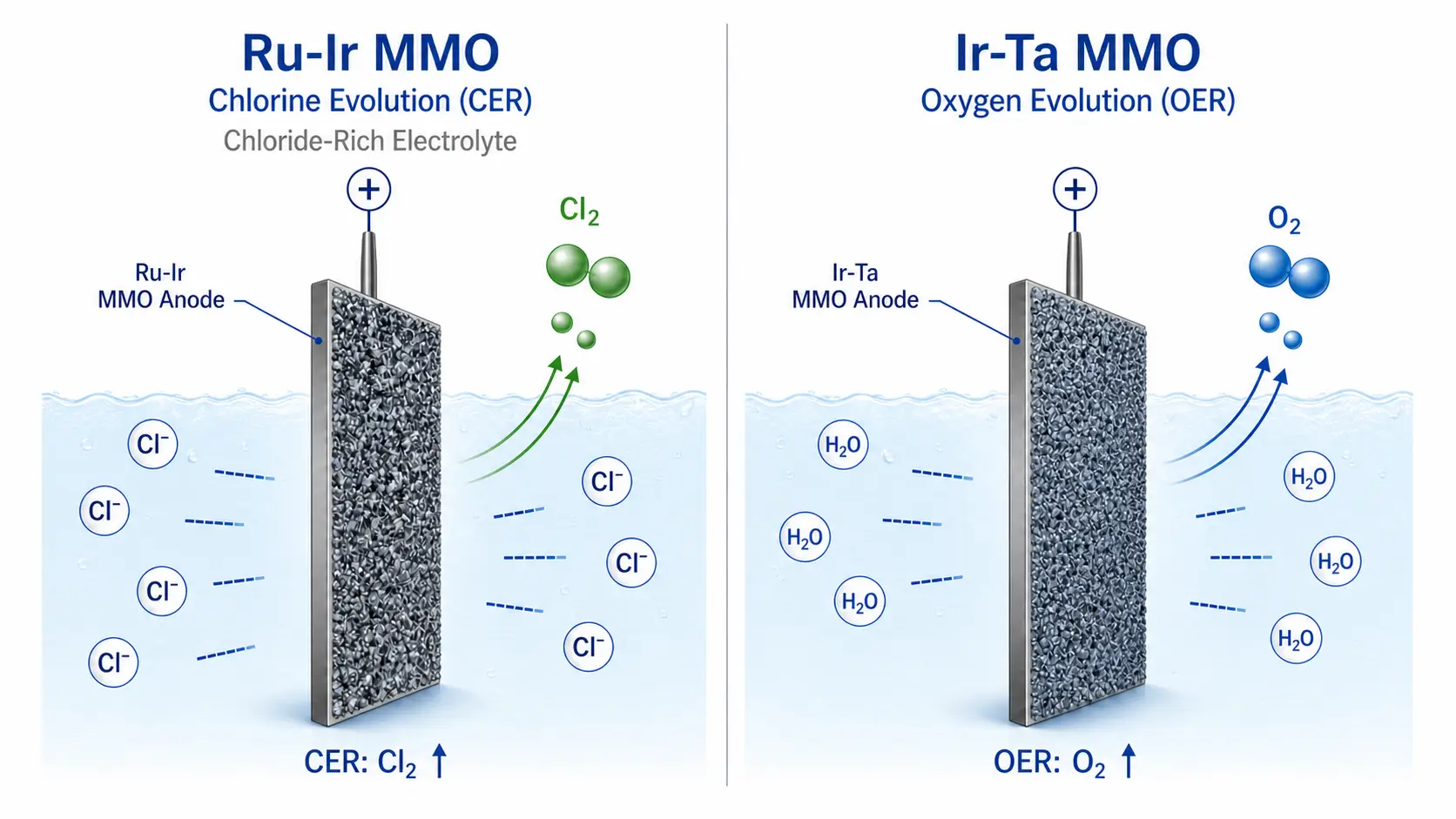

Ru-Ir vs Ir-Ta MMO Coating: Which One Should You Choose?
Start with the dominant anodic reaction. Ru-Ir MMO is primarily reviewed for chlorine-evolution duties, while IrO₂ / Ir-Ta coatings are generally the more relevant starting point for oxygen-evolution applications.
| Selection Factor | Ru-Ir MMO | IrO₂ / Ir-Ta MMO |
|---|---|---|
| Primary Reaction Direction | Chlorine Evolution | Oxygen Evolution |
| Typical Chemistry Focus | Chloride-Containing Media | Acidic / OER-Oriented Media |
| Key Chemistry Input | Chloride Concentration · pH | Electrolyte / Acid Chemistry · pH |
| Electrical Input | Current Density · Active Area | Current Density · Active Area |
| Typical Application Direction | Electrochlorination · Hypochlorite Generation · Chloride Electrolysis | Acidic Electrolysis · Selected Electroplating · Electrowinning |
| Key Operating Review | Chloride · Temperature · Current Density · Flow | Electrolyte · Temperature · Current Density · Contaminants |
| Final Selection | Project-Specific Engineering Review | Project-Specific Engineering Review |
Application name alone is not sufficient for final coating selection. Confirm the dominant anodic reaction, electrolyte chemistry, current density, temperature and operating duty before specifying the coating family.
CER or OER? Start With the Reaction
Choose the coating direction from the dominant anodic reaction—not from the words “ruthenium,” “iridium” or “MMO” alone.
Coating Stability Is Condition-Dependent
Coating behavior depends on the complete mixed-oxide formulation together with electrolyte chemistry, current density, temperature and operating duty. Individual oxide components should not be evaluated in isolation from the complete coating system.
Ru-Ir MMO Titanium Anodes by Chlorine-Evolution Application
Ru-Ir MMO anodes are primarily reviewed for chlorine-generation systems where chloride chemistry, current density, temperature, flow conditions and electrode configuration are clearly defined.

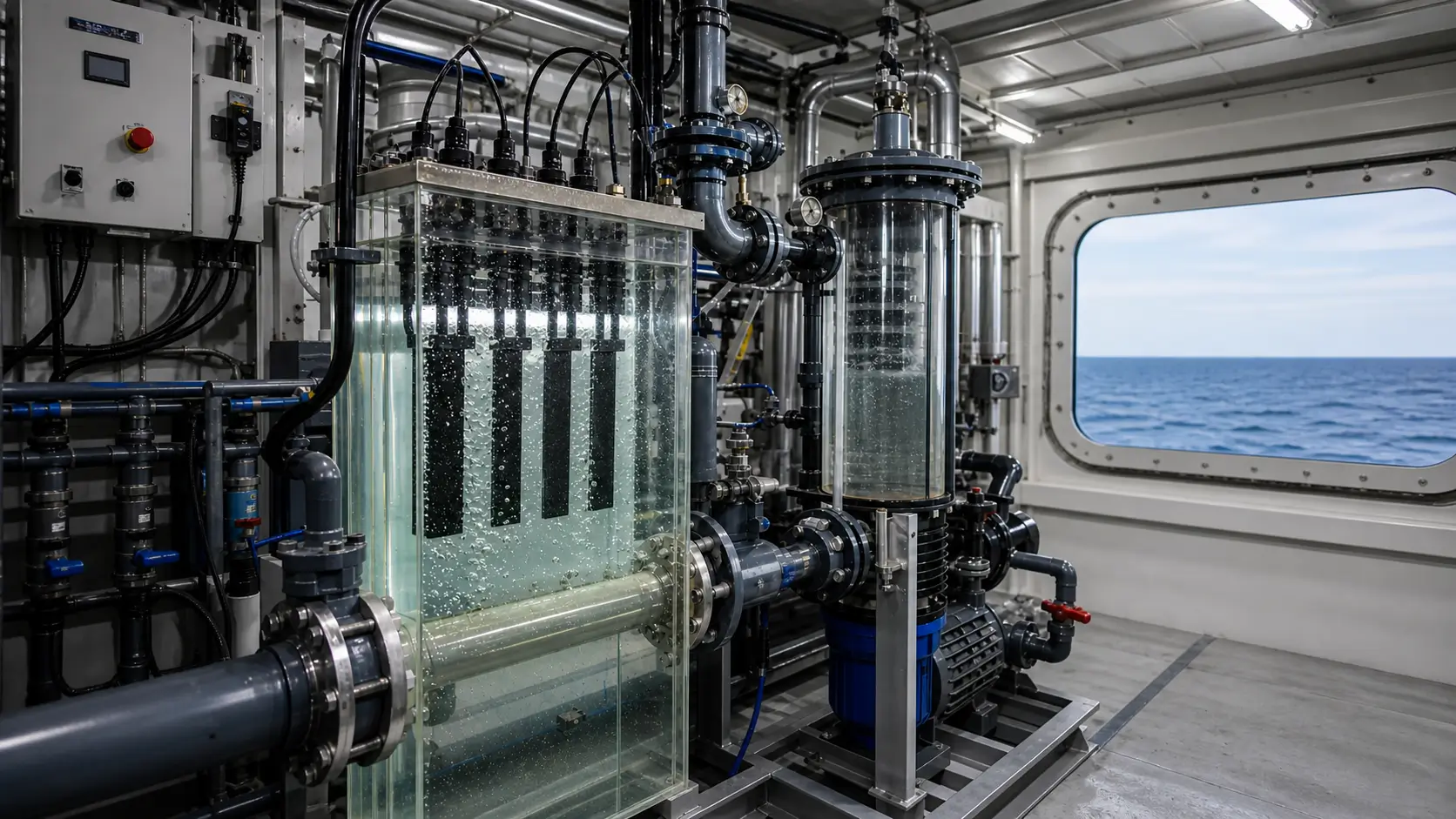

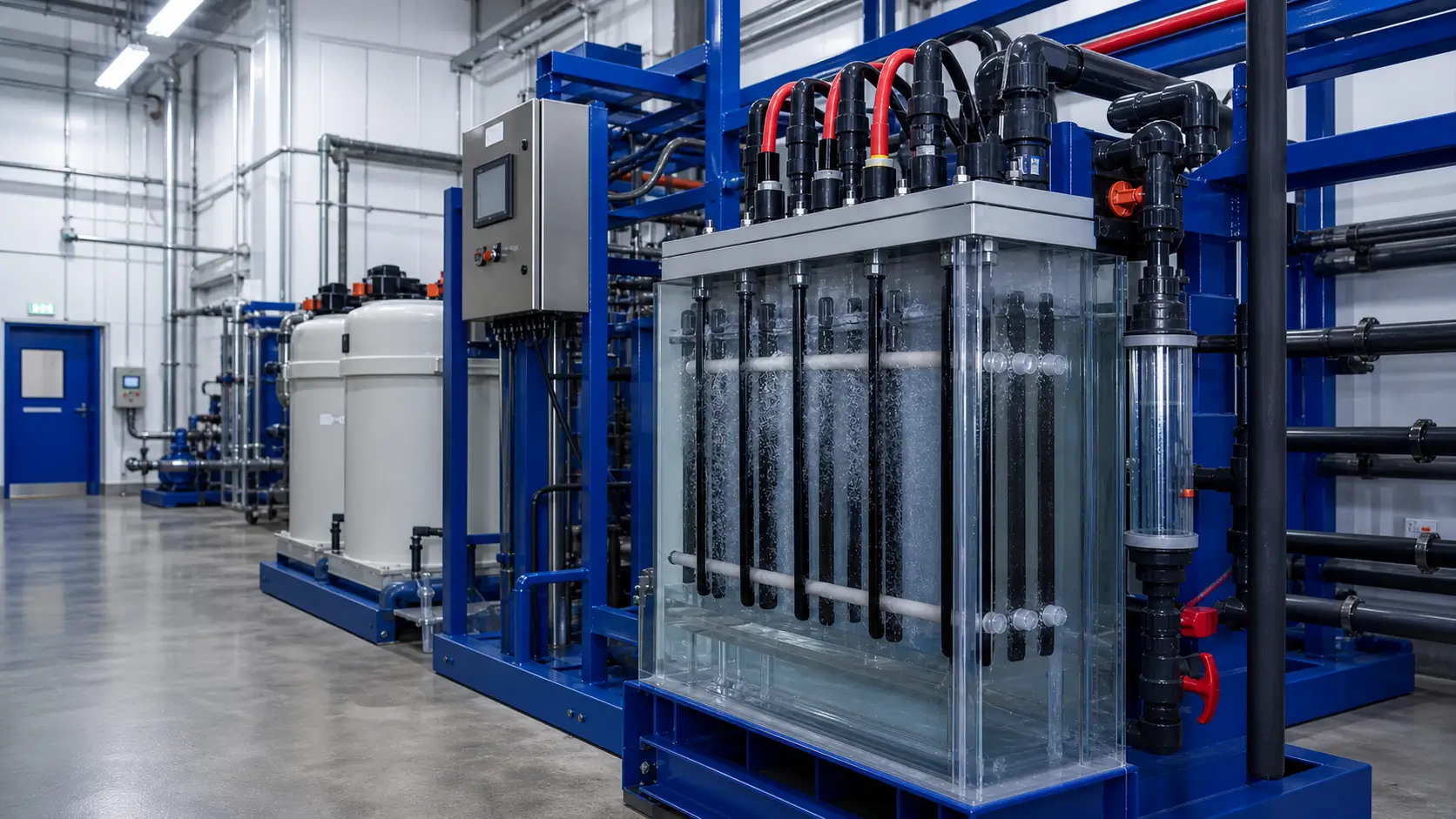

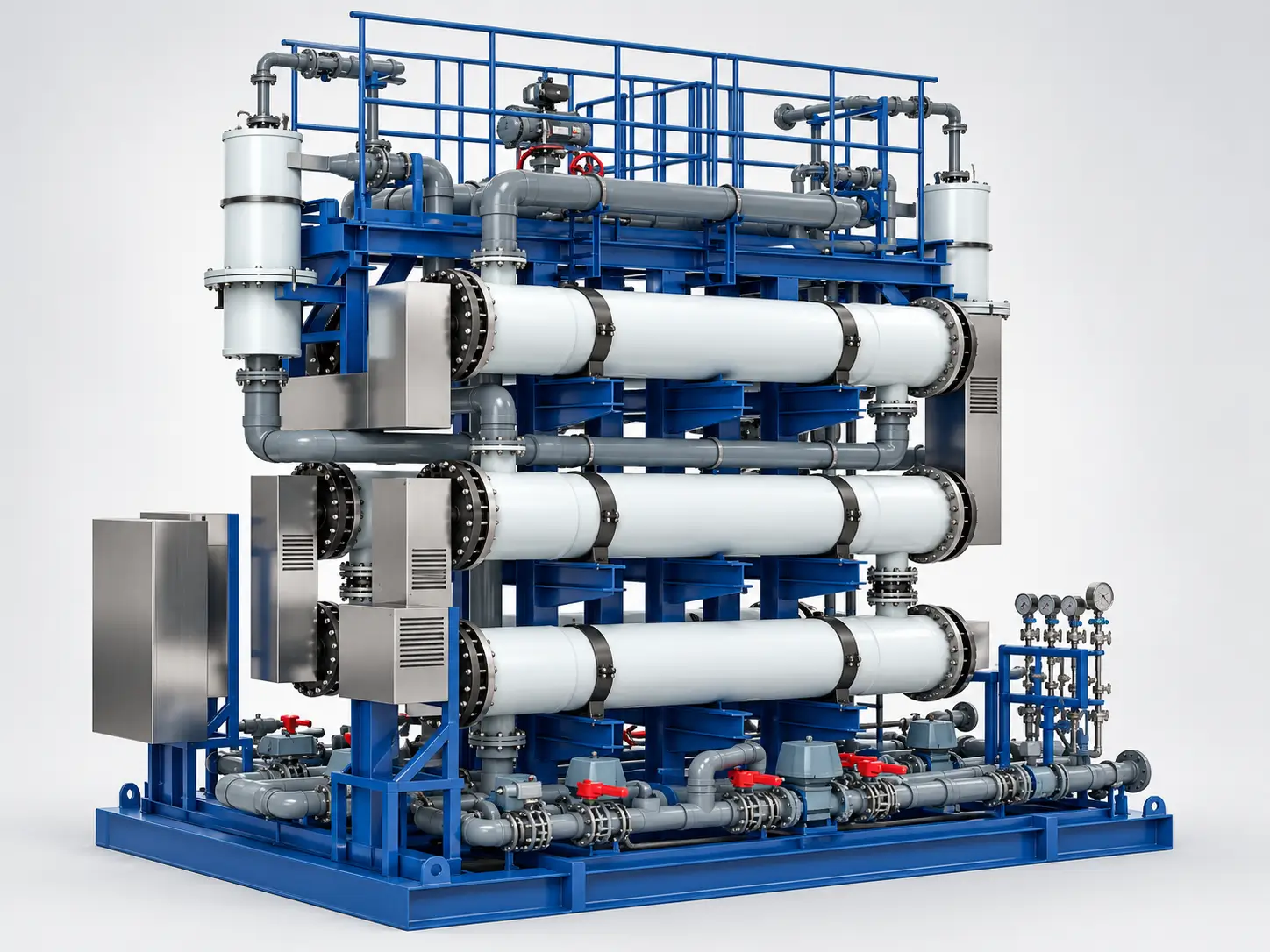

Electrochlorination & Sodium Hypochlorite Generation
Ru-Ir MMO titanium anodes are commonly reviewed for electrochlorination systems that generate chlorine or hypochlorite from chloride-containing electrolytes under controlled operating conditions.

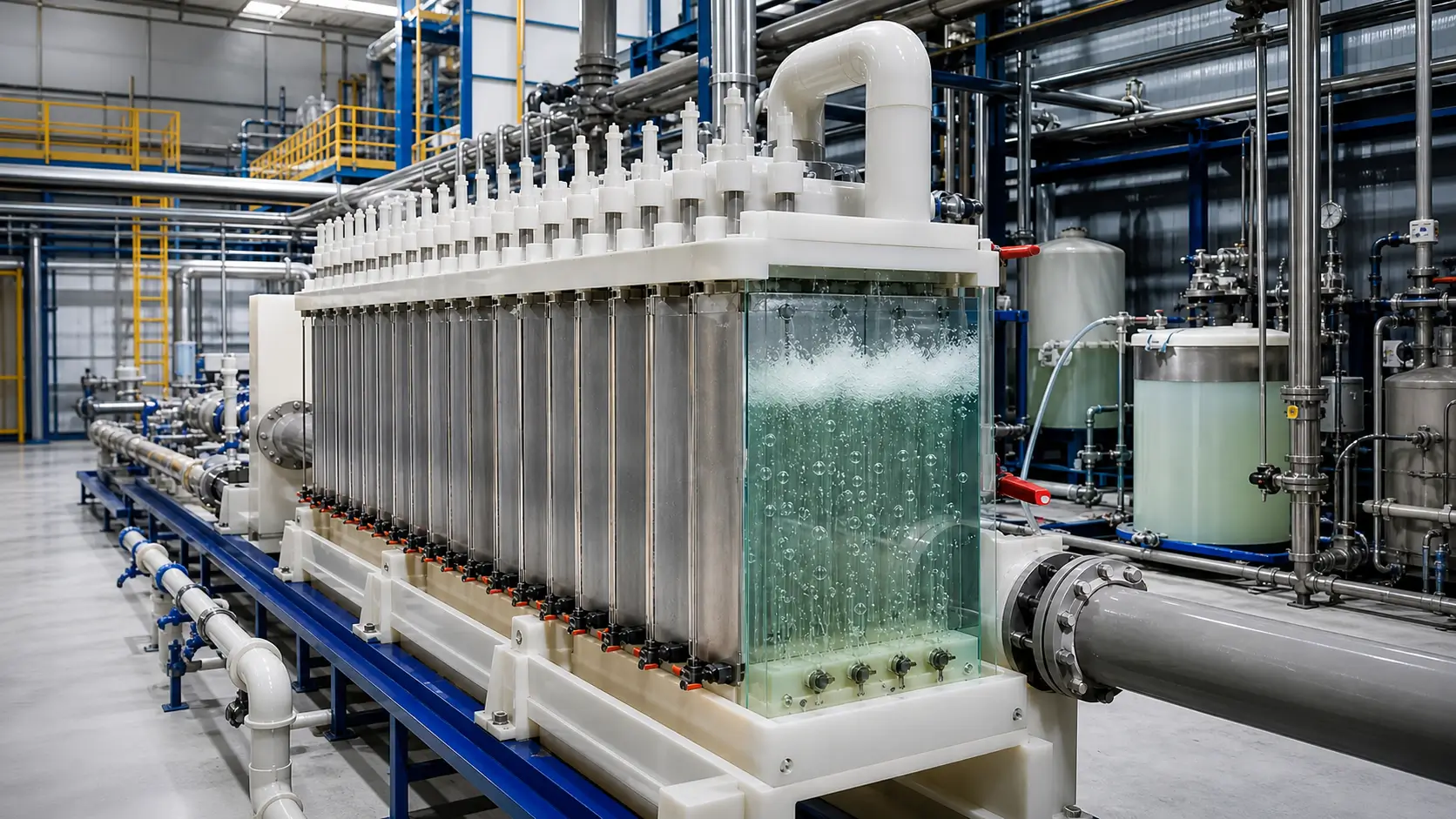

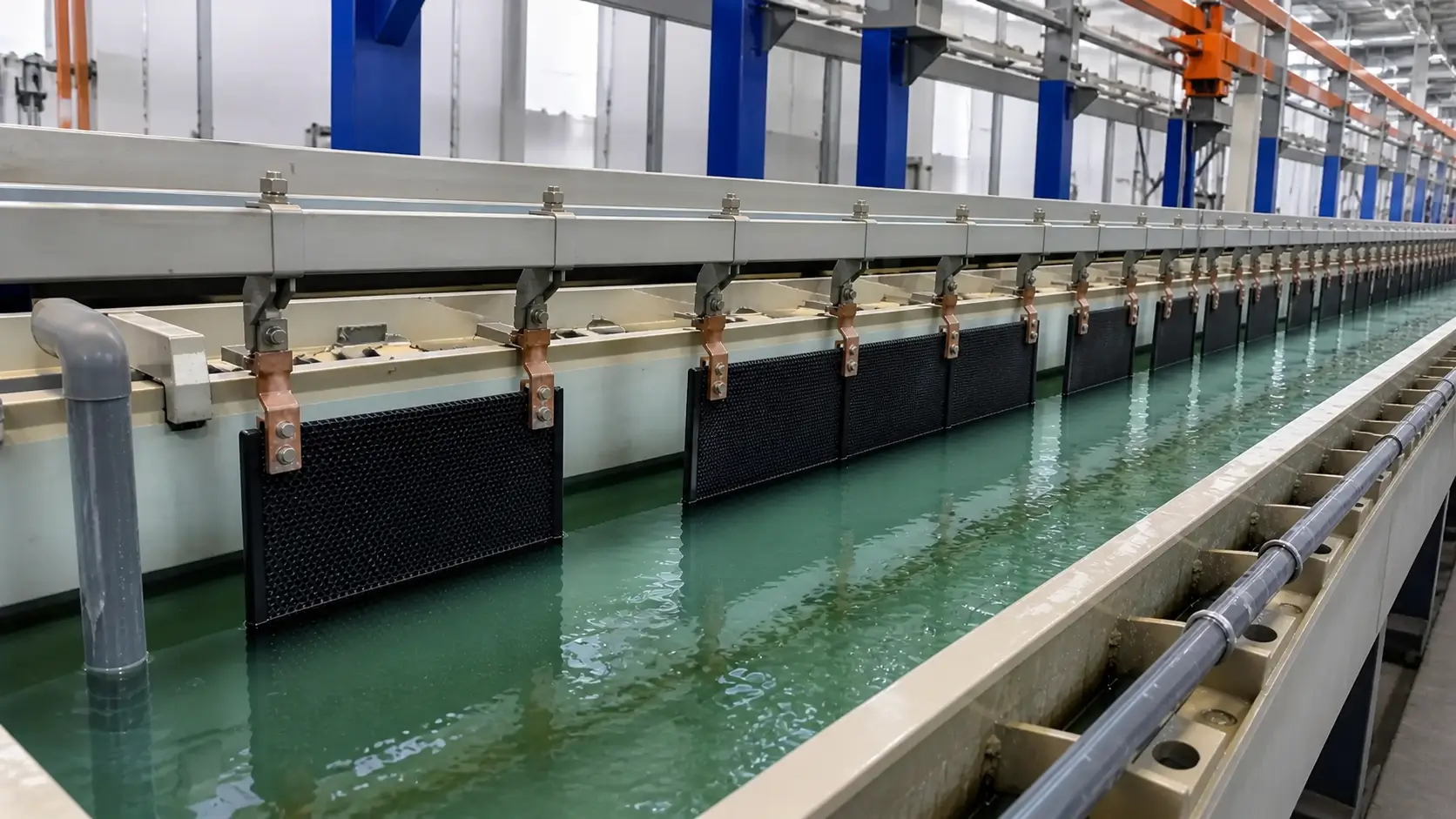

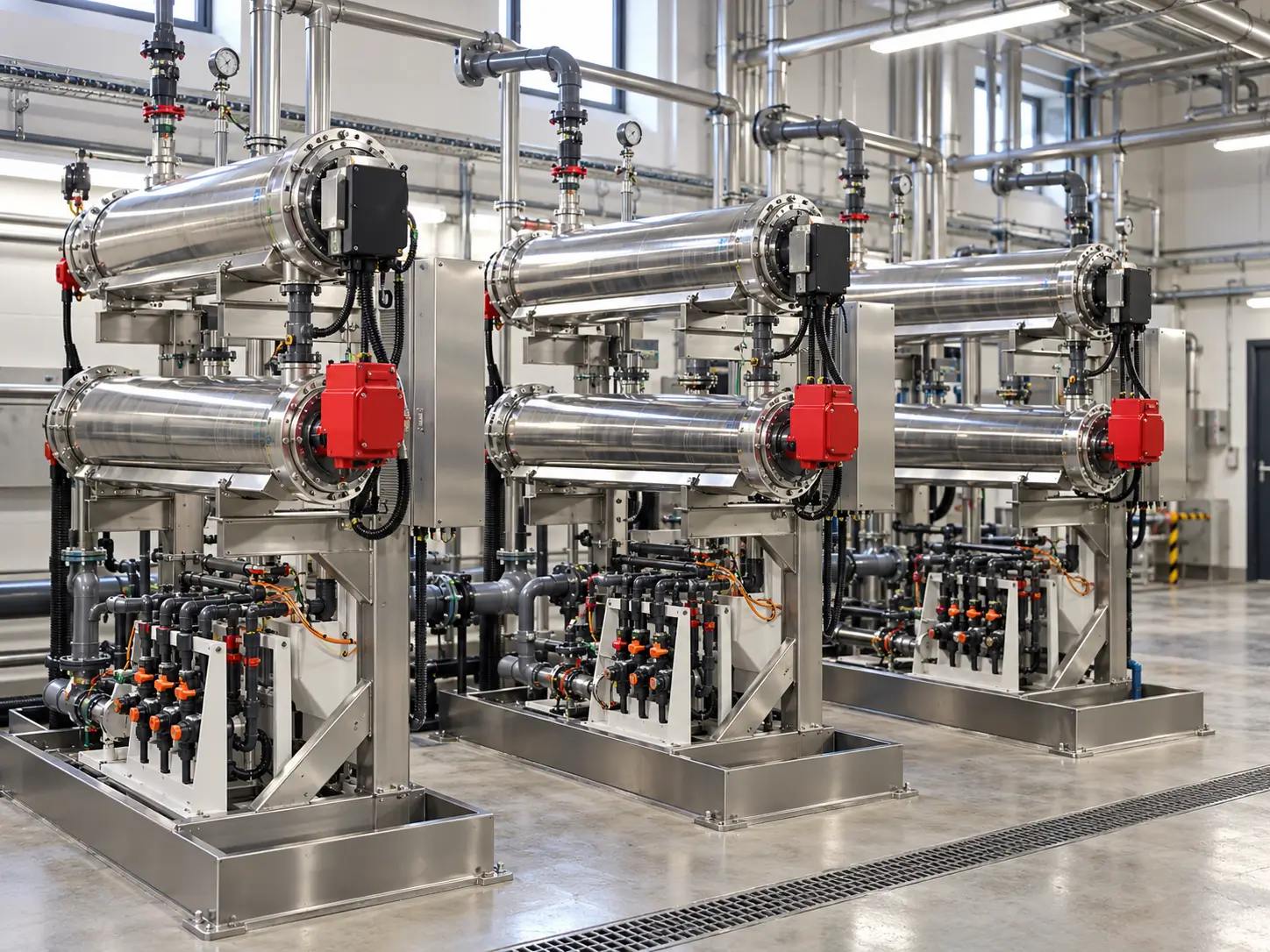

Brine & Chloride Electrolysis
Ru-Ir coated titanium anodes can be reviewed for defined brine and chloride-electrolysis processes where chlorine evolution is the intended anodic reaction.

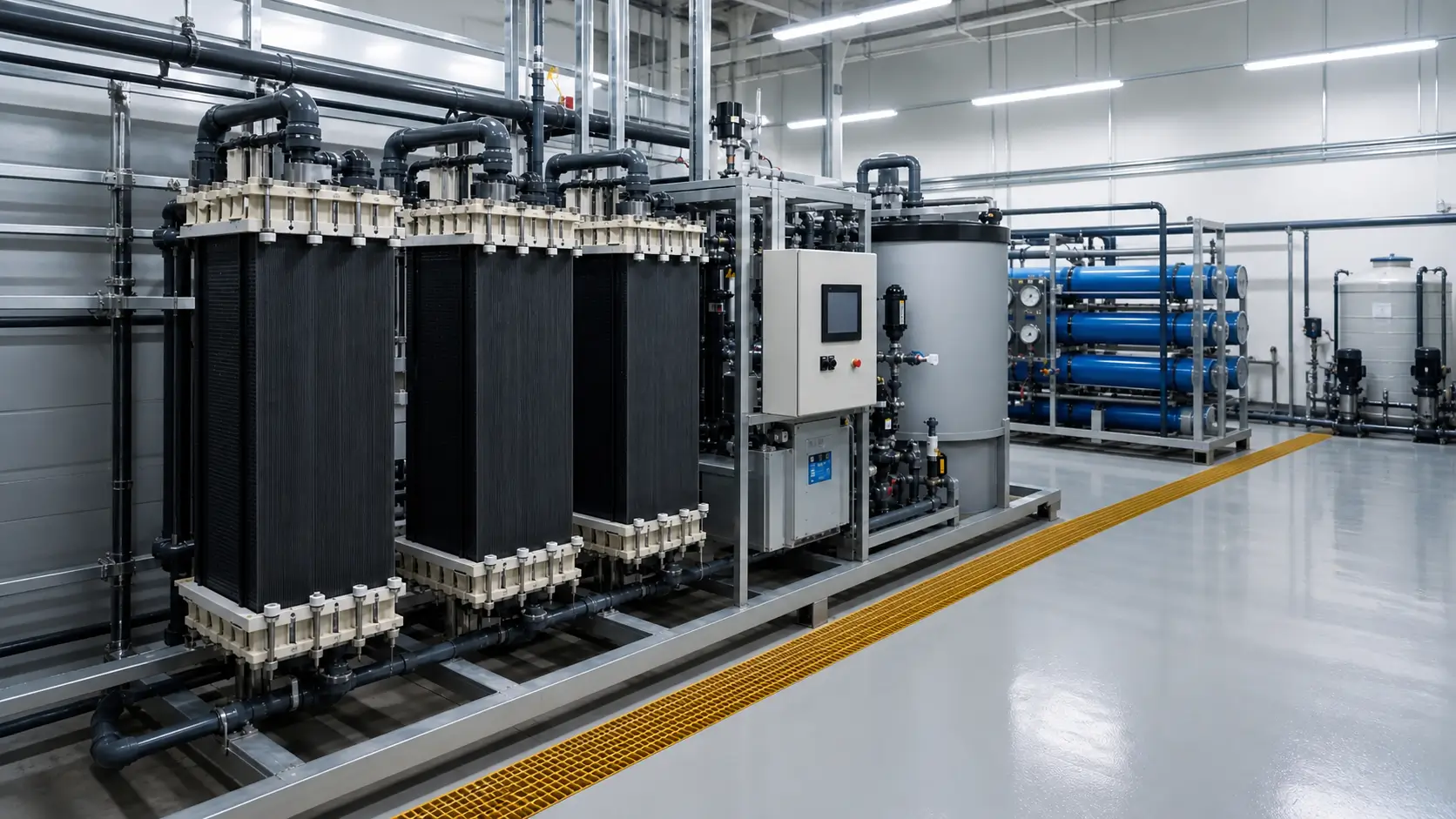

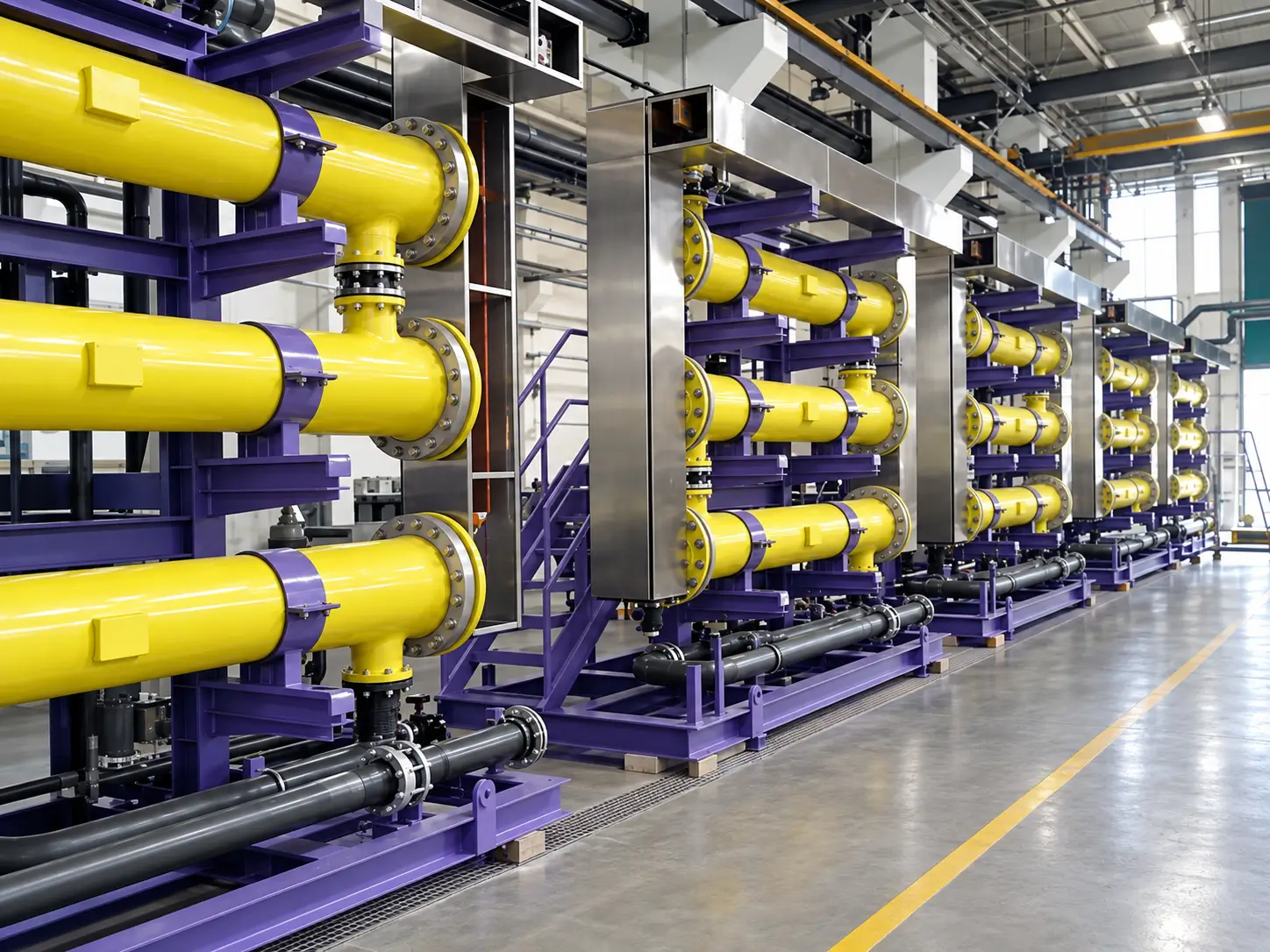

Seawater Chlorination & Marine Systems
Ru-Ir MMO anodes can be reviewed for seawater electrochlorination and marine chlorine-generation systems where seawater composition, flow, required chlorine output and electrical duty are defined.

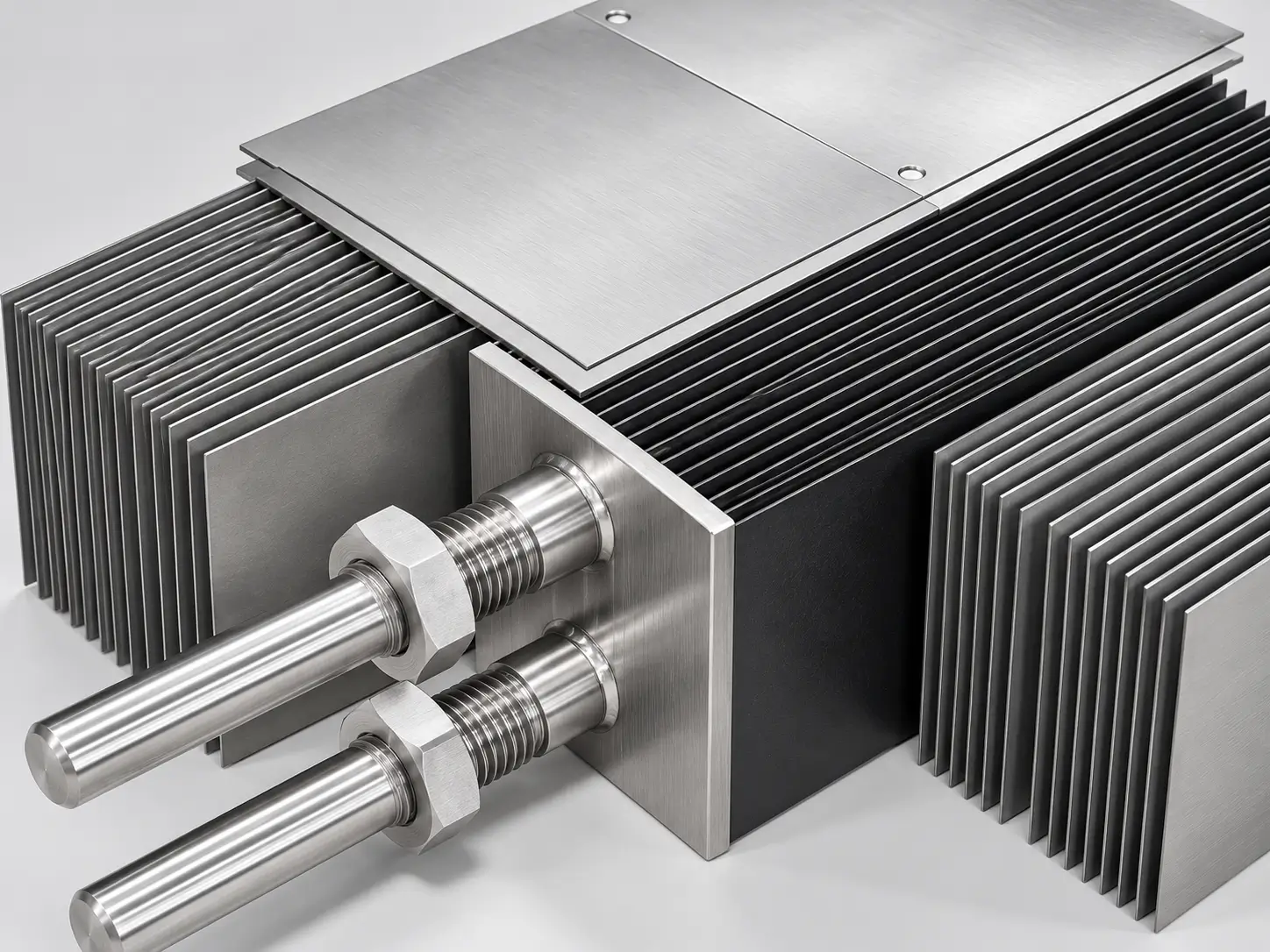

OEM & Replacement Chlorine-Generation Anodes
Custom Ru-Ir MMO anodes can be developed for OEM chlorine-generation equipment and replacement projects using process data, existing-anode information or customer drawings.
Application Name Alone Is Not Enough
“Electrochlorination,” “seawater treatment” or “chloride electrolysis” does not by itself define the final coating specification. Chloride chemistry, target reaction, current density, temperature and operating duty should be confirmed before anode selection.
Need Oxygen Evolution Instead?
For oxygen-evolution duties such as many acidic electrolysis and sulfate-based processes, review IrO₂ / Ir-Ta coated titanium anodes rather than selecting Ru-Ir from the MMO name alone.
View IrO₂ / Ir-Ta OER AnodesRu-Ir MMO Coating & Typical Specifications for Chlorine Evolution

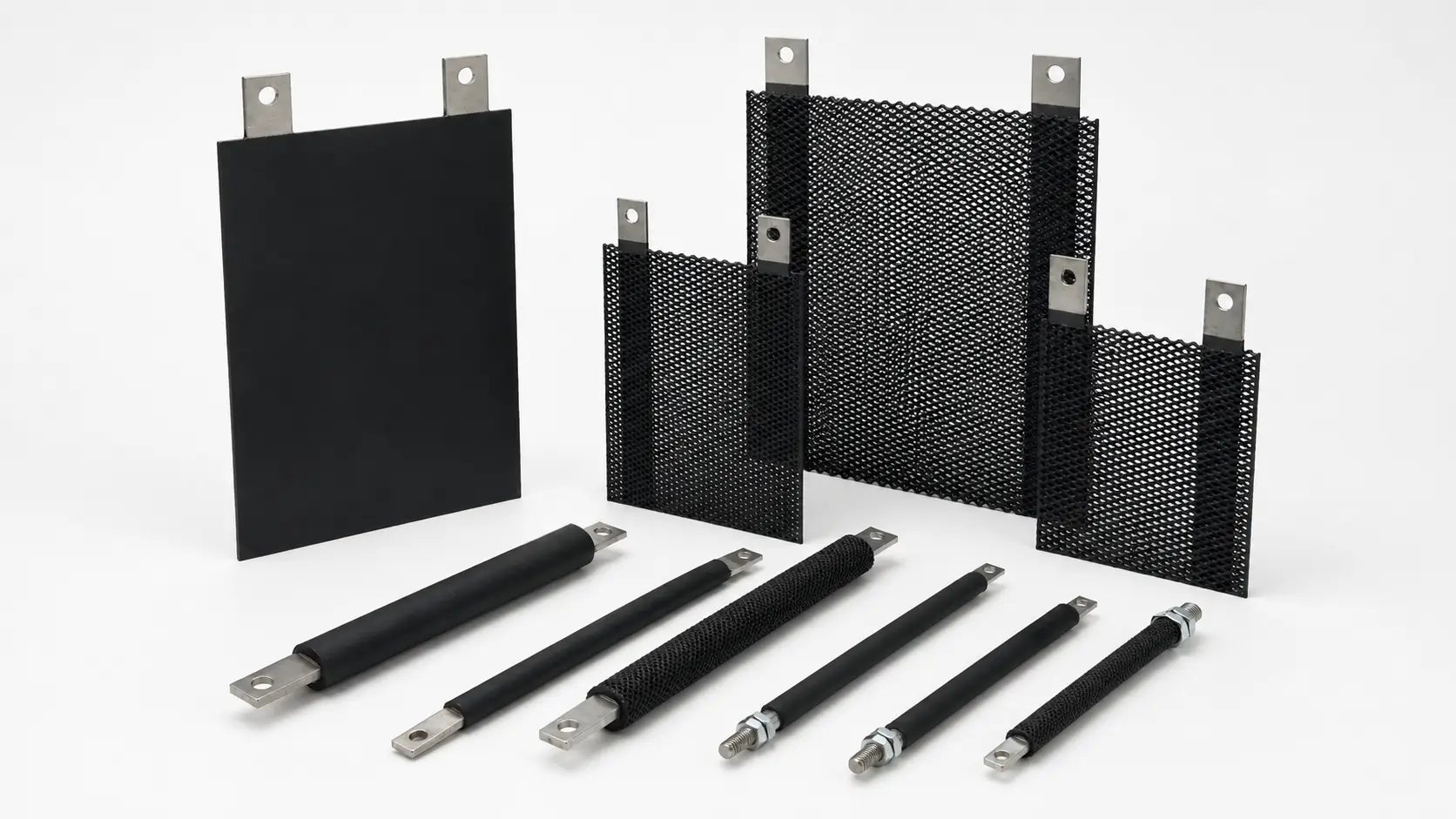

Ru-Ir anode specifications should define the coating system, titanium substrate, active area, electrical duty and operating conditions together. Loading, current density, temperature and design-life requirements are confirmed against the actual chlorine-evolution process.
Ru-Ir Mixed-Oxide Coating System
Ruthenium- and iridium-based mixed oxides are used as the active coating system for defined chlorine-evolution duties. The final formulation and coating requirement are selected according to chloride chemistry, current density, temperature and operating duty.
Titanium Substrate & Active Area
The titanium grade, substrate form, dimensions, active coating area and uncoated connection zones are defined according to the cell layout and electrical requirements.
Loading & Electrical Duty Are Order-Defined
Coating loading or thickness, current density, total current and operating limits should be confirmed together with the electrolyte and active area rather than treated as universal Ru-Ir values.
Specification Verification
Material, coating, dimensional and electrical requirements are verified according to the agreed inspection plan using the applicable records and measurement methods for the project.
*XRF interpretation requires an appropriate calibration method, defined sampling locations, units and acceptance criteria.
Chloride Chemistry Must Be Defined
Chloride concentration, pH, additives, contaminants and competing anodic reactions should be reviewed before the Ru-Ir coating specification is confirmed. A chloride-containing electrolyte alone does not define the final coating requirement.
Order-Defined Parameters
Ru:Ir composition, coating loading, current density, temperature limits and target service life should not be treated as universal values for all Ru-Ir MMO anodes. These parameters are confirmed against the actual chlorine-evolution process and agreed specification.
Upload Drawing & Process Data

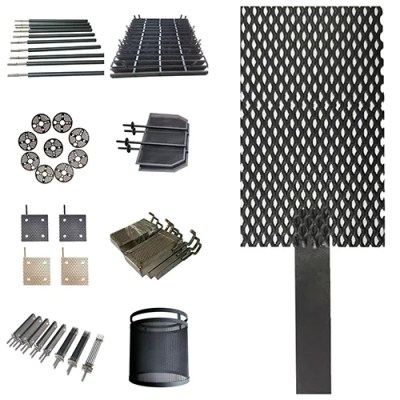

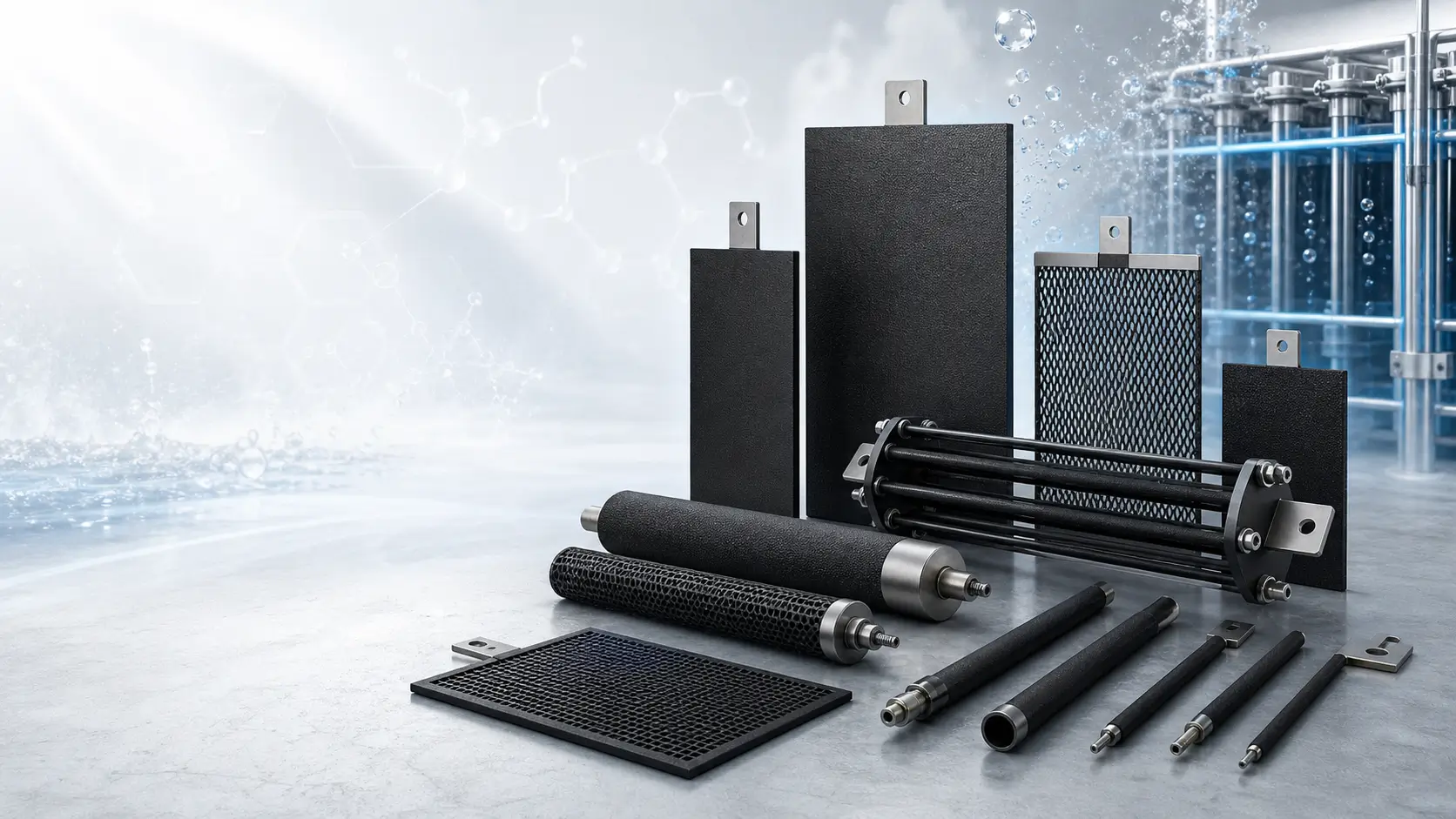

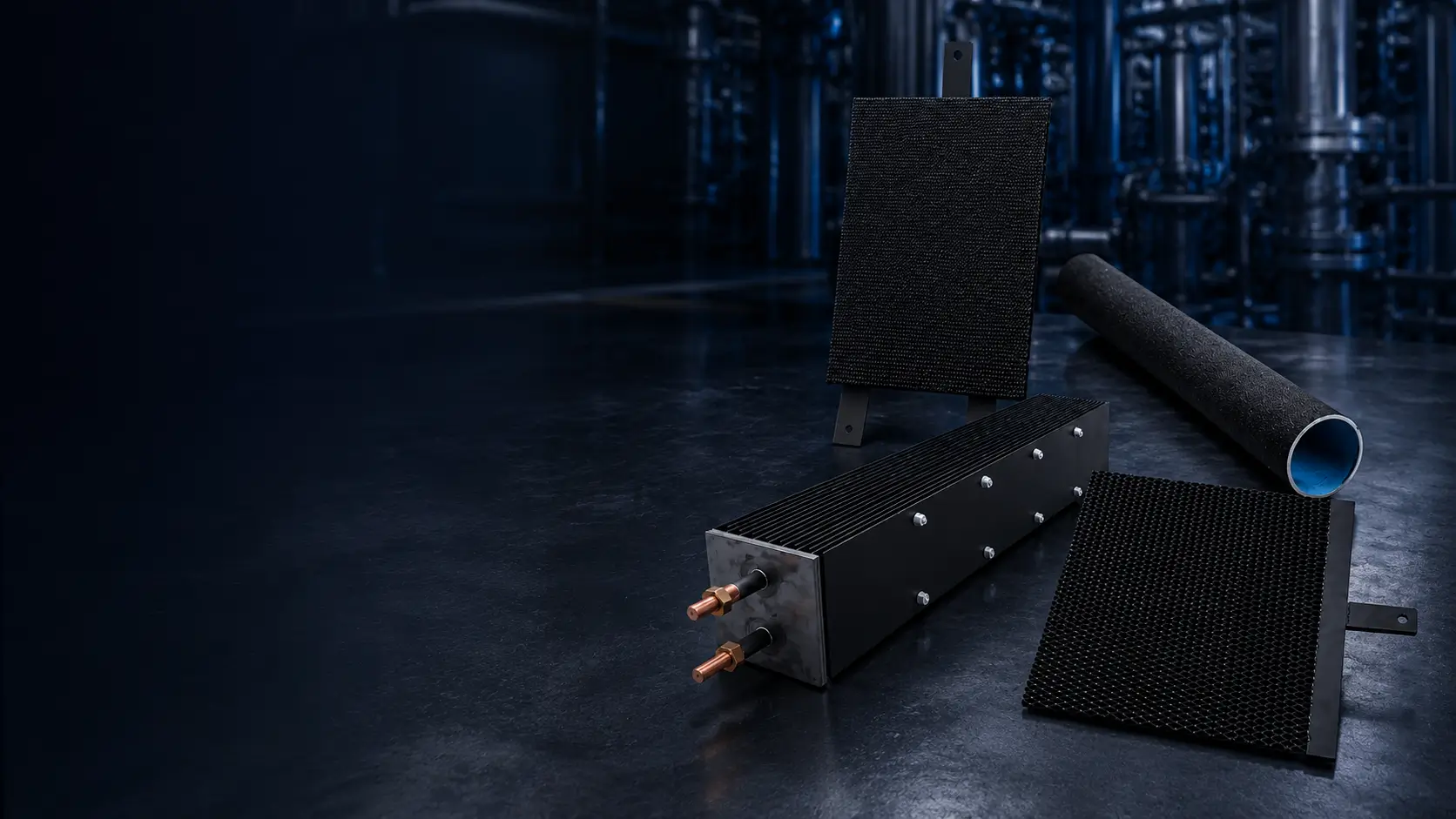

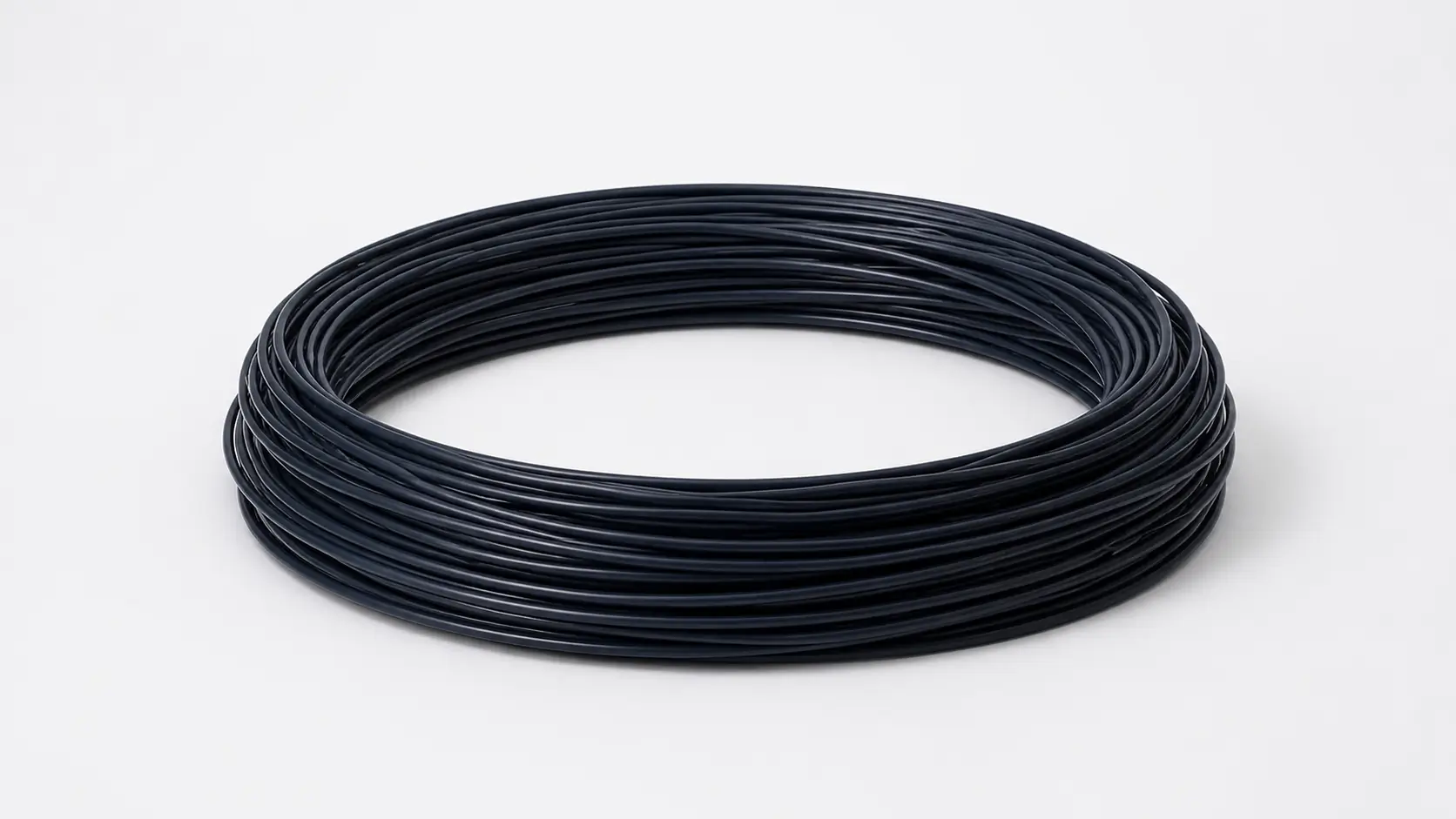

Ru-Ir MMO Titanium Anodes by Form & Geometry
Ru-Ir MMO anodes can be engineered in different titanium forms according to active-area requirements, electrolyte flow, cell layout, current distribution, mounting space and electrical connection.

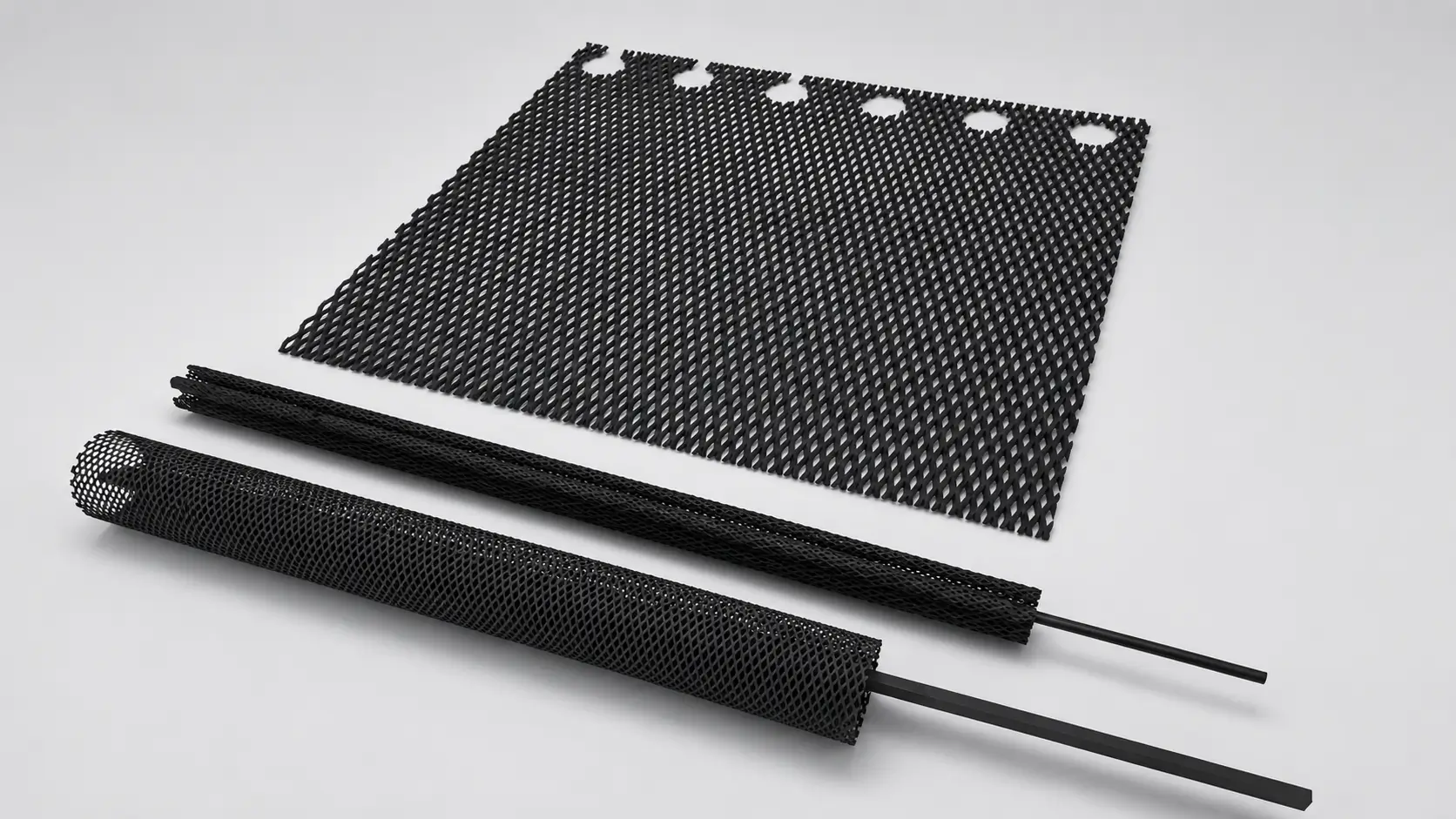

Ru-Ir Coated Titanium Mesh Anodes
Expanded or fabricated titanium mesh provides an open electrode structure that can support electrolyte access and distributed active area in chlorine-generation cells.

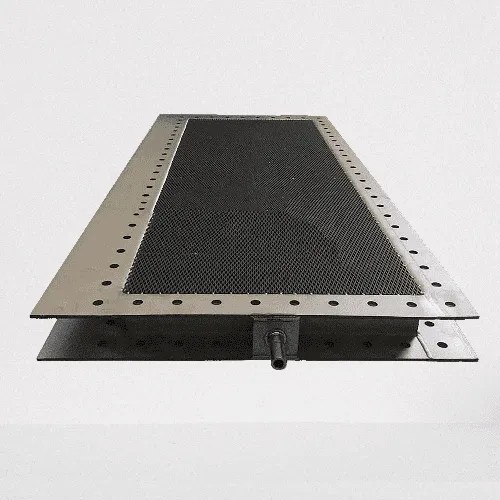

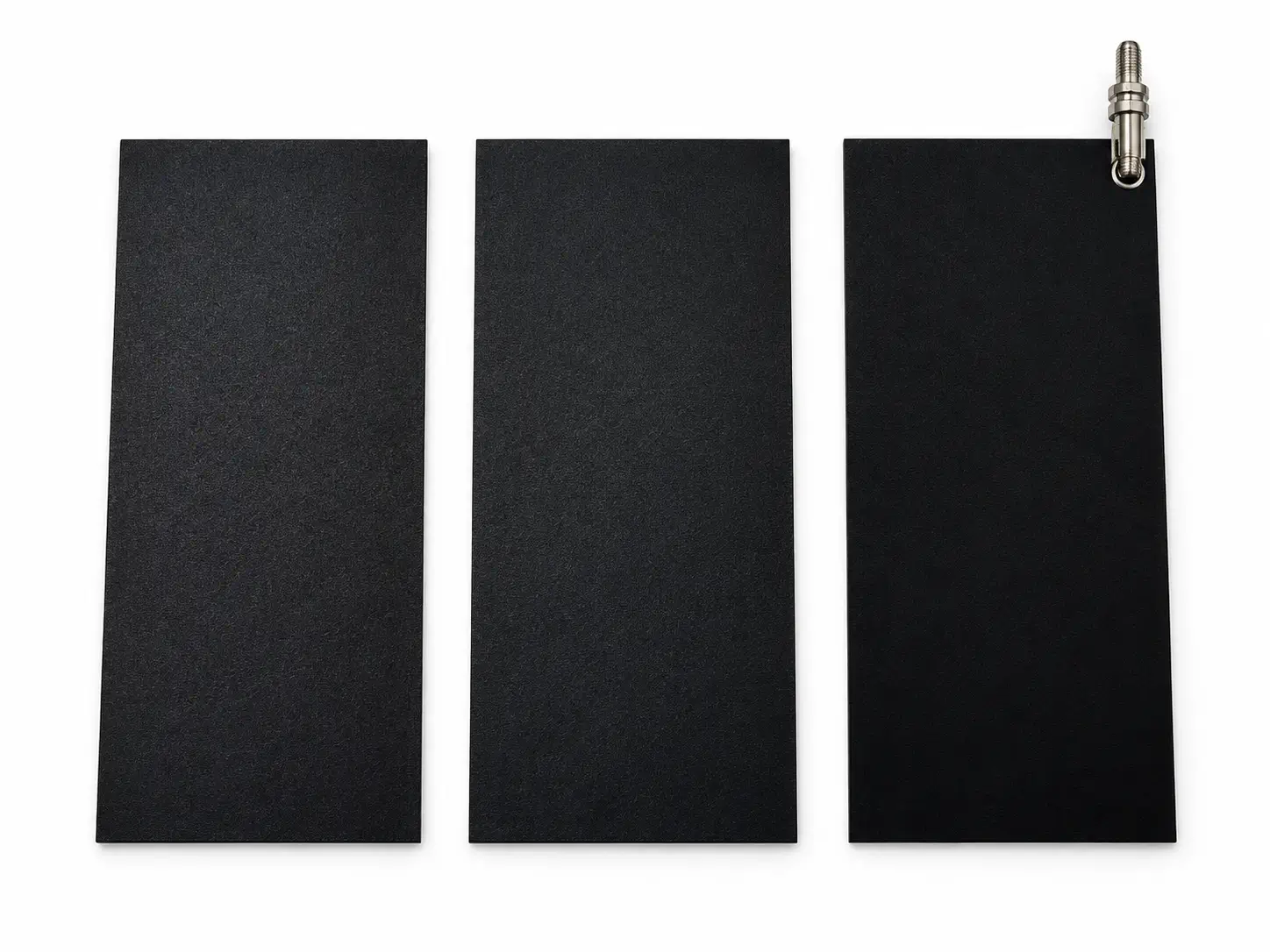

Ru-Ir Coated Titanium Plate Anodes
Flat or formed titanium plate anodes can be designed with defined coated surfaces, uncoated connection zones and mounting features according to the electrolyzer or cell layout.

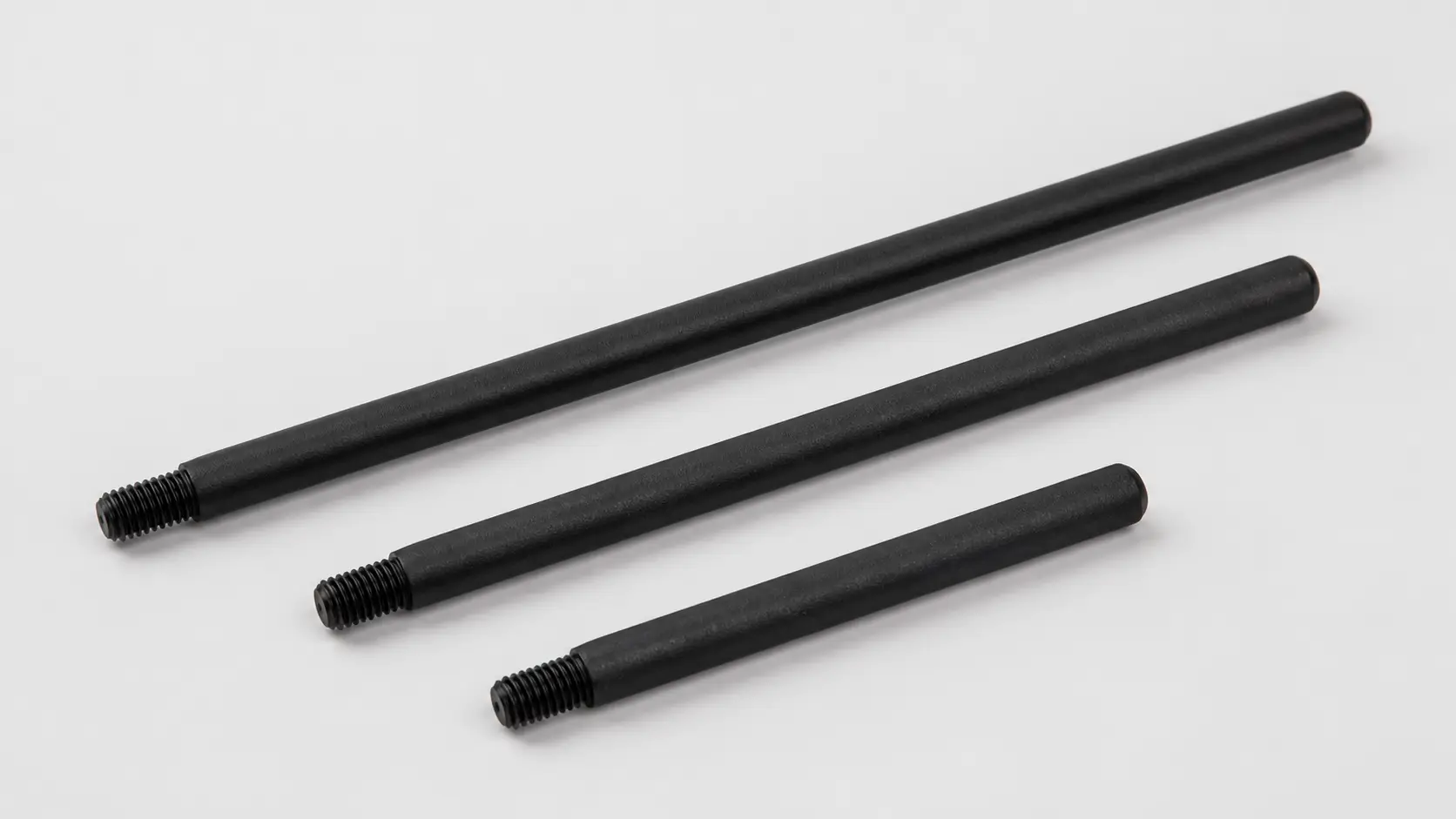

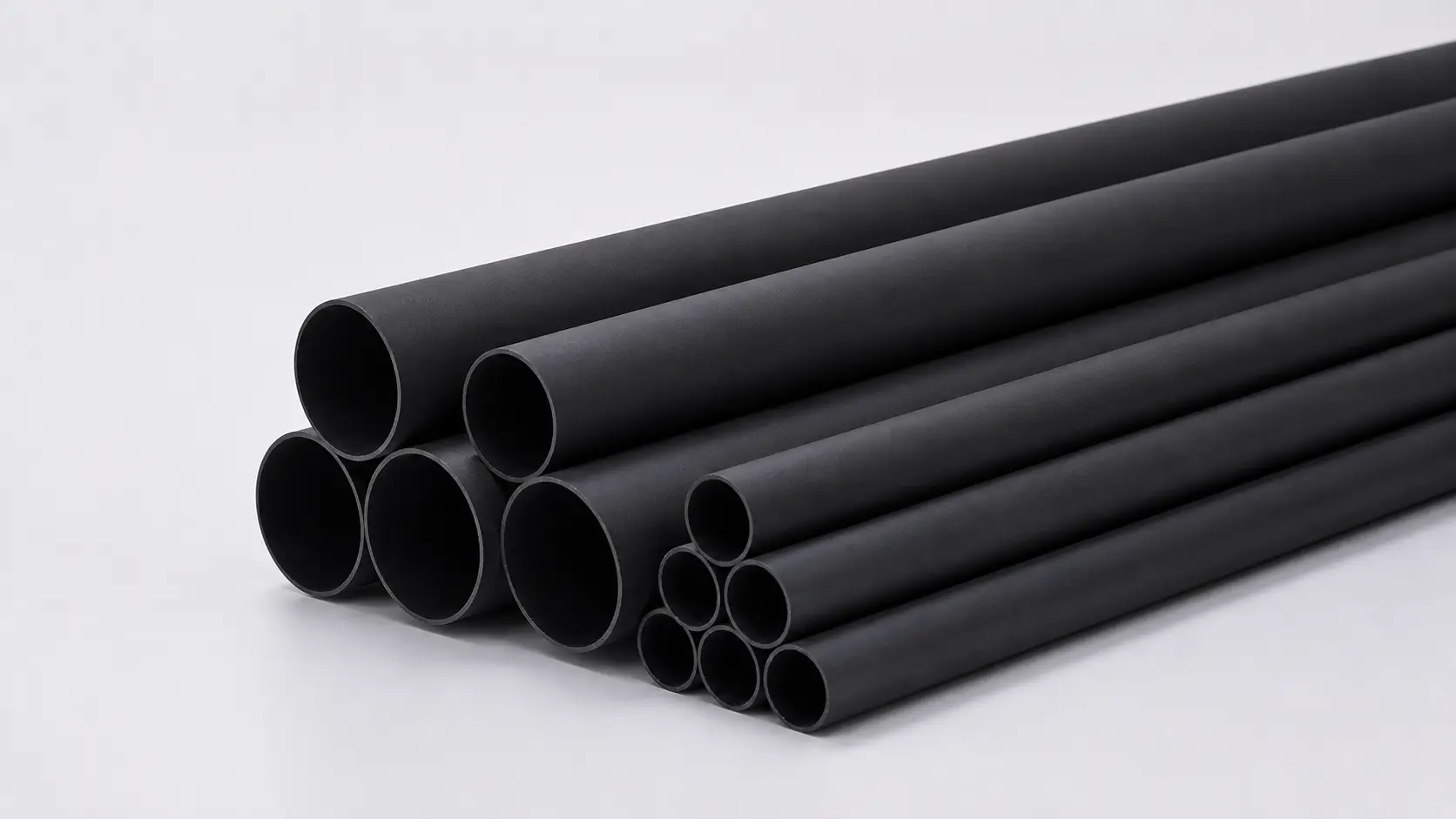

Tubular & Rod-Type Ru-Ir Anodes
Tubular and rod-type anodes can be reviewed for systems requiring cylindrical geometry, defined active length and a specific threaded, tab or cable connection.

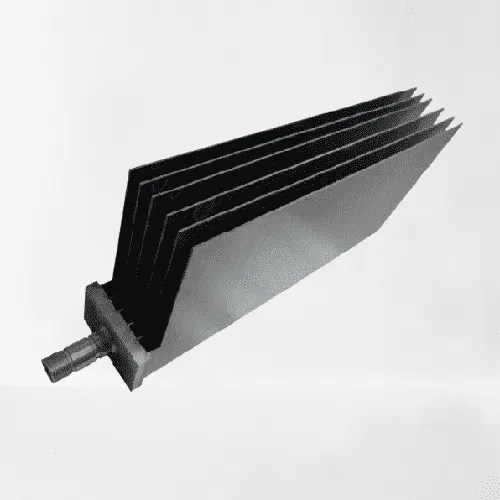

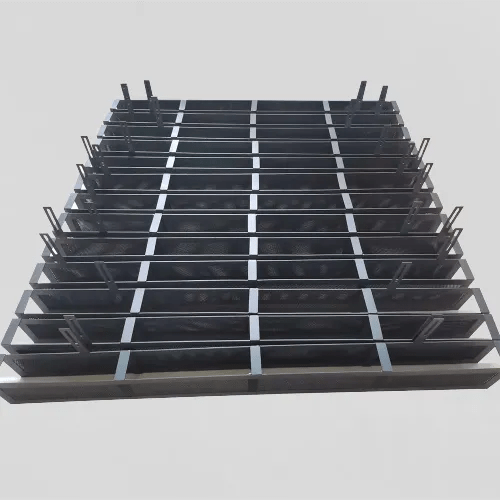

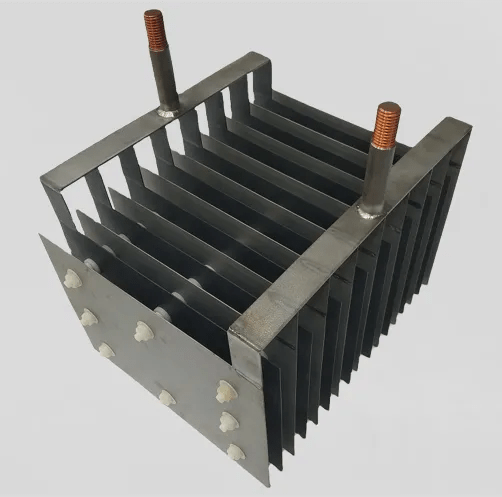

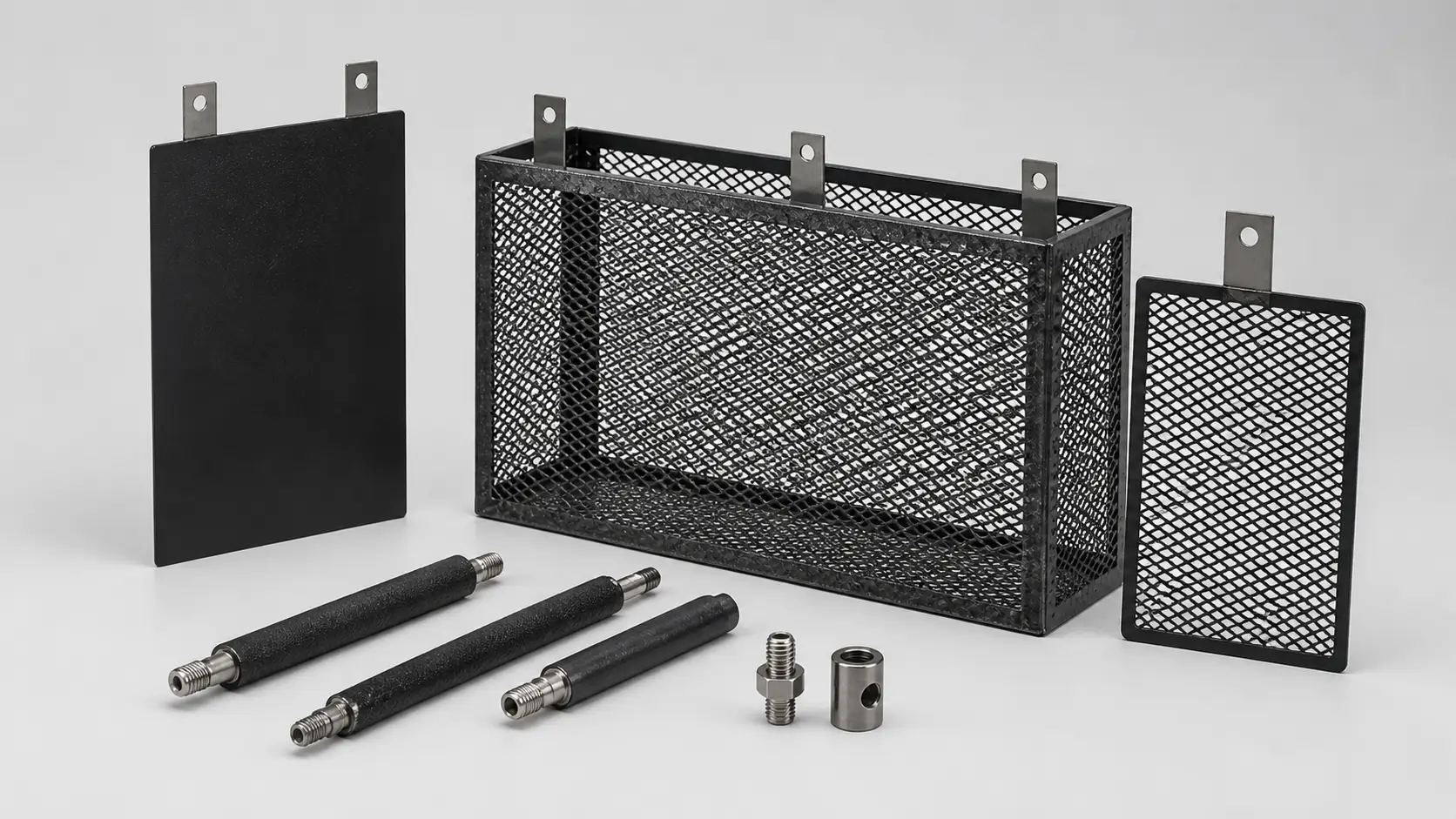

Custom Frames & Anode Assemblies
Custom Ru-Ir MMO anode assemblies can be developed from equipment drawings or existing-anode data with the coated area, frame structure, electrical interface and mounting features defined for the project.

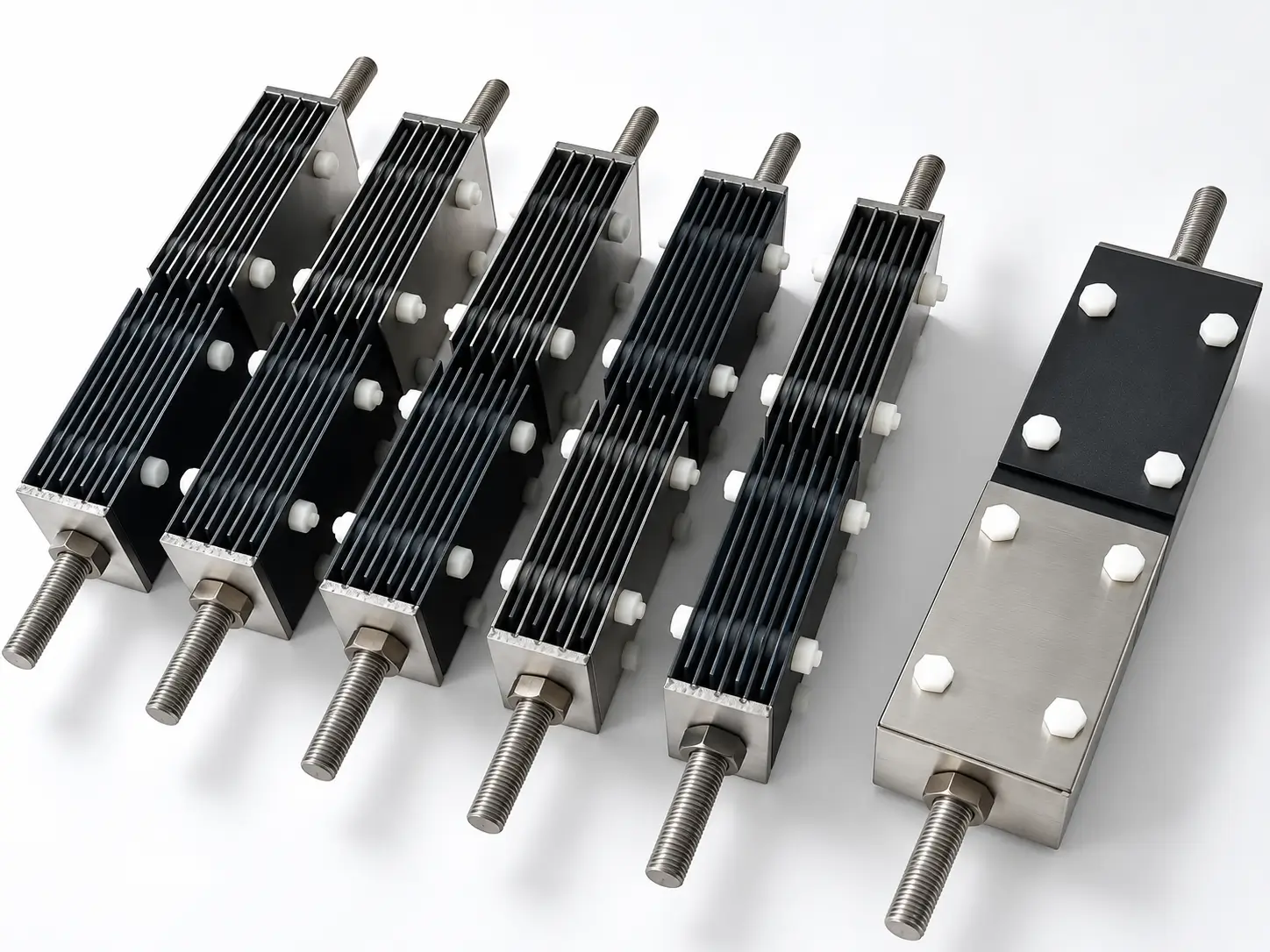

Geometry Should Be Selected with the Cell Design
Anode form alone does not determine chlorine-generation performance. Active area, electrode spacing, electrolyte flow, current distribution, coating specification and electrical connection should be reviewed together with the cell configuration.

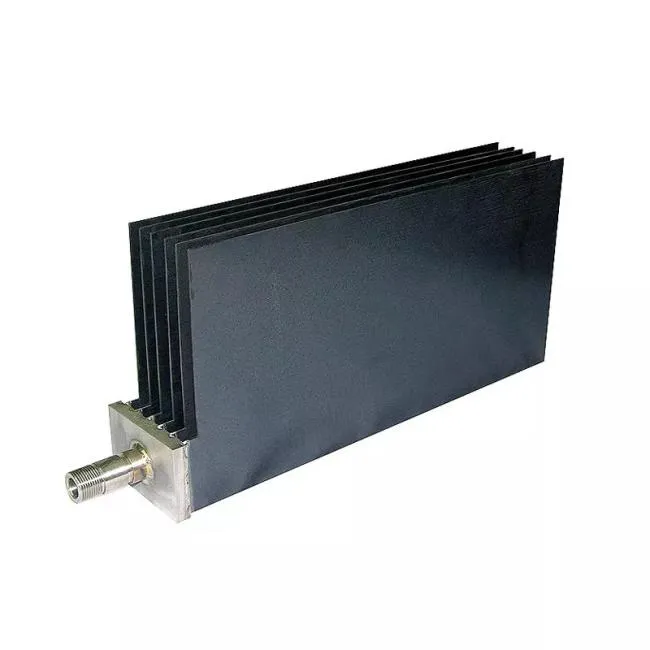

Define the Effective Coated Area
Overall dimensions and active coating area are not the same specification. Coated sides, uncoated connection zones and inactive mounting areas should be defined before current density and quotation are compared.

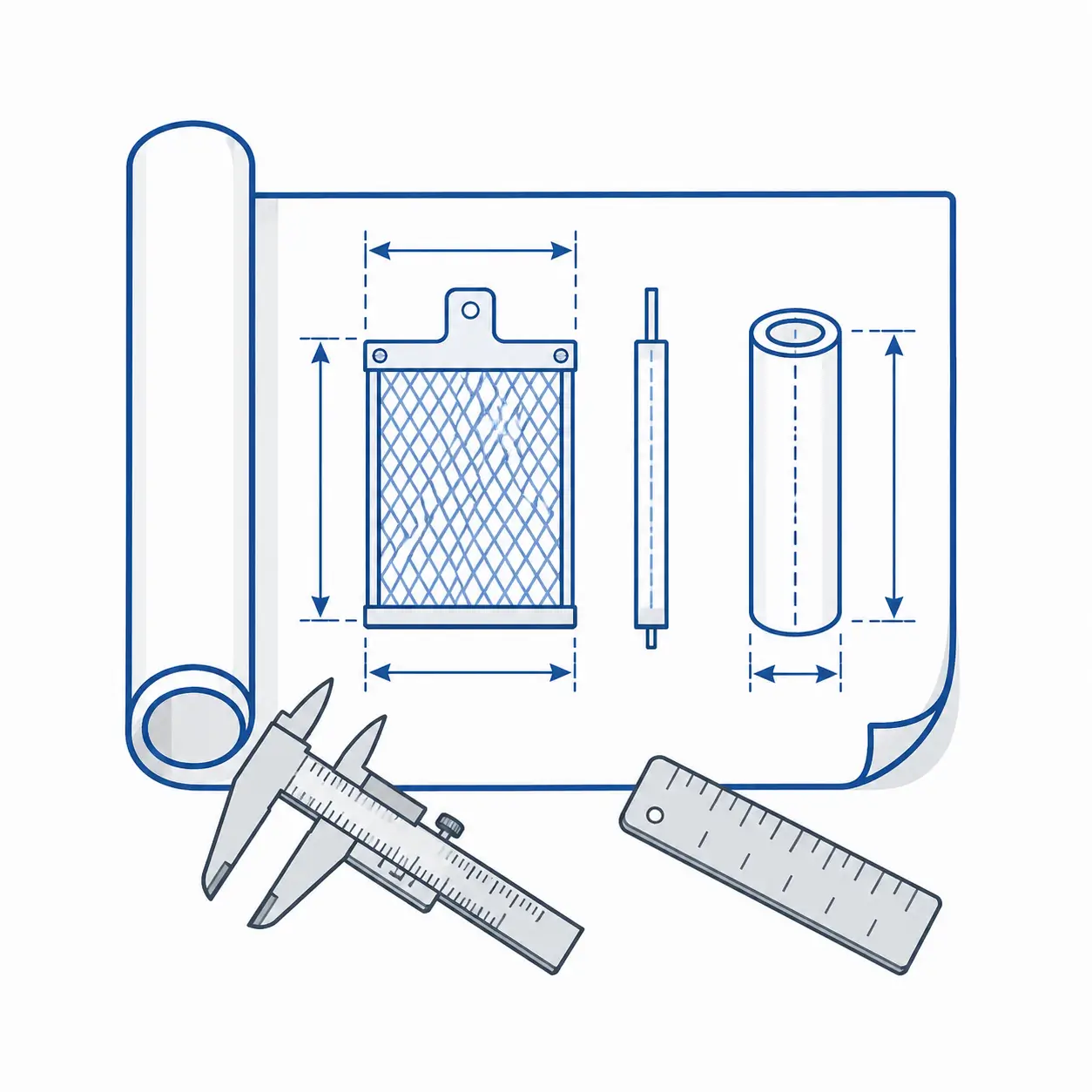

Upload Drawing or Existing Anode Data

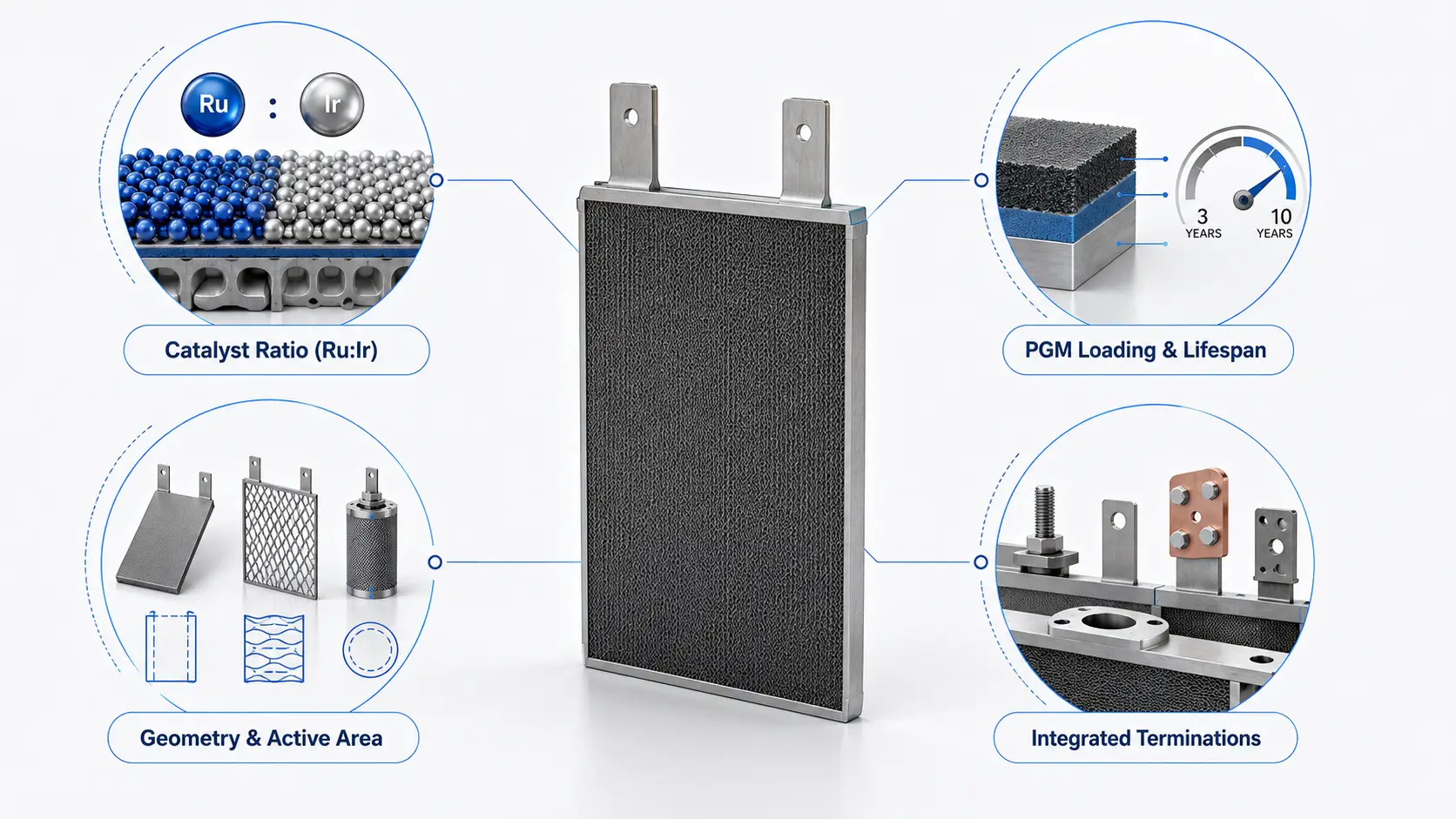

Custom Ru-Ir MMO Anodes Engineered to Your Chlorine-Evolution Process
HELE develops custom Ru-Ir MMO titanium anodes from process data, drawings or existing-anode information, with coating requirements, active area, geometry, electrical interfaces and inspection scope defined for the project.
Replacing an Existing Ru-Ir Anode?
Send the existing drawing or photos together with dimensions, coated area, connection details, chloride chemistry, current density, operating history and observed failure symptoms where available.
“Ru-Ir Coated” Is Not a Complete Specification
A complete Ru-Ir anode specification should define the coating requirement, active coated area, substrate geometry, electrical connection, operating conditions and inspection basis—not the coating name alone.
Customer-Specified Coating Requirements
When Ru:Ir composition, coating loading or thickness is specified, the measurement basis, unit, coated area, sampling method and acceptance criteria should also be confirmed.
Workflow
Coating Requirement & Chlorine-Evolution Duty
The Ru-Ir coating requirement is reviewed against the target chlorine-evolution reaction, chloride chemistry, current density, temperature and operating schedule.
Active Area & Coated Zones
The effective coated area, uncoated connection zones and electrode dimensions are defined together with the total current, current density and cell layout.

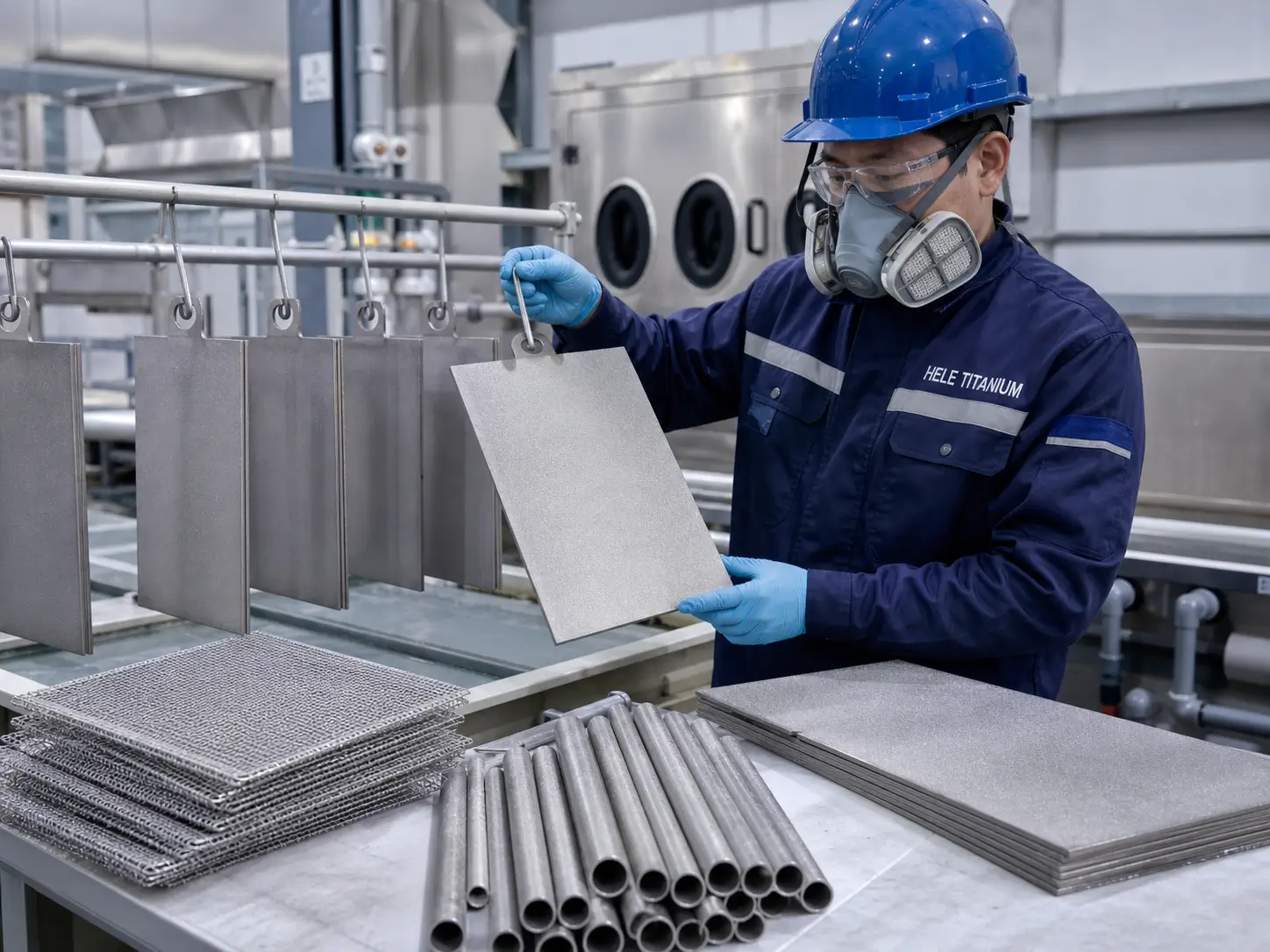

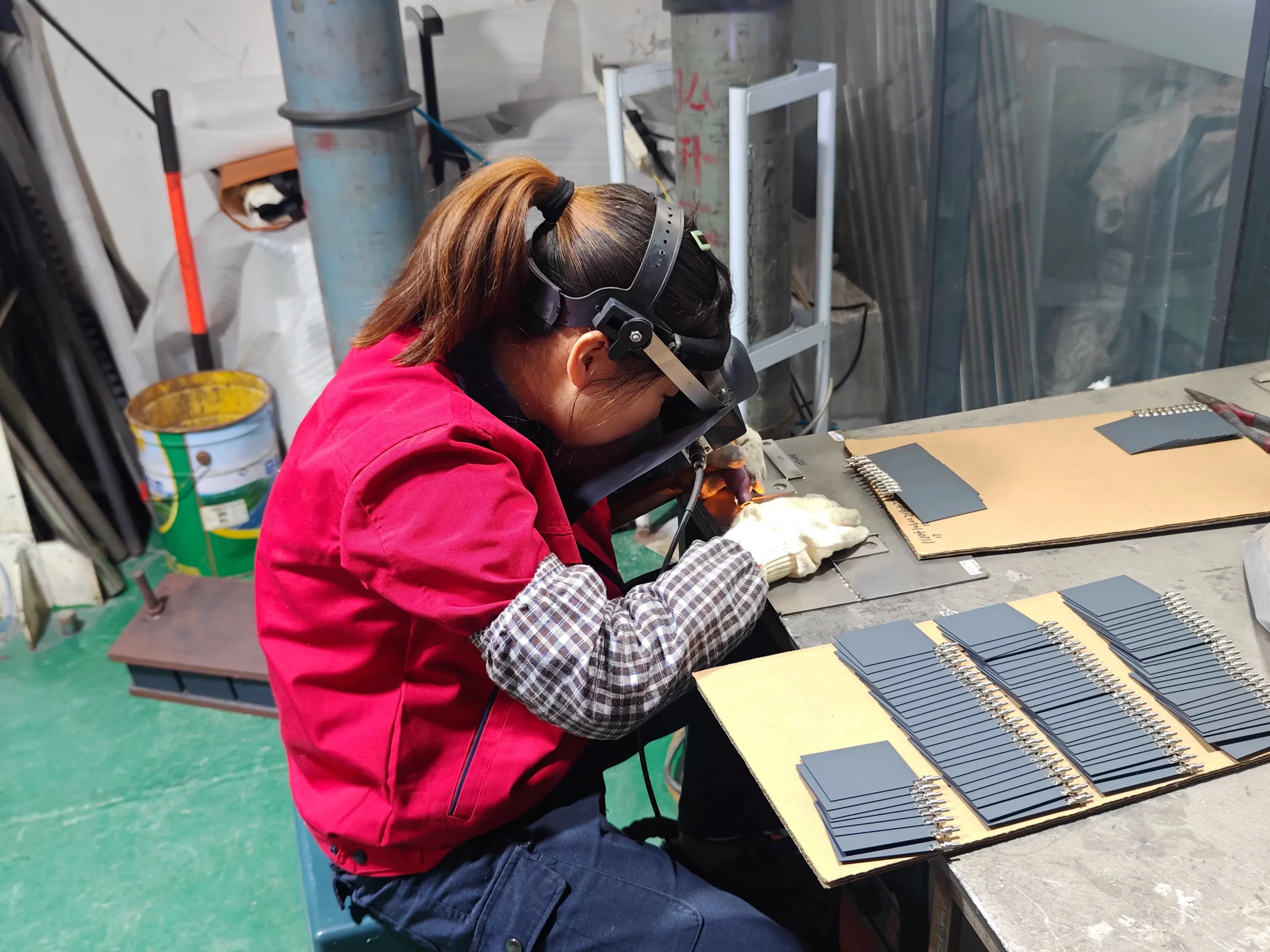

Electrical Connection & Assembly
Tabs, cables, threaded interfaces, welded frames, seals and mounting features are reviewed against the required current path, installation environment and equipment layout.
Drawing, Replacement & OEM Review
New designs and replacement Ru-Ir anodes can be reviewed from customer drawings, existing-anode photos, equipment layouts and available service history before the final manufacturing specification is confirmed.
How We Engineer a Custom Ru-Ir MMO Anode Project
Each project moves from chloride-process review to Ru-Ir coating and anode design, specification confirmation, manufacturing and agreed inspection before release.
Review Process & Operating Data
We first review the target chlorine-evolution duty, chloride chemistry, pH, temperature, current density, flow conditions and operating schedule to establish the engineering basis.
Target Reaction · Chloride Concentration · pH · Temperature · Current Density · Flow · Duty Cycle
Confirmed Process Basis
Define Coating, Active Area & Configuration
The Ru-Ir coating requirement, effective active area, titanium geometry and electrical interface are reviewed together against the chlorine-generation process and equipment layout.
Coating Requirement · Active Area · Geometry · Coated / Uncoated Zones · Connection
Preliminary Anode Configuration
Confirm Drawing & Project Specification
Dimensions, active coating zones, mounting details, electrical connections, coating requirements and agreed inspection scope are confirmed before production release.
Dimensions · Active Area · Coated Sides · Connection · Mounting · Coating Requirement · Drawing Revision · Quantity · Inspection Scope · Identification
Approved Manufacturing Basis

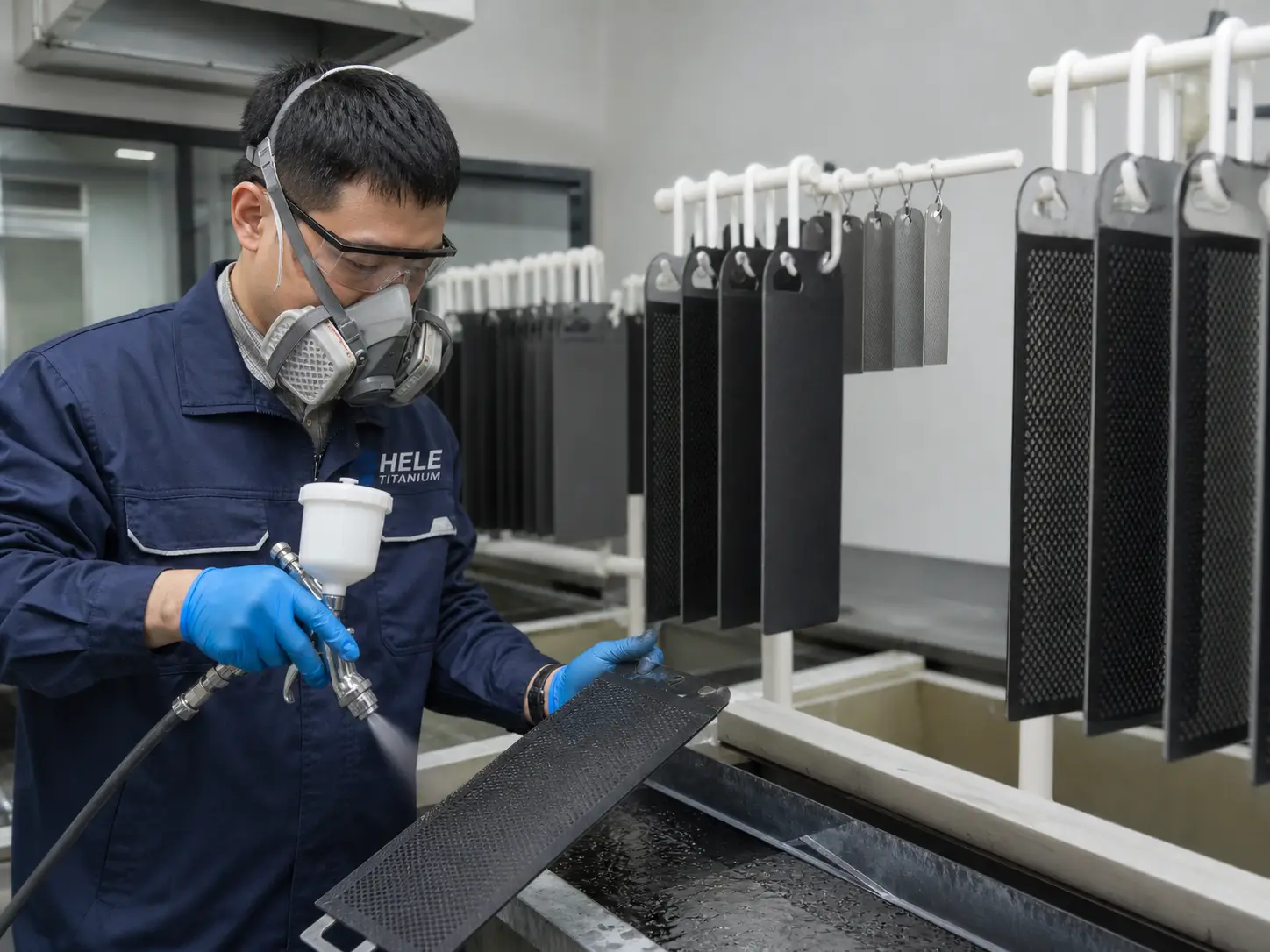

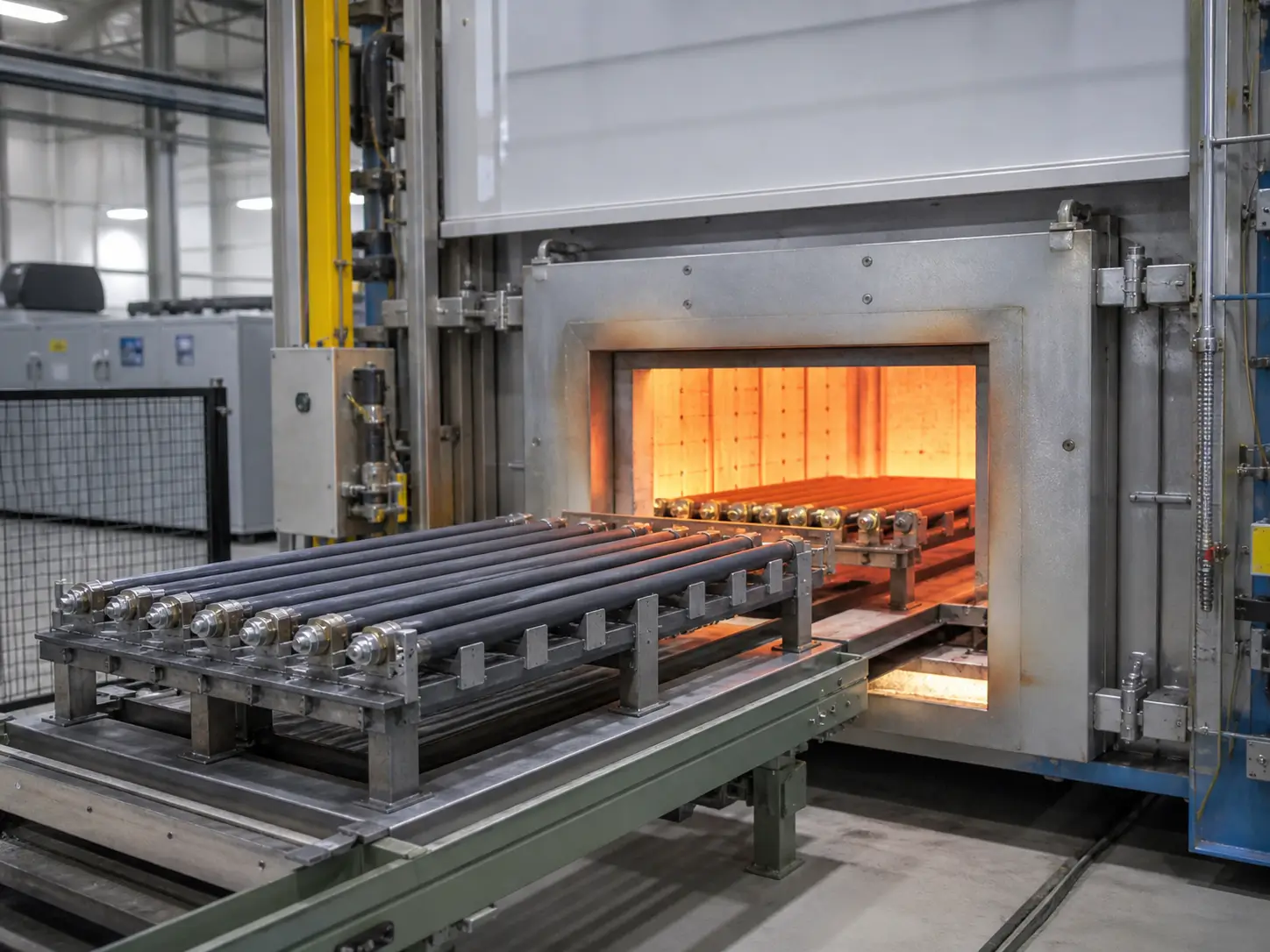

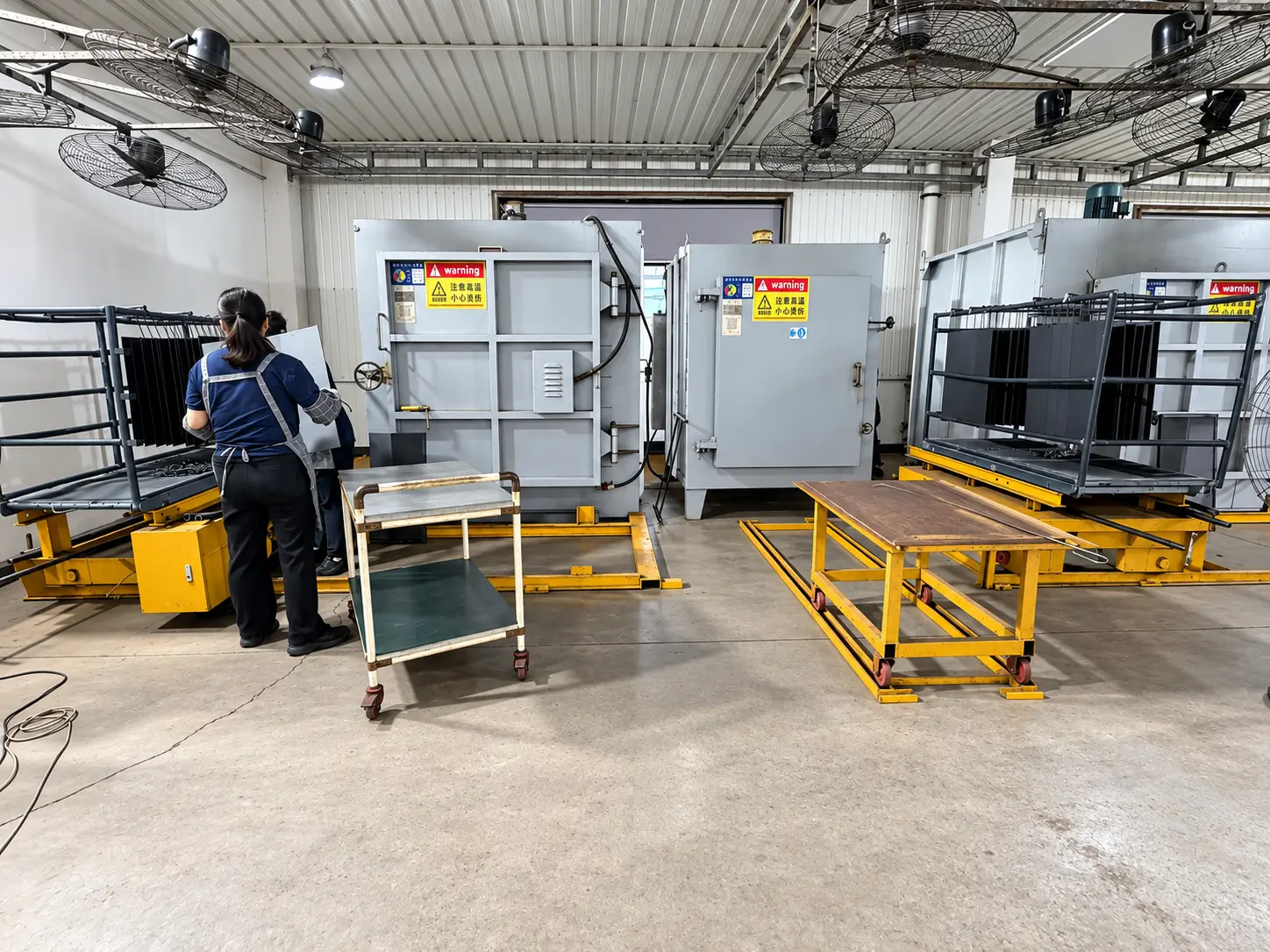

Manufacture, Inspect & Release
The anode is manufactured according to the confirmed specification and released after the agreed material, coating, dimensional, electrical and documentation checks are completed.

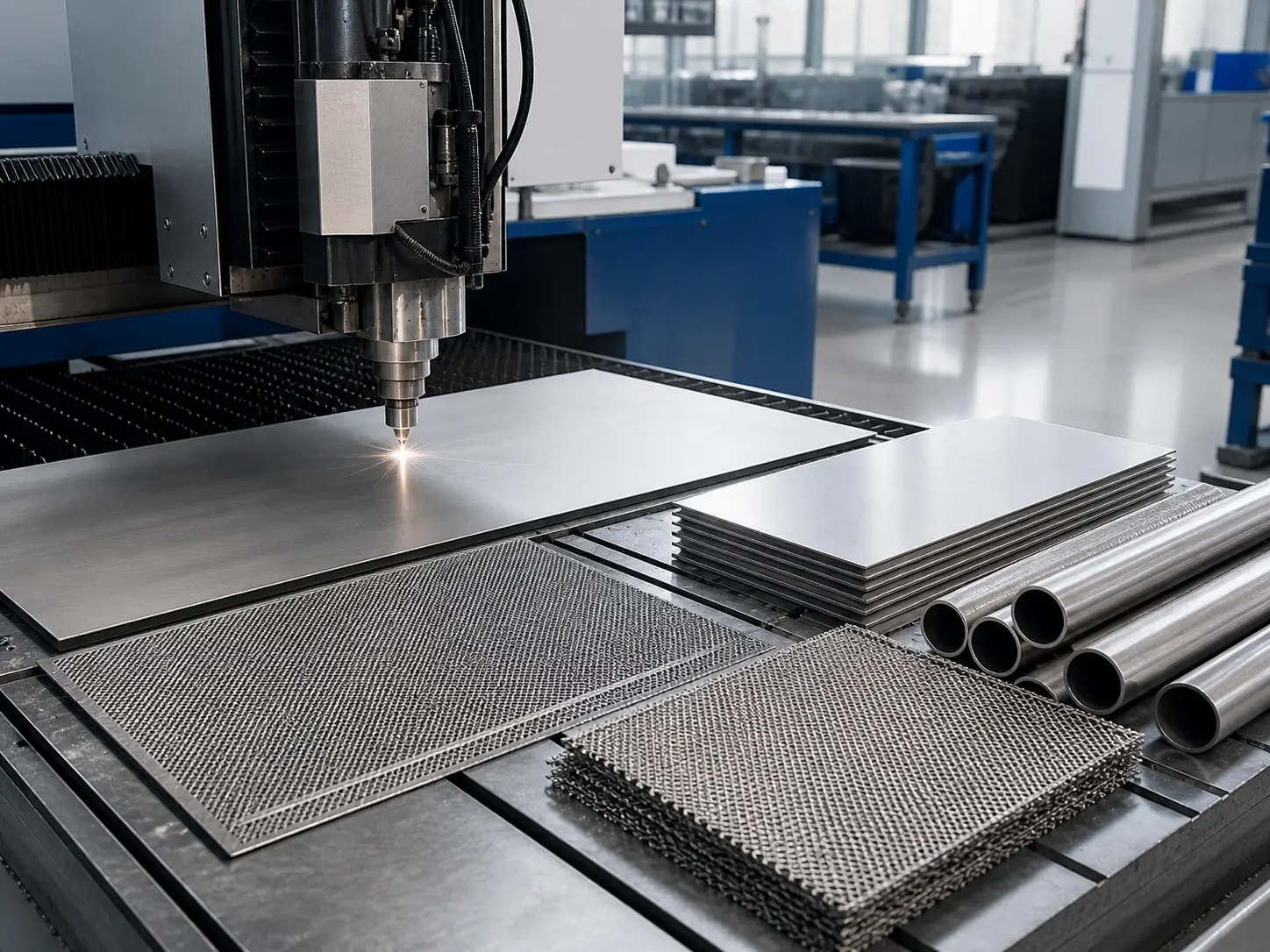

Substrate Preparation · Coating · Fabrication · Assembly · Traceability · Dimensions · Coating Records · Connection · Documentation
Released Anode & Project Records
Project Workflow
Replacing an Existing Ru-Ir Anode?
Existing drawings, anode photos, operating history, voltage trend and observed failure symptoms can be reviewed together with the current chloride chemistry and electrical duty before a replacement specification is confirmed.
Specification Changes Before Production
Any change to coating requirement, active area, geometry, connection or inspection scope should be reflected in the confirmed drawing or project specification before production release.

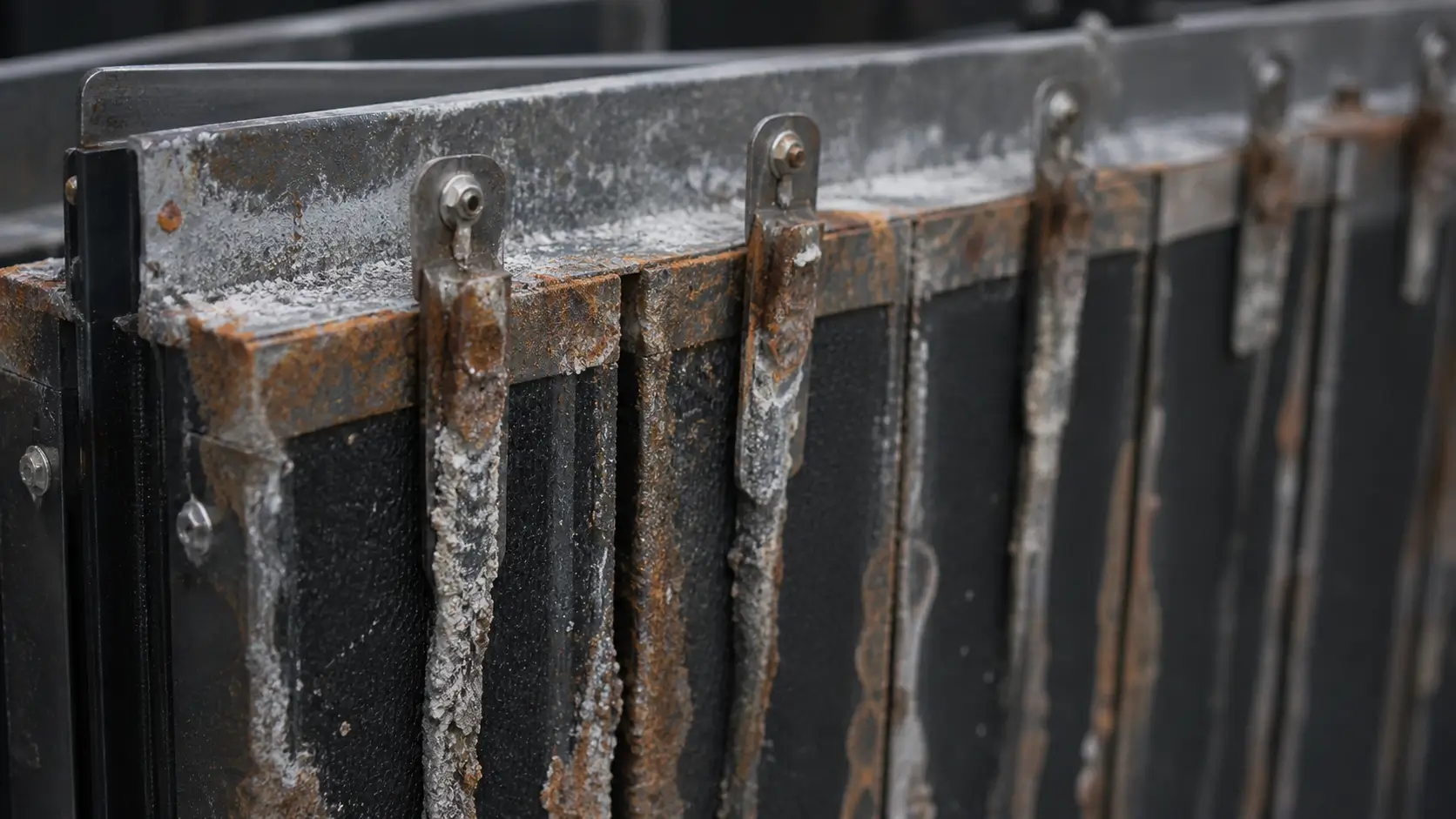

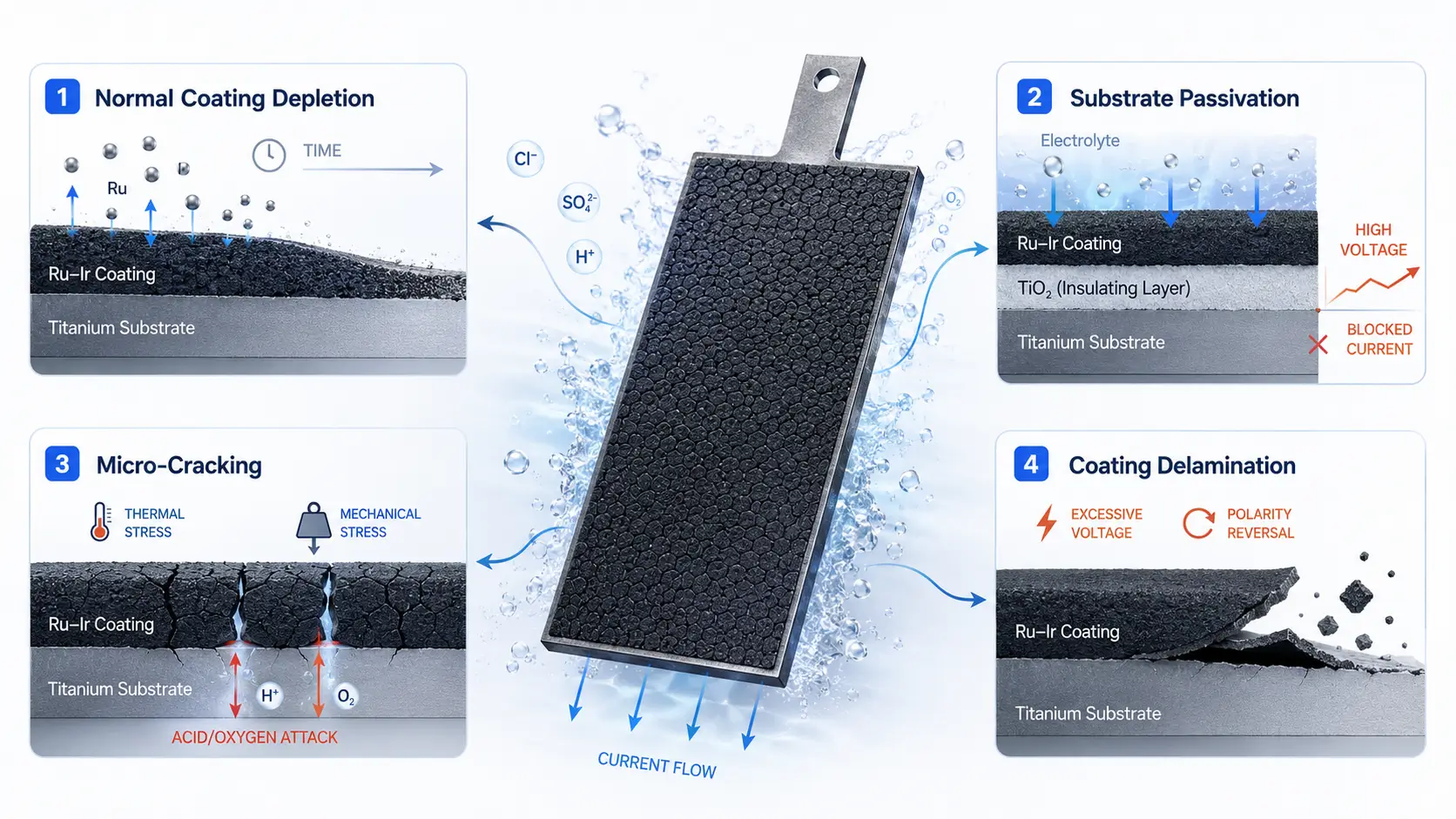

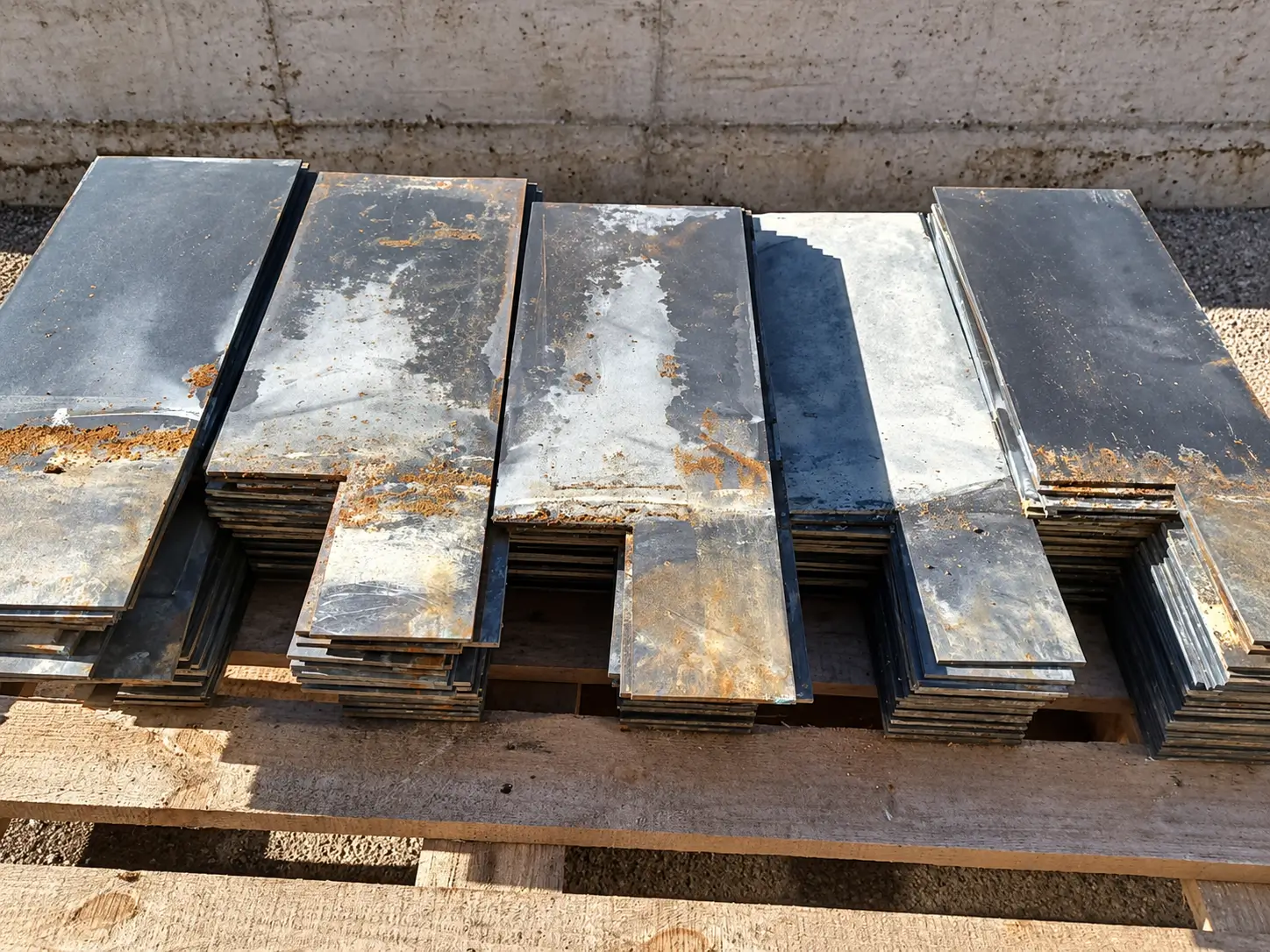

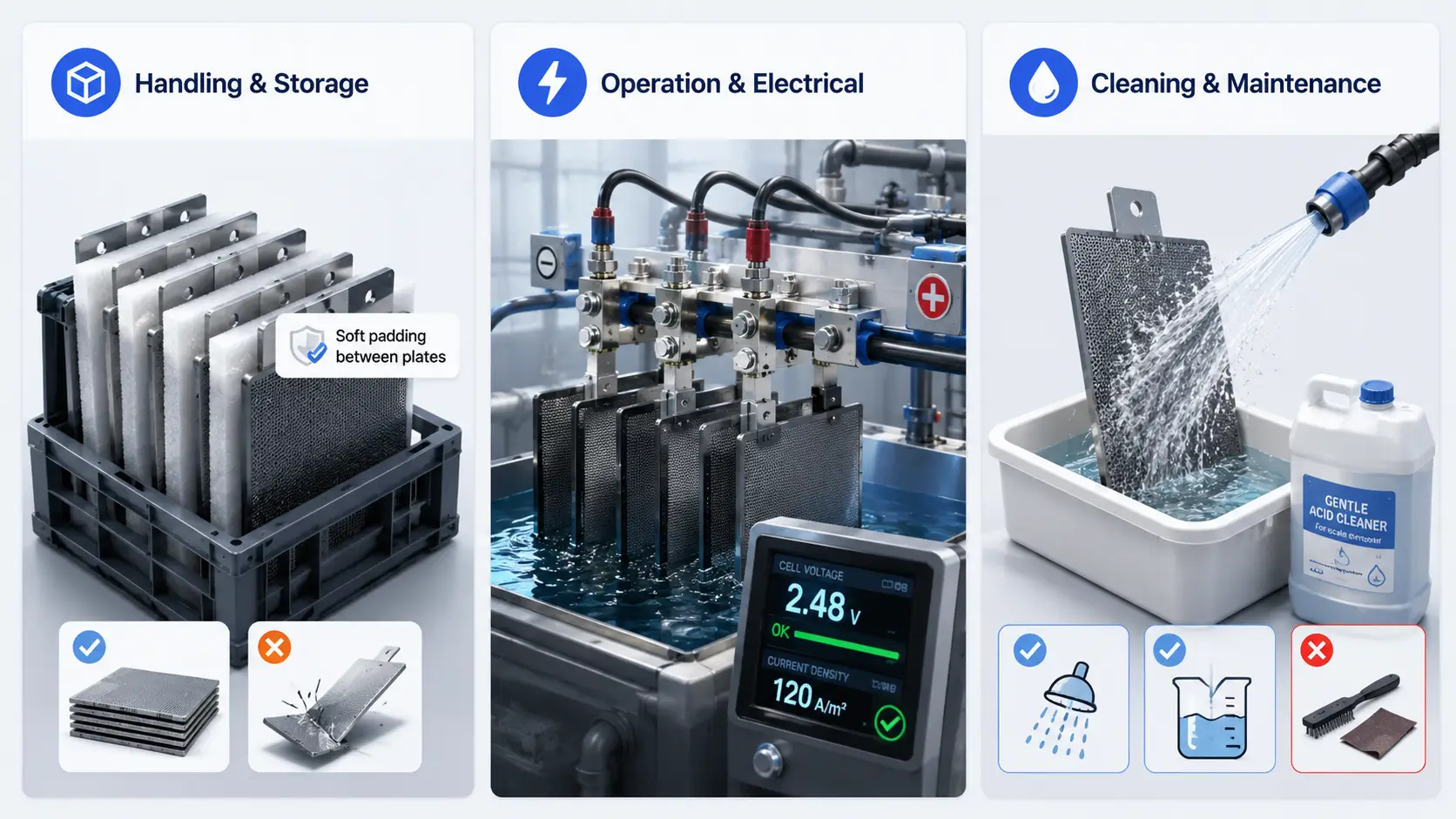

Common Failure Risks for Ru-Ir MMO Titanium Anodes
Ru-Ir MMO anode performance can decline when actual process chemistry, electrical loading or installation conditions differ from the original design basis. Root cause should be reviewed against operating data rather than attributed to the coating alone.
Changing Chloride Chemistry
Changes in chloride concentration, pH, electrolyte composition or process chemistry can alter the anodic reaction environment and change the duty imposed on the Ru-Ir coating.
Chloride Concentration · pH · Conductivity · Additives · Process Changes
Compare the actual electrolyte with the original chlorine-evolution design basis.
Excess Current Density or Reduced Active Area
Higher local current density, loss of effective coated area or uneven current distribution can increase electrochemical loading and contribute to faster performance loss.
Total Current · Current Density · Active Area · Electrode Spacing · Current Distribution
Confirm the actual electrical load against the effective coated area and cell geometry.
Fluoride, Contaminants & Surface Deposits
Fluoride, process contaminants, scale or other deposits can change the local electrochemical environment, obstruct the active surface or affect cell voltage and current distribution.
Fluoride · Contaminants · Scale · Deposits · Brine / Water Quality
Review both electrolyte condition and the physical anode surface before assigning the cause to coating degradation.
Polarity & Electrical Connection Problems
Reverse polarity, abnormal current paths, loose connections, damaged welds, cable problems or compromised seals can contribute to localized loading, unstable voltage or abnormal anode behavior.
Polarity · Tab · Cable · Weld · Seal · Contact Condition
Inspect the complete electrical path before concluding that the coating itself is the primary failure cause.
A Voltage Increase Is a Symptom — Not a Root-Cause Diagnosis
Rising cell voltage may be associated with coating condition, but it can also result from changes in current density, electrode spacing, electrolyte conductivity, temperature, surface deposits or electrical connections. The complete cell should be reviewed before the cause is assigned.

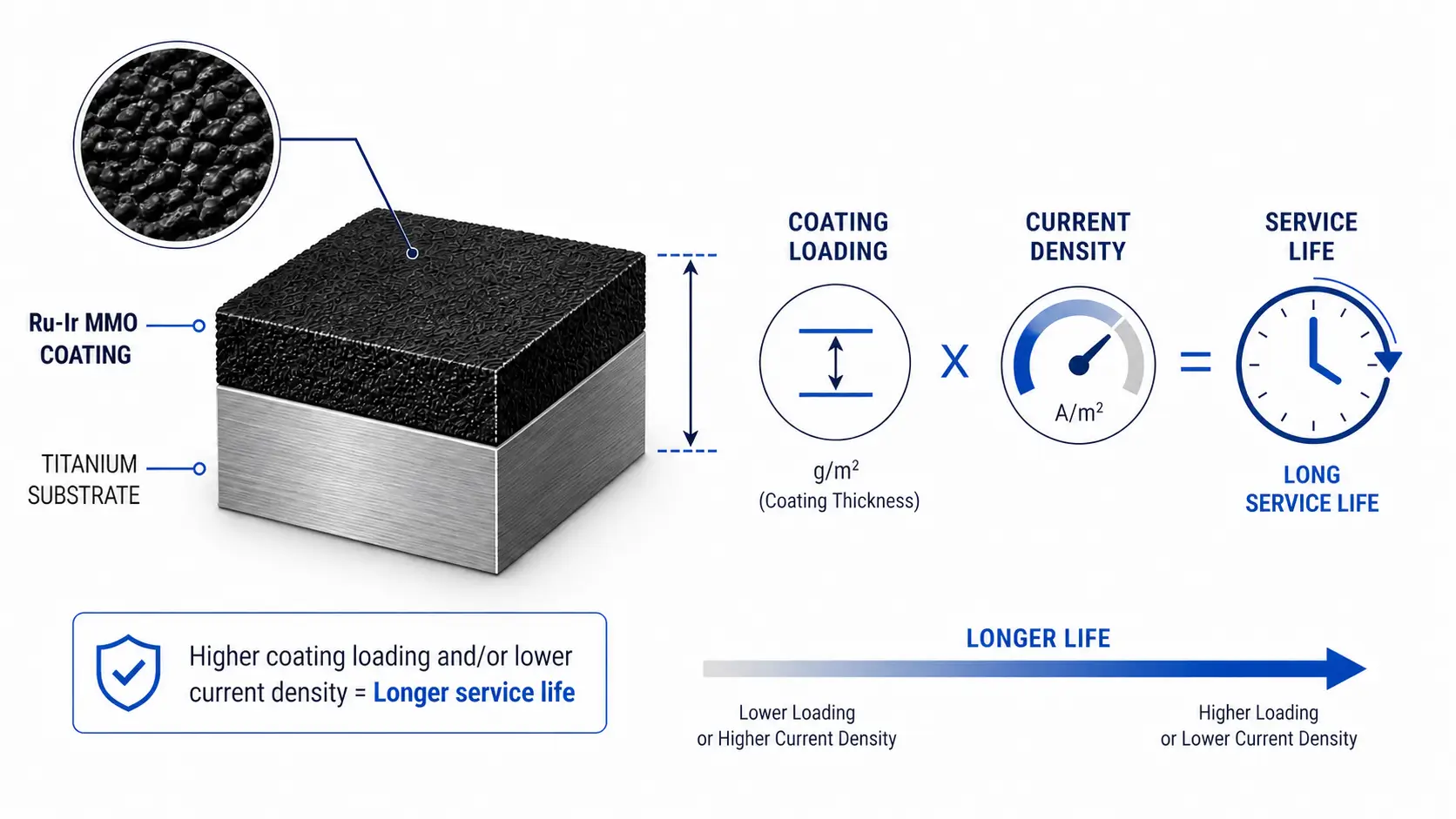

Service Life Must Be Linked to Operating Conditions
Ru-Ir anode service life should be evaluated together with chloride chemistry, current density, temperature, duty cycle, active area, electrical condition and the original coating specification.
Has the Dominant Anodic Reaction Changed?
If process conditions have shifted toward oxygen-evolution duty rather than chlorine evolution, the coating direction should be re-evaluated instead of assuming that the original Ru-Ir specification remains appropriate.
Provide chloride chemistry, current density, temperature, voltage trend, service history and observed failure symptoms where available.

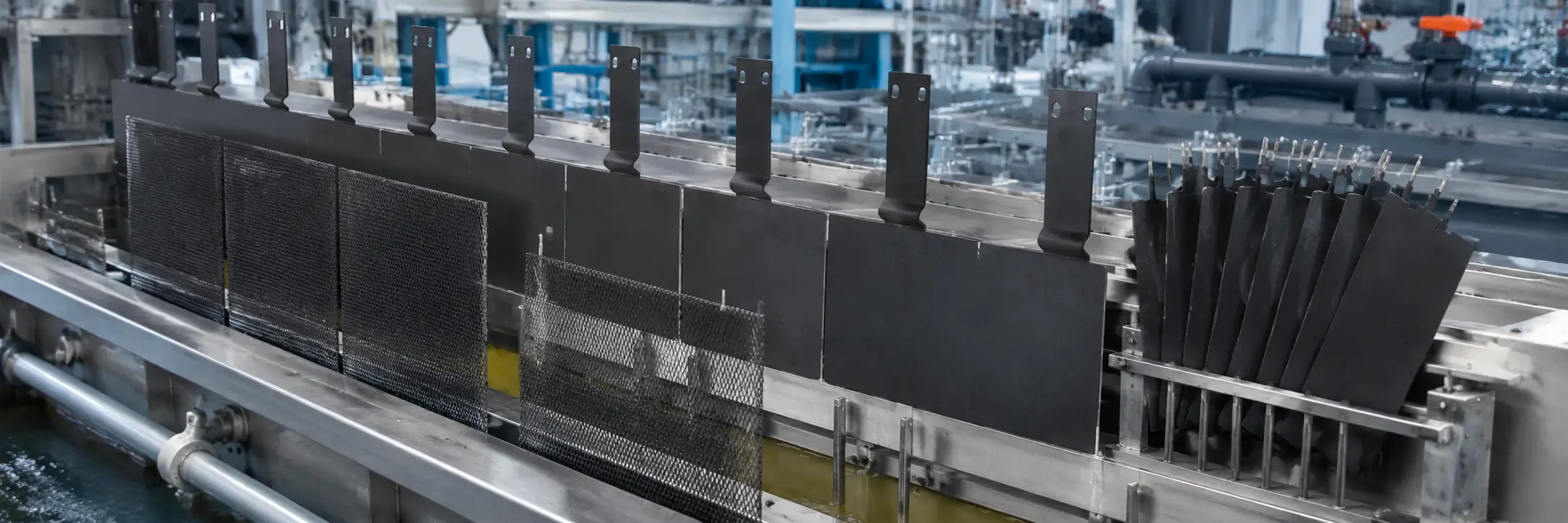

Verification of Ru-Ir MMO Coating & Anode Specifications
Material records, coating-process data, dimensional inspection, electrical-interface checks and project-specific testing are used according to the agreed inspection plan. Each verification method should be interpreted within its defined scope.

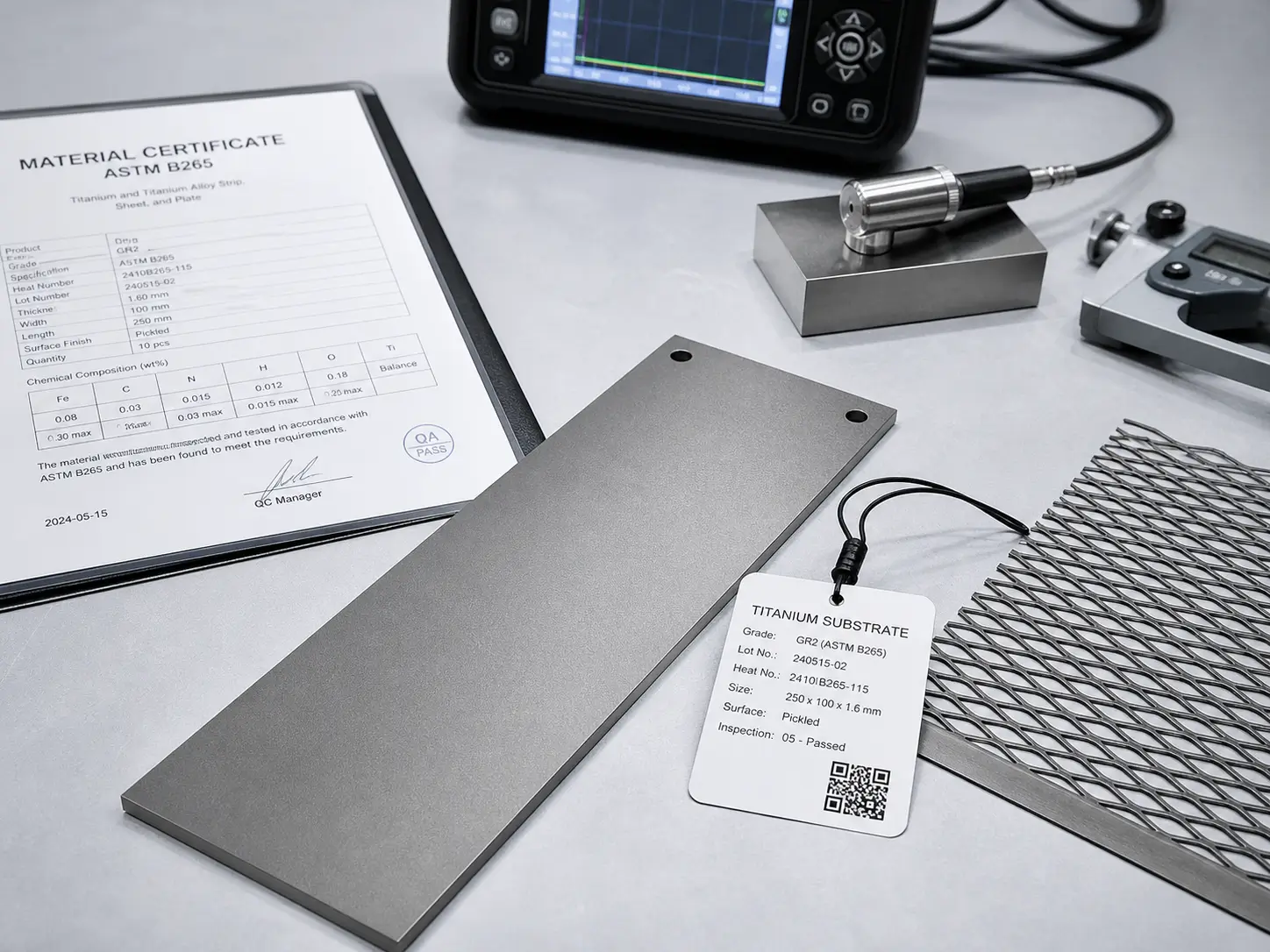

Substrate & Traceability
Titanium grade, material identification and available heat or lot records are reviewed against the confirmed substrate specification before coating and assembly.
Review Items

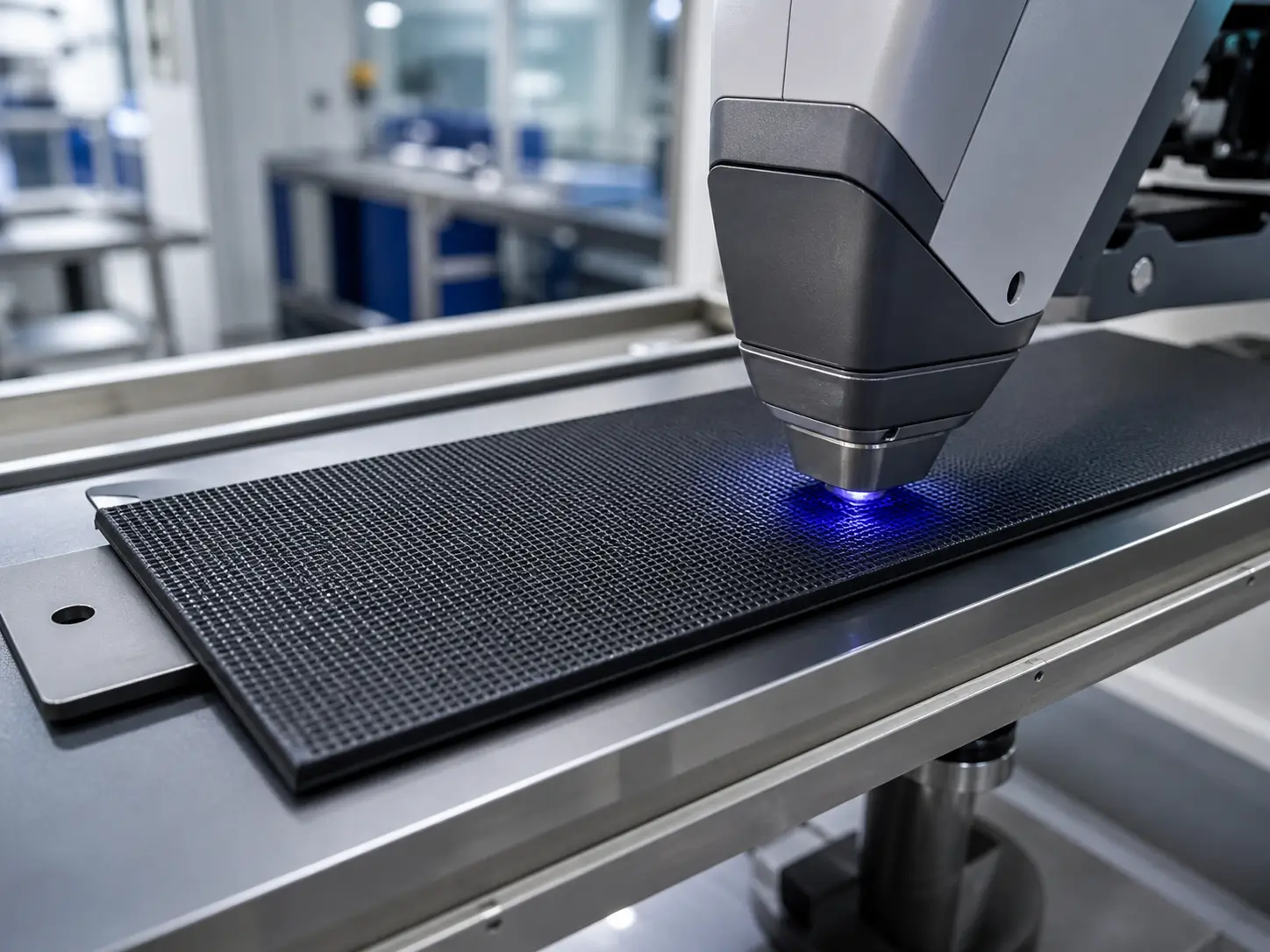

Coating & Loading Verification
Ru-Ir coating composition and loading-related requirements can be reviewed using process records and applicable measurement methods defined for the project.
Review Items
XRF supports elemental-composition review. It does not independently prove coating adhesion, complete surface uniformity, or field service life.
Dimensions & Connections
Finished geometry, active coating boundaries, mounting features and electrical interfaces are inspected against the approved drawing and agreed acceptance requirements.
Dimensional
Electrical

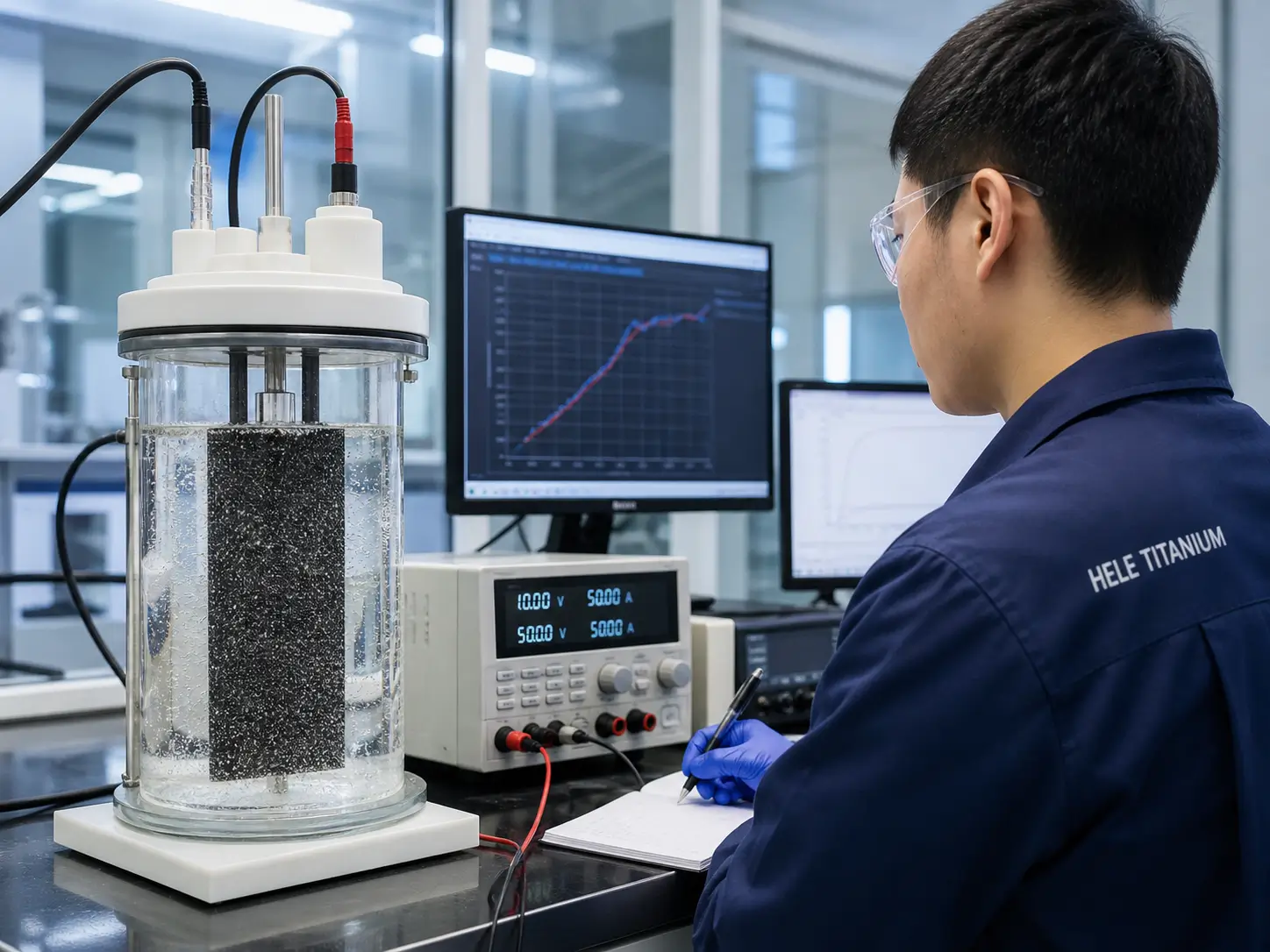

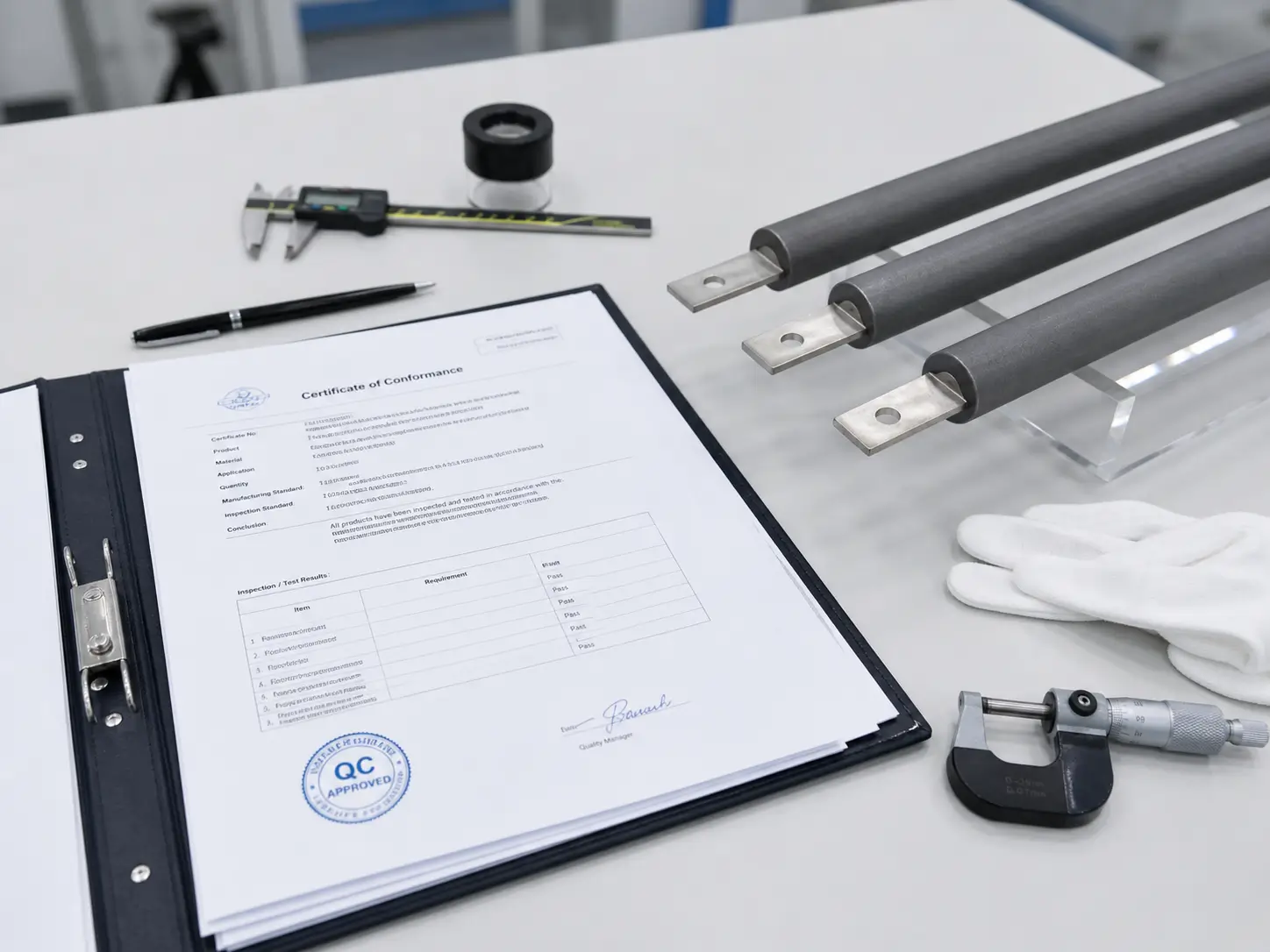

Electrochemical / ALT Testing
Project-specific electrochemical or accelerated tests provide comparative performance data when the test conditions, electrical duty, and acceptance criteria are clearly defined.
Required Test Context
Accelerated Testing Requires Defined Conditions
ALT results should be interpreted together with the test sample, electrolyte composition, chloride concentration, temperature, current density, operating cycle and endpoint. Accelerated-test results should not be presented as a universal field-life guarantee without a documented correlation and extrapolation basis.
Define the Measurement Basis Before Comparing Loading Data
When coating loading, thickness or Ru:Ir composition is specified, confirm whether the value refers to total mixed-oxide loading, elemental content, nominal formulation or another defined measurement basis. Units, coated area, sampling locations and acceptance criteria should be agreed before supplier data are compared.

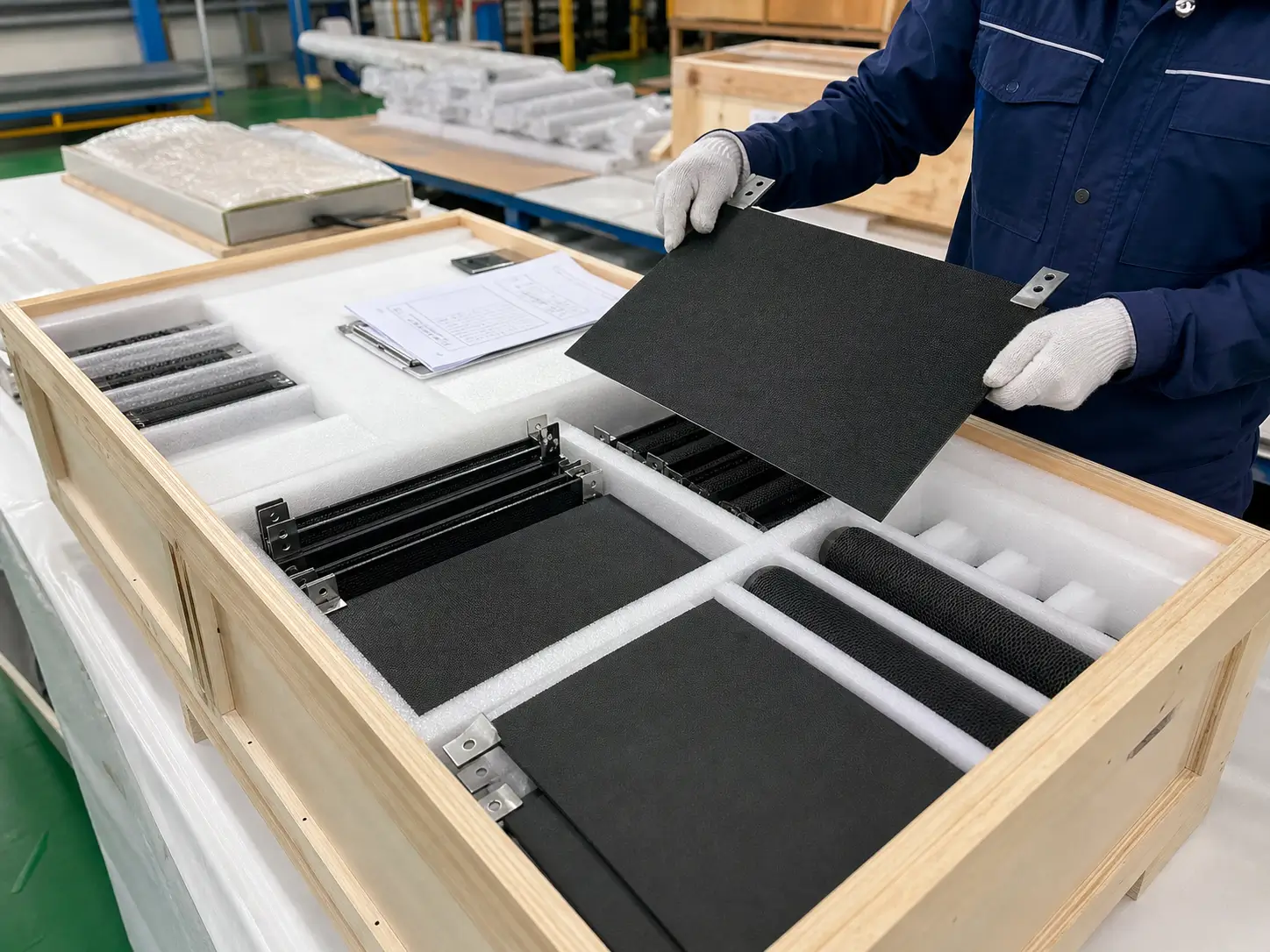

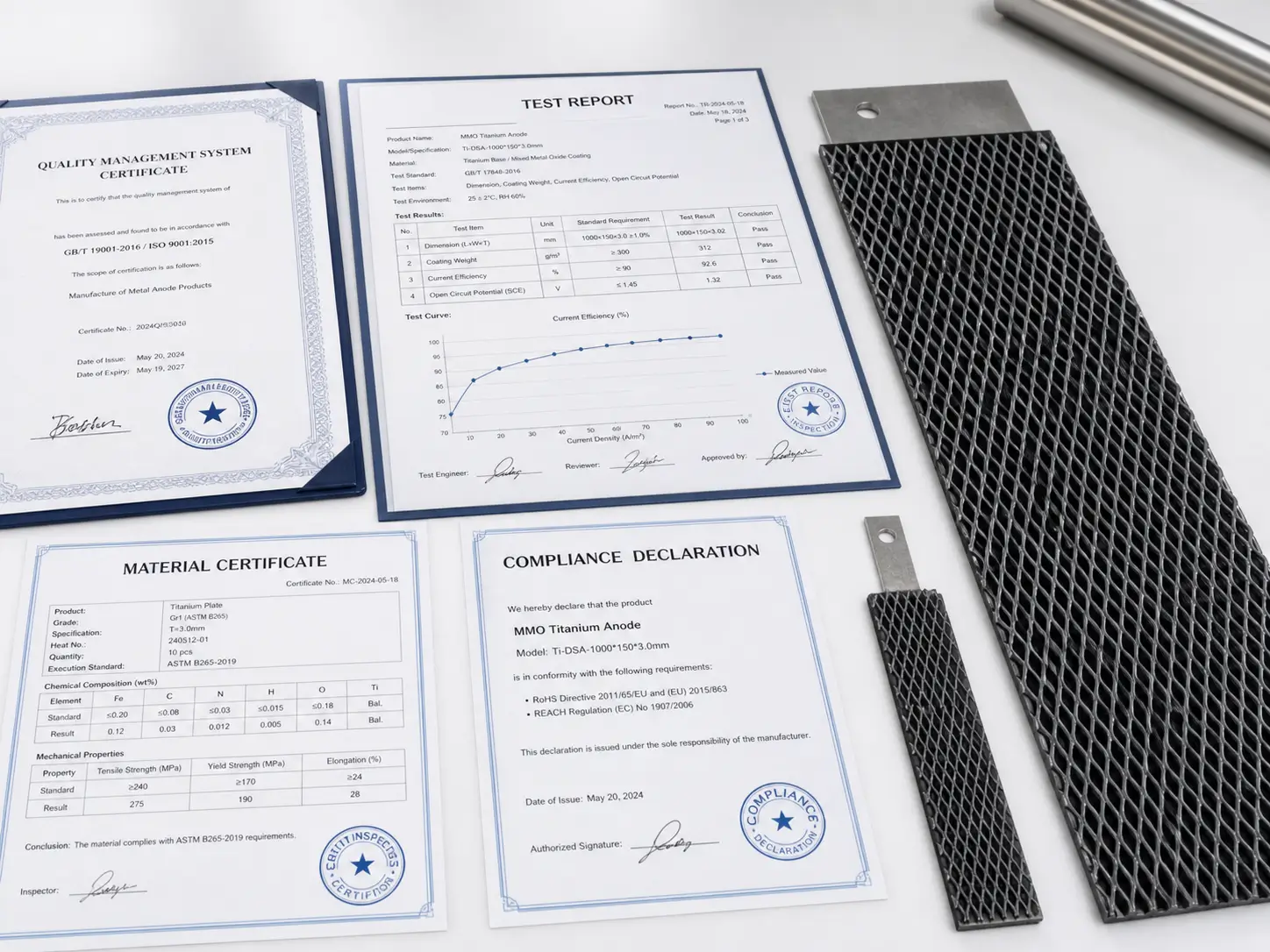

Available Documentation
Documentation can be prepared according to the agreed purchase and inspection requirements.
- MTC / Material Records
- Coating / Batch Records
- Dimensional Inspection Records
- XRF Data / Report*
- Electrical / Connection Records*
- Project-Specific Test Records*
- Product ID & Packing Records
- Third-Party Inspection Support*
*When specified and included in the agreed inspection scope.
Use the Right Evidence for the Right Claim
Material records verify the substrate. Dimensional inspection verifies geometry. XRF supports composition-related data. Electrochemical and accelerated tests evaluate behavior under defined conditions. No single record proves total anode performance or field service life.

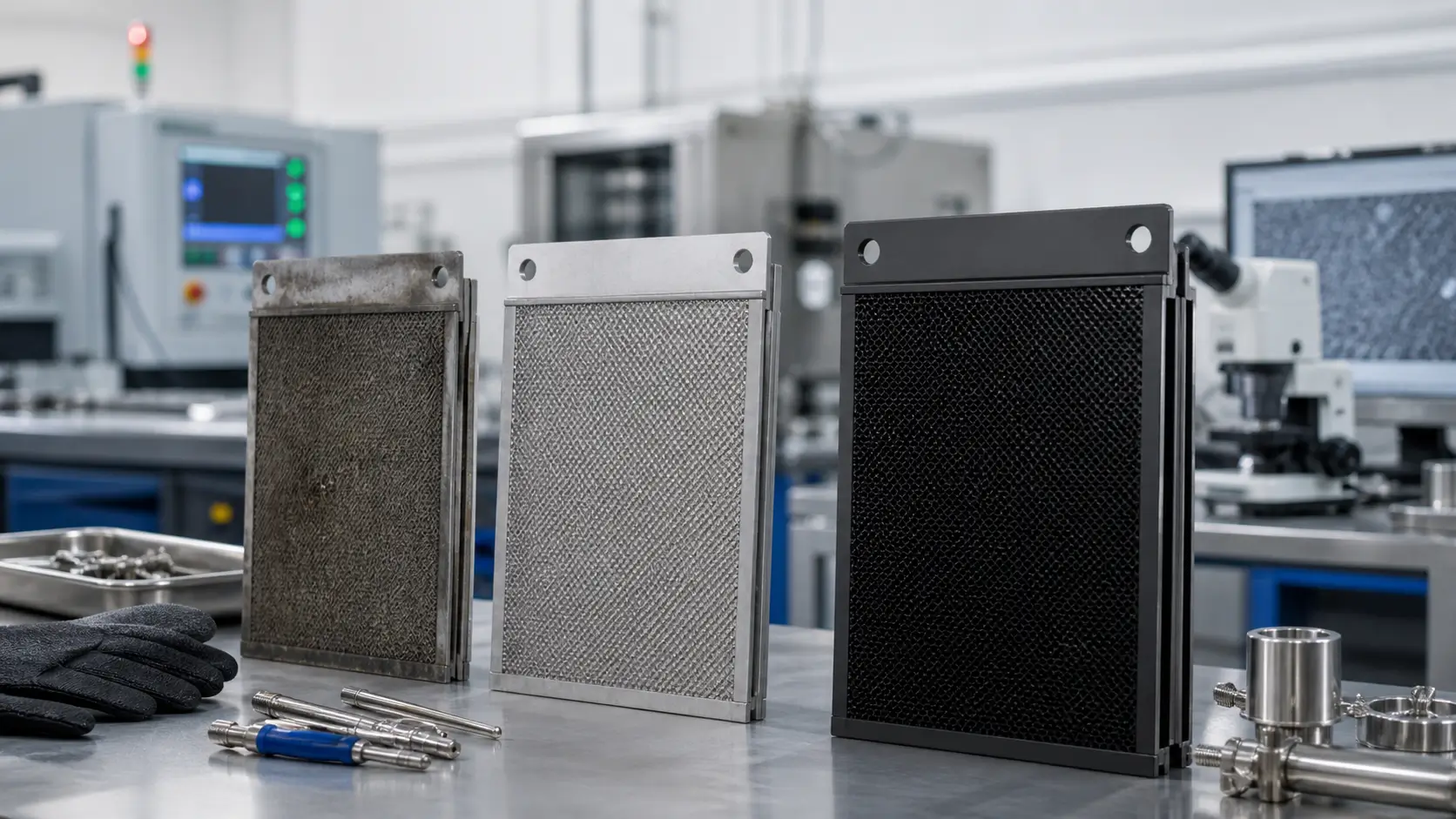

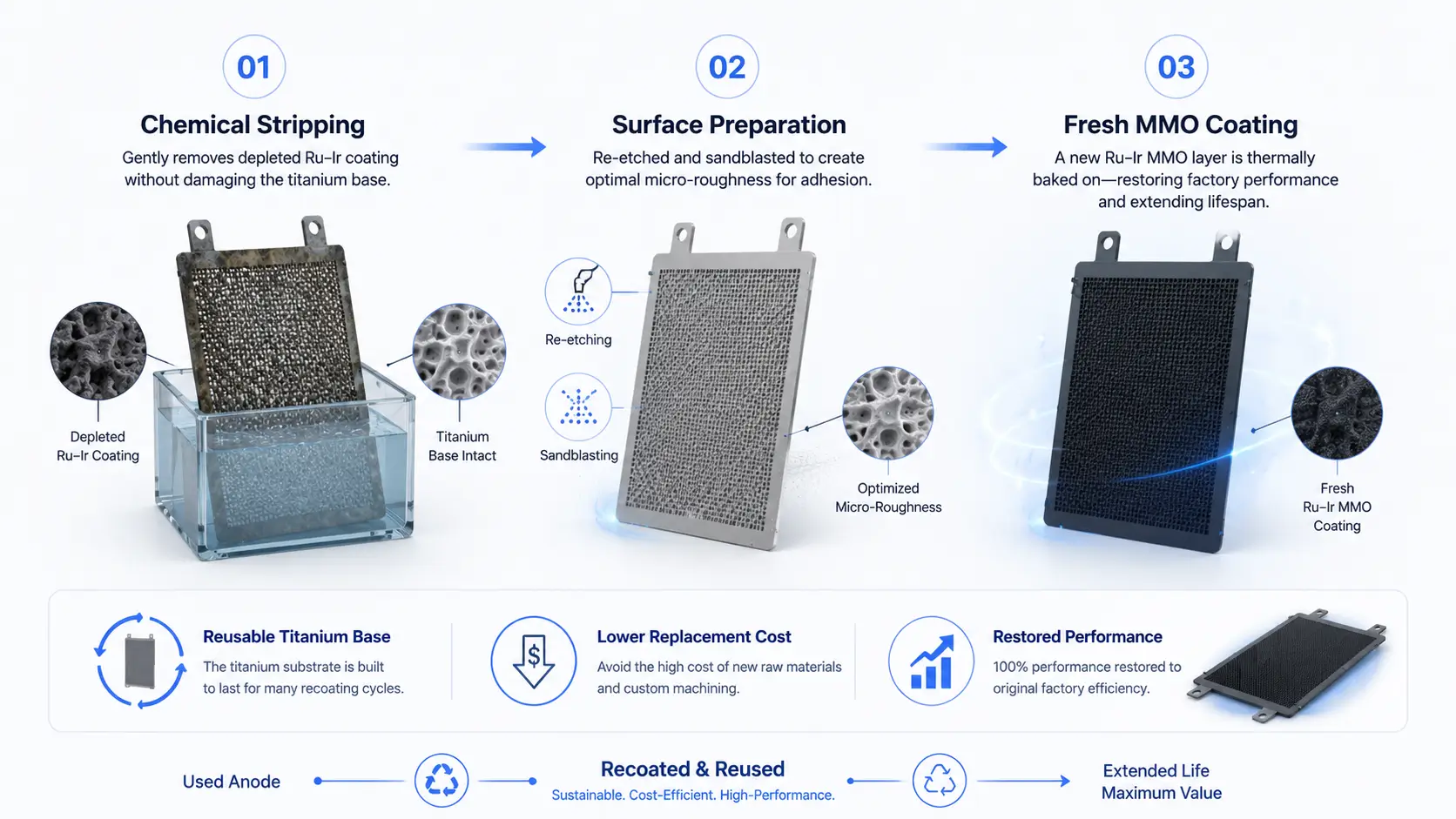

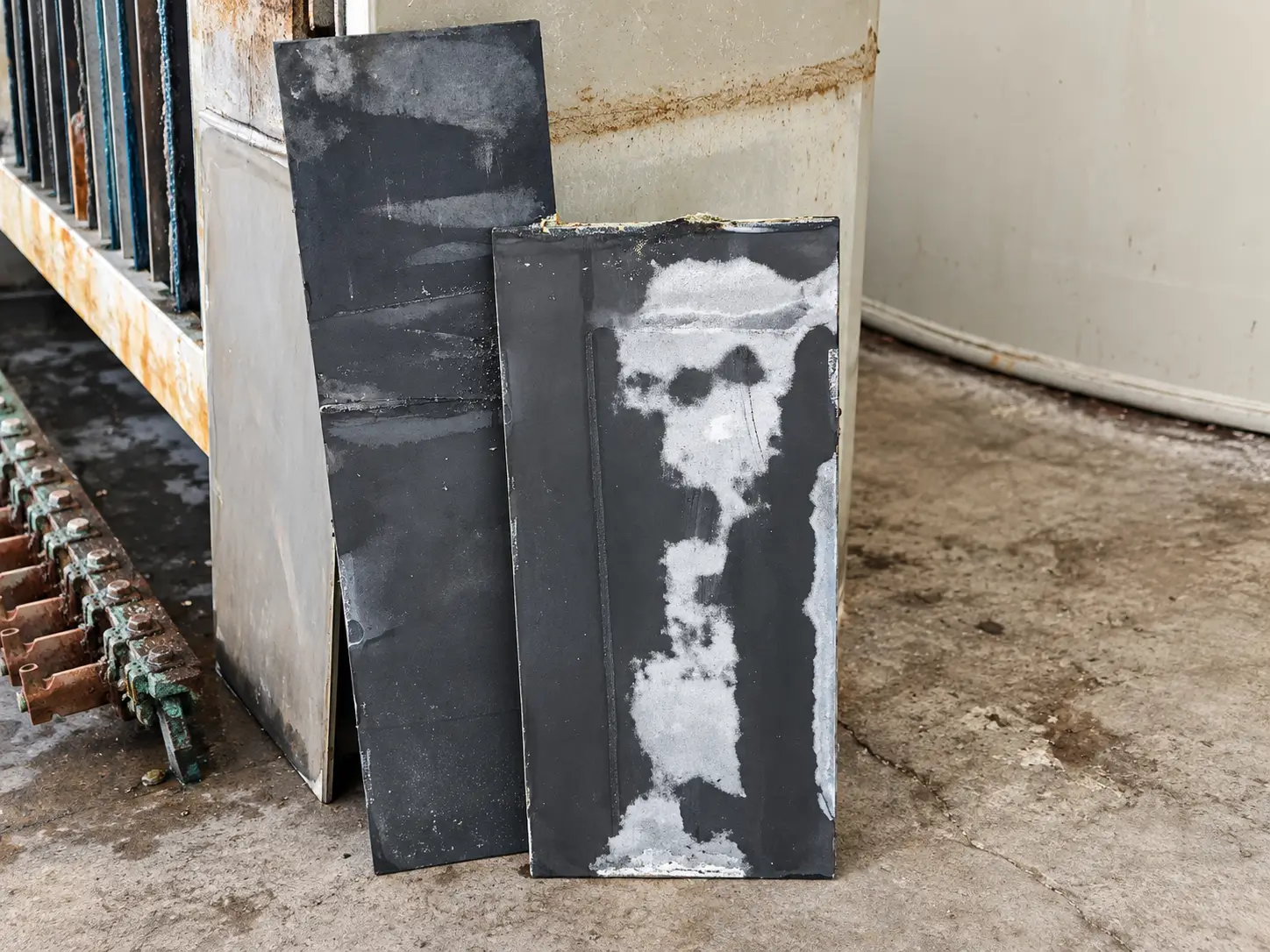

Can an Existing Ru-Ir MMO Titanium Anode Be Recoated?
Recoating may be considered only after the titanium substrate, dimensions, welded joints, electrical connections, contamination and prior service history are reviewed. Reuse should not be assumed from coating wear alone.
Recoating Decision Flow
Evaluate the Titanium Substrate
The titanium substrate should be reviewed for pitting, erosion, deformation, cracking, dimensional loss and other damage that may affect its suitability for another coating cycle.
Pitting · Erosion · Deformation · Cracks · Dimensions · Remaining Section
Inspect Connections & Interfaces
Tabs, cables, threaded interfaces, welds, frames, seals and mounting features should be inspected because recoating the active surface does not correct a damaged electrical or structural interface.
Tab · Cable · Thread · Weld · Frame · Seal · Mounting
Review Service History
Previous electrolyte chemistry, chloride concentration, current density, temperature, operating hours, voltage trend and abnormal events should be reviewed before the cause of performance loss is assigned.
Electrolyte · Chloride · Current Density · Temp · Service Time · Voltage Trend · Reverse Polarity · Process Upsets · Scale · Contamination · Failure Mode
Confirm Suitability & Specification
If the substrate and electrical interfaces remain suitable, the new coating requirement, active area, loading basis and inspection scope should be confirmed against the current operating conditions.
Coating System · Active Area · Loading Requirement · Connection · Inspection Scope
A new titanium substrate or complete replacement anode may be required when the existing component no longer meets the agreed mechanical, dimensional or electrical criteria.
Recoating Does Not Automatically Restore Original Service Life
A new coating does not by itself establish that a used substrate will return to the original anode’s efficiency, mechanical condition or design life. Expected service duty should be reviewed against the condition of the reused component and the current operating requirements.
When Recoating May Not Be Appropriate
Recoating may not be recommended when significant pitting, distortion, cracking, dimensional loss, damaged welds or connections, severe contamination or other substrate defects prevent the component from meeting the agreed acceptance criteria.
Compare Recoating with Replacement on a Project Basis
The economic value of recoating depends on substrate condition, repair requirements, coating specification, inspection scope and the cost of a complete replacement anode.
Request Evaluation
Provide details about your current MMO anodes to help us assess recoating viability.
Or contact our engineering team directly:
sales@heletitanium.com
Room 1206, Building 1, Huaxia Yue World
Why Engineers Choose HELE for Ru-Ir MMO Titanium Anodes
HELE supports Ru-Ir MMO anode projects from chlorine-evolution process review through coating and geometry definition, specification confirmation, inspection planning and repeat-order support.
CER-Focused Engineering Review
We review the target chlorine-evolution reaction, chloride concentration, pH, temperature, current density and operating duty before confirming the Ru-Ir coating direction.
Coating, Active Area & Connection Reviewed Together
The Ru-Ir coating requirement, effective active area, titanium geometry and electrical interface are reviewed as one anode design rather than as independent purchase specifications.
Inspection Evidence & Traceability
Material records, coating-process documentation, dimensions, electrical interfaces and project-specific verification are managed according to the agreed specification and inspection scope.
Evidence: Material Records · Coating / Batch Records · Dimensional Inspection · Product Identification
When Specified: XRF Data · Electrochemical Testing · ALT Records · Third-Party Inspection
Replacement, OEM & Repeat-Order Support
New designs, replacement Ru-Ir anodes and OEM projects can be reviewed from drawings, existing-anode data and operating history, with revisions and project records retained for future supply continuity.
Manufacturer-Led Project Support
HELE provides manufacturer-led coordination for custom Ru-Ir MMO anode projects, with the applicable fabrication, coating, assembly, inspection and documentation scope confirmed for each specification.
Project Scope Is Confirmed Before Production
Coating requirement, active area, connection design, inspection scope and documentation requirements are confirmed against the approved project basis before production release.
Request Anode Consultation
Submit your operational conditions and our engineering team will customize the optimal PGM loading and coating formulation for your application.
Ru-Ir MMO Titanium Anode FAQs
Common questions about Ru-Ir coated titanium anodes, chlorine-evolution applications, coating specification, service life, recoating and custom project requirements.
What is a Ru-Ir coated titanium anode?
When should I choose Ru-Ir instead of Ir-Ta MMO?
Are Ru-Ir MMO anodes suitable for electrochlorination and sodium hypochlorite generation?
Can Ru-Ir titanium anodes be used for seawater chlorination?
How should Ru-Ir coating composition and loading be specified?
What determines the service life of a Ru-Ir MMO anode?
Can an existing Ru-Ir MMO titanium anode be recoated?
What information should I provide for a Ru-Ir anode quotation?
Upload Drawing & Operating Data
Inside Our Manufacturing & Quality System
Every Ru-Ir MMO anode is manufactured through controlled titanium substrate preparation, coating formulation, thermal treatment, dimensional inspection, XRF verification, adhesion testing, and documentation review — helping buyers reduce coating risk and improve electrolysis reliability.
From titanium substrate preparation and surface activation to Ru-Ir coating application, thermal decomposition, connection fabrication, and final packing, each production step is controlled according to the target electrolyte and service life.
Titanium substrate preparation before Ru-Ir coating
Surface activation for improved coating adhesion

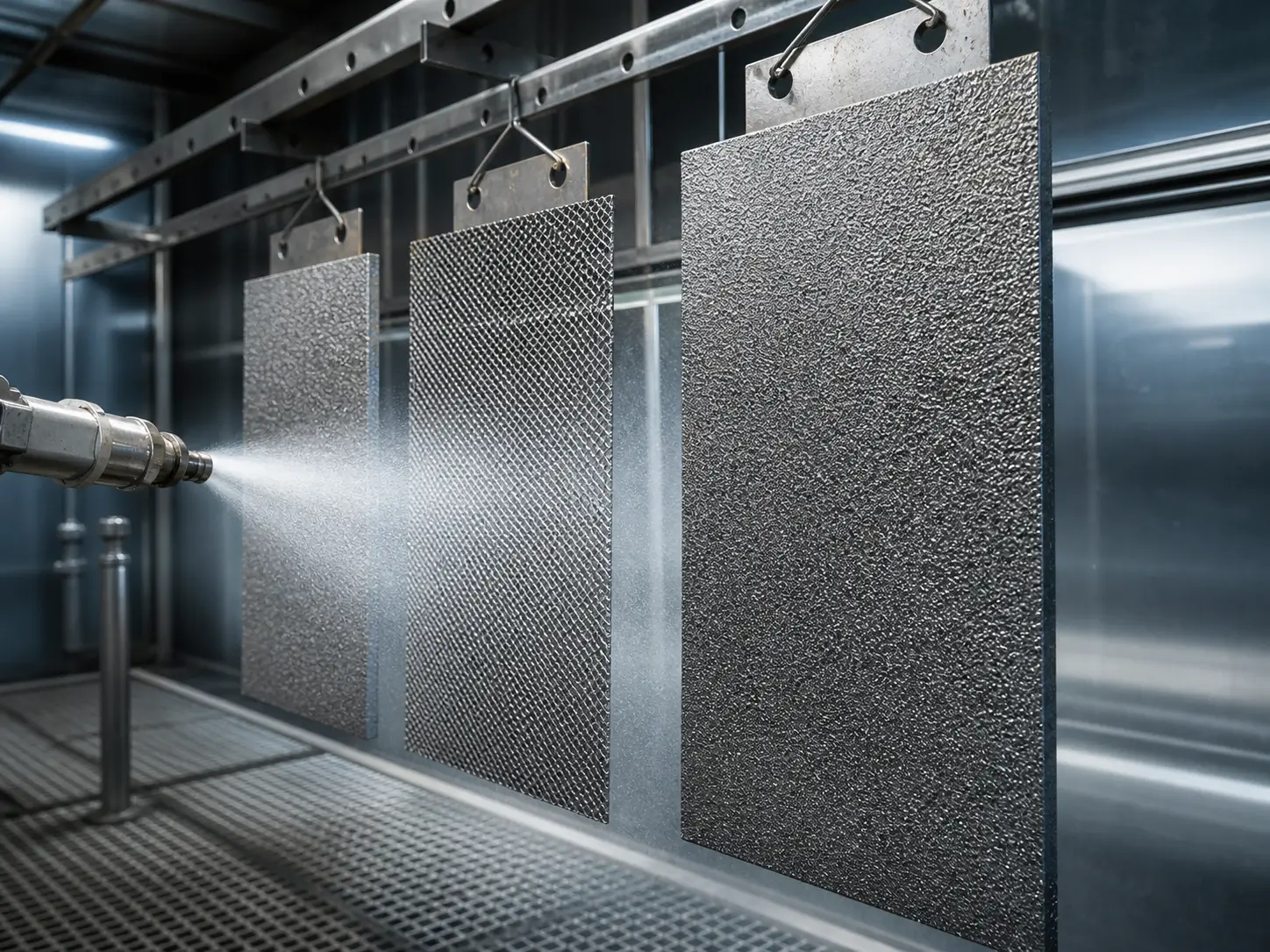

Ru-Ir MMO coating application
Thermal treatment for catalytic coating stability
Connection fabrication for low-resistance current transfer
Finished Ru-Ir MMO anodes prepared for shipment
Our workshop supports Ru-Ir MMO mesh, plate, tubular, rod, basket, and custom OEM anode production for chlorine evolution and chloride-rich electrolysis systems.

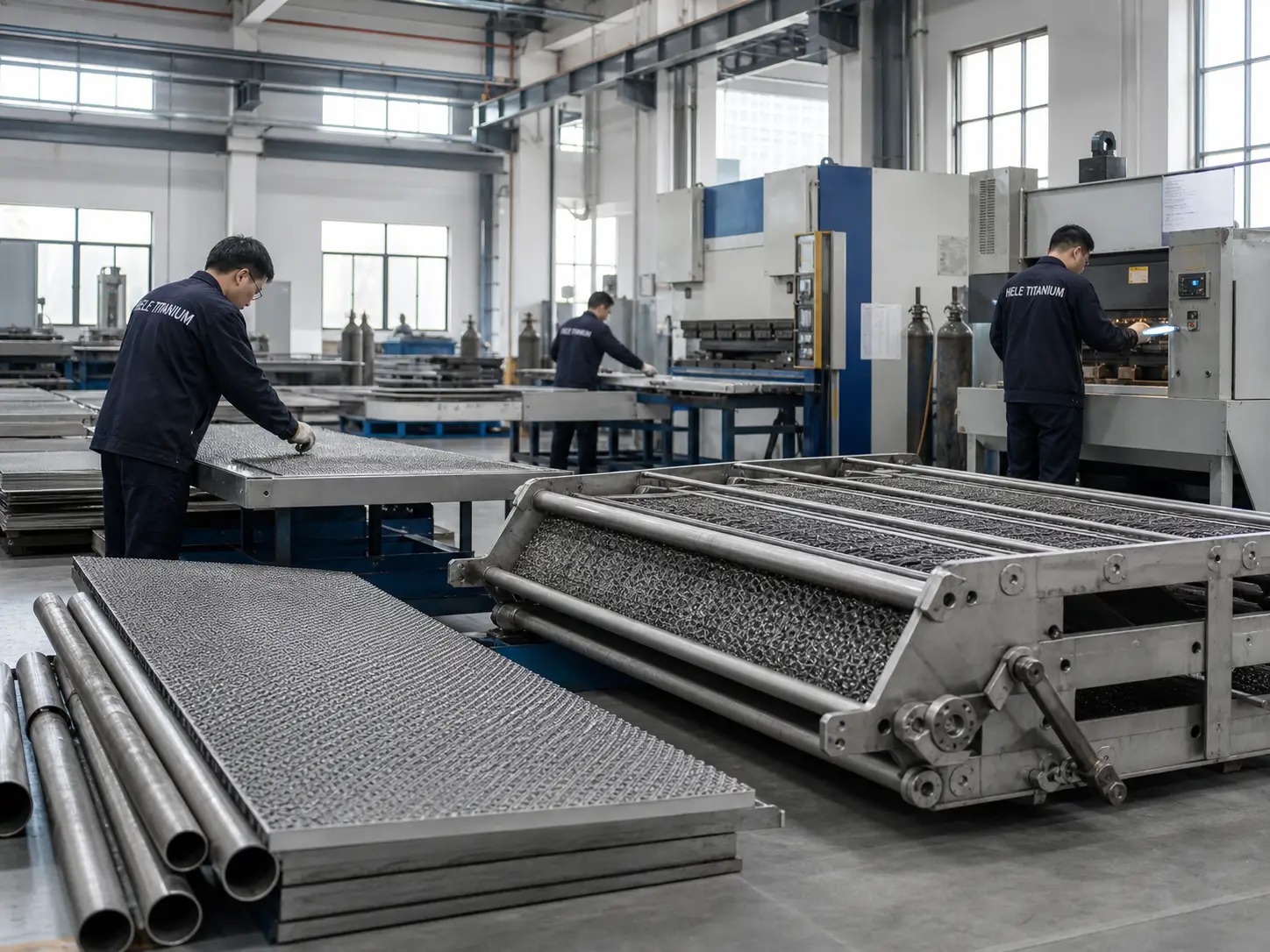

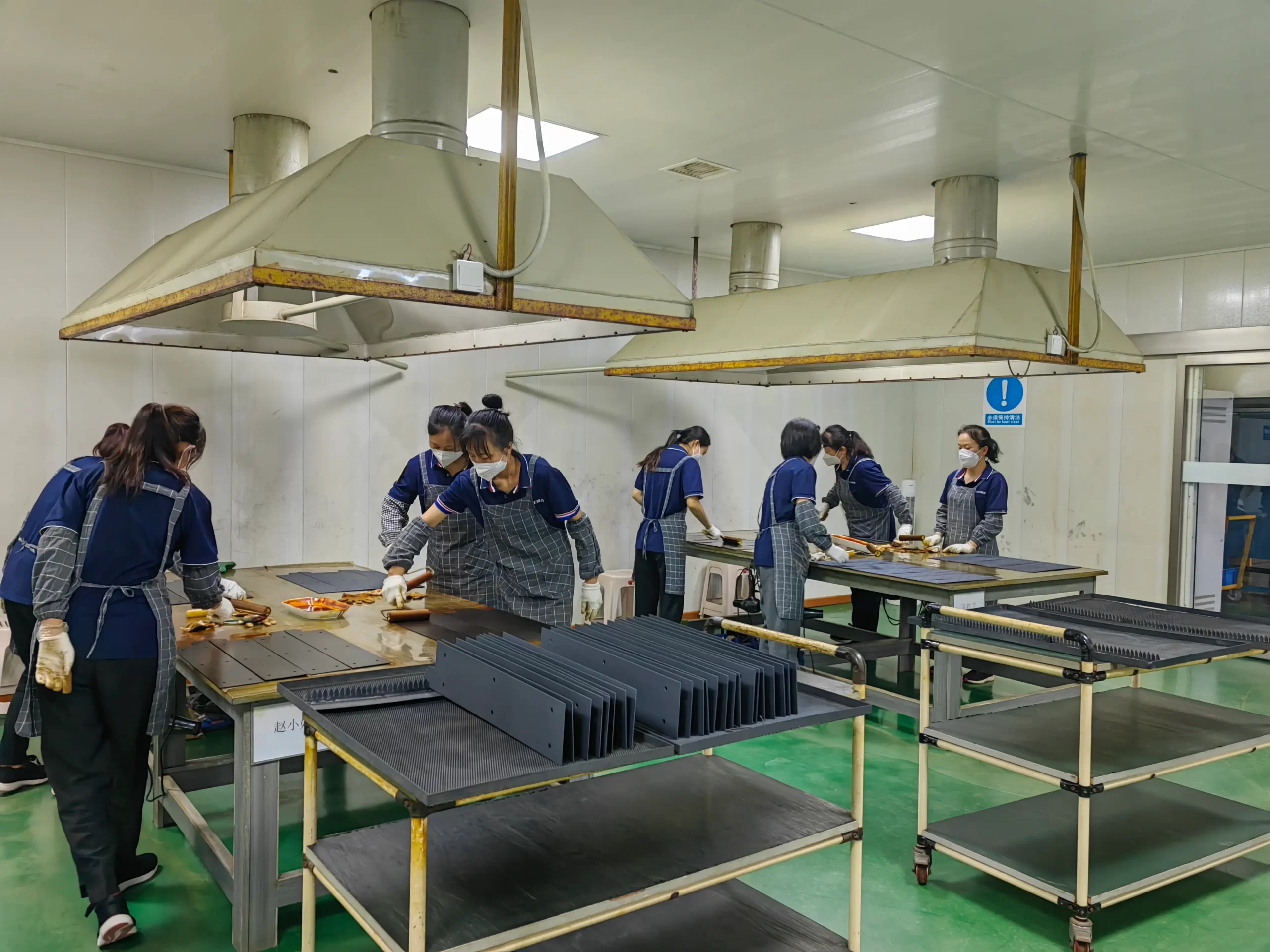

Titanium Fabrication Area
Ru-Ir Coating Preparation Station
Thermal Sintering Furnace Area
Packing & Dispatch Area
Quality checks focus on substrate verification, PGM loading, coating uniformity, adhesion, accelerated life testing, dimensional accuracy, surface condition, and traceability.
XRF testing for Ru-Ir PGM loading
Multi-point coating uniformity check
Adhesion testing for coating reliability
ALT for coating durability review
Dimensional inspection according to drawings

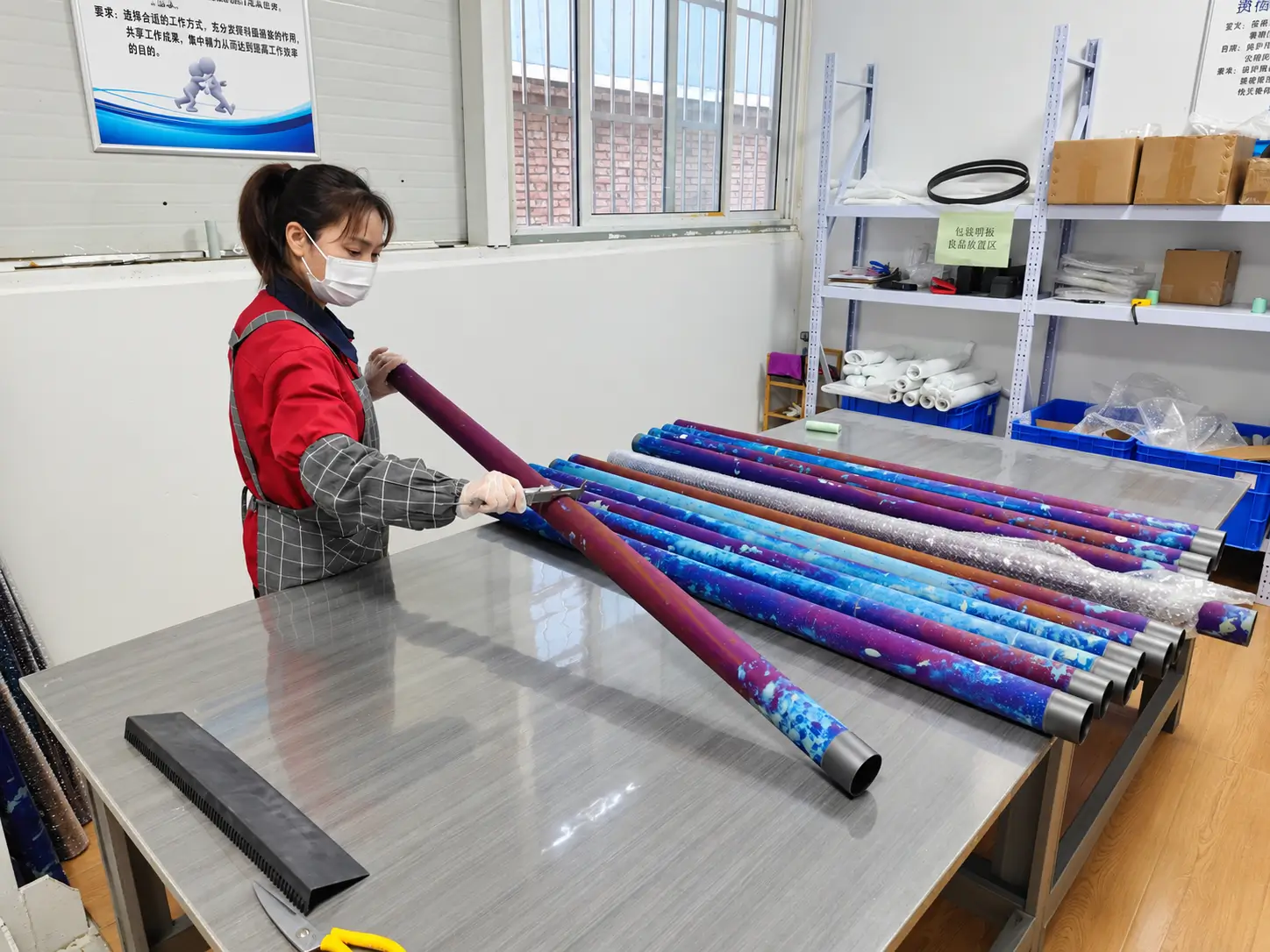

Final inspection records prepared for approval
For qualified projects, Hele Titanium can provide material certificates, XRF reports, coating records, dimensional reports, inspection documents, drawings, packing lists, and export documentation.
Material Test Certificate Example
XRF Coating Report
Accelerated Life Test Record
Export & Traceability Documentation
Get a Ru-Ir MMO Anode Recommendation for Your Chloride Electrolysis System
Tell us your electrolyte chemistry, chloride concentration, pH, temperature, current density, chlorine output target, anode form, and documentation needs. Hele Titanium will help review the suitable Ru-Ir MMO anode design for your system.
-
Ru-Ir Coating Review for Chlorine Evolution
-
Mesh, Plate, Tube, Rod & Custom Cell Anodes
-
XRF / ALT / Coating Record Support When Required
-
Engineering Review & Export Documentation
