MMO Wire Anode for Distributed Current Output
Custom MMO coated titanium wire anodes engineered for reinforced concrete cathodic protection, tank bottom protection, embedded CP systems, pipeline corridors, and compact distributed current output applications.
Flexible Distributed Current Output for Embedded and Long-Area CP Systems
MMO wire anodes are selected when a flexible, compact, and distributed current output form is required. They are commonly reviewed for reinforced concrete cathodic protection, embedded CP systems, tank bottom protection, and project layouts where the anode must follow a defined route or spacing pattern.
Compared with larger anode forms, MMO coated titanium wire can be easier to route, embed, space, or install in restricted areas. The final design should be reviewed according to concrete or soil resistivity, chloride level, current output requirement, anode spacing, installation method, cable connection, and design life target.
Hele Titanium supports custom MMO wire anodes with project-specific wire diameter, coated length, coating loading, cable termination, packaging, labels, and documentation according to cathodic protection project requirements.
Flexible Linear Form
Suitable for routes, spacing layouts, and embedded applications where a compact anode form is required.
Distributed Current Output
Designed to spread protective current along the wire length instead of discharging from one concentrated point.
Custom Coated Length
Coated length and current output can be reviewed according to project layout and design life target.
Connection & Label Support
Cable connection, termination, labels, packing, and project documents can be supported when required.
What Is an MMO Wire Anode?
An MMO wire anode is a titanium wire substrate coated with mixed metal oxide. It is used as a compact linear anode for impressed current cathodic protection and other electrochemical systems where current must be distributed along a route, embedded area, or protected surface.
Because of its wire form, an MMO wire anode is often selected when installation flexibility, small diameter, custom coated length, and distributed current output are important. It can be used in concrete structures, under-tank systems, pipeline corridors, and other applications where larger anode forms may be difficult to install.
| Feature | What It Means | Why It Matters |
|---|---|---|
| Wire Form | A compact titanium wire coated with MMO. | Supports flexible routing, embedding, and space-limited installation. |
| MMO Coating | Mixed metal oxide coating applied to the titanium wire surface. | Provides electrochemical activity for impressed current output. |
| Custom Coated Length | The active coated section can be customized according to layout. | Helps match current distribution to the protected area. |
| Cable Connection | Wire anode can be connected with cable, tab, or project-specific termination. | Supports installation, electrical continuity, and system integration. |
MMO Wire Anode Options We Supply
Different MMO wire anode configurations are used depending on installation layout, current requirement, environment, and connection design. Hele Titanium can support standard and custom MMO coated titanium wire anodes according to project requirements.

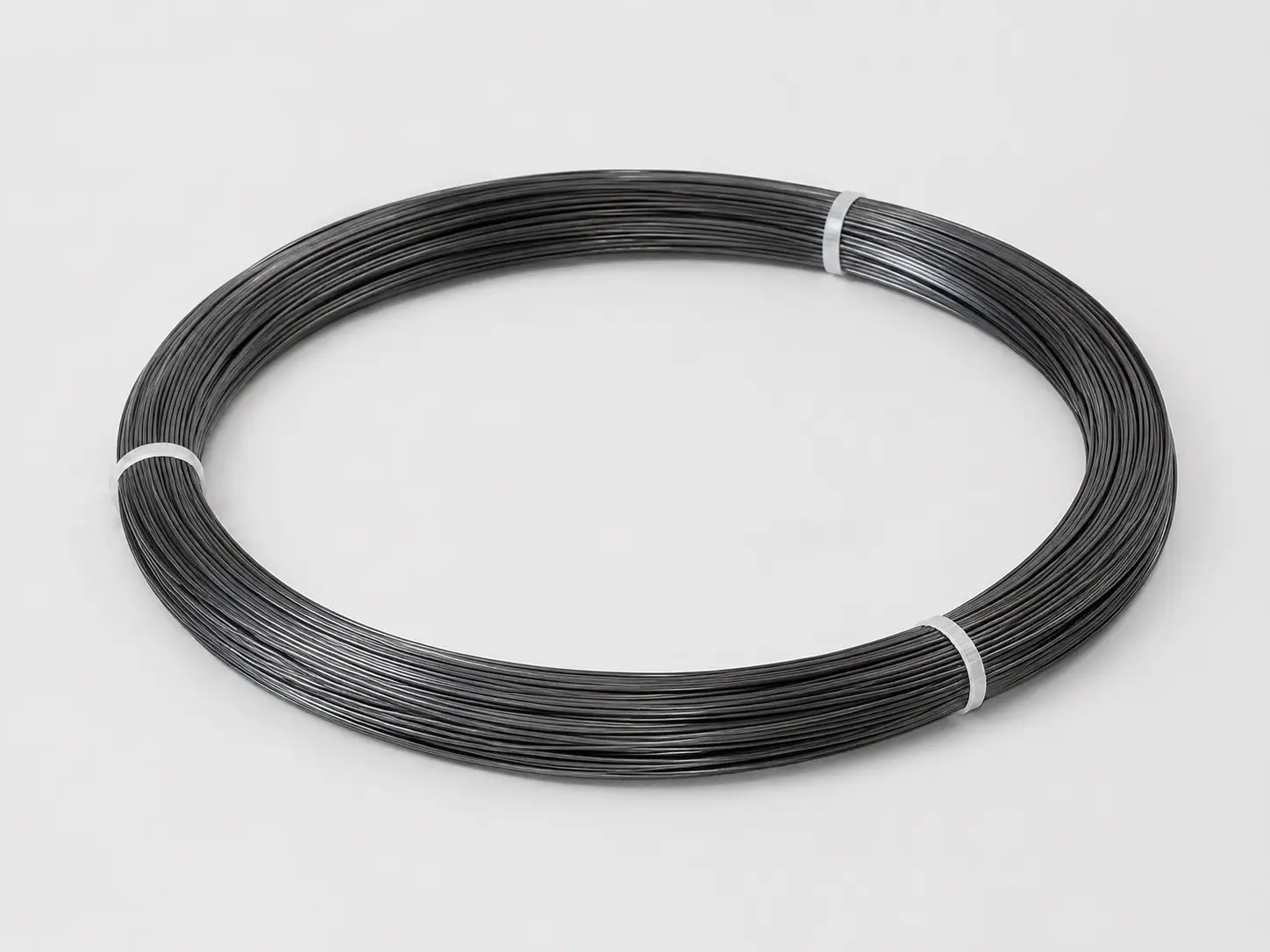

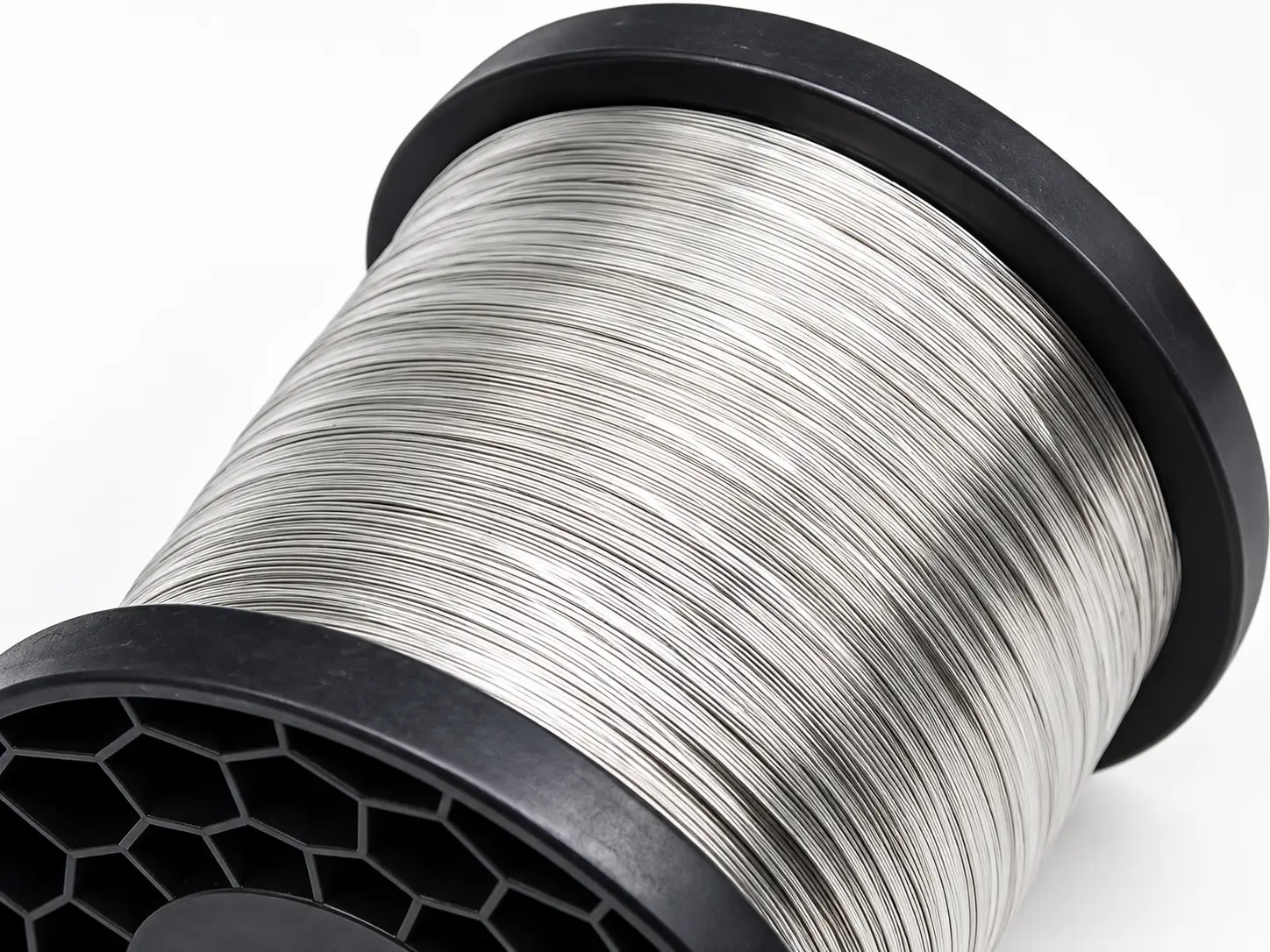

Standard MMO Wire Anode
MMO coated titanium wire for distributed current output in compact cathodic protection layouts.

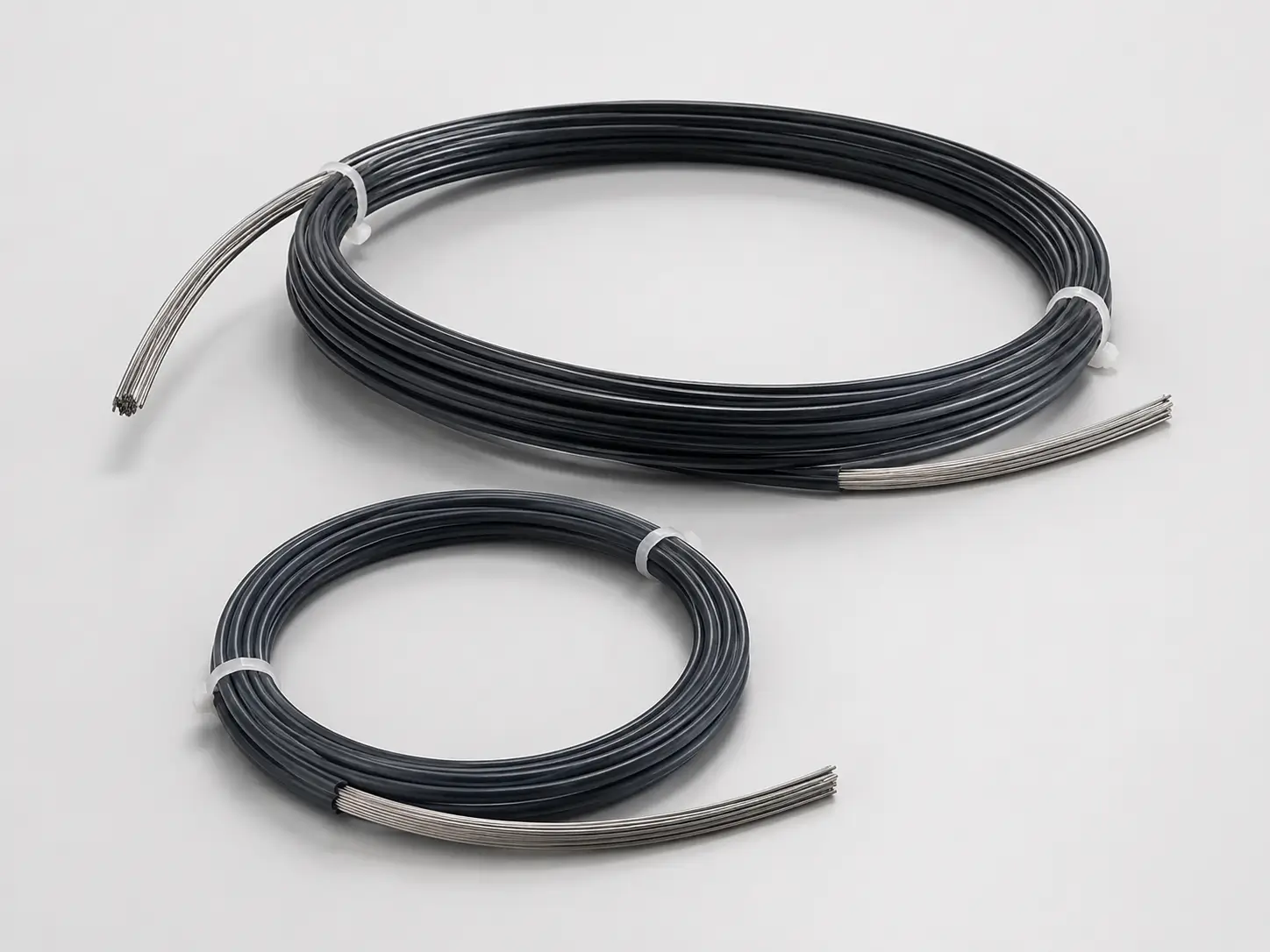

Custom Coated Length
Wire anodes with project-specific active coating length according to current output and layout requirements.

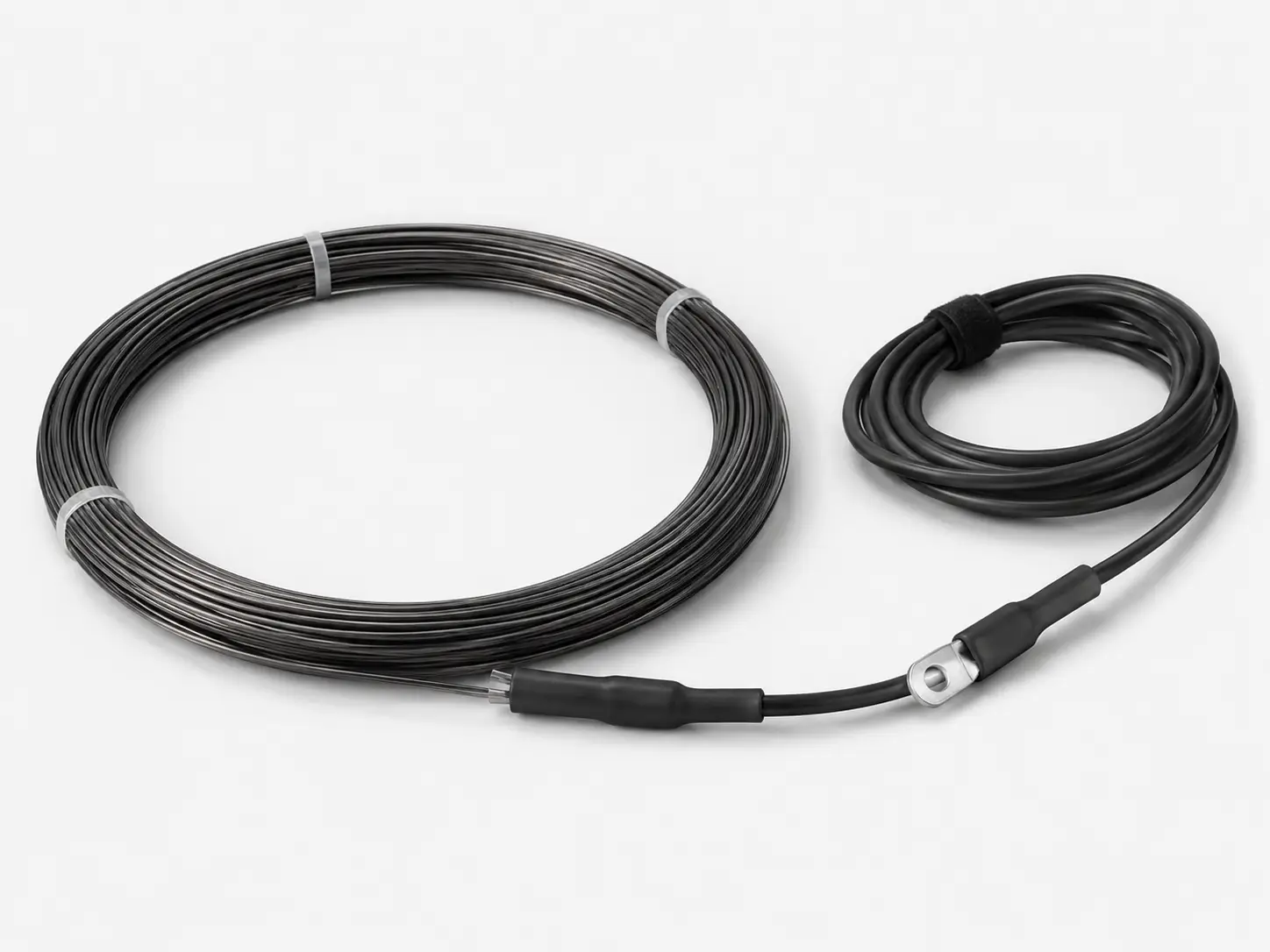

With Cable Connection
MMO wire anode supplied with cable connection, termination, sealing, labels, or project-specific electrical interface.

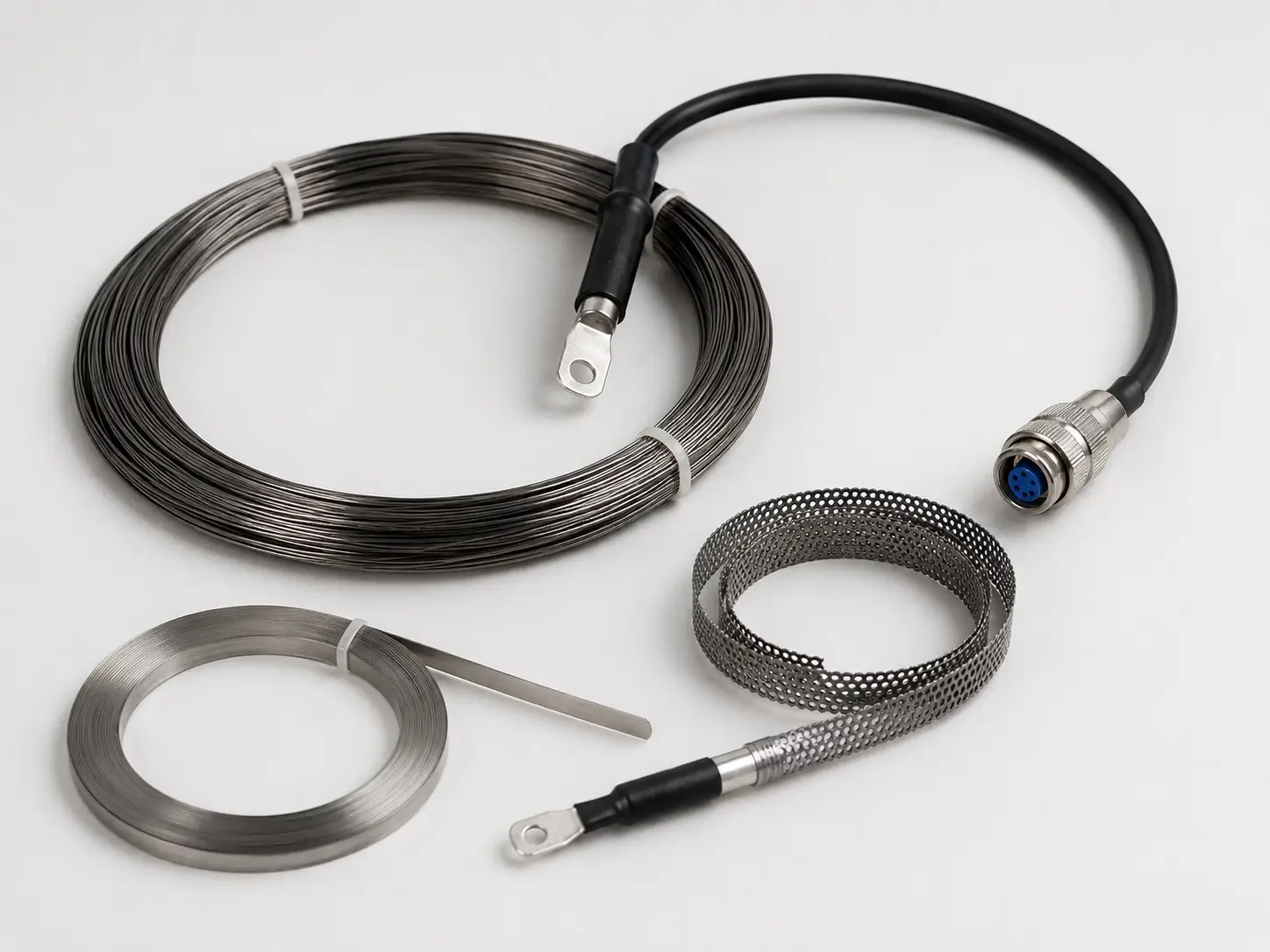

Custom Assemblies
Drawing-based MMO wire anode assemblies with custom diameter, coated length, cable, packing, and documentation.
Where MMO Wire Anodes Are Commonly Used
MMO wire anodes are commonly used when a compact, flexible, and distributed anode form is needed. The final wire diameter, coated length, spacing, and connection design should be reviewed according to the protected structure, environment, current output, and installation method.
| Application | Why MMO Wire Anode Fits | Key Review Factors |
|---|---|---|
| Pipeline Cathodic Protection | MMO wire anodes provide a compact coated titanium anode form for pipeline CP systems where distributed or localized current output is required along buried or exposed pipeline sections. | Pipeline length, soil resistivity, coating condition, current demand, installation depth, anode spacing, cable connection, and design life target. |
| Storage Tank Bottom Protection | MMO wire anodes can be used in storage tank CP layouts where controlled current output is required under or around the tank bottom protection area. | Tank diameter, sand or soil backfill condition, current distribution, anode spacing, cable route, installation access, and current output requirement. |
| Aboveground Tank CP Systems | For aboveground tanks, MMO wire anodes can support cathodic protection layouts around tank foundations, tank bottoms, or associated steel structures. | Tank foundation design, soil or sand environment, resistivity, protection area, cable routing, current density, and maintenance access. |
| Water Tank Protection | MMO wire anodes can be reviewed for water tank CP applications where corrosion protection is required in fresh water, brackish water, or other conductive environments. | Water chemistry, conductivity, chloride level, tank material, anode placement, current output, cable sealing, and monitoring method. |
| Horizontal / Shallow Groundbed Systems | The small diameter and flexible routing of MMO wire anodes make them suitable for selected horizontal or shallow groundbed CP systems. | Groundbed length, soil resistivity, burial depth, backfill condition, current output per meter, spacing, and cable termination design. |
| Fresh Water, Brackish Water & Seawater Environments | MMO-coated titanium wire provides corrosion-resistant anodic performance in conductive environments such as fresh water, brackish water, and seawater when properly designed. | Water type, salinity, temperature, current density, coating selection, cable sealing, exposure condition, and expected service life. |
| Soil / Sand Backfilled CP Installations | MMO wire anodes can be installed in soil or sand environments where anode placement, backfill condition, and current distribution must be reviewed according to CP design. | Soil or sand resistivity, moisture level, backfill quality, anode spacing, installation depth, current output, and cable protection. |
| Custom Compact CP Projects | The compact wire form is suitable for non-standard CP layouts where space is limited or flexible routing is needed. | Structure geometry, application environment, available installation space, wire diameter, coated length, fixing method, current output, and connection protection. |
Pipeline Cathodic Protection
MMO wire anodes provide a compact coated titanium anode form for pipeline CP systems where distributed or localized current output is required along buried or exposed pipeline sections.
Pipeline length, soil resistivity, coating condition, current demand, installation depth, anode spacing, cable connection, and design life target.
Storage Tank Bottom Protection
MMO wire anodes can be used in storage tank CP layouts where controlled current output is required under or around the tank bottom protection area.
Tank diameter, sand or soil backfill condition, current distribution, anode spacing, cable route, installation access, and current output requirement.
Aboveground Tank CP Systems
For aboveground tanks, MMO wire anodes can support cathodic protection layouts around tank foundations, tank bottoms, or associated steel structures.
Tank foundation design, soil or sand environment, resistivity, protection area, cable routing, current density, and maintenance access.
Water Tank Protection
MMO wire anodes can be reviewed for water tank CP applications where corrosion protection is required in fresh water, brackish water, or other conductive environments.
Water chemistry, conductivity, chloride level, tank material, anode placement, current output, cable sealing, and monitoring method.
Horizontal / Shallow Groundbed Systems
The small diameter and flexible routing of MMO wire anodes make them suitable for selected horizontal or shallow groundbed CP systems.
Groundbed length, soil resistivity, burial depth, backfill condition, current output per meter, spacing, and cable termination design.
Fresh Water, Brackish Water & Seawater Environments
MMO-coated titanium wire provides corrosion-resistant anodic performance in conductive environments such as fresh water, brackish water, and seawater when properly designed.
Water type, salinity, temperature, current density, coating selection, cable sealing, exposure condition, and expected service life.
Soil / Sand Backfilled CP Installations
MMO wire anodes can be installed in soil or sand environments where anode placement, backfill condition, and current distribution must be reviewed according to CP design.
Soil or sand resistivity, moisture level, backfill quality, anode spacing, installation depth, current output, and cable protection.
Custom Compact CP Projects
The compact wire form is suitable for non-standard CP layouts where space is limited or flexible routing is needed.
Structure geometry, application environment, available installation space, wire diameter, coated length, fixing method, current output, and connection protection.
Technical Specifications
MMO wire anodes are compact MMO-coated titanium wire anodes used in cathodic protection systems where controlled current output, flexible routing, and corrosion-resistant performance are required. They can be reviewed for pipeline CP, tank protection, water tank protection, horizontal or shallow groundbeds, and soil, sand, freshwater, brackish water, or seawater environments.
Basic Parameters
| Item | Standard Specification / Options |
|---|---|
| Product Category | MMO Wire Anode |
| Anode Substrate | Titanium ASTM B338 Grade 1 wire |
| Shape | Wire |
| Coating Options | IrO₂/Ta₂O₅ or RuO₂/IrO₂ based MMO coating |
| Coating Composition | Iridium oxide, ruthenium oxide, ruthenium-iridium oxide, tantalum oxide |
| Typical Coating Selection | IrO₂/Ta₂O₅ for soil, sand, concrete, and freshwater applications; RuO₂/IrO₂ for seawater, brackish water, mud, and high-conductivity environments |
| Coating Thickness | 8–10 μm or customized according to project requirements |
| Standard Wire Diameters | 1.5 mm / 3.0 mm |
| Optional Wire Diameters | 1.0 mm / 2.0 mm or customized |
| Standard Coil Length | 152 m per coil |
| Design Life Options | 20 years / 30 years / 50 years |
| Applicable Environment | Soil, sand, freshwater, brackish water, seawater, horizontal groundbed, shallow groundbed |
| Typical Applications | Pipeline CP, aboveground tank CP, storage tank protection, water tank protection, compact CP layouts |
| Custom Support | Wire diameter, coil length, coating type, current output, cable connection, termination, sealing, labeling, and documentation can be reviewed according to project requirements |
Standard Wire Dimensions
| Wire Diameter | Standard Coil Length | Approx. Weight per Coil | Approx. Surface Area per Coil |
|---|---|---|---|
| 1.0 mm | 152 m | 0.54 kg | 0.48 m² |
| 1.5 mm | 152 m | 1.20 kg | 0.72 m² |
| 2.0 mm | 152 m | 2.10 kg | 0.95 m² |
| 3.0 mm | 152 m | 4.80 kg | 1.43 m² |
Current Output by Environment & Design Life
| Environment | Wire Diameter | 20-Year Output | 30-Year Output | 50-Year Output |
|---|---|---|---|---|
| Soil | Φ1.5 mm | 240 mA/m | 160 mA/m | 96 mA/m |
| Soil | Φ3.0 mm | 480 mA/m | 320 mA/m | 192 mA/m |
| Coke Breeze / Freshwater | Φ1.5 mm | 480 mA/m | 320 mA/m | 192 mA/m |
| Coke Breeze / Freshwater | Φ3.0 mm | 960 mA/m | 640 mA/m | 384 mA/m |
| Brackish Water | Φ1.5 mm | 1440 mA/m | 960 mA/m | 576 mA/m |
| Brackish Water | Φ3.0 mm | 2880 mA/m | 1920 mA/m | 1152 mA/m |
| Seawater | Φ1.5 mm | 2880 mA/m | 1920 mA/m | 1152 mA/m |
| Seawater | Φ3.0 mm | 5760 mA/m | 3840 mA/m | 2304 mA/m |
Engineering Notes
- Current output should be reviewed together with coating type, electrolyte conductivity, operating environment, current density, and design life target.
- Soil and sand installations require review of resistivity, moisture level, burial depth, backfill condition, anode spacing, and cable route.
- Higher-conductivity environments such as brackish water and seawater generally allow higher current output than soil or freshwater environments.
- Final specifications should be confirmed according to project drawings, CP design criteria, installation method, monitoring plan, and documentation requirements.
Custom MMO Wire Anodes Built Around Your CP Layout
MMO wire anode design should be reviewed according to wire diameter, coated length, current output, protected structure geometry, resistivity, installation method, cable route, coating loading, and design life target.
WHAT WE NEED FROM YOU
- Application & Structure type
- Concrete / soil / water condition
- Required current output & Design life
- Preferred wire diameter & Coated length
- Installation layout or drawing
- Cable length & connection requirement
- Quantity & delivery destination
1. Wire Diameter Review
Review wire diameter according to flexibility, mechanical strength, routing method, and current output needs.
2. Coated Length Design
Customize active coated length according to project layout, current distribution, and spacing requirement.
3. Current Output Review
Review total current demand, output per meter, current density, and design life target.
4. Coating & Loading Review
Review MMO coating type and coating loading according to environment and current requirement.
5. Cable & Connection Design
Customize cable length, connection method, sealing, termination, and labeling.
6. Installation Layout Support
Review spacing, routing, fixing method, embedment, mechanical protection, and accessibility.
Wire Diameter, Coating and Current Output Must Be Reviewed Together
For MMO wire anodes, the physical wire size is only one part of the design. Coating selection, coated length, output per meter, operating environment, cable connection, and installation spacing all affect how the wire anode performs in a cathodic protection system.
Wire Diameter
Affects flexibility, mechanical handling, routing method, and available surface area.
Coated Length
Determines the active current output zone and must match the CP layout.
Current Output per Meter
Helps define the required coating loading, spacing, and system design.
Connection Reliability
Cable sealing, termination, and electrical continuity are important for long-area installations.
Quality Control for MMO Wire Anodes
MMO wire anode quality depends on titanium wire substrate condition, surface preparation, coating application, coated length accuracy, connection quality, visual condition, packing protection, and final documentation.
Titanium Wire Substrate Review
Titanium wire is reviewed according to grade, diameter, straightness, surface condition, and project requirements.
Surface Preparation
Cleaning, roughening, activation, and pre-treatment are controlled before coating.
MMO Coating Application
Coating formulation, application cycles, drying, and thermal treatment are controlled according to project requirements.
Coated Length & Dimension Check
Wire diameter, active coated length, total length, labels, and termination details are reviewed according to order requirements.
Connection & Visual Review
Cable connection, sealed joint, surface condition, coating coverage, and visual appearance are reviewed according to inspection scope.
Packing & Documentation
MTC, coating record, inspection notes, labels, packing list, and project-specific documents can be prepared when required.
Available Documents May Include:
Documents can be prepared according to agreed specifications and project requirements.
Installation Considerations for MMO Wire Anodes
Proper installation helps MMO wire anodes deliver distributed current more effectively. Wire routing, spacing, contact environment, fixing method, cable connection, and mechanical protection should be reviewed before installation.
| Installation Factor | Why It Matters |
|---|---|
| Wire Routing | Helps the anode follow the required protection path and maintain distributed current output. |
| Anode Spacing | Affects current distribution, protection uniformity, and system design. |
| Embedment / Contact Environment | Concrete, soil, water, backfill, or electrolyte contact affects current transfer. |
| Cable Connection | Electrical continuity and sealing quality affect long-term system reliability. |
| Fixing Method | Supports stable wire placement during installation and operation. |
| Mechanical Protection | Helps reduce damage during handling, burial, embedment, or construction work. |
| Inspection Access | Useful for future system review, testing, and maintenance planning. |
Buyer Note: MMO wire anode installation should be reviewed together with the full cathodic protection design. Share your layout, current requirement, and operating environment for engineering review.
Discuss Wire Anode Installation LayoutCompare MMO Wire Anodes with Other MMO Anode Forms
MMO wire anodes are best used when compact size, flexible routing, and distributed current output are required. Other MMO anode forms may be more suitable when the project requires a different geometry, larger contact area, packaged groundbed design, or localized output.
MMO Linear Anode
Best Used When: You need an upper-level selection guide for wire, ribbon, and mesh ribbon linear anodes.
View MMO Linear AnodeMMO Ribbon Anode
Best Used When: Flat long-area current distribution is required.
View MMO Ribbon AnodeMMO Mesh Ribbon Anode
Best Used When: Larger contact area or concrete embedment is needed.
View MMO Mesh Ribbon AnodeMMO Tubular Anode
Best Used When: A durable cylindrical anode is required for soil, seawater, or tank CP systems.
View MMO Tubular AnodeMMO Canister Anode
Best Used When: A packaged anode assembly is needed for groundbed installation.
View MMO Canister AnodeMMO Rod Anode
Best Used When: A rod-shaped electrode is needed for cell, CP, or pilot systems.
View MMO Rod AnodeNot sure which MMO anode form is suitable?
MMO Wire Anode FAQ
What is an MMO wire anode?
Where are MMO wire anodes commonly used?
What is the difference between MMO wire anode and MMO ribbon anode?
How do I choose wire diameter and coated length?
What affects current output per meter?
Can MMO wire anodes be customized by length?
Can you supply cable connections and labels?
What coating options are available for MMO wire anodes?
Can MMO wire anodes be used for reinforced concrete CP?
Can MMO wire anodes be used for tank bottom protection?
What documents can be provided?
What information is needed for a quote?
Get Your Custom MMO Wire Anode Recommendation
Tell us your application, protected structure, operating environment, current output requirement, design life target, wire diameter, coated length, cable connection, and installation layout. Hele Titanium will help review the suitable MMO wire anode configuration for your project.
MMO Coated Titanium Wire Anodes
Engineered for your specific environment.
Wire Diameter, Coated Length and Current Output Review
Matched to your CP layout and design life.
Cable Connection, Labels and Documentation Support
Ready for field installation and integration.
Factory-Direct Export Packing and Project Support
Global delivery from Hele Titanium.
