ICCP Anodes for Pipelines & Buried Structures
Custom MMO canister, tubular, and linear anode solutions for buried pipeline cathodic protection, underground steel structures, tank farms, buried tanks, utility infrastructure, remote groundbeds, and soil-based impressed current CP systems.

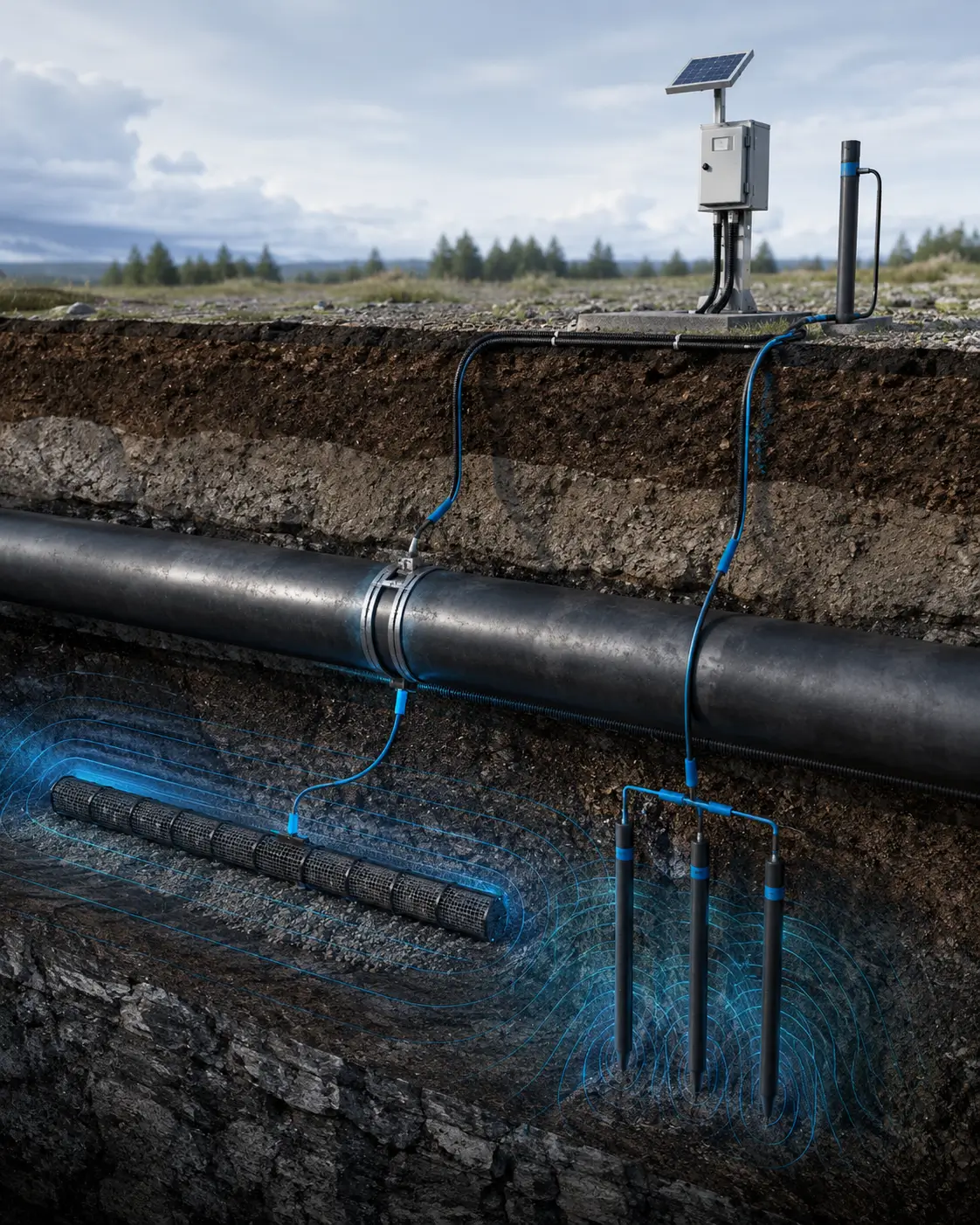

Buried Infrastructure Requires Anode Layouts Based on Soil, Current Demand and Coating Condition
Pipeline and buried structure ICCP systems are used to help protect underground steel from soil-side corrosion. Anode selection should be reviewed according to soil resistivity, pipeline coating condition, current demand, groundbed location, cable route, interference risk, monitoring access, and design life target.
Unlike tank bottom or marine ICCP systems, buried pipeline and underground structure protection often depends on soil conditions, pipeline length, coating quality, right-of-way constraints, remote groundbed design, and monitoring points. The final anode form, quantity, spacing, cable length, and installation method should be reviewed based on project drawings and CP design data.
Hele Titanium supports MMO canister anodes, MMO tubular anodes, MMO linear anodes, and custom MMO anode assemblies for pipeline and buried structure ICCP systems, with coating review, current output review, cable sealing, labels, packing, and documentation support according to project requirements.
Soil-Based CP Review
Anode selection can be reviewed based on soil resistivity, current demand, coating condition, and groundbed design.
MMO Anode Form Matching
Canister, tubular, and linear anodes can be matched to remote groundbed, shallow groundbed, or distributed pipeline layouts.
Current Demand Review
Pipeline length, coating condition, current requirement, and design life target should be reviewed together.
Cable & Documentation
Cable routing, sealing, labels, test station coordination, packing, MTC, and coating records can be supported when required.

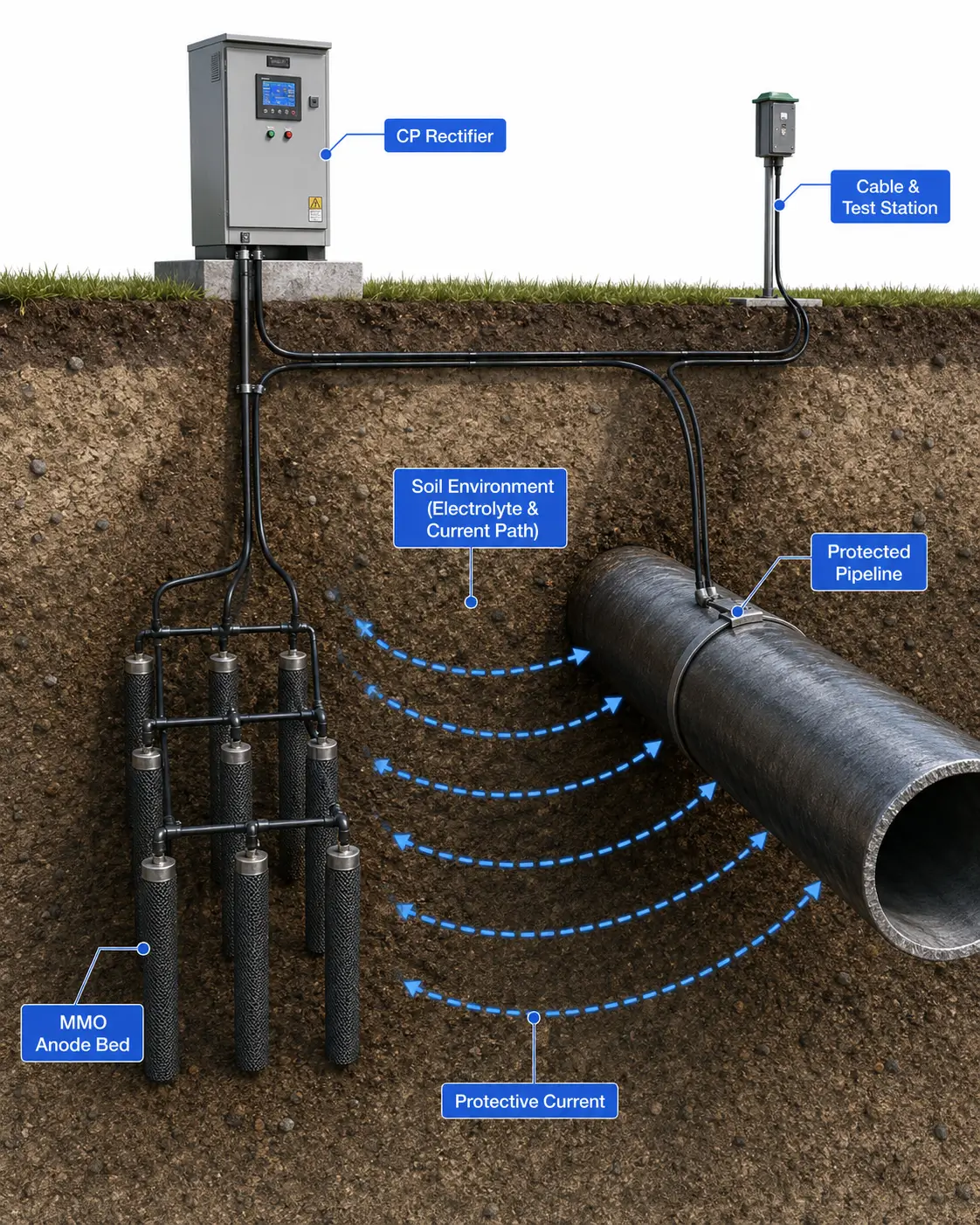

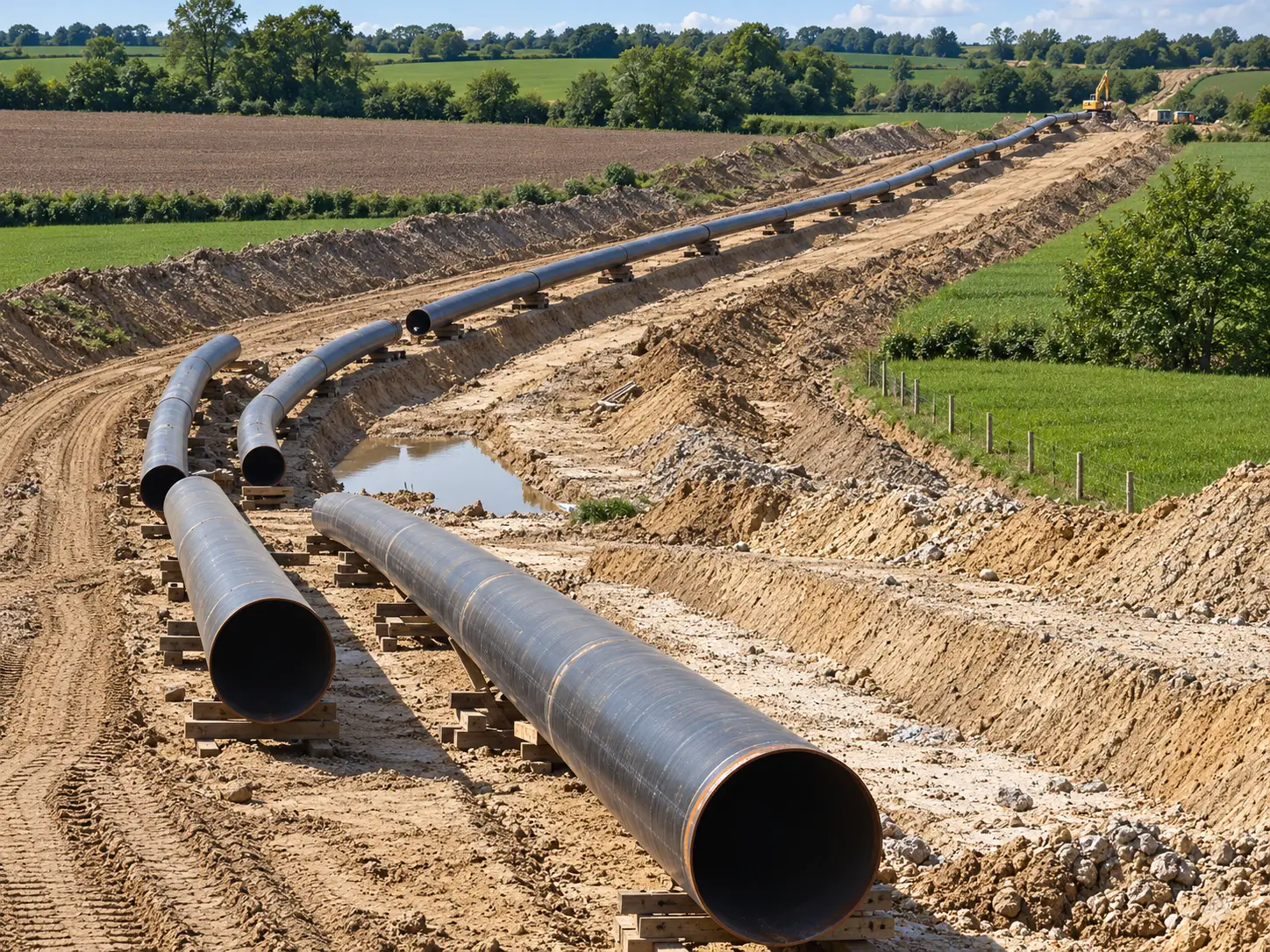

What Is Pipeline and Buried Structure ICCP Protection?
Pipeline and buried structure ICCP protection is an impressed current cathodic protection method used to help control corrosion on underground steel exposed to soil, groundwater, or buried service environments. It is commonly reviewed for oil and gas pipelines, water pipelines, underground tanks, tank farms, buried steel structures, utility systems, and industrial infrastructure.
In these systems, MMO anodes are installed in remote groundbeds, shallow groundbeds, deep groundbeds, or distributed layouts to deliver protective current through the soil toward the protected steel. The anode type and installation configuration depend on soil resistivity, pipeline coating condition, current demand, groundbed location, cable routing, monitoring plan, and project specification.
| Pipeline / Buried CP Element | What It Does | Why It Matters |
|---|---|---|
| Protected Pipeline or Steel | The underground steel structure requiring corrosion control. | Length, surface area, coating condition, and structure geometry affect current demand. |
| Soil Environment | Conducts current between the anode bed and protected structure. | Soil resistivity, moisture, chemistry, and depth affect anode selection and groundbed design. |
| MMO Anode Bed | Provides impressed current output through canister, tubular, or linear anodes. | Anode form and layout affect system resistance, current output, and installation method. |
| Cable and Test Stations | Connect the anode system, rectifier, test stations, and protected structure. | Cable routing, identification, and protection support installation and future inspection. |
| Monitoring Points | Support measurement, commissioning, and long-term CP system review. | Test stations and reference points help evaluate system operation after installation. |
Recommended MMO Anode Forms for Pipeline and Buried Structure ICCP Systems
Pipeline and buried structure ICCP systems can use different MMO anode forms depending on soil resistivity, current demand, groundbed location, pipeline coating condition, installation depth, and cable route. The final recommendation should be based on CP design data and site conditions.

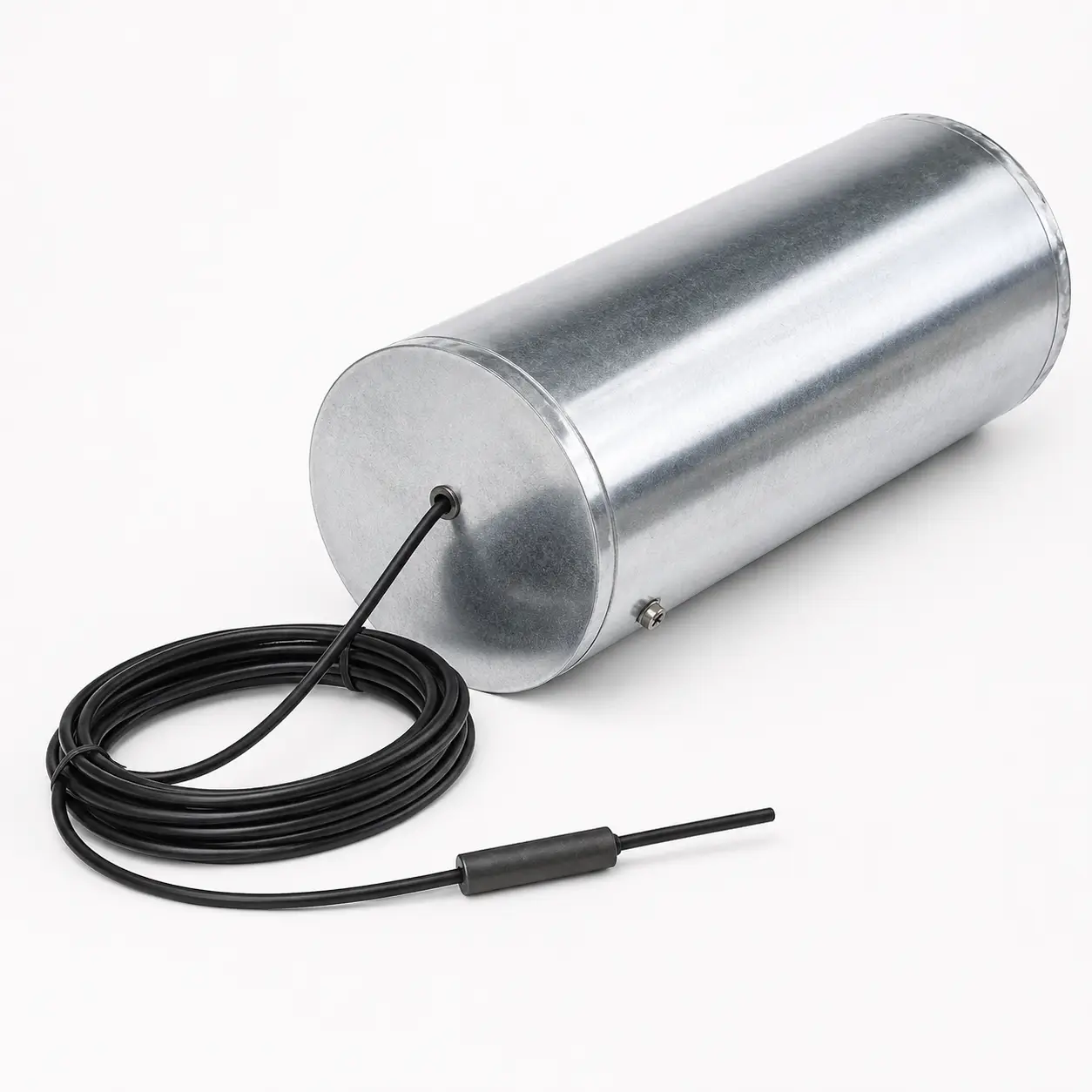

MMO Canister Anodes
Prepackaged MMO anode assemblies with internal MMO anode element, carbonaceous backfill, canister body, cable, and sealing.
Deep groundbeds, shallow groundbeds, remote groundbeds, pipeline CP, tank farm CP, and buried steel structure protection.
Current output, canister size, backfill, soil resistivity, cable length, sealing, and installation depth.
MMO Tubular Anodes
MMO coated titanium tubular anodes for soil, backfill, shallow groundbed, and selected pipeline or buried structure ICCP systems.
Soil CP, pipeline CP, tank farm protection, buried structures, and projects requiring cylindrical bare anode forms.
Tube diameter, length, coating area, current output, backfill contact, cable connection, and environment.

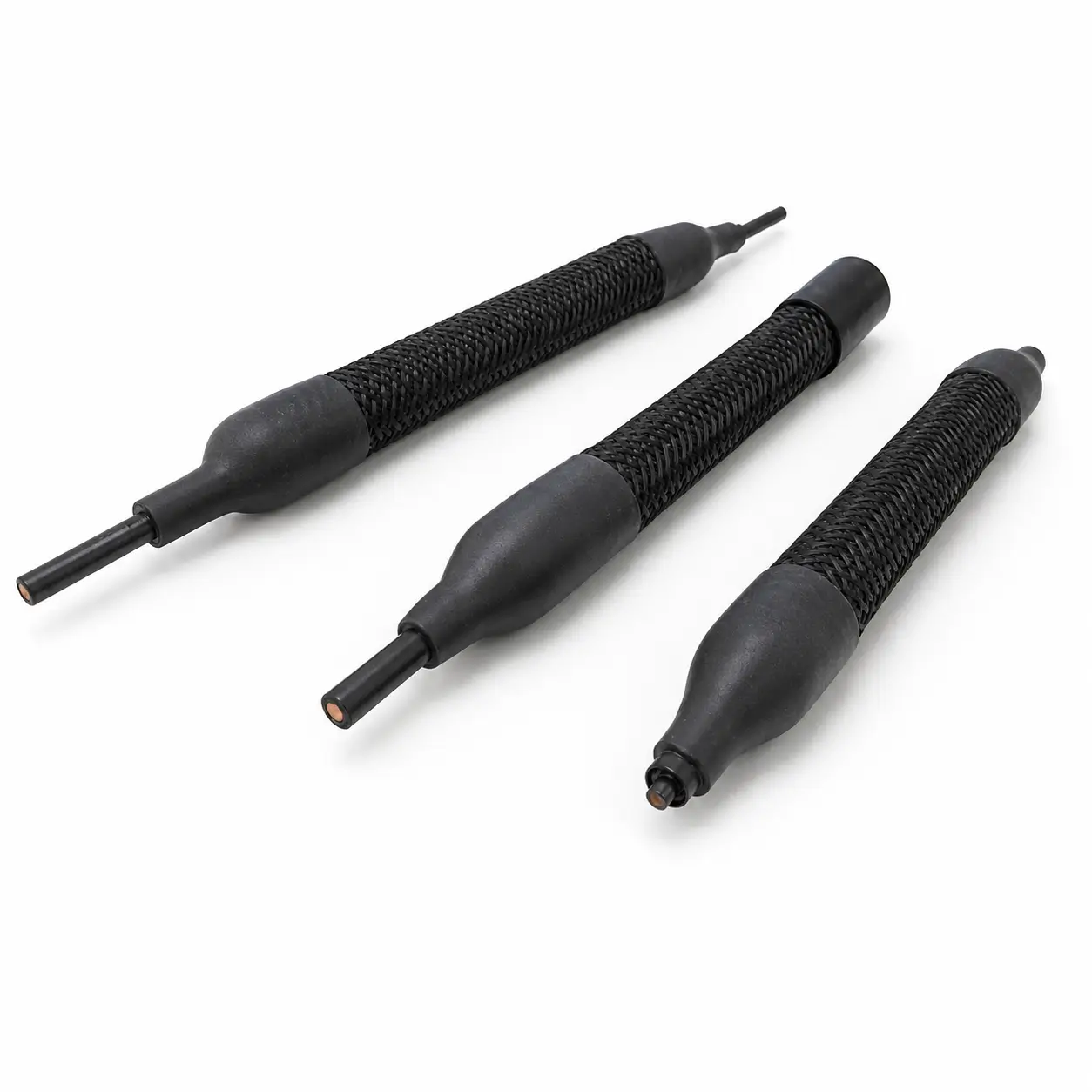

MMO Linear Anodes
Continuous or semi-continuous MMO linear anodes for distributed current output along long or wide protection zones.
Pipeline corridors, under-slab areas, long buried structures, distributed CP layouts, and current distribution zones.
Protected length, output per meter, anode spacing, soil resistivity, cable route, and installation method.

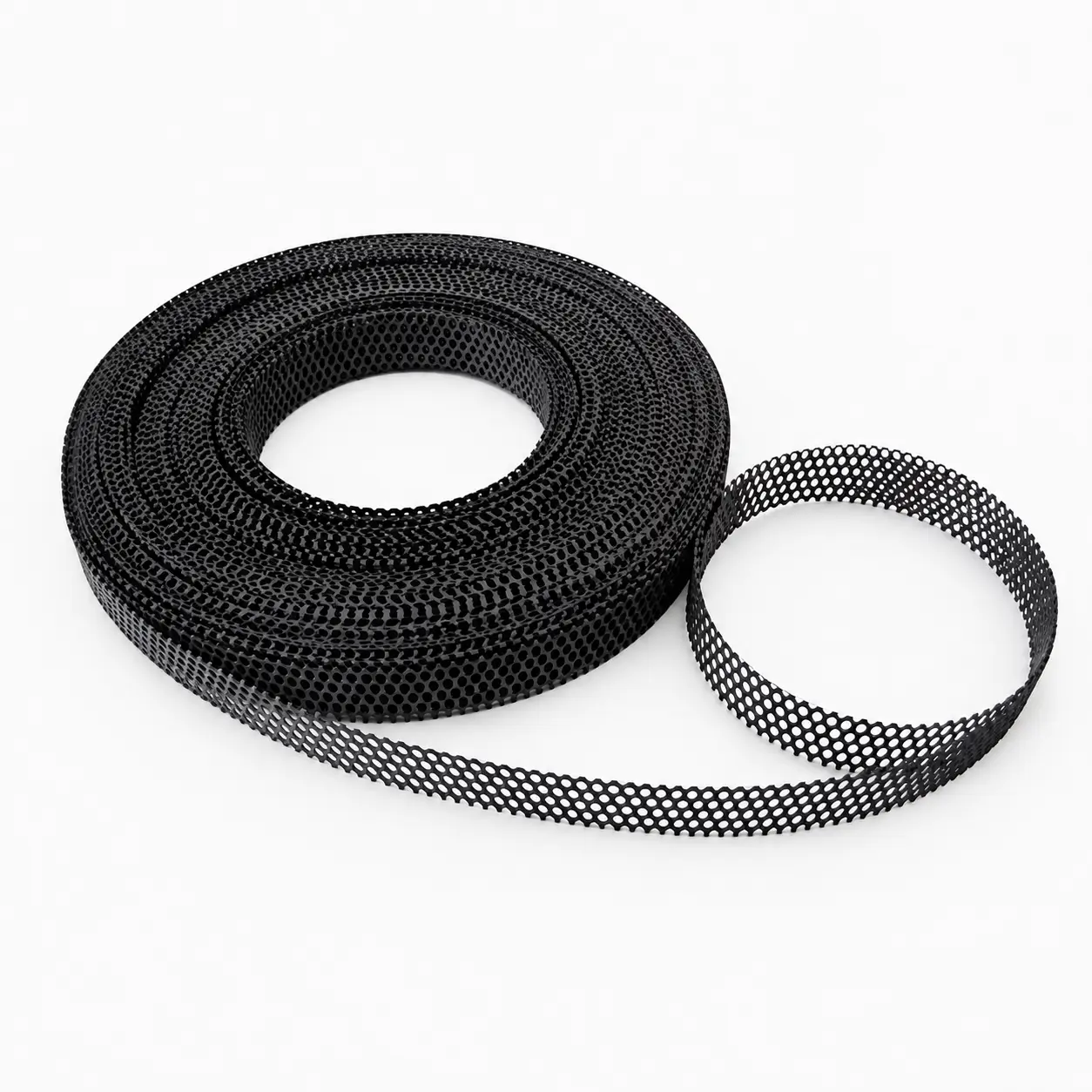

Custom Pipeline Assemblies
Project-specific MMO anode assemblies with custom anode form, cable length, sealing, labels, packing, and documentation.
Non-standard pipeline routes, buried steel structures, EPC projects, and engineered CP systems.
CP layout, soil data, current demand, cable specification, monitoring plan, and delivery requirements.

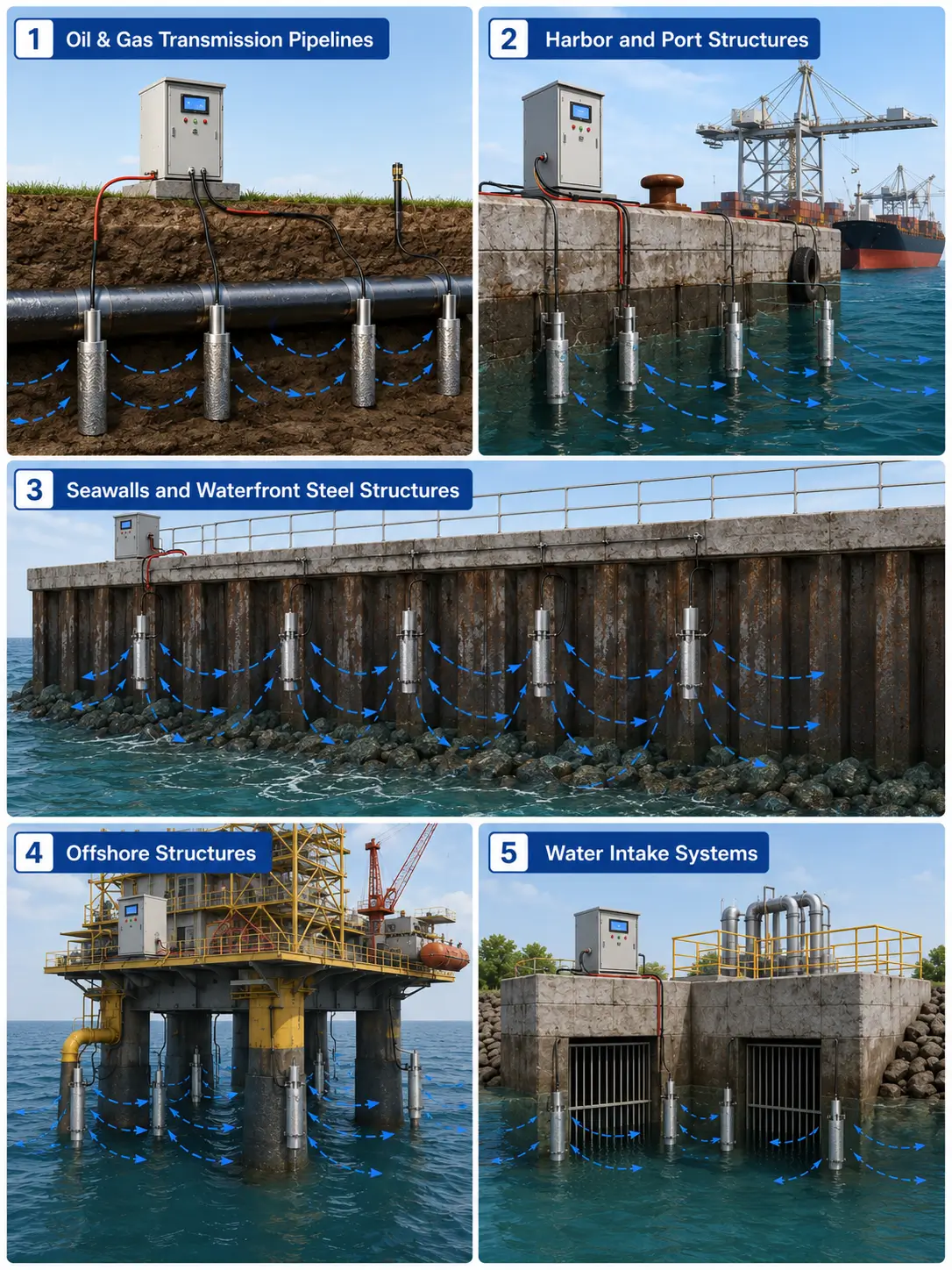

Where Pipeline & Buried Structure ICCP Anodes Are Commonly Used
Pipeline and buried structure ICCP anode systems are commonly reviewed where steel infrastructure is exposed to soil-side corrosion risk. The final anode layout should be reviewed according to structure geometry, soil condition, current demand, installation access, and monitoring requirements.
| Application | Why ICCP May Fit | Key Review Factors |
|---|---|---|
| 1. Oil & Gas Transmission Pipelines | Impressed current systems can support long-distance pipeline protection where current demand is higher or distributed. | Pipeline length, coating condition, soil resistivity profile, current demand, right-of-way, and groundbed location. |
| 2. Gas Distribution Pipelines | ICCP systems may be reviewed for buried gas pipeline networks, stations, and distribution infrastructure. | Pipeline network layout, coating condition, soil conditions, interference risk, test station locations, and access. |
| 3. Water and Utility Pipelines | Buried steel or ductile iron pipelines may require corrosion control review depending on coating condition and soil aggressiveness. | Pipeline material, coating system, soil resistivity, joint continuity, current requirement, and monitoring plan. |

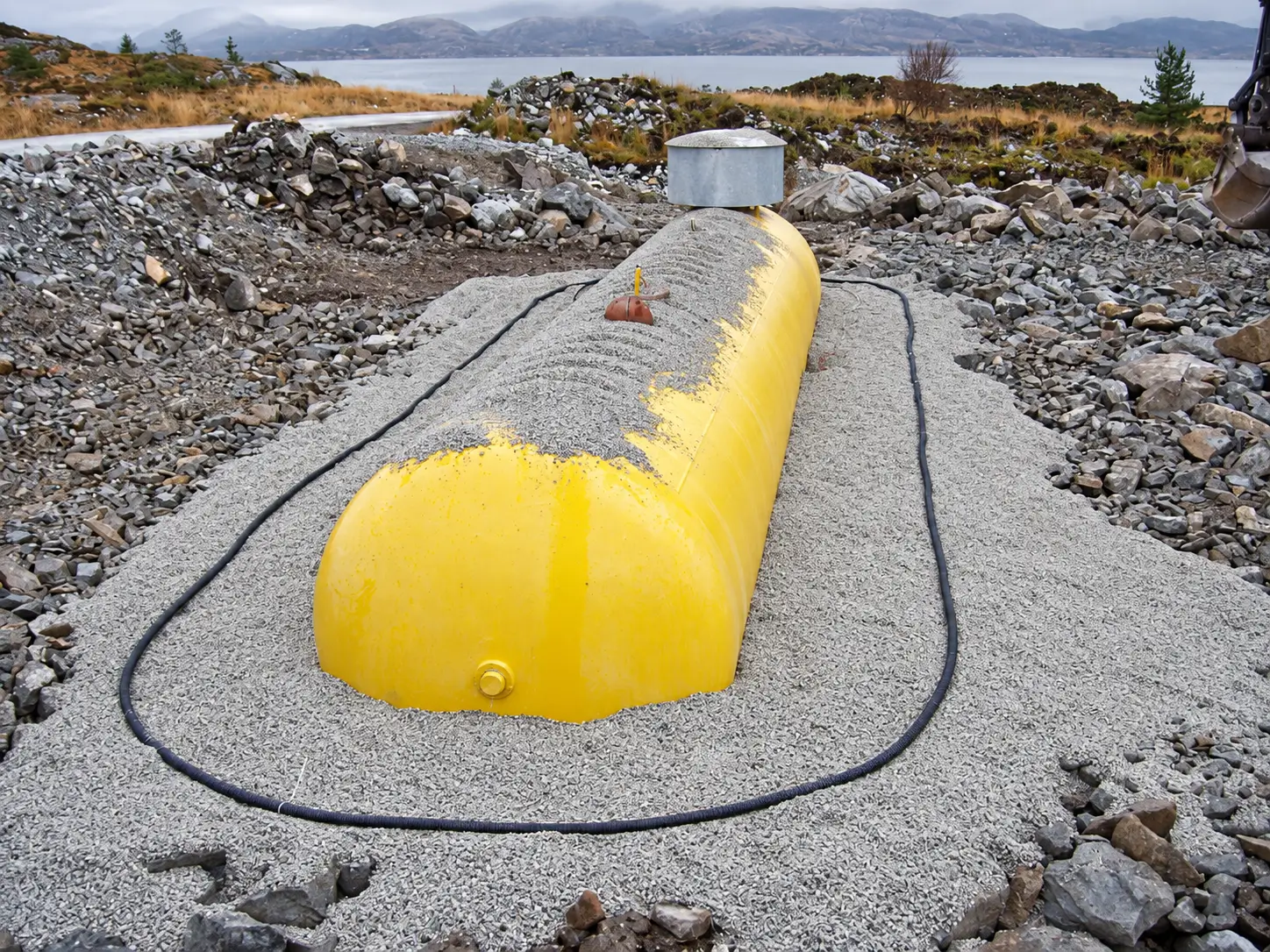

| 4. Underground Storage Tanks | Buried tanks may require CP review where soil-side corrosion risk is present. | Tank size, coating condition, soil chemistry, installation access, current demand, and local site limitations. |
| 5. Buried Steel Structures & Foundations | Industrial buried steel structures, foundations, utilities, and process infrastructure may require soil-side protection. | Structure geometry, exposed area, soil chemistry, grounding interference, current demand, and monitoring access. |
| 6. Tank Farms and Industrial Facilities | Tank farms and facilities often include pipelines, buried tanks, grounding systems, and multiple steel structures requiring coordinated CP review. | Site layout, CP zones, electrical interference, cable route, monitoring points, and project standard. |
1. Oil & Gas Transmission Pipelines
Why ICCP May Fit: Impressed current systems can support long-distance pipeline protection where current demand is higher or distributed.
Key Review Factors: Pipeline length, coating condition, soil resistivity profile, current demand, right-of-way, and groundbed location.
2. Gas Distribution Pipelines
Why ICCP May Fit: ICCP systems may be reviewed for buried gas pipeline networks, stations, and distribution infrastructure.
Key Review Factors: Pipeline network layout, coating condition, soil conditions, interference risk, test station locations, and access.
3. Water and Utility Pipelines
Why ICCP May Fit: Buried steel or ductile iron pipelines may require corrosion control review depending on coating condition and soil aggressiveness.
Key Review Factors: Pipeline material, coating system, soil resistivity, joint continuity, current requirement, and monitoring plan.
Key Design Parameters for Pipeline and Buried Structure Anode Selection
A reliable pipeline or buried structure ICCP anode recommendation requires project data. The anode form, groundbed layout, current output, cable route, monitoring plan, and documentation should be reviewed based on the full CP design.
1. Pipeline or Structure Geometry
Pipeline length, diameter, buried depth, exposed steel area, and structure layout affect current demand.
2. Coating Condition
Pipeline coating quality, coating breakdown, coating type, and coating age affect current requirement.
3. Soil Resistivity Profile
Soil resistivity at the installation site affects groundbed resistance, anode output, and layout selection.
4. Current Demand
Total current, output per anode, current density, and operating profile affect anode quantity and coating loading.
5. Groundbed Type
Deep groundbed, shallow groundbed, remote groundbed, or distributed linear layout should be confirmed.
6. Cable Route & Test Stations
Cable length, insulation, route, junction boxes, test stations, and monitoring access should be reviewed.
7. Interference Review
Nearby pipelines, grounding systems, railways, power systems, or other structures may require interference consideration.
8. Documentation Requirements
MTC, coating records, dimensional inspection, cable / sealing records, labels, and packing list can be prepared when required.
Pipeline ICCP Anode System Components to Review
A pipeline or buried structure ICCP system is not only the anode. The complete groundbed, cable system, rectifier, test stations, monitoring points, and interference conditions should be reviewed together.
| Component | Review Focus | Buyer Notes |
|---|---|---|
| MMO Anode Form | Canister, tubular, linear, or custom anode form, active area, coating loading, output, and installation method. | The anode form should match the groundbed layout and current demand. |
| Groundbed Layout | Deep groundbed, shallow groundbed, remote groundbed, or distributed layout. | Groundbed location and soil conditions affect system resistance and current output. |
| Cable System | Cable length, insulation, sealing, routing, identification, and protection. | Cable route and protection are important for buried installations. |
| Rectifier / Power Supply | Output current, voltage capacity, control mode, and location. | Rectifier selection should match CP system resistance and current demand. |
| Test Stations | Test station locations, cable termination, reference points, and measurement access. | Testing access supports commissioning and long-term system review. |
| Interference Control | Nearby structures, grounding systems, stray current sources, and utility corridors. | Interference should be reviewed by the CP system designer when relevant. |
Soil Resistivity, Coating Condition and Current Demand Must Be Reviewed Together
For pipeline and buried structure ICCP systems, anode selection cannot be based only on anode type or size. Soil resistivity, pipeline coating condition, structure geometry, current demand, groundbed layout, cable route, monitoring access, and design life all affect the final recommendation.
1. Soil Resistivity
Soil resistivity affects groundbed resistance, current discharge, anode quantity, and installation method.
2. Pipeline Coating Condition
Coating quality and coating breakdown influence how much protective current is required.
3. Current Output per Anode
Output per anode should be reviewed according to CP design, coating loading, soil condition, and design life.
4. Cable Route & Test Access
Cable route, test station locations, junction points, and monitoring access should be planned early.
Pipeline & Buried Structure ICCP Risk Factors to Review
Many pipeline CP issues are related not only to anode material, but also to incomplete soil data, coating condition assumptions, poor cable routing, unsuitable groundbed location, interference, or limited monitoring access. Reviewing these issues before production helps improve anode selection and project planning.
Missing Soil Resistivity Data
Without soil resistivity data, groundbed resistance and anode output assumptions may be less reliable.
Unknown Coating Condition
Pipeline coating condition strongly affects current demand and anode quantity.
Unsuitable Groundbed Location
Groundbed location affects current distribution, resistance, cable route, and possible interference.
Cable Damage or Weak Sealing
Cable insulation, sealing, route protection, and identification are critical for buried systems.
Interference with Nearby Structures
Adjacent pipelines, grounding systems, railways, or utilities may require interference review.
Limited Test Station Access
Test station and monitoring access affect commissioning and long-term CP system review.
Buyer Note: If your project already has a CP design drawing, soil resistivity report, pipeline coating data, current demand calculation, or route layout, share it with Hele Titanium for anode form and documentation review.
Quality & Documentation Support for Pipeline & Buried Structure ICCP Projects
Pipeline and buried structure ICCP anode project quality depends on MMO coating control, anode form accuracy, current output design, cable connection, sealing quality, label identification, packing protection, and final documentation.
MMO Anode Form Review
MMO canister, tubular, linear, or custom anode forms are reviewed according to substrate, size, coating, and output requirements.
Coating Control
Coating formulation, application cycles, drying, thermal treatment, and coating loading are controlled according to project requirements.
Anode Dimension Check
Canister size, tube length, linear anode length, coating area, backfill assembly, and connection details are reviewed according to agreed scope.
Cable & Sealing Review
Cable length, insulation, connection method, sealing, labels, and termination details can be reviewed when required.
Packing & Labeling
Anodes are packed according to product form, cable protection, coating sensitivity, destination, and shipment requirement.
Project Documentation
MTC, coating records, inspection notes, packing list, product labels, and project-specific QC documents can be prepared when required.
Available Documents May Include:
- MTC
- Coating record
- Coated length / area record (when required)
- Dimensional inspection record
- Cable / sealing inspection notes (when required)
- Canister assembly notes (when required)
- Visual inspection notes
- Packing list
- Product labels
- Project-specific QC documents
- Third-party inspection support (when required)
Explore More ICCP Anode Applications
If your project is not a pipeline or buried structure protection system, explore other ICCP anode application pages to compare suitable installation methods and anode forms.

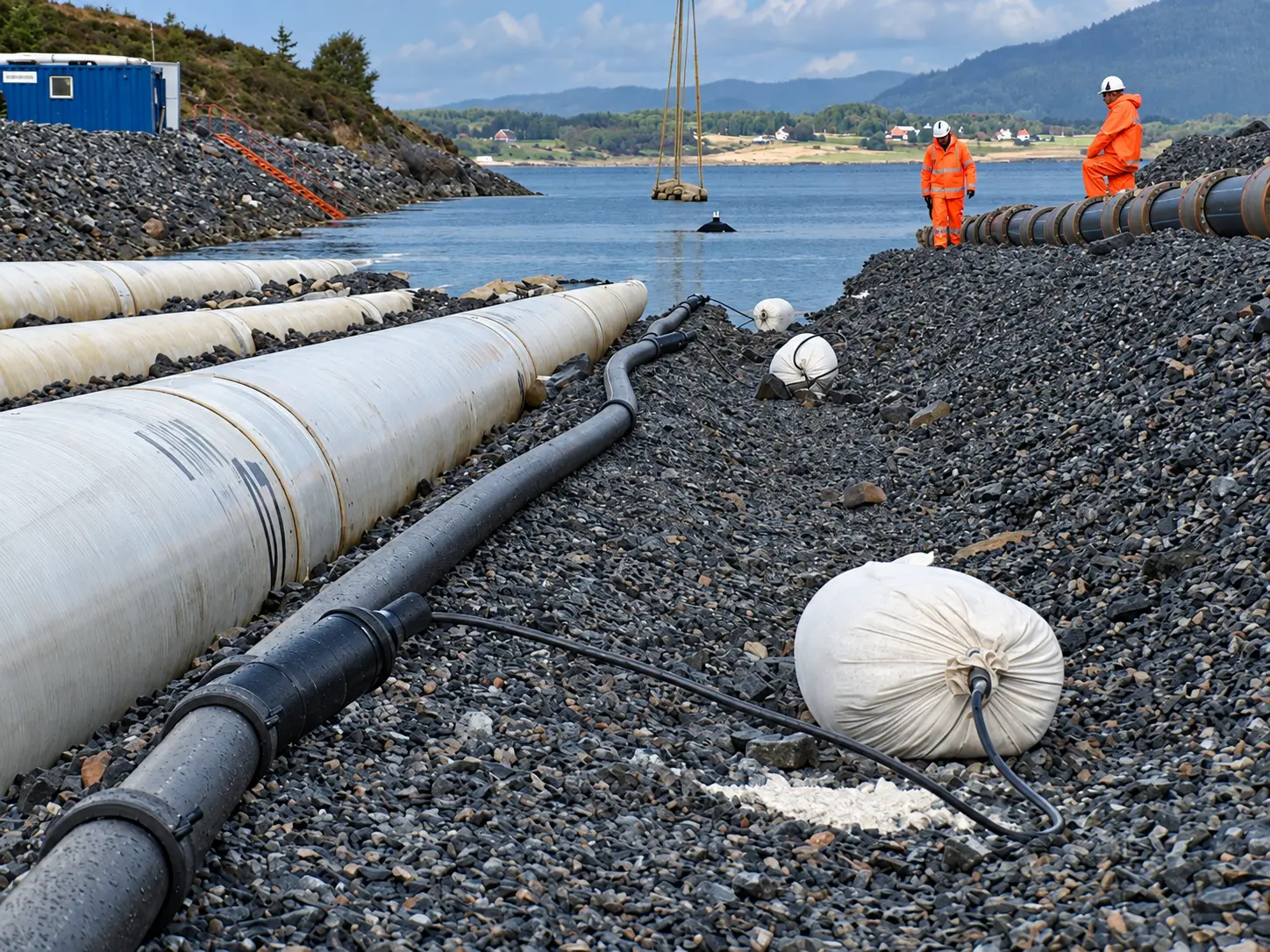

ICCP Anode Installation Configurations
A complete overview of deep groundbed, shallow groundbed, tank bottom, concrete, marine, distributed, and localized layouts.
View Configurations →ICCP Anodes for Deep Groundbed Systems
For deep well and shallow groundbed systems using canister, tubular, or rod MMO anodes.
View Deep Groundbeds →ICCP Anodes for Tank Bottom Protection
For storage tank bottom and under-tank CP systems using ribbon, mesh ribbon, wire, or linear MMO anodes.
View Tank Bottoms →ICCP Anodes for Reinforced Concrete
For bridges, piers, decks, and chloride-contaminated concrete using wire, mesh ribbon, ribbon, or disc anodes.
View Concrete ICCP →ICCP Anodes for Marine Structures
For jetties, piers, harbors, seawalls, offshore structures, and water intake systems using tubular, disc, or rod anodes.
View Marine ICCP →Pipeline & Buried Structure ICCP Anode FAQ
1. What are ICCP anodes for pipelines and buried structures?
2. What anode forms are used for buried pipeline cathodic protection?
3. When should MMO canister anodes be reviewed for pipeline CP?
4. When should MMO tubular anodes be reviewed for buried structure CP?
5. When should MMO linear anodes be used for distributed pipeline protection?
6. Why is soil resistivity important for buried structure CP?
7. Why does pipeline coating condition affect current demand?
8. What information is needed for a pipeline ICCP anode quote?
9. Can cable length and sealing be customized?
10. Can test station and monitoring layout be considered with the anode system?
11. What documents can be provided?
12. Can Hele Titanium support pipeline, underground tank, tank farm, and utility infrastructure CP projects?
Get Your Pipeline & Buried Structure ICCP Anode Recommendation
Tell us your pipeline or buried structure type, soil resistivity, coating condition, current demand, groundbed layout, design life target, cable route, monitoring requirements, and documentation needs. Hele Titanium will help review suitable MMO anode forms and ICCP configurations for your project.
-
MMO Canister, Tubular, Linear & Custom Support
Manufactured according to your groundbed requirements.
-
Soil Resistivity & Current Output Review
Anode layout reviewed against actual project site conditions.
-
Cable, Sealing & Documentation Support
Complete assembly, packing, and MTC support for buried CP projects.
