Cu/CuSO₄ Permanent Reference Electrode for Soil and Buried Structure CP Monitoring
Custom Cu/CuSO₄ permanent reference electrodes for buried pipeline cathodic protection monitoring, underground tanks, tank bottom CP systems, buried steel structures, utility pipelines, test stations, and long-term soil potential measurement.
Permanent Soil Potential Monitoring for Pipelines, Tanks and Buried Steel
Cu/CuSO₄ permanent reference electrodes are commonly used for potential monitoring in soil and buried structure cathodic protection systems. They provide a reference point for measuring the potential of buried pipelines, underground tanks, tank bottoms, and other buried steel structures.
In soil CP projects, reference electrode selection should be reviewed according to soil resistivity, soil moisture, installation depth, cable route, test station location, backfill or surrounding material, monitoring system, and project documentation requirements.
Soil CP Monitoring Focus
Cu/CuSO₄ reference electrodes can be reviewed for buried pipelines, tank bottoms, underground tanks, and utility infrastructure.
Permanent Installation
Reference electrodes can be configured for long-term buried installation, test station connection, and monitoring point layouts.
Cable Customization
Cable length, insulation, connector, housing structure, porous interface, and identification labels can be customized when required.
Documentation Support
Product specifications, inspection notes, labels, packing list, and project documents can be prepared according to agreed scope.
Engineering Support for Buried Monitoring
Hele Titanium supports custom Cu/CuSO₄ permanent reference electrodes for buried and soil-based monitoring applications, including cable-connected designs, protective housings, porous plugs, installation accessories, labels, packing, and project-specific documentation according to customer requirements.

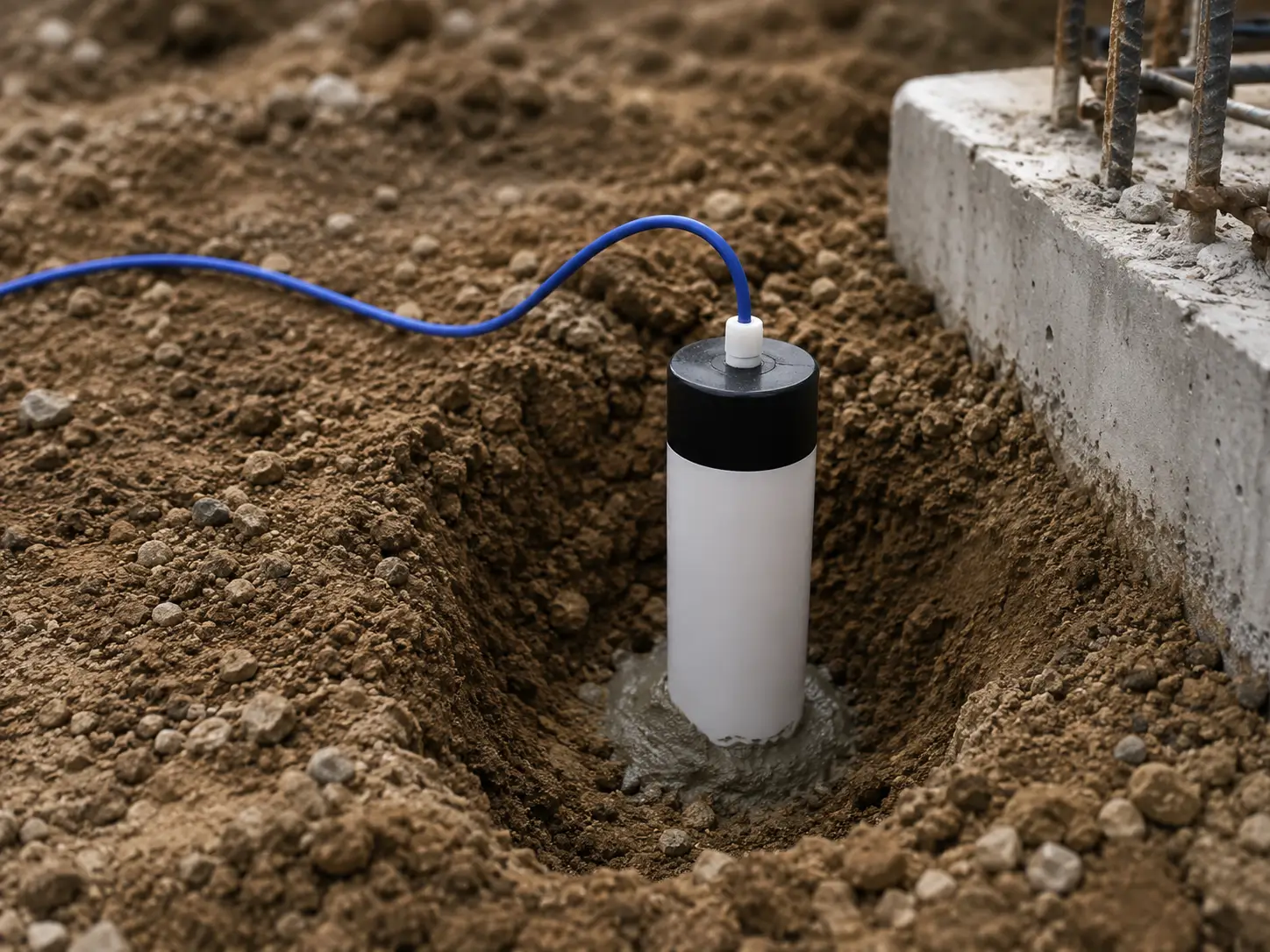

What Is a Cu/CuSO₄ Permanent Reference Electrode?
A Cu/CuSO₄ permanent reference electrode provides a stable reference point for electrochemical potential measurement in soil and buried structure cathodic protection monitoring systems. It helps engineers measure the potential of a buried steel structure relative to a reference electrode.
In soil and buried CP systems, Cu/CuSO₄ reference electrodes may be reviewed where long-term soil potential monitoring is required. A Cu/CuSO₄ reference electrode is not the same as an anode. It is used for measurement and monitoring, while an anode provides protection current.
Important Note
Cu/CuSO₄ Reference Electrode ≠ Anode
Key Characteristics
| Feature | What It Means | Why It Matters |
|---|---|---|
| Copper / Copper Sulfate Chemistry | The electrode uses a Cu/CuSO₄ reference system. | This chemistry is commonly reviewed for soil and buried structure CP monitoring. |
| Reference Measurement Function | The electrode provides a reference point for potential readings. | It supports CP system commissioning, monitoring, and performance evaluation. |
| Permanent Buried Installation | The electrode can be installed in soil near the protected structure or monitoring point. | Installation depth, soil contact, and cable route affect monitoring usefulness. |
| Cable-Connected Design | The electrode connects to a test station, monitoring panel, data logger, or measurement system. | Cable length, insulation, sealing, and labeling affect long-term installation reliability. |
Need help selecting the right Cu/CuSO₄ reference electrode?
Share your environment, installation, cable, and monitoring requirements with us for an expert recommendation.
Cu/CuSO₄ Permanent Reference Electrode Options We Supply
Different Cu/CuSO₄ reference electrode configurations are used depending on soil condition, installation depth, cable route, test station design, housing structure, and monitoring requirements. Hele Titanium can support standard and custom reference electrode options for buried CP monitoring projects.

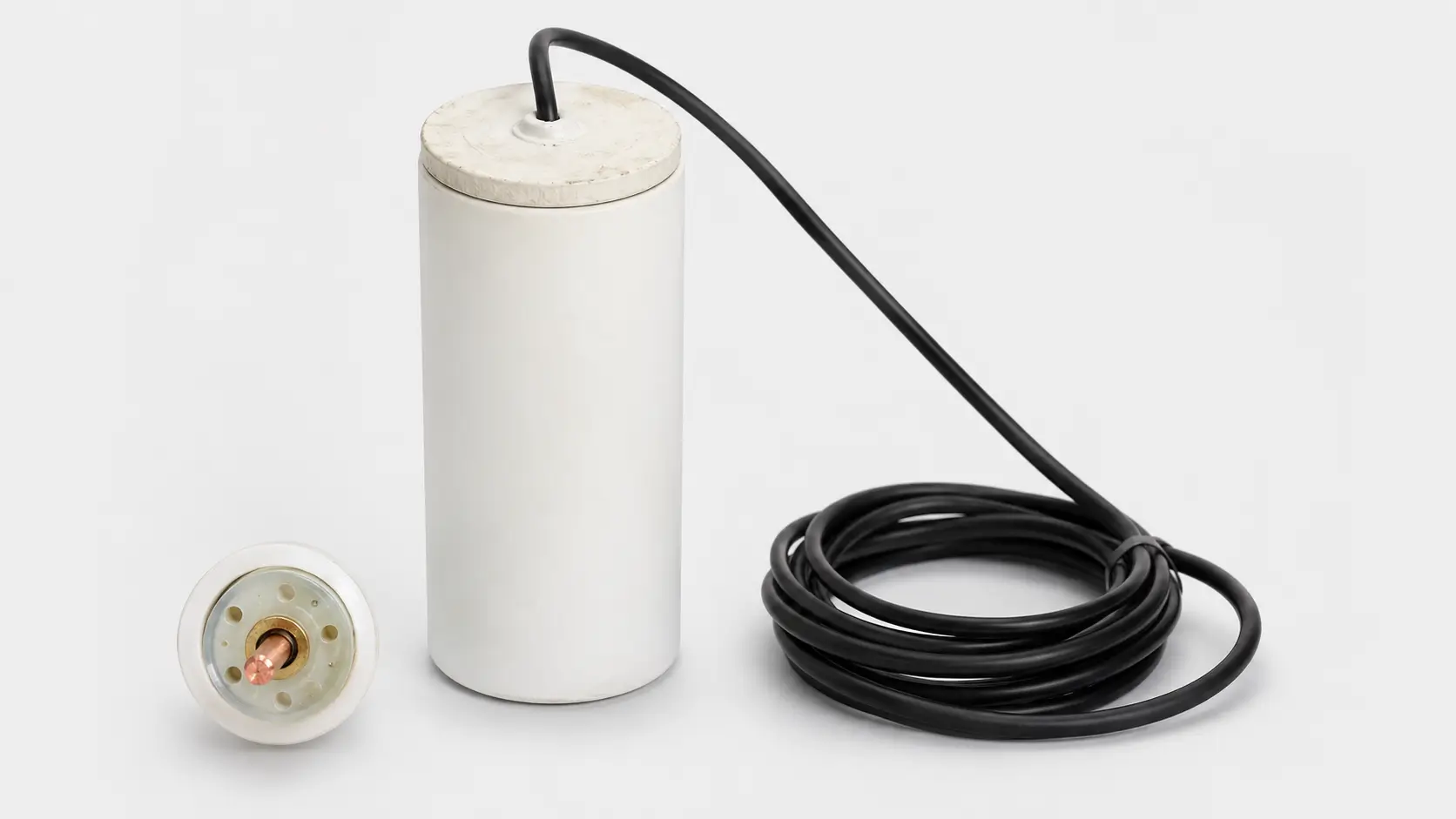

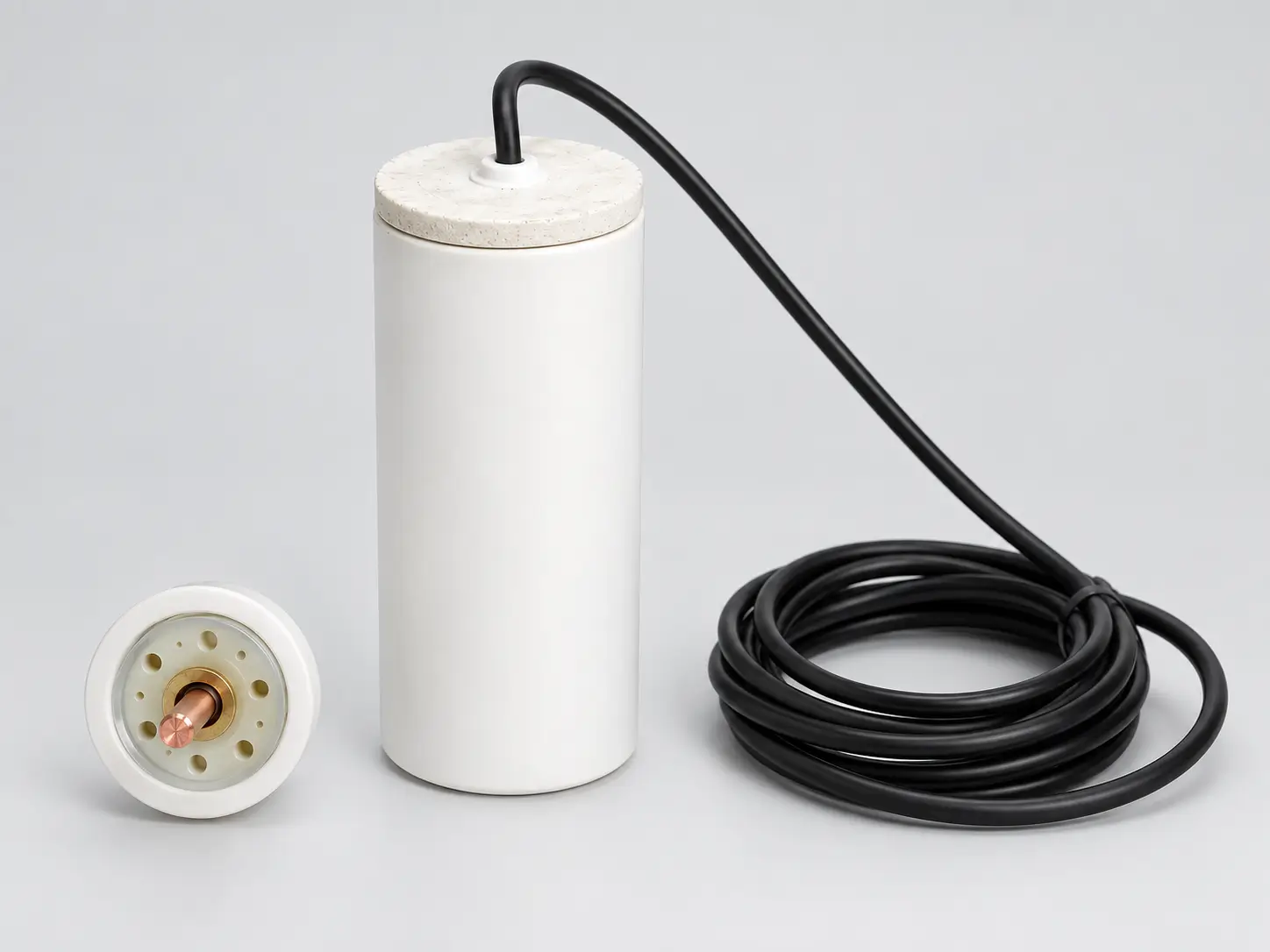

Permanent Cu/CuSO₄ Reference Electrode
Cable-connected Cu/CuSO₄ reference electrode for long-term buried installation in soil CP monitoring systems.

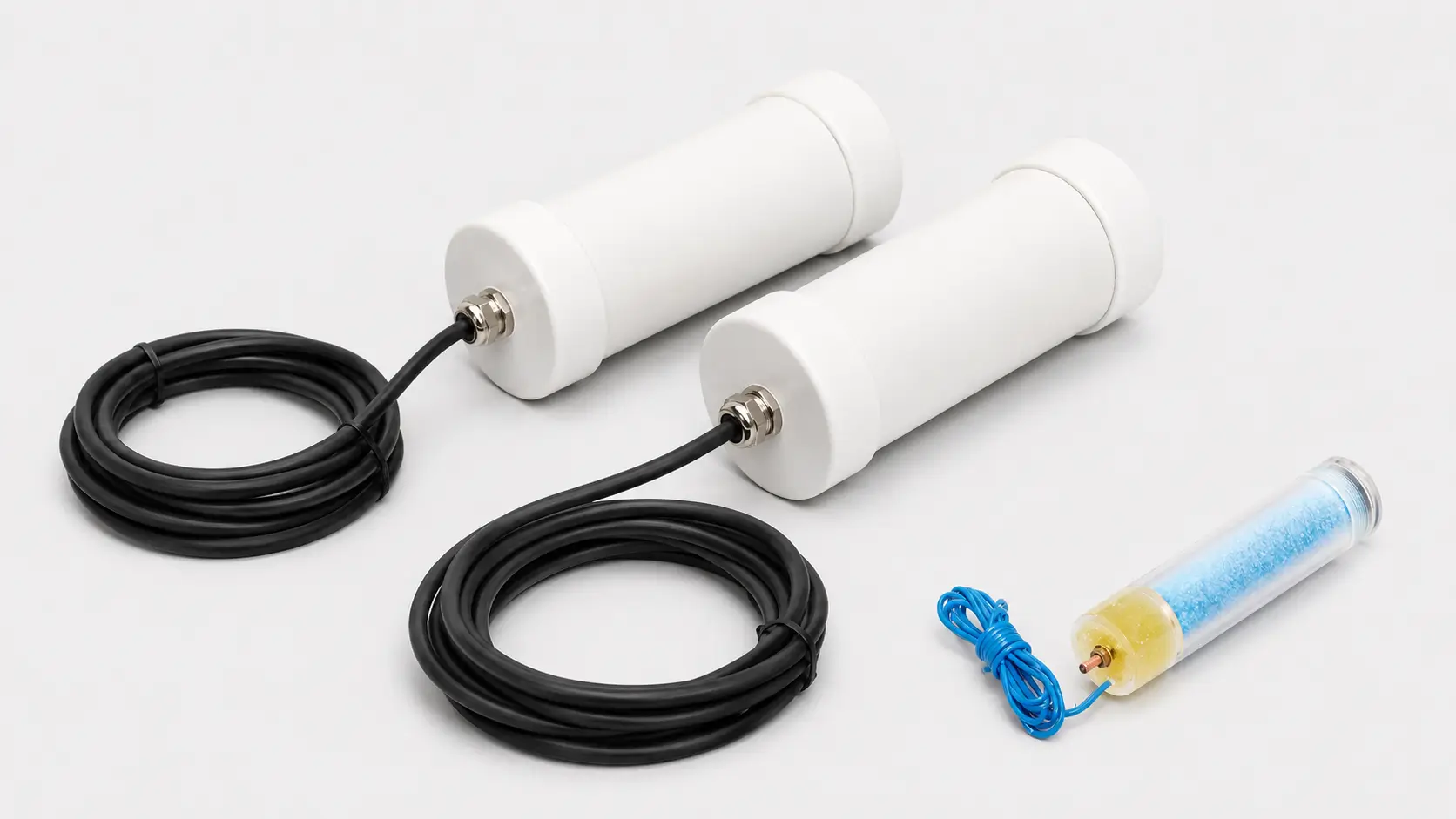

Pipeline CP Cu/CuSO₄ Reference Electrode
Permanent reference electrode configuration for buried pipeline potential monitoring and CP test station connection.

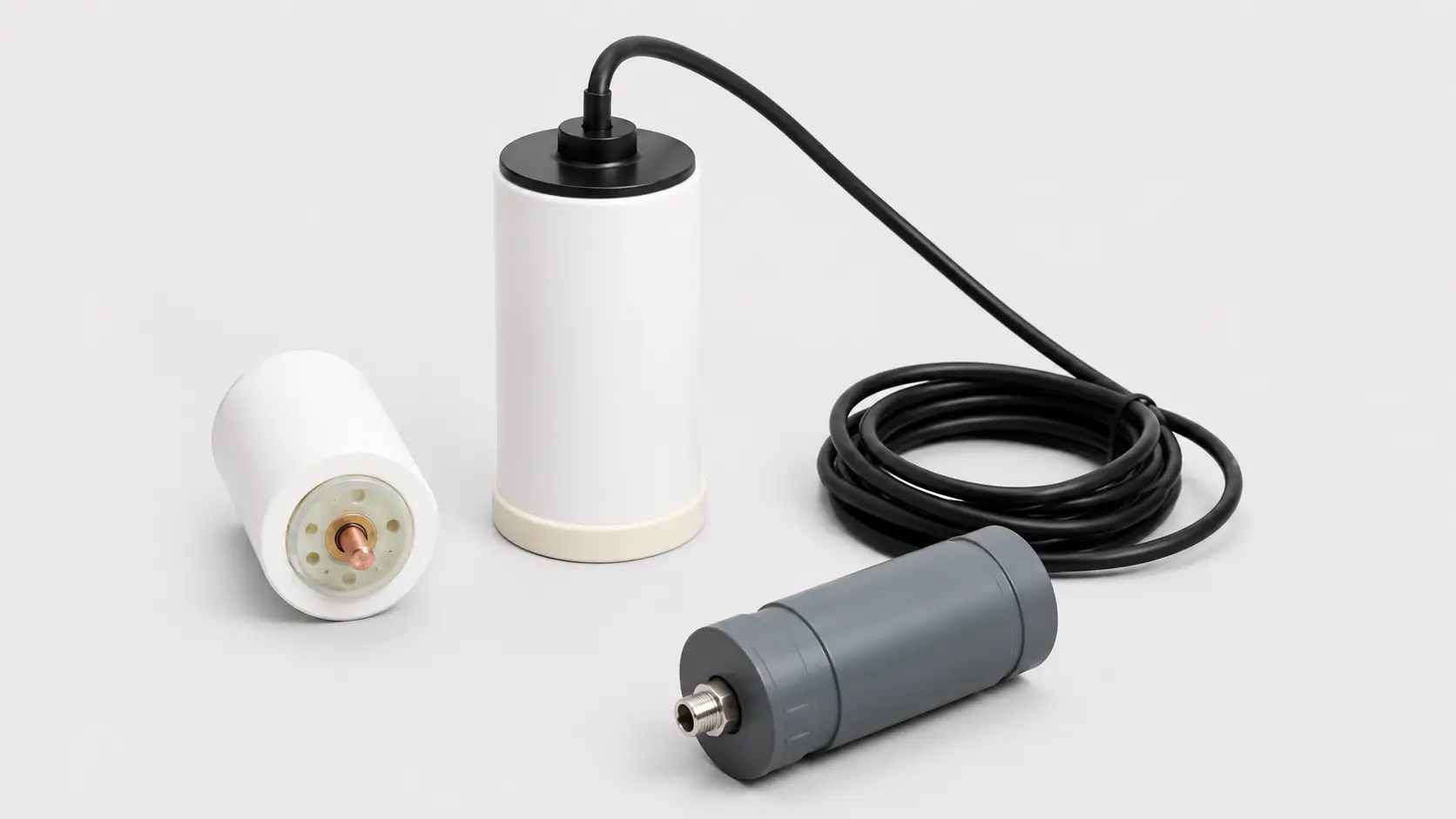

Tank Bottom Cu/CuSO₄ Reference Electrode
Reference electrode option for tank bottom CP monitoring and underground tank potential measurement.

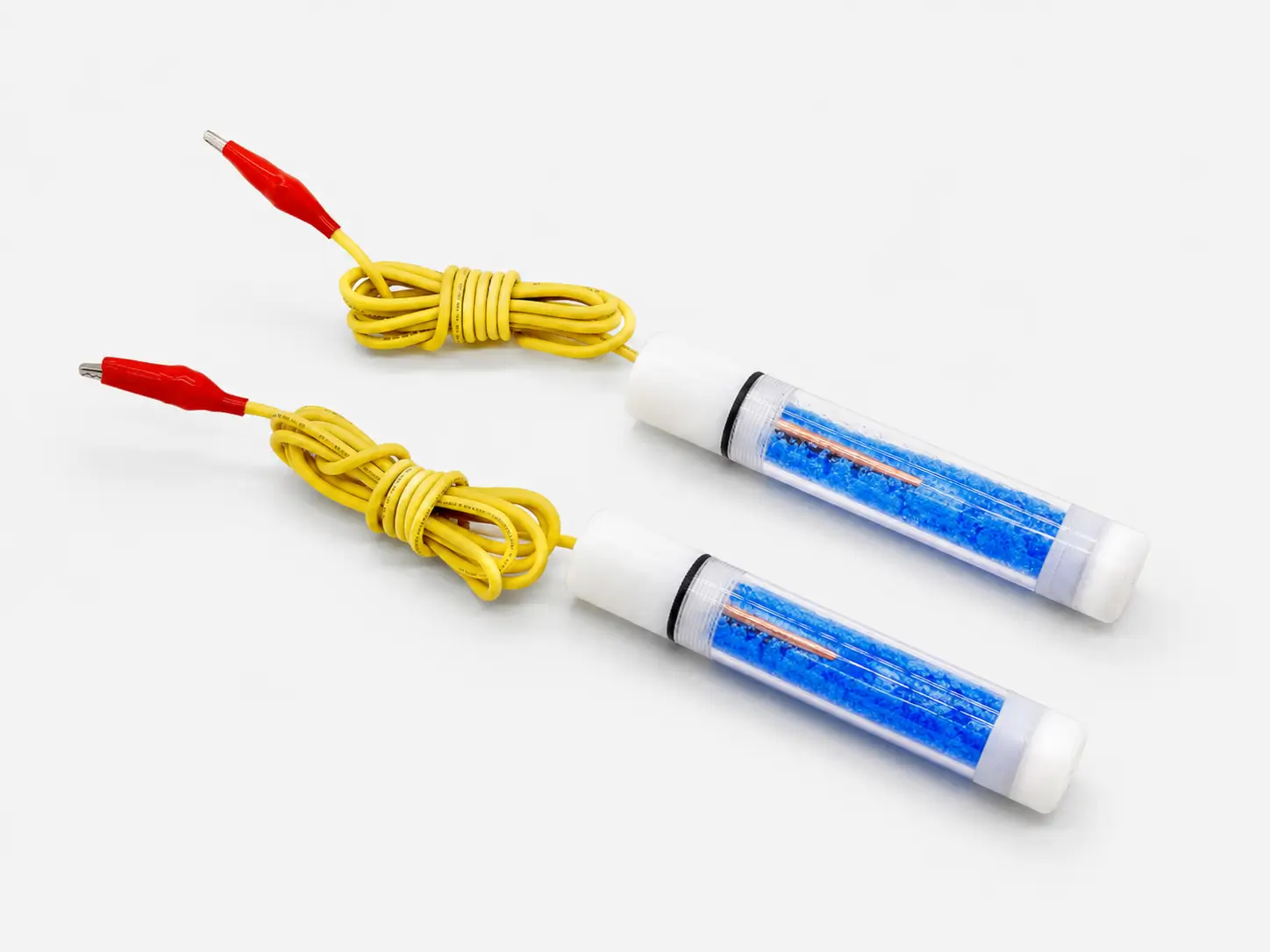

Test Station Cu/CuSO₄ Reference Electrode
Cu/CuSO₄ reference electrode configured for connection to CP test stations, junction boxes, or monitoring panels.

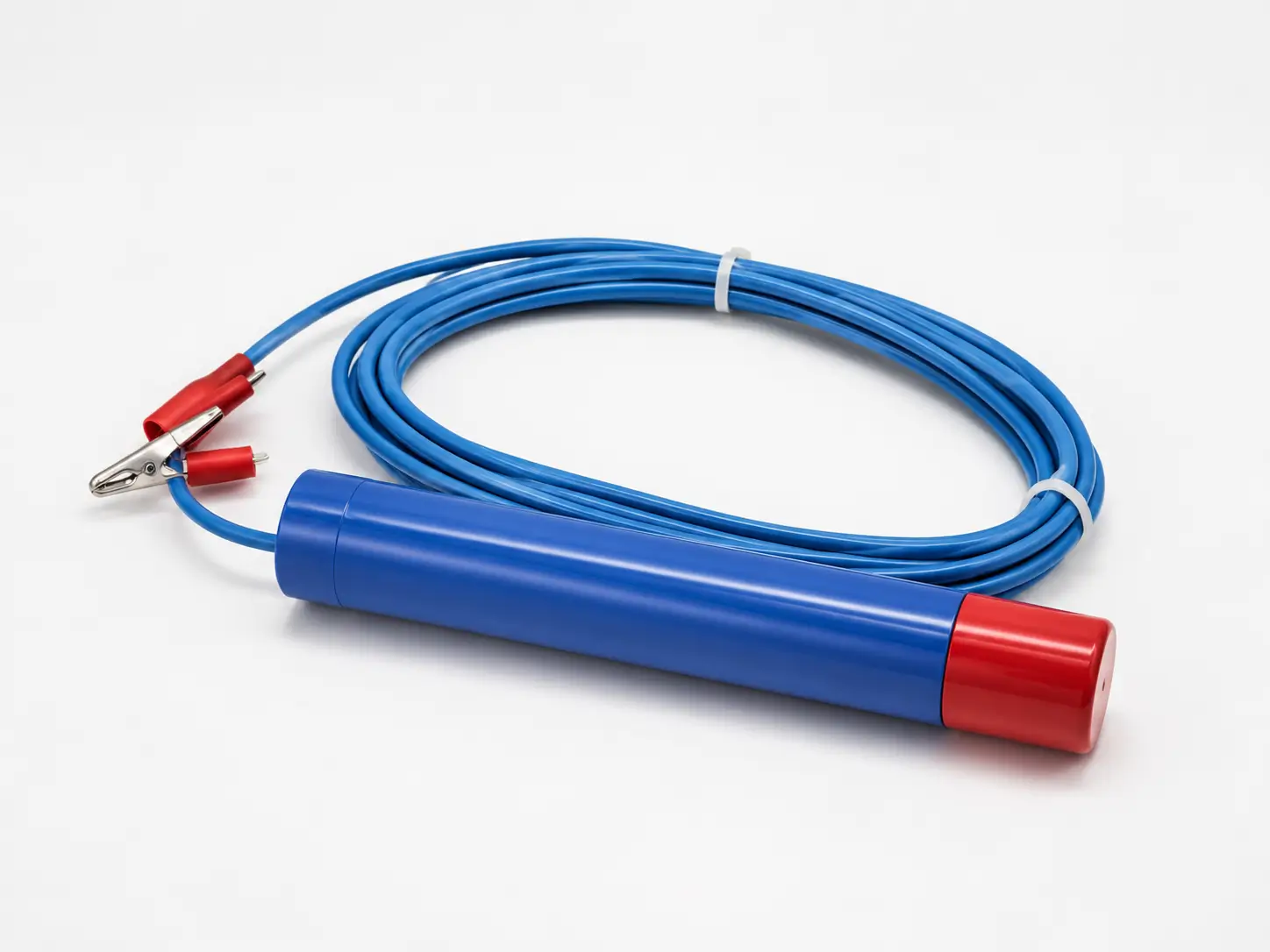

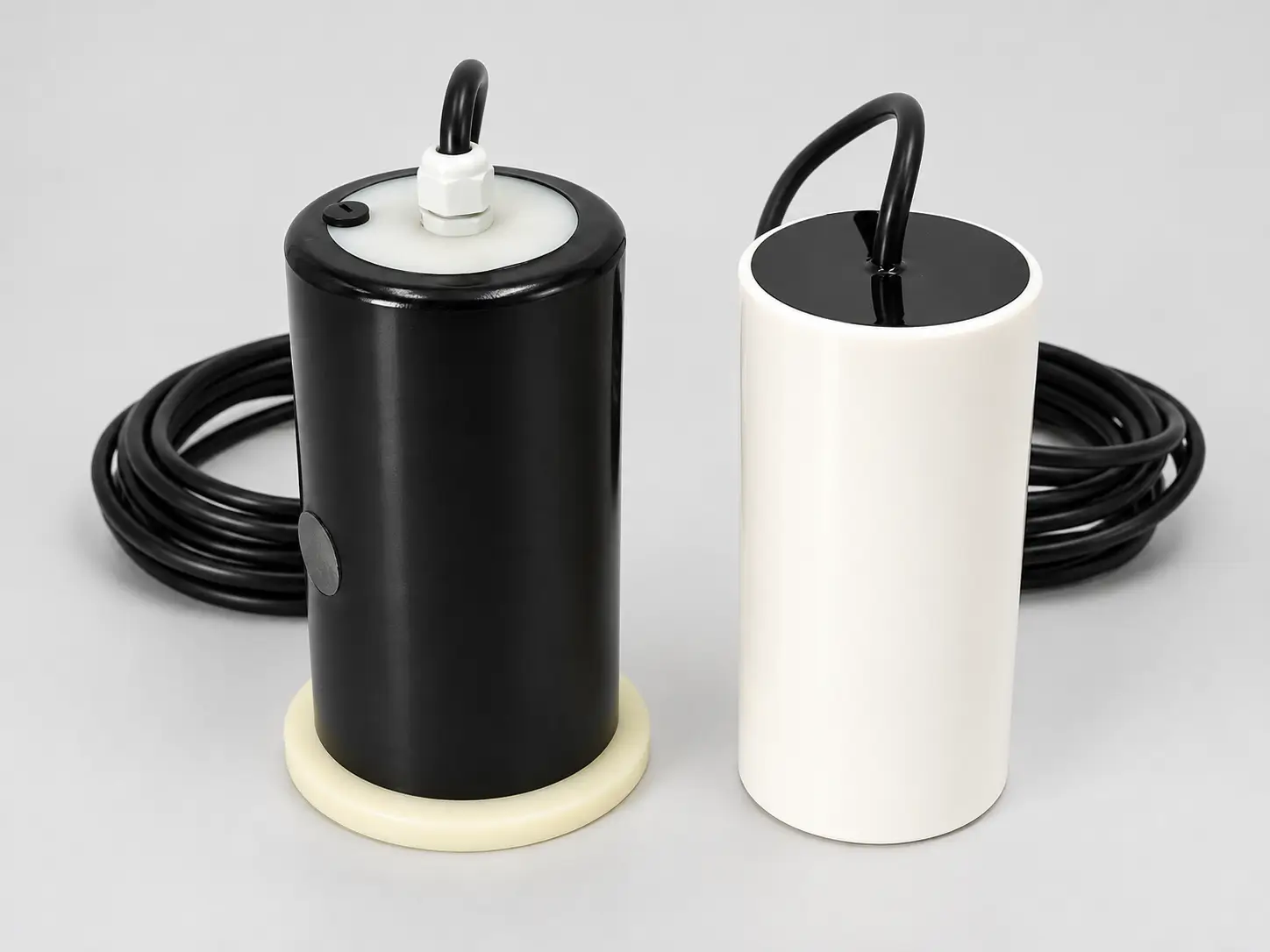

Custom Housing Cu/CuSO₄ Reference Electrode
Project-specific reference electrode with customized housing, porous interface, cable length, connector, and installation structure.

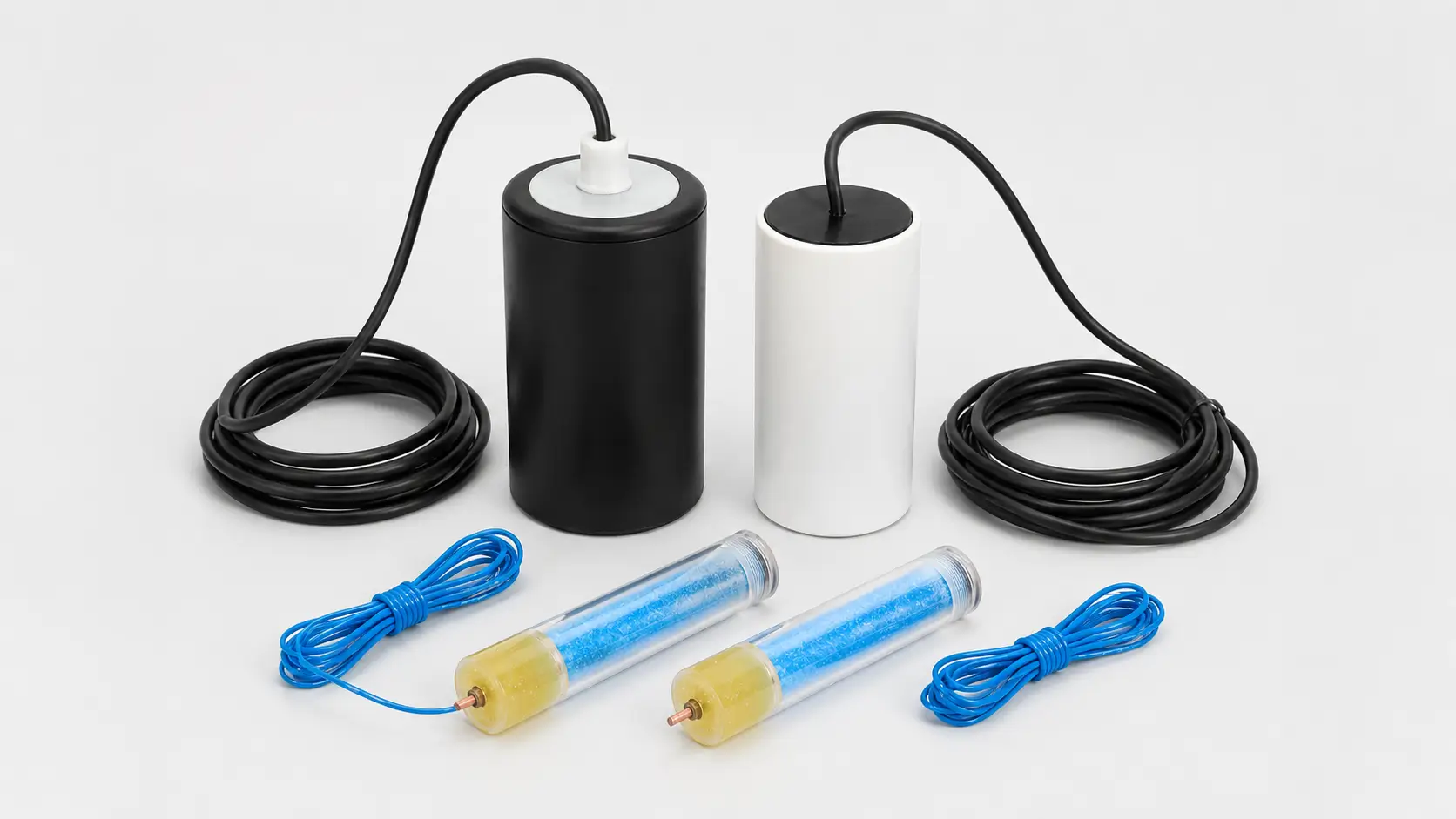

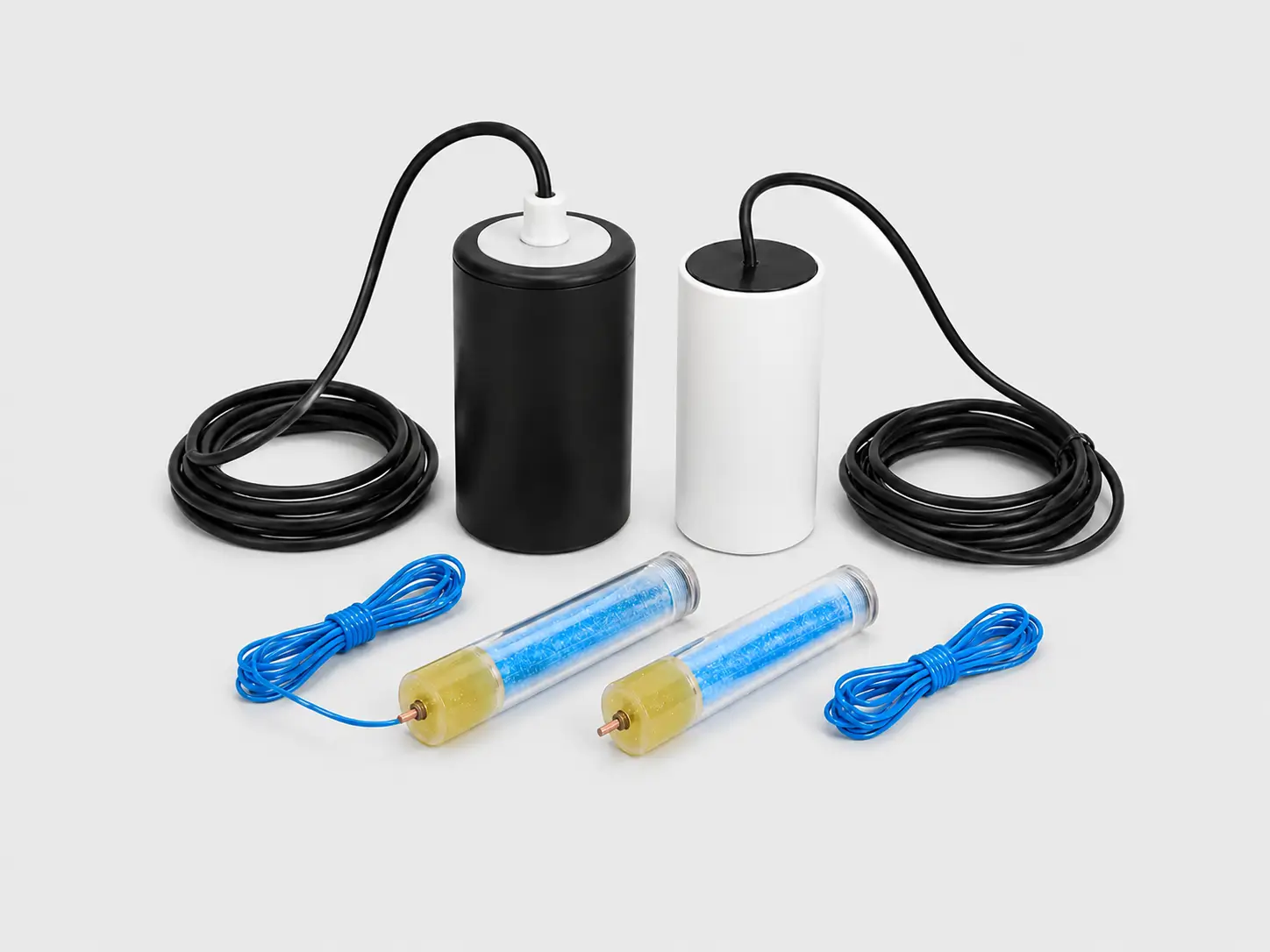

OEM Cu/CuSO₄ Reference Electrode Assembly
Customized Cu/CuSO₄ reference electrode assemblies for CP system suppliers, monitoring equipment brands, and corrosion control contractors.

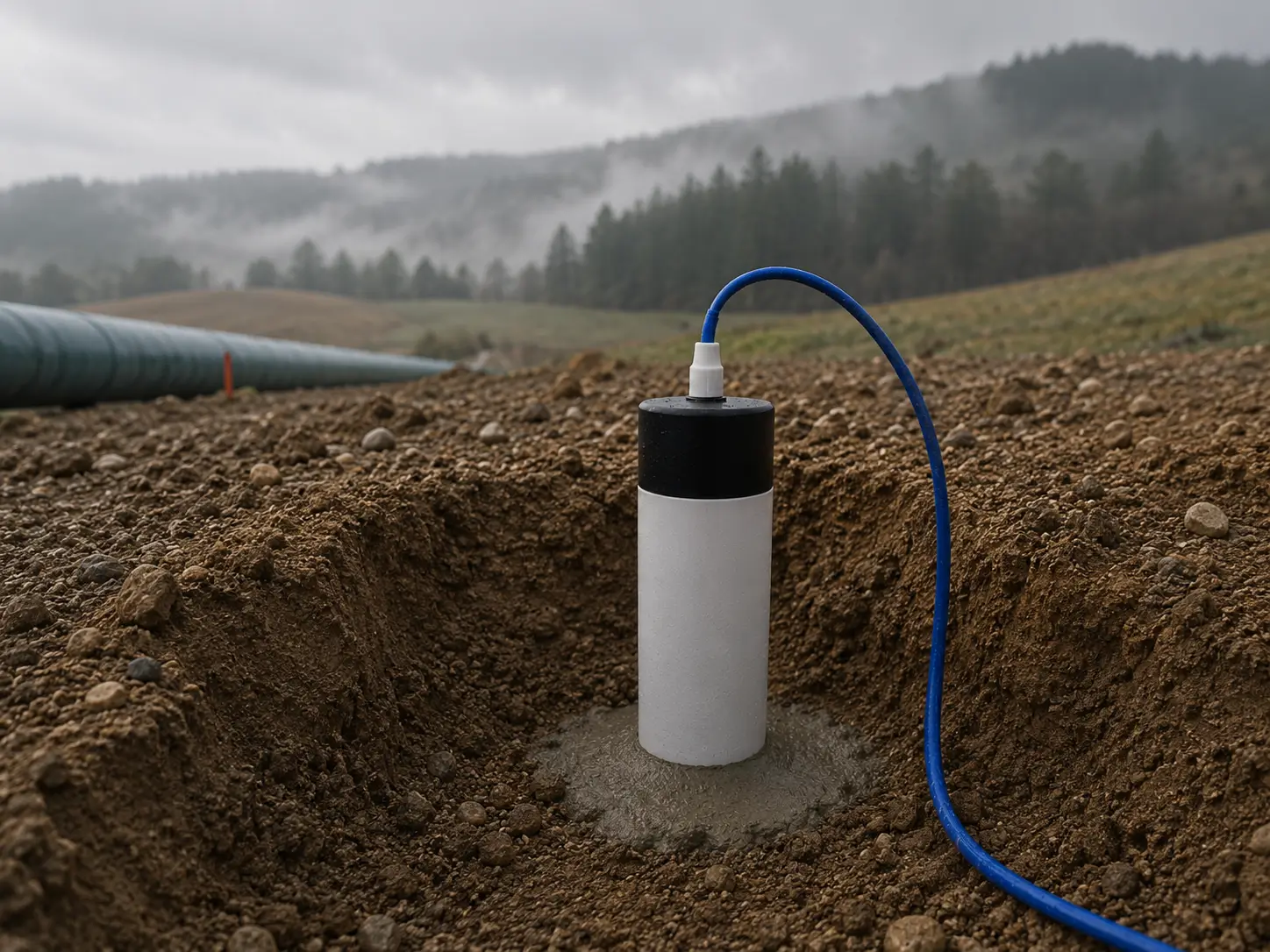

Where Cu/CuSO₄ Permanent Reference Electrodes Are Commonly Used
Cu/CuSO₄ permanent reference electrodes are commonly reviewed for soil and buried structure monitoring environments where long-term potential measurement is needed. The final configuration should be selected according to structure type, soil condition, installation depth, cable route, and monitoring requirements.
Built for Soil and Buried CP Monitoring
Cu/CuSO₄ permanent reference electrodes are used in soil and buried structure environments where stable, long-term potential measurement is required.
For Soil and Buried CP Monitoring
Used for potential measurement in buried pipeline CP systems, underground tanks, tank bottoms, and long-term soil monitoring points.
Suitable for Multiple Buried Applications
Buried pipelines, underground storage tanks, utility infrastructure, test stations, tank bottom CP systems, and more.
Designed for Real Soil Conditions
Soil resistivity, moisture level, installation depth, cable routing, housing material, and test station layout should be reviewed according to project requirements.
| Application | Why Cu/CuSO₄ May Fit | Key Review Factors |
|---|---|---|
| Buried Pipeline CP Monitoring | Cu/CuSO₄ electrodes are commonly reviewed for measuring pipeline-to-soil potential in buried pipeline CP systems. | Pipeline route, soil resistivity, coating condition, test station location, cable route, and monitoring schedule. |
| Underground Tank Monitoring | Underground tanks may require permanent reference electrodes for CP monitoring and potential measurement. | Tank size, soil condition, installation depth, reference location, cable route, and access. |
| Tank Bottom CP Systems | Storage tank bottom CP systems may require embedded or buried reference points for monitoring under-tank potential. | Tank diameter, foundation condition, reference electrode placement, cable routing, and CP design. |
| Buried Steel Structures | Buried steel structures may require soil reference electrodes to support CP commissioning and long-term monitoring. | Structure geometry, soil chemistry, current demand, monitoring point layout, and test station location. |
| Utility Infrastructure | Water, gas, and utility systems may require permanent reference points for buried CP monitoring. | Utility route, access points, soil resistivity, cable length, monitoring interval, and system integration. |
| ICCP & Sacrificial CP Systems | Both impressed current and sacrificial anode CP systems may require reference electrodes for potential measurement. | CP system type, monitoring purpose, test station layout, cable connection, and project standard. |
Marine ICCP Systems
Why it fits: May be used for potential monitoring in selected seawater ICCP systems where zinc reference is specified.
Review: Controller interface, cable route, installation position, seawater exposure.
Ship Hull Potential Monitoring
Why it fits: Required for potential measurement during commissioning, testing, or operation.
Review: Hull location, seawater condition, cable length, mounting access.
Offshore Structures
Why it fits: Offshore structures exposed to seawater may require fixed or portable reference electrodes.
Review: Water depth, structure geometry, mechanical exposure, cable protection.
Harbor, Jetty and Pier
Why it fits: Marine infrastructure CP systems may use zinc reference electrodes where specified.
Review: Mounting location, tidal exposure, fouling risk, junction box location.
Seawater Intake Systems
Why it fits: Intake structures, cooling systems, and screens may require monitoring electrodes.
Review: Water flow, salinity, temperature, housing design, cable sealing.
Subsea & Marine Structures
Why it fits: Submerged structures may require rugged monitoring points based on project design.
Review: Submerged depth, pressure condition, mechanical protection, cable route.
Is Cu/CuSO₄ the Right Reference Electrode for Your Soil CP Project?
Cu/CuSO₄ reference electrodes are commonly selected for soil and buried structure monitoring, but they are not the best choice for every CP environment. Selection should be reviewed according to soil condition, moisture level, monitoring duration, installation method, and system design.
Commonly Reviewed For
- Soil cathodic protection monitoring
- Buried pipeline CP systems
- Pipeline-to-soil potential measurement
- Underground tank monitoring
- Tank bottom CP monitoring
- Buried steel structures
- Utility infrastructure
- CP test stations
- Long-term buried monitoring points
- ICCP and sacrificial CP monitoring in soil
Review Carefully If Your Project Is
- Seawater immersion monitoring
- Ship hull CP monitoring
- Offshore steel structure monitoring
- Reinforced concrete CP monitoring
- Freshwater electrochemical testing
- Very dry or unstable soil condition
- Unknown soil resistivity or moisture
- Application requiring Ag/AgCl reference electrode
- Application requiring MnO₂ reference electrode
- Application requiring zinc reference electrode by project standard
Custom Cu/CuSO₄ Reference Electrodes Built Around Your Soil Monitoring Layout
Cu/CuSO₄ reference electrode design should be reviewed according to buried structure type, monitoring purpose, installation depth, soil condition, cable length, housing design, test station interface, and documentation requirements.
Precision Monitoring Setup
Soil CP Application Review
Review buried pipeline, underground tank, tank bottom, utility infrastructure, buried steel, or test station monitoring application.
Housing & Porous Interface
Review housing design, porous plug or soil contact interface, dimensions, installation depth, and protection requirements.
Cable & Connector Design
Customize cable length, insulation, connector, termination, sealing, label, and test station interface.
Soil Condition Review
Review soil resistivity, moisture condition, temperature, backfill condition, and installation environment.
System Compatibility
Review whether the electrode connects to test stations, data loggers, CP monitoring panels, rectifiers, or remote systems.
Packing & Documentation
Support labels, packing list, product specifications, inspection notes, export packing, and project files when required.
Connect with our engineering team for a customized assessment.
Cu/CuSO₄ vs Other Reference Electrodes
Different reference electrodes are used for different monitoring environments. Cu/CuSO₄ reference electrodes are commonly reviewed for soil and buried structure CP monitoring, while other reference electrodes may be more suitable for seawater, rugged marine monitoring, or reinforced concrete applications.
Zinc Reference Electrode
Designed for seawater and marine environments. Built for rugged, long-term monitoring in demanding conditions.
Best For:Seawater structures, marine CP, offshore monitoring, ship hulls
Not Ideal For:Soil, buried concrete, or embedded concrete applications
Ag/AgCl Reference Electrode
Stable and widely used in chloride-rich environments and marine CP systems.
Best For:Seawater intake systems, chloride environments, marine CP
Not Ideal For:Long-term embedded concrete or high-alkalinity concrete
MnO₂ Reference Electrode
Ideal for concrete and embedded installations requiring long-term stability and low maintenance.
Best For:Reinforced concrete, bridge decks, parking structures
Not Ideal For:Seawater immersion or high-chloride marine environments
Cu/CuSO₄ Reference Electrode
Commonly used in soil and buried environments for CP and pipeline monitoring.
Best For:Soil environments, buried pipelines, tank bottoms
Not Ideal For:Seawater or high-chloride marine applications
Buyer Note: Reference electrode selection should follow the monitoring environment, installation method, measurement target, cable route, and project specification. Zinc reference electrodes are not universal replacements for Ag/AgCl, MnO₂, or Cu/CuSO₄ electrodes.

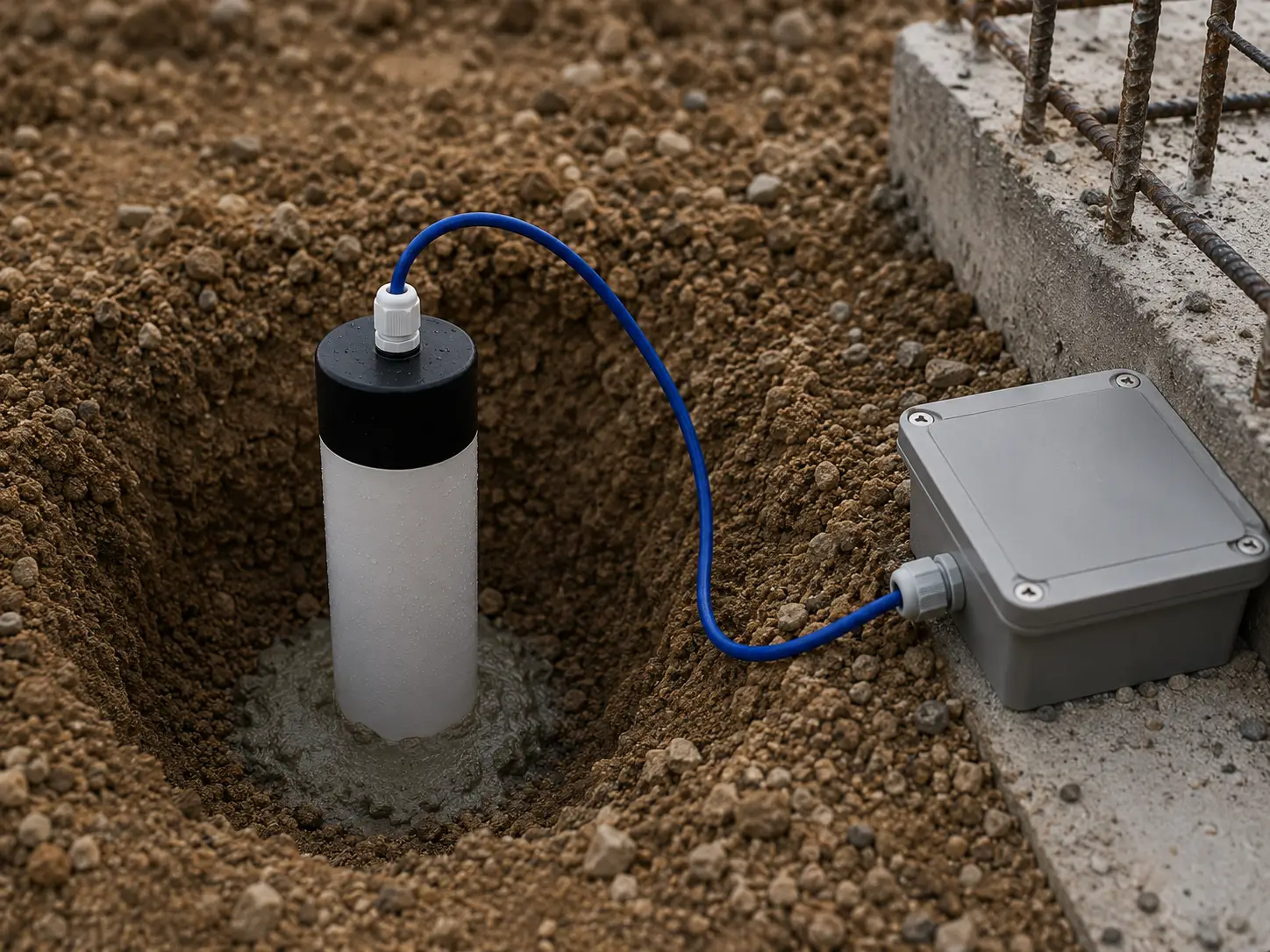

Installation Considerations for Cu/CuSO₄ Permanent Reference Electrodes
Proper installation helps Cu/CuSO₄ reference electrodes support useful soil potential monitoring. Installation position, soil contact, moisture condition, cable routing, test station access, and monitoring interface should be reviewed before installation.
Installation Position & Depth
Electrode location and depth should match the CP monitoring plan, buried structure position, and site conditions.
Soil Contact & Backfill
Good contact with surrounding soil or approved backfill helps support stable potential measurement.
Soil Moisture Condition
Soil moisture should be reviewed because it can affect the electrode environment and monitoring behavior.
Cable Routing & Protection
Cable routing should avoid damage during trenching, backfilling, and long-term buried operation.
Test Station / Monitoring Connection
Termination should match the test station, data logger, monitoring panel, or measurement point.
Inspection Access & Records
Cable labels, electrode location records, and drawings support future inspection, troubleshooting
Need help with your installation design?
Our corrosion engineering team can help review your application, environment, and monitoring strategy to support reliable CP performance.
Quality Control for Cu/CuSO₄ Reference Electrodes
Cu/CuSO₄ reference electrode quality depends on electrode assembly, copper / copper sulfate system, housing condition, porous interface, cable connection, sealing, dimensional accuracy, label identification, packing protection, and final documentation.
Electrode Assembly Review
Cu/CuSO₄ electrode element, internal structure, electrolyte system, and assembly requirements are reviewed according to order specification.
Housing & Dimension Check
Housing material, size, porous interface, probe length, and overall dimensions are checked according to agreed scope.
Cable & Connector Review
Cable length, insulation, connector type, termination, sealing, and labeling are reviewed when required.
Surface & Visual Review
Surface condition, housing condition, cable appearance, marking, and handling condition are reviewed according to inspection scope.
Packing & Labeling
Reference electrodes are packed according to product sensitivity, cable protection, destination, and shipment requirement.

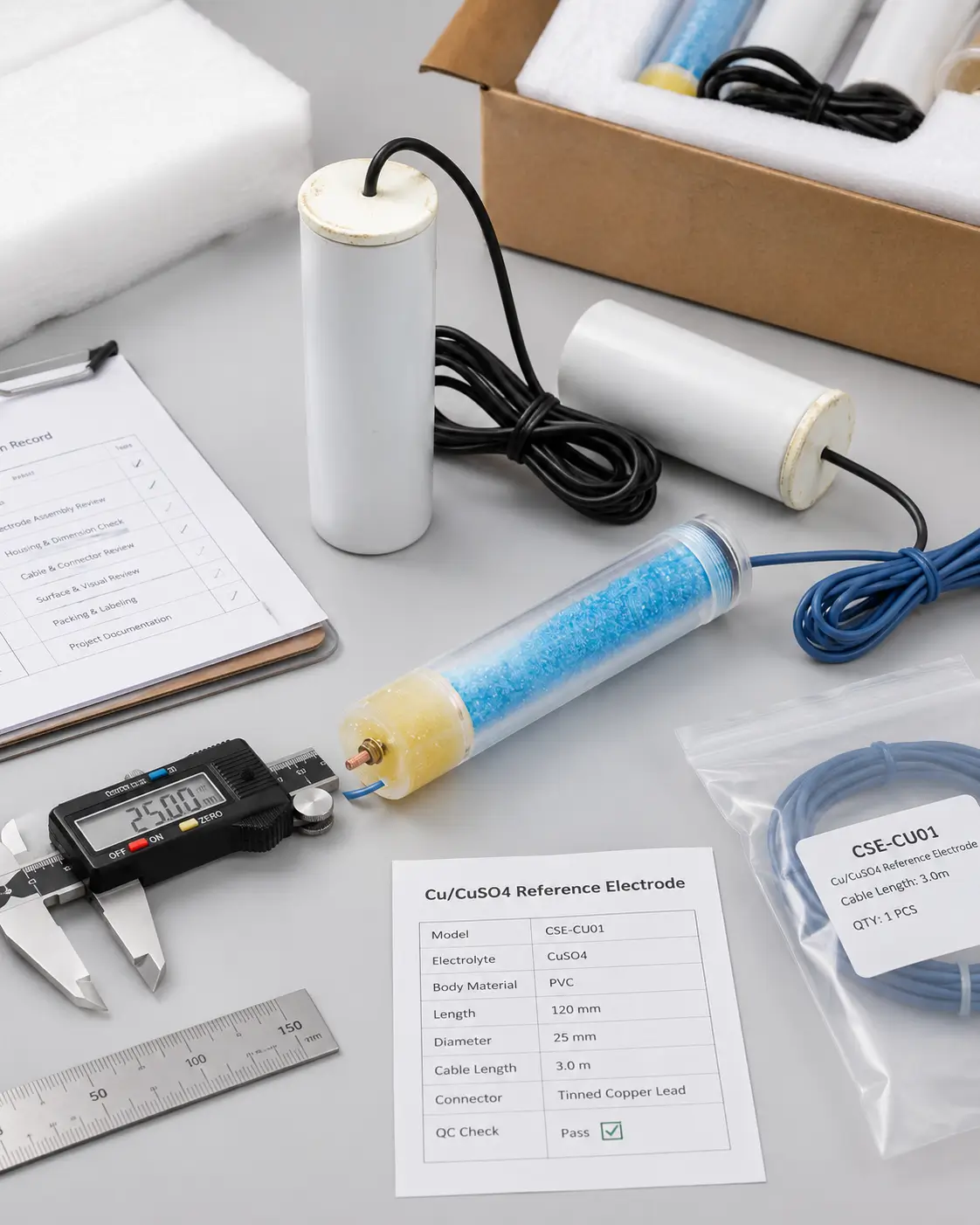

Project Documentation
Product specifications, inspection notes, packing list, labels, cable records, and project-specific documents can be prepared when required.
Available Documents May Include:
- Product specification sheet
- Dimensional inspection record
- Cable / connector notes
- Visual inspection notes
- Packing list
- Product labels
- Project-specific QC docs
- Third-party support (when required)
Explore Related Cathodic Protection Applications
If you are selecting reference electrodes for a complete CP system, explore the related application pages below to compare anode systems, monitoring environments, and project data requirements.
ICCP Anodes for Pipelines & Buried Structures
For buried pipelines, underground tanks, tank farms, utility infrastructure, and soil-based ICCP systems.
View Page →ICCP Anodes for Tank Bottom Protection
For storage tank bottom and under-tank CP systems where permanent monitoring points may be required.
View Page →ICCP Anode Installation Configurations
Compare deep groundbed, tank bottom, concrete, marine, pipeline, and localized ICCP layouts.
View Page →Magnesium Sacrificial Anodes
For soil and freshwater sacrificial CP systems where Cu/CuSO₄ reference electrodes may be used for monitoring.
View Page →Cu/CuSO₄ Permanent Reference Electrode FAQ
What is a Cu/CuSO₄ permanent reference electrode?
Where are Cu/CuSO₄ reference electrodes commonly used?
Is a Cu/CuSO₄ reference electrode suitable for soil CP monitoring?
Is a reference electrode the same as an anode?
What is the difference between Cu/CuSO₄ and Ag/AgCl reference electrodes?
What is the difference between Cu/CuSO₄ and MnO₂ reference electrodes?
Can Cu/CuSO₄ reference electrodes be used for pipeline-to-soil potential monitoring?
Can Cu/CuSO₄ reference electrodes be used for tank bottom CP monitoring?
Can cable length and termination type be customized?
What information is needed for a Cu/CuSO₄ reference electrode quote?
What affects reference electrode selection in soil?
What documents can be provided with Cu/CuSO₄ reference electrodes?
Get Your Custom Cu/CuSO₄ Reference Electrode Recommendation
Tell us your buried structure type, soil condition, soil resistivity if available, installation depth, monitoring point location, cable length, termination type, test station or monitoring system, quantity, and documentation needs. Hele Titanium will help review suitable Cu/CuSO₄ permanent reference electrode configurations for your soil CP monitoring project.
Cu/CuSO₄ Reference Electrode Supply Support
Standard and custom designs for soil and buried structure CP systems.
Permanent Soil and Buried Structure Monitoring Options
For pipelines, underground tanks, tank bottoms, and utility infrastructure.
Cable, Housing, Termination and Test Station Customization
Tailored to your specific site layout and monitoring equipment.
Factory-Direct Export Packing and Documentation Support
Reliable supply and project documentation for international procurement.
