MMO Mesh Ribbon Anode for Distributed Cathodic Protection
Custom MMO coated titanium mesh ribbon anodes engineered for reinforced concrete cathodic protection, tank bottom CP, embedded electrochemical protection, concrete repair, and large-area distributed current output applications.
MMO Mesh Ribbon Anode Engineering
Open Mesh Current Distribution for Concrete and Large-Area CP
MMO mesh ribbon anodes provide distributed current output through an open expanded mesh structure, making them suitable for reinforced concrete CP, concrete repair, tank bottom CP, and large-area protection systems.
Compared with solid ribbon anodes, the mesh structure offers better contact with concrete, backfill, or electrolyte and supports easier embedment. Final design should be reviewed according to resistivity, chloride level, current output, mesh opening, spacing, installation method, and design life target.
Hele Titanium supports custom MMO mesh ribbon anodes with project-specific mesh opening, ribbon width, coated length, coating loading, connection method, packing, labels, and documentation according to cathodic protection project requirements.
Open Mesh Structure
Expanded titanium mesh supports contact with concrete, backfill, or electrolyte around the anode.
Larger Contact Area
Mesh ribbon geometry can help improve current distribution across embedded or large-area CP layouts.
Concrete CP Support
Suitable for reinforced concrete CP, concrete repair, electrochemical treatment, and embedded protection systems.
Custom Mesh Design
Mesh opening, width, length, coating loading, spacing, and connection method can be reviewed according to project needs.

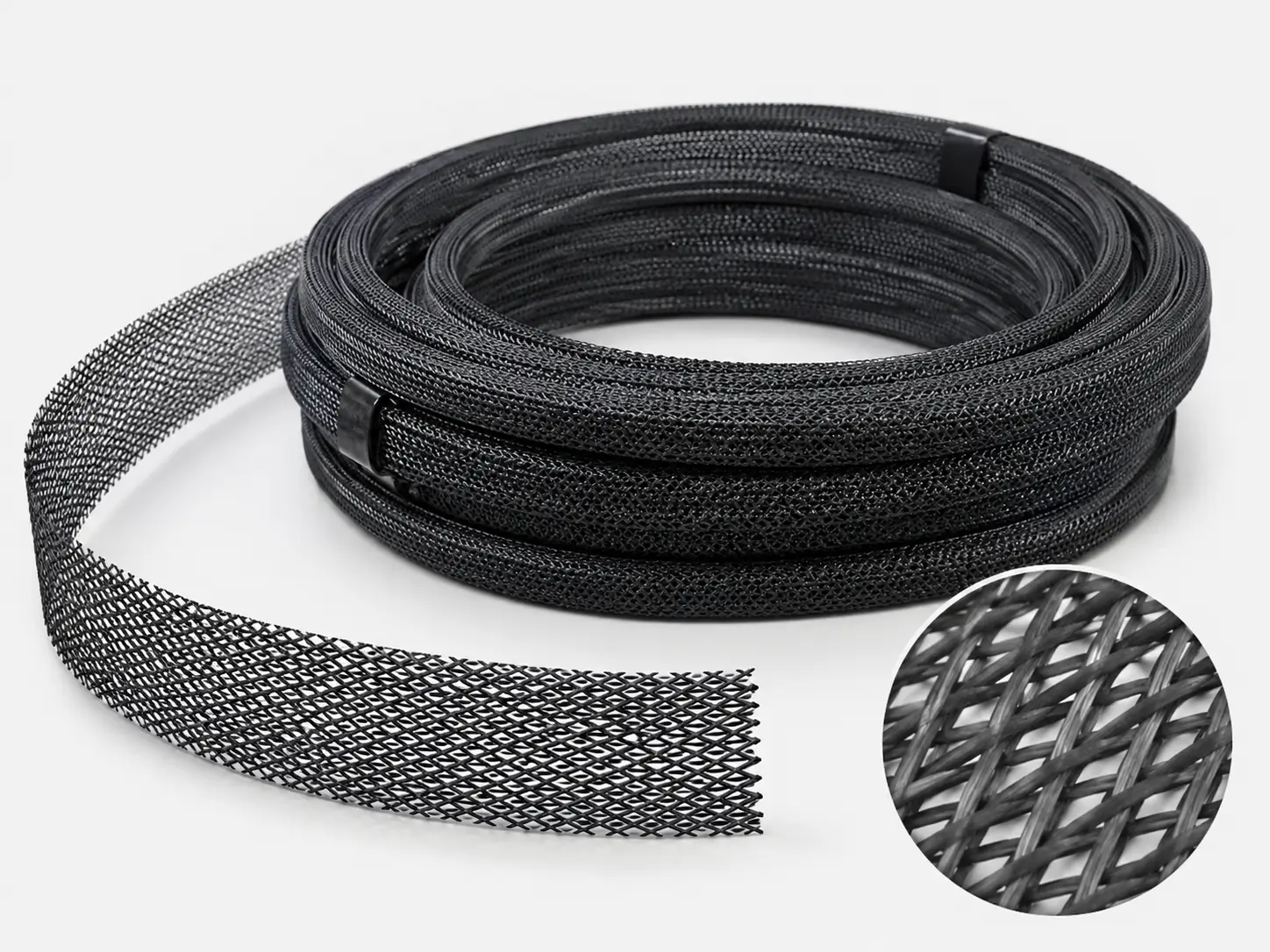

What Is an MMO Mesh Ribbon Anode?
An MMO mesh ribbon anode is an expanded titanium mesh strip coated with mixed metal oxide. Its open mesh structure allows surrounding concrete, backfill, or electrolyte to contact the anode surface more effectively, supporting distributed current output in embedded or large-area CP layouts.
Key Points
- Expanded titanium mesh strip
- MMO-coated active surface
- Open mesh geometry for better contact
- Suitable for embedded or large-area current distribution
- Custom mesh opening, ribbon width, coated length, and connection design available
| Feature | What It Means | Why It Matters |
|---|---|---|
| Expanded Titanium Mesh | A titanium mesh strip with open areas, coated with MMO. | Supports contact with concrete, backfill, or electrolyte around the anode. |
| MMO Coating | Mixed metal oxide coating applied to the active mesh surface. | Provides electrochemical activity for impressed current output. |
| Open Mesh Geometry | The mesh structure allows surrounding material to contact or embed around the anode. | Useful for concrete CP, embedded systems, and large-area current distribution. |
| Custom Width & Length | Mesh ribbon dimensions can be reviewed according to project layout. | Helps match current output, spacing, and installation requirements. |
MMO Mesh Ribbon Anode Options We Supply
Different MMO mesh ribbon anode configurations are used depending on protected structure, installation layout, contact environment, current requirement, and connection design. Hele Titanium can support standard and custom MMO coated titanium mesh ribbon anodes according to project requirements.

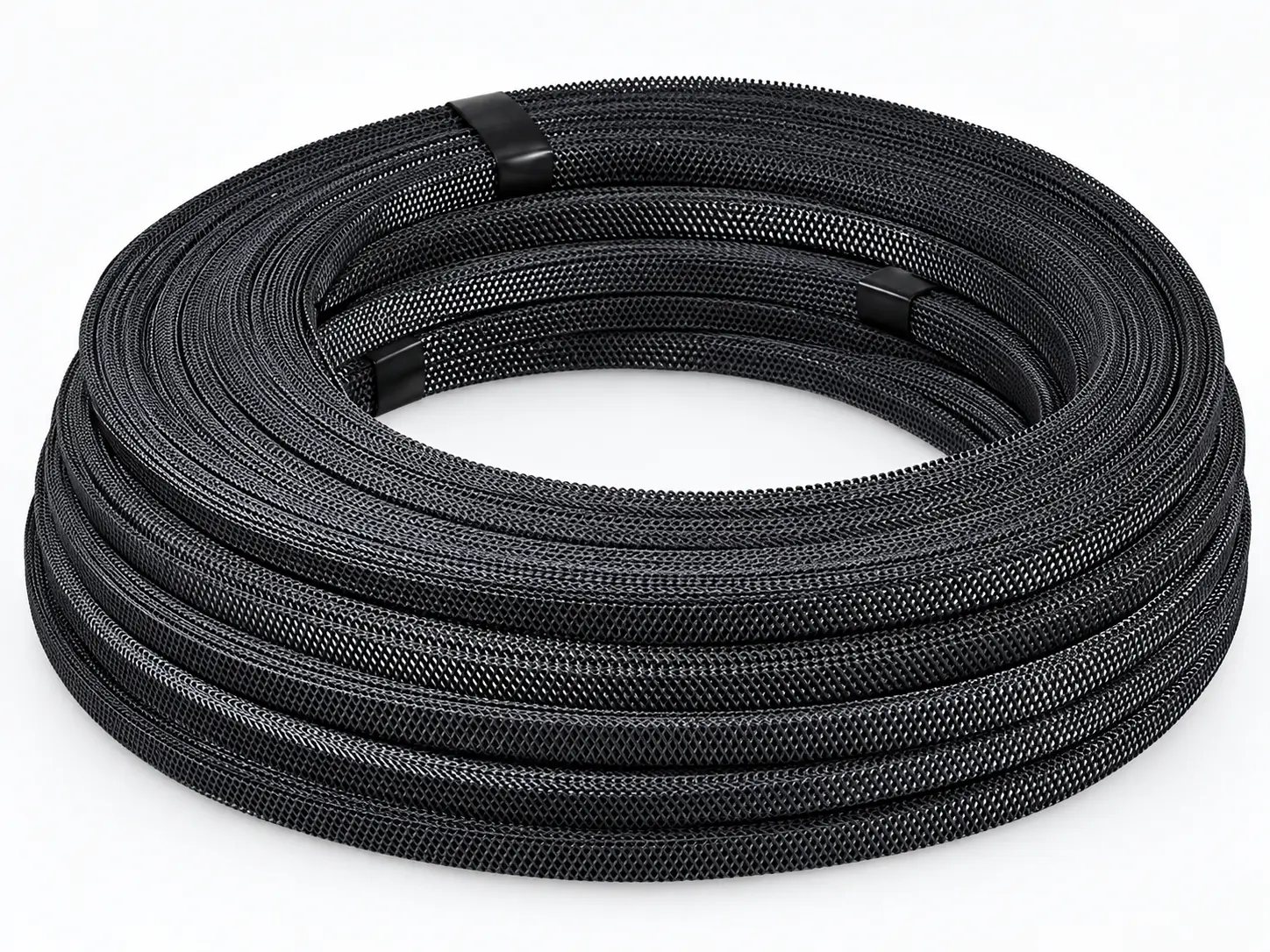

Standard MMO Mesh Ribbon Anode
Expanded titanium mesh ribbon coated with MMO for distributed current output in concrete, tank bottom, and long-area CP systems.

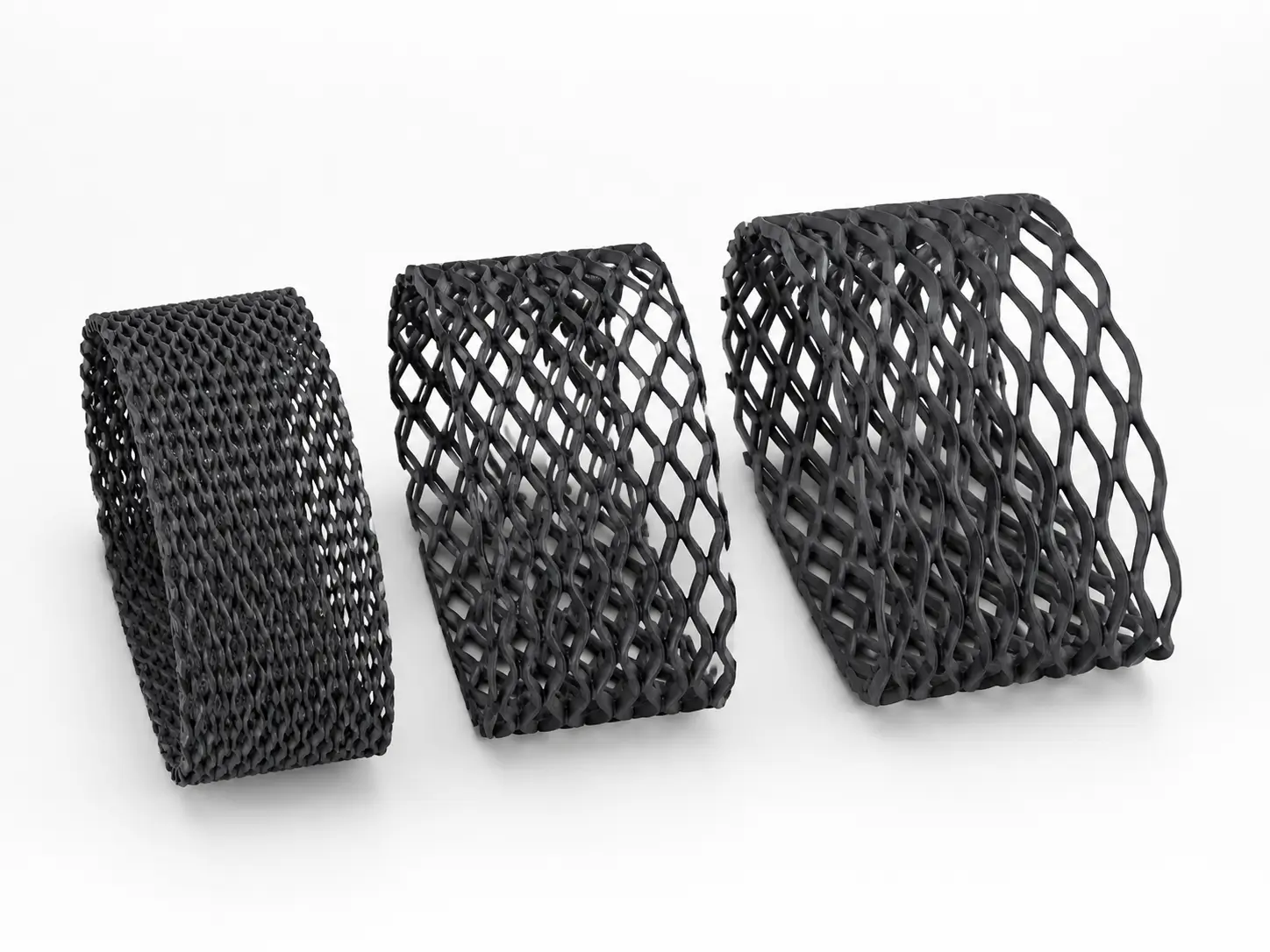

Custom Mesh Opening MMO Ribbon
Mesh ribbon anodes with project-specific mesh opening, width, length, and coated area according to current output and installation requirements.

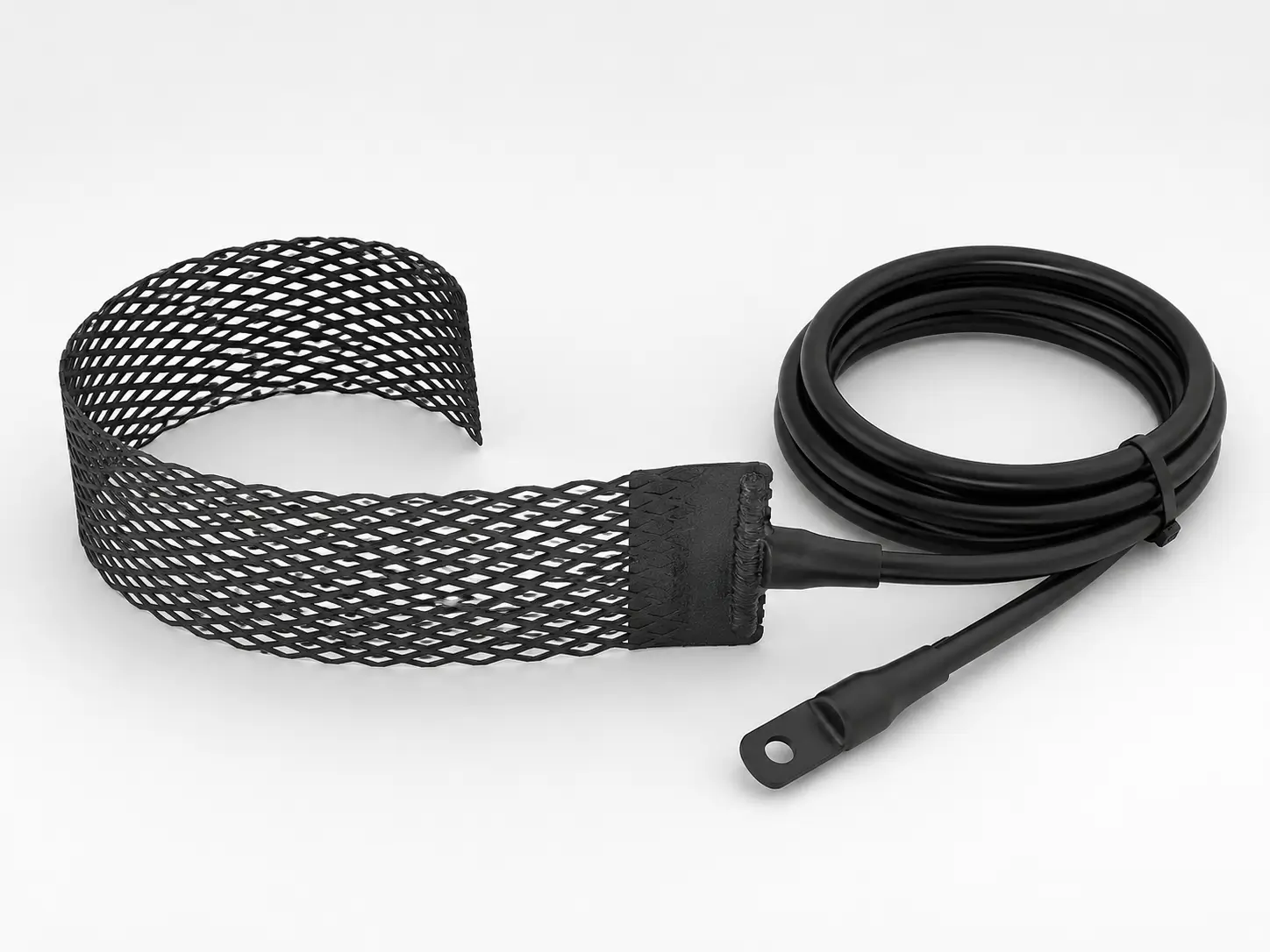

MMO Mesh Ribbon with Cable Connection
MMO mesh ribbon anode supplied with cable connection, welded tab, sealing, labels, or project-specific electrical interface.

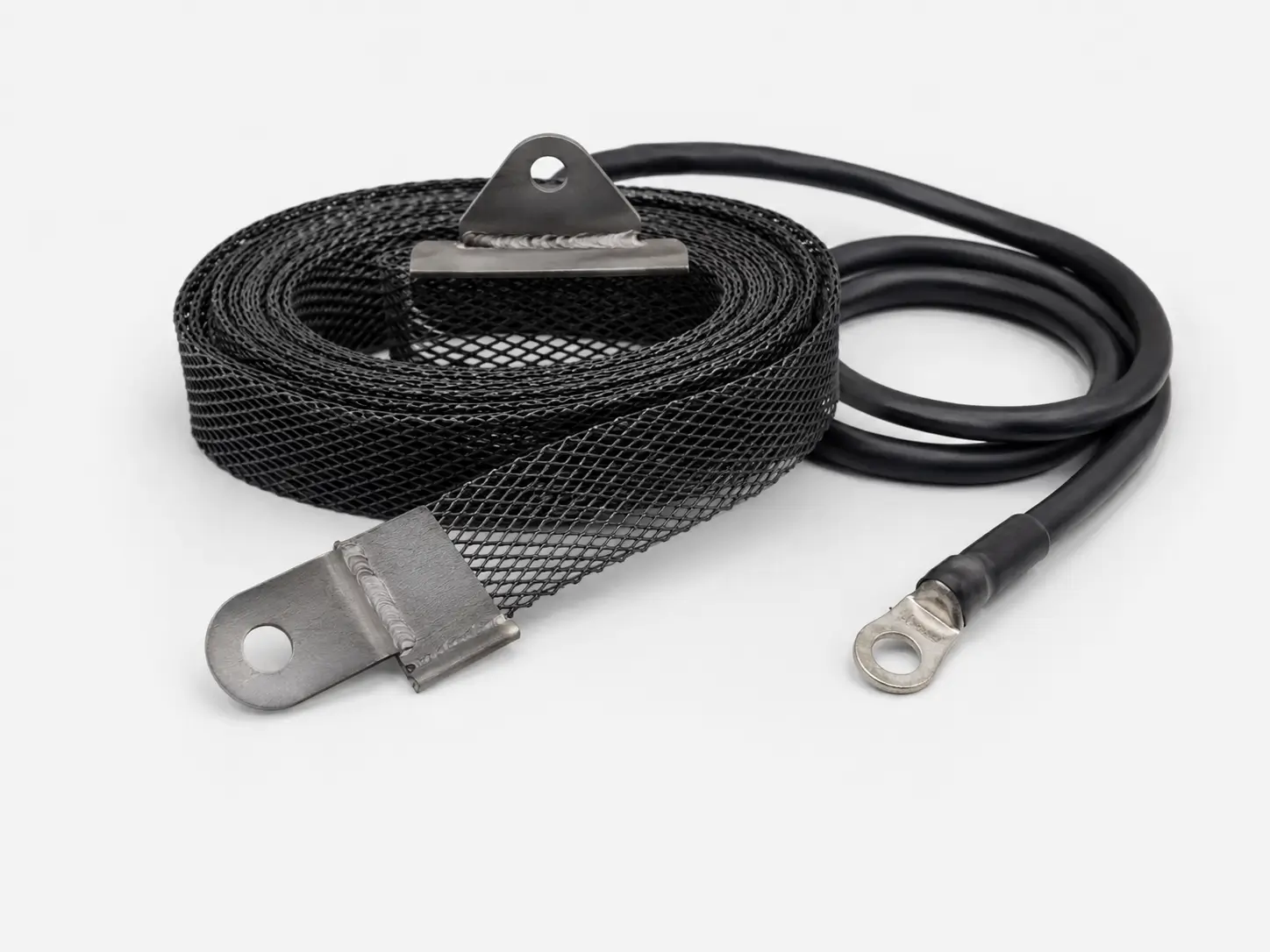

Custom MMO Mesh Ribbon Assemblies
Drawing-based MMO mesh ribbon assemblies with custom length, connection, packing, labels, and documentation.
Where MMO Mesh Ribbon Anodes Are Commonly Used
MMO mesh ribbon anodes are used when an open mesh anode structure is required for distributed current output and reliable contact with concrete or soil environments. They are commonly reviewed for reinforced concrete building protection, concrete repair layouts, embedded CP systems, and storage tank cathodic protection.
| Application | Why MMO Mesh Ribbon Anode Fits | Key Review Factors |
|---|---|---|
| Reinforced Concrete Building CP | The open mesh structure supports embedment in concrete repair zones, overlays, or protective CP layouts where current needs to be distributed across reinforced concrete areas. | Concrete resistivity, chloride level, cover depth, mesh opening, anode spacing, current density, embedment method, and connection design. |
| Concrete Repair & Rehabilitation | MMO mesh ribbon anodes can be incorporated into repair mortar or overlay systems to support long-term corrosion control for reinforced concrete structures. | Repair area, surface preparation, overlay material, contact condition, current output, fixing method, and installation sequence. |
| Embedded Concrete CP Systems | The expanded mesh geometry allows surrounding concrete or mortar to contact the anode surface more effectively during embedded CP installation. | Embedment depth, contact material, mesh opening, coated length, mechanical protection, and long-term accessibility. |
| Storage Tank Cathodic Protection | MMO mesh ribbon anodes can be reviewed for storage tank CP systems where distributed current output is needed in soil-based protection layouts. | Tank diameter, soil resistivity, foundation design, anode spacing, current output, cable route, and monitoring access. |
| Soil-Based Tank Protection Layouts | In soil environments, mesh ribbon anodes can help support planned current distribution around tank bases or protected steel areas. | Soil resistivity, moisture condition, installation depth, ribbon layout, cable protection, and design life target. |
| Custom Concrete or Tank CP Projects | Mesh opening, ribbon width, coated length, and connection details can be customized for project-specific reinforced concrete or storage tank CP designs. | Structure geometry, protected area, environment, current demand, connection method, installation limitation, and documentation requirements. |
Reinforced Concrete Building CP
Why it fits: The open mesh structure supports embedment in concrete repair zones, overlays, or protective CP layouts where current needs to be distributed across reinforced concrete areas.
Review: Concrete resistivity, chloride level, cover depth, mesh opening, anode spacing, current density, embedment method, and connection design.
Concrete Repair & Rehabilitation
Why it fits: MMO mesh ribbon anodes can be incorporated into repair mortar or overlay systems to support long-term corrosion control for reinforced concrete structures.
Review: Repair area, surface preparation, overlay material, contact condition, current output, fixing method, and installation sequence.
Embedded Concrete CP Systems
Why it fits: The expanded mesh geometry allows surrounding concrete or mortar to contact the anode surface more effectively during embedded CP installation.
Review: Embedment depth, contact material, mesh opening, coated length, mechanical protection, and long-term accessibility.
Storage Tank Cathodic Protection
Why it fits: MMO mesh ribbon anodes can be reviewed for storage tank CP systems where distributed current output is needed in soil-based protection layouts.
Review: Tank diameter, soil resistivity, foundation design, anode spacing, current output, cable route, and monitoring access.
Soil-Based Tank Protection Layouts
Why it fits: In soil environments, mesh ribbon anodes can help support planned current distribution around tank bases or protected steel areas.
Review: Soil resistivity, moisture condition, installation depth, ribbon layout, cable protection, and design life target.
Custom Concrete or Tank CP Projects
Why it fits: Mesh opening, ribbon width, coated length, and connection details can be customized for project-specific reinforced concrete or storage tank CP designs.
Review: Structure geometry, protected area, environment, current demand, connection method, installation limitation, and documentation requirements.
Technical Specifications
MMO mesh ribbon anodes are expanded titanium mesh strip anodes coated with IrO₂ / Ta₂O₅ mixed metal oxide. They are designed for distributed current output in reinforced concrete CP, concrete repair, storage tank CP, fine sand, and selected soil-based protection systems.
Basic Specifications
| Product Category | MMO Mesh Ribbon Anode |
| Substrate | Titanium |
| Shape | Expanded Mesh Ribbon / Ribbon Mesh |
| Coating | IrO₂ / Ta₂O₅ MMO coating |
| Applicable Environment | Concrete, fine sand, sand backfill, selected soil environments |
| Typical Applications | Reinforced concrete building CP, concrete repair, storage tank CP, tank base protection |
| Design Life | 75 Years |
| Standard Coil Length | 250 ft / 76 m |
| Custom Support | Mesh width, mesh opening, coated length, connection method, packing, labels, and documentation can be customized according to project requirements |
Standard Dimensions
| Item No. | Width | Expanded Thickness | Diamond Dimensions | Surface Area | Coil Length | Approx. Weight |
|---|---|---|---|---|---|---|
| HL-MMO-M1 | 0.4 in / 10 mm | 0.05 in / 1.3 mm | 0.1 × 0.2 × 0.02 in / 2.5 × 4.6 × 0.6 mm | 0.027 ft²/ft / 0.027 m²/m | 250 ft / 76 m | 2.4 lbs / 1.1 kg |
| HL-MMO-M2 | 0.5 in / 12.7 mm | 0.05 in / 1.3 mm | 0.1 × 0.2 × 0.02 in / 2.5 × 4.6 × 0.6 mm | 0.032 ft²/ft / 0.032 m²/m | 250 ft / 76 m | 3.1 lbs / 1.4 kg |
| HL-MMO-M3 | 0.75 in / 19 mm | 0.05 in / 1.3 mm | 0.1 × 0.2 × 0.02 in / 2.5 × 4.6 × 0.6 mm | 0.048 ft²/ft / 0.048 m²/m | 250 ft / 76 m | 6.2 lbs / 2.8 kg |
| HL-MMO-M4 | 1 in / 25 mm | 0.05 in / 1.3 mm | 0.1 × 0.2 × 0.02 in / 2.5 × 4.6 × 0.6 mm | Custom / project-specific | 250 ft / 76 m | 7.9 lbs / 3.6 kg |
| HL-MMO-M5 | 48 in / 1220 mm | 0.08 in / 2.0 mm | 1.3 × 3.0 × 0.04 in / 34 × 76 × 0.89 mm | 0.22 ft²/ft / 0.22 m²/m | 250 ft / 76 m | 73 lbs / 33 kg |
Engineering Notes
- Narrow mesh ribbon sizes are suitable for reinforced concrete CP, embedded layouts, repair zones, and localized distributed current output.
- Wider mesh ribbon can be reviewed for large-area current distribution, storage tank CP layouts, and project-specific protection designs.
- Final mesh width, spacing, current output, connection design, and installation method should be reviewed according to concrete resistivity, chloride level, soil or sand condition, protected area, and design life target.
Custom MMO Mesh Ribbon Anodes Built Around Your CP Layout
MMO mesh ribbon anode design should be reviewed according to mesh opening, ribbon width, coated length, current output, protected structure geometry, resistivity, installation method, contact material, cable route, coating loading, and design life target.
Mesh Geometry Review
Review mesh opening, width, strand size, and open area according to contact environment and installation method.
Coated Length Design
Customize active coated length according to project layout, current distribution, and spacing requirement.
Current Output Review
Review total current demand, output per meter, current density, and design life target.
Coating & Loading Review
Review MMO coating type and coating loading according to environment and current requirement.
Cable & Connection Design
Customize cable length, welded tab, connection method, sealing, termination, and labeling.
Installation Layout Support
Review spacing, routing, fixing method, embedment, backfill or concrete contact, mechanical protection, and accessibility.
What We Need From You
Provide these details for a precise engineering review.
- Application & Structure type
- Concrete/soil/water condition
- Required current output
- Design life target
- Preferred mesh opening & width
- Required coated length
- Embedment/installation method
- Installation layout or drawing
- Cable length & connection req.
- Quantity needed
- Delivery destination
Mesh Geometry, Coating and Current Output Must Be Reviewed Together
For MMO mesh ribbon anodes, the open mesh structure is only one part of the design. Mesh opening, ribbon width, coated length, output per meter, operating environment, contact material, layout spacing, cable connection, and installation method all affect how the mesh ribbon anode performs in a cathodic protection system.
1. Mesh Opening & Open Area
Affects contact with concrete, backfill, electrolyte, and surrounding materials.
2. Coated Length
Determines the active current output zone and must match the CP layout.
3. Current Output per Meter
Helps define the required coating loading, spacing, and system design.
4. Embedment & Connection Reliability
Embedment quality, cable sealing, termination, and electrical continuity are important for long-area installations.
Quality Control for MMO Mesh Ribbon Anodes
MMO mesh ribbon anode quality depends on expanded titanium mesh substrate condition, mesh geometry, surface preparation, coating application, coated length accuracy, connection quality, visual condition, packing protection, and final documentation.
Available Documents May Include:
- MTC
- Coating record
- Dimensional inspection record
- Mesh opening inspection notes when required
- Coated length record when required
- Visual inspection notes
- Cable / connection inspection notes when required
- Packing list & Product labels
- Project-specific QC documents
Titanium Mesh Substrate Review
Expanded titanium mesh is reviewed according to grade, mesh opening, width, strand condition, surface condition, and project requirements.
Surface Preparation
Cleaning, roughening, activation, and pre-treatment are controlled before coating.
MMO Coating Application
Coating formulation, application cycles, drying, and thermal treatment are controlled according to project requirements.
Coated Length & Mesh Dimension Check
Mesh opening, ribbon width, active coated length, total length, labels, and termination details are reviewed according to order requirements.
Connection & Visual Review
Cable connection, welded tab, sealed joint, surface condition, coating coverage, and visual appearance are reviewed according to inspection scope.
Packing & Documentation
MTC, coating record, inspection notes, labels, packing list, and project-specific documents can be prepared when required.
Installation Considerations for MMO Mesh Ribbon Anodes
Proper installation helps MMO mesh ribbon anodes deliver distributed current more effectively. Mesh layout, spacing, embedment method, contact material, cable connection, and mechanical protection should be reviewed before installation.

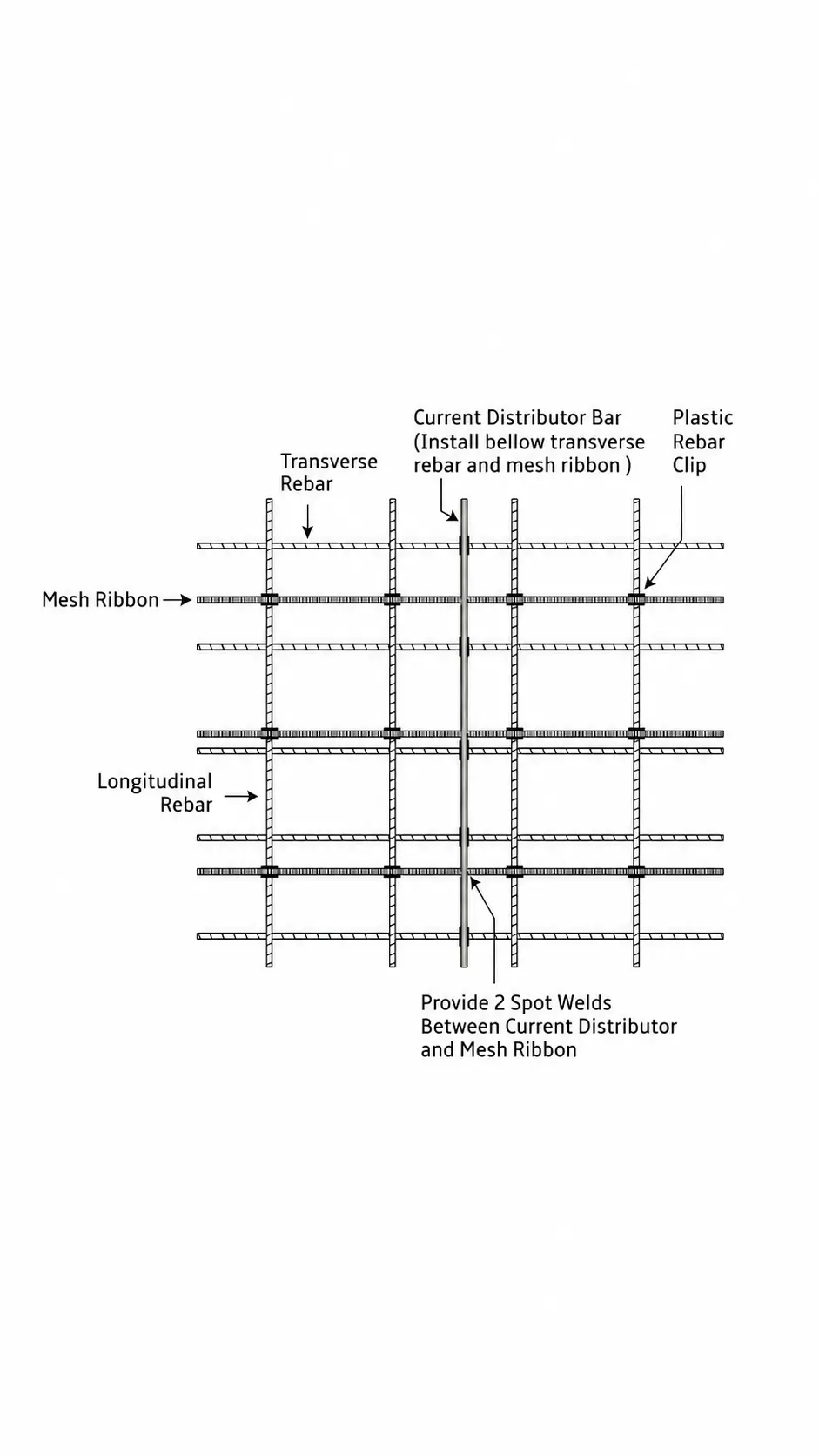

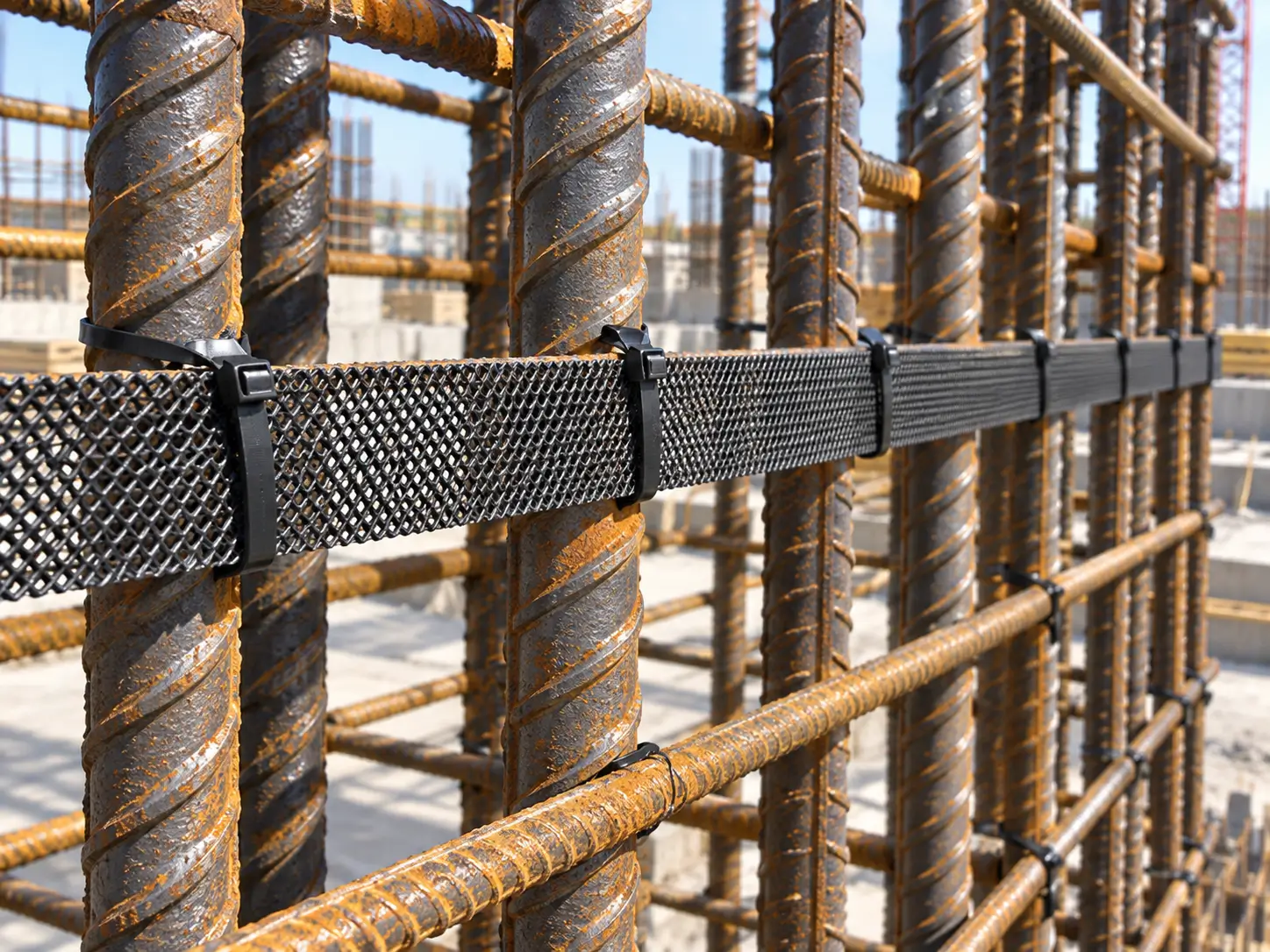

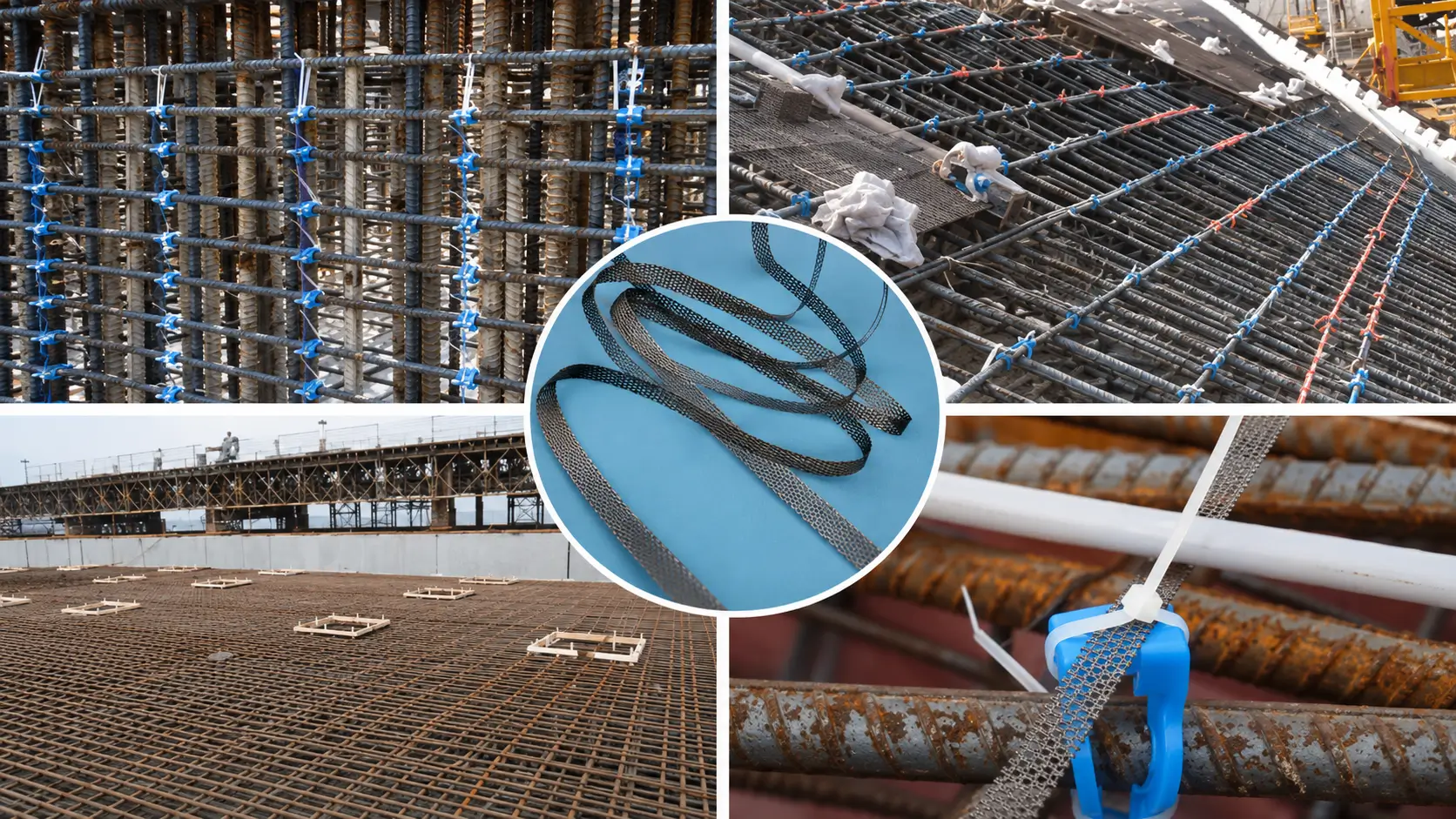

Typical mesh ribbon anode installation with rebar clips
| Installation Factor | Why It Matters |
|---|---|
| Mesh Layout | Helps the anode follow the required protection area and maintain distributed current output. |
| Anode Spacing | Affects current distribution, protection uniformity, and CP system design. |
| Concrete / Backfill / Soil Contact | Contact environment affects current transfer, resistance, and system performance. |
| Embedment Method | Proper embedment supports electrical contact and mechanical stability. |
| Cable Connection | Electrical continuity and sealing quality affect long-term system reliability. |
| Fixing Method | Supports stable mesh ribbon placement during installation and operation. |
| Mechanical Protection | Helps reduce damage during handling, burial, embedment, or construction work. |
| Inspection Access | Useful for future system review, testing, and maintenance planning. |
Buyer Note: MMO mesh ribbon anode installation should be reviewed together with the full cathodic protection design. Share your layout, current requirement, contact environment, embedment method, and operating conditions for engineering review.
Compare MMO Mesh Ribbon Anodes with Other MMO Anode Forms
MMO mesh ribbon anodes are best used when an open mesh linear anode form is needed for larger contact area, concrete embedment, or distributed current output. Other MMO anode forms may be more suitable when the project requires flexible routing, solid flat ribbon layout, packaged groundbed design, cylindrical structure, or localized output.
MMO Linear Anode
Best Used When: You need an upper-level selection guide for wire, ribbon, and mesh ribbon linear anodes.
View MMO Linear Anode →MMO Wire Anode
Best Used When: Flexible embedded linear current output is needed.
View MMO Wire Anode →MMO Ribbon Anode
Best Used When: Flat long-area current distribution is required (solid ribbon).
View MMO Ribbon Anode →MMO Tubular Anode
Best Used When: A durable cylindrical anode is required for soil, seawater, or tank CP systems.
View MMO Tubular Anode →MMO Canister Anode
Best Used When: A packaged anode assembly is needed for groundbed installation.
View MMO Canister Anode →MMO Rod Anode
Best Used When: A rod-shaped electrode is needed for cell, CP, or pilot systems.
View MMO Rod Anode →Not sure which MMO anode form is suitable?
Request an Anode Selection ReviewMMO Mesh Ribbon Anode FAQ
What is an MMO mesh ribbon anode?
Where are MMO mesh ribbon anodes commonly used?
What is the difference between MMO mesh ribbon and MMO ribbon anode?
What is the difference between MMO mesh ribbon and MMO wire anode?
How do I choose mesh opening and ribbon width?
What affects current output per meter?
Can MMO mesh ribbon anodes be customized by length?
Can you supply cable connections and labels?
Can MMO mesh ribbon anodes be used for reinforced concrete CP?
Can MMO mesh ribbon anodes be used for tank bottom protection?
What documents can be provided?
What information is needed for a quote?
Get Your Custom MMO Mesh Ribbon Anode Recommendation
Tell us your application, protected structure, operating environment, current output requirement, design life target, mesh opening, ribbon width, coated length, cable connection, and installation layout. Hele Titanium will help review the suitable MMO mesh ribbon anode configuration for your project.
