ICCP Anodes for Deep Groundbed Systems
Custom MMO canister, tubular, and rod anode solutions for deep groundbed cathodic protection systems used in pipelines, tank farms, underground structures, oil & gas facilities, and buried steel infrastructure.
Deep Groundbed Anode Selection Starts with Soil, Current and Installation Depth
A deep groundbed ICCP system is used when protective current needs to be discharged into deeper soil layers to protect pipelines, tanks, buried steel, or underground infrastructure. The anode selection should be reviewed together with soil resistivity, borehole depth, current demand, backfill, cable route, venting, and design life target.
Unlike shallow distributed systems, deep groundbeds are usually designed to place anodes at greater depths where soil conditions may support more effective current discharge. The final anode form, quantity, spacing, cable length, and backfill design should be based on project data instead of product size alone.
Hele Titanium supports MMO canister anodes, MMO tubular anodes, and MMO rod anodes for deep groundbed ICCP systems, with coating review, current output review, cable sealing, labels, packing, and documentation support according to project requirements.
Deep Well Groundbed Support
Anode selection can be reviewed for vertical borehole and deep well ICCP installations.
MMO Anode Form Matching
MMO canister, tubular, and rod anodes can be matched to current output, groundbed design, and installation conditions.
Soil Resistivity & Current Review
Soil profile, current demand, output per anode, and design life target should be reviewed together.
Cable Sealing & Documentation
Cable length, sealing, labels, packing, coating records, MTC, and inspection documents can be supported when required.

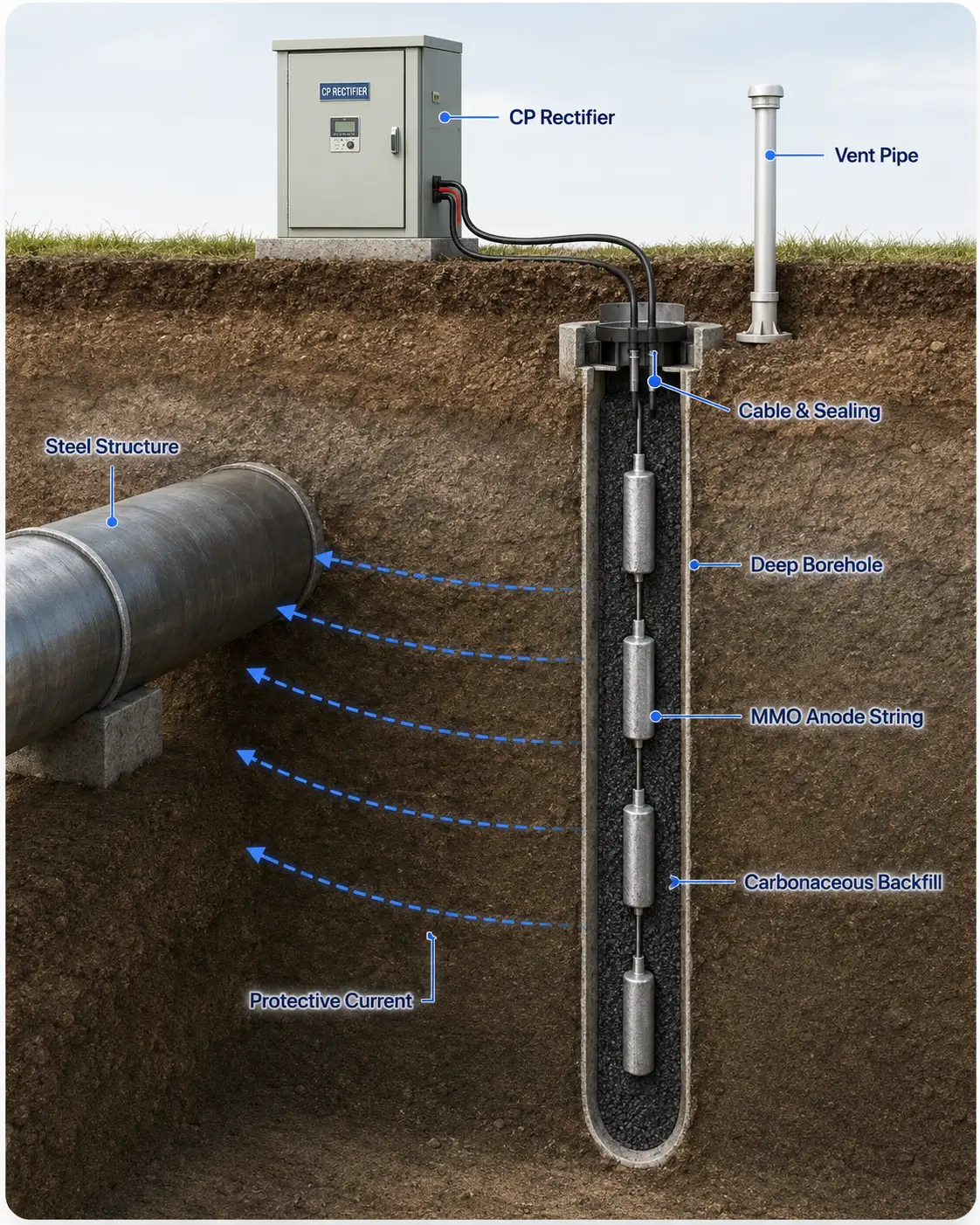

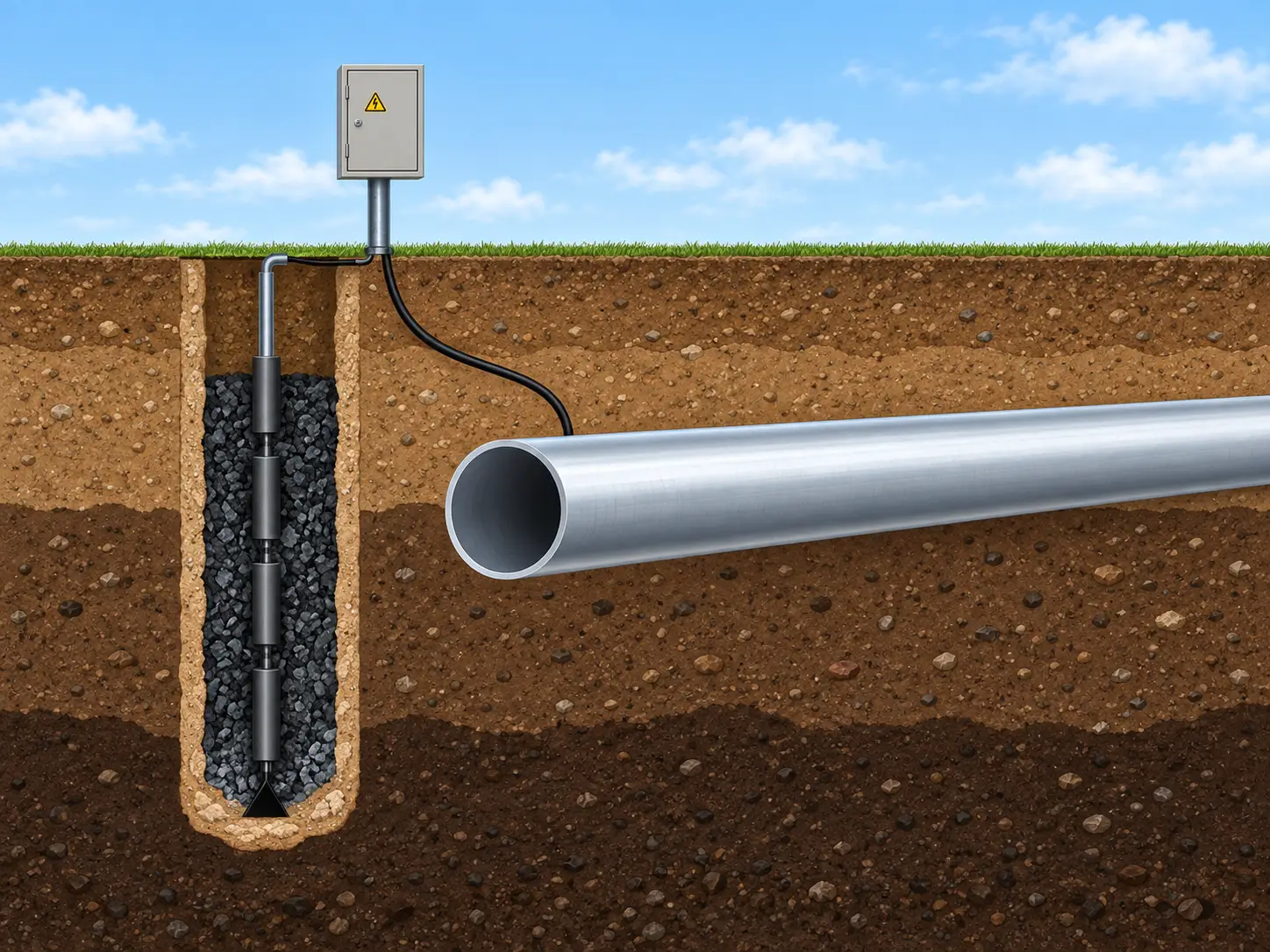

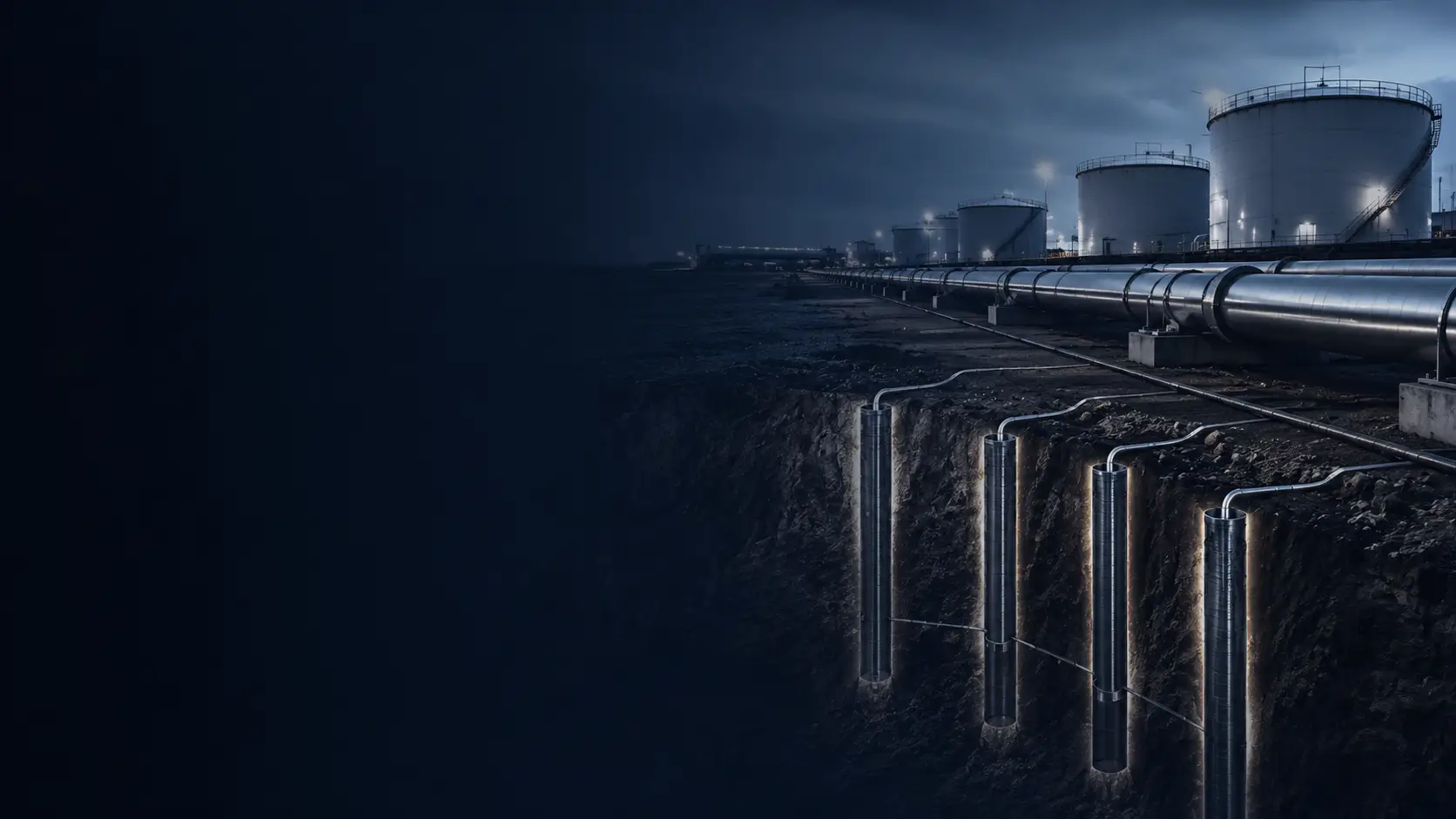

What Is a Deep Groundbed ICCP System?
A deep groundbed ICCP system is an impressed current cathodic protection installation where anodes are placed in a deep vertical borehole to discharge protective current into the surrounding soil. This configuration is commonly reviewed for pipelines, tank farms, buried steel structures, and infrastructure requiring remote or centralized current output.
Answer
In many projects, deep groundbeds use MMO canister anodes, MMO tubular anodes, or MMO rod anodes installed with carbonaceous backfill such as coke breeze. The backfill, borehole depth, soil resistivity, cable sealing, current output, and venting design should be reviewed as part of the full CP system design.
1. MMO Anode Element
What It Does: Provides the active current output inside the groundbed.
Why It Matters: Anode form, coating, and active area affect current output and design life.
2. Borehole / Deep Well
What It Does: Places anodes at selected depth based on site conditions.
Why It Matters: Depth and soil profile affect resistance and current discharge behavior.
3. Carbonaceous Backfill
What It Does: Surrounds the anode and supports current discharge.
Why It Matters: Backfill quality affects contact, resistance, and groundbed performance.
4. Cable & Sealing
What It Does: Connects each anode to the CP power system.
Why It Matters: Cable integrity and sealing are critical in buried and deep installations.
5. Venting / Site Design
What It Does: May be reviewed depending on groundbed design and operating conditions.
Why It Matters: Deep groundbed systems may require site-specific venting or gas management review.
Deep groundbeds provide remote or centralized current output for buried structures.
Recommended MMO Anode Forms for Deep Groundbed Systems
Deep groundbed systems can use different MMO anode forms depending on current output, borehole design, backfill, cable requirement, installation depth, and project documentation needs. The final recommendation should be based on CP design data and installation conditions.

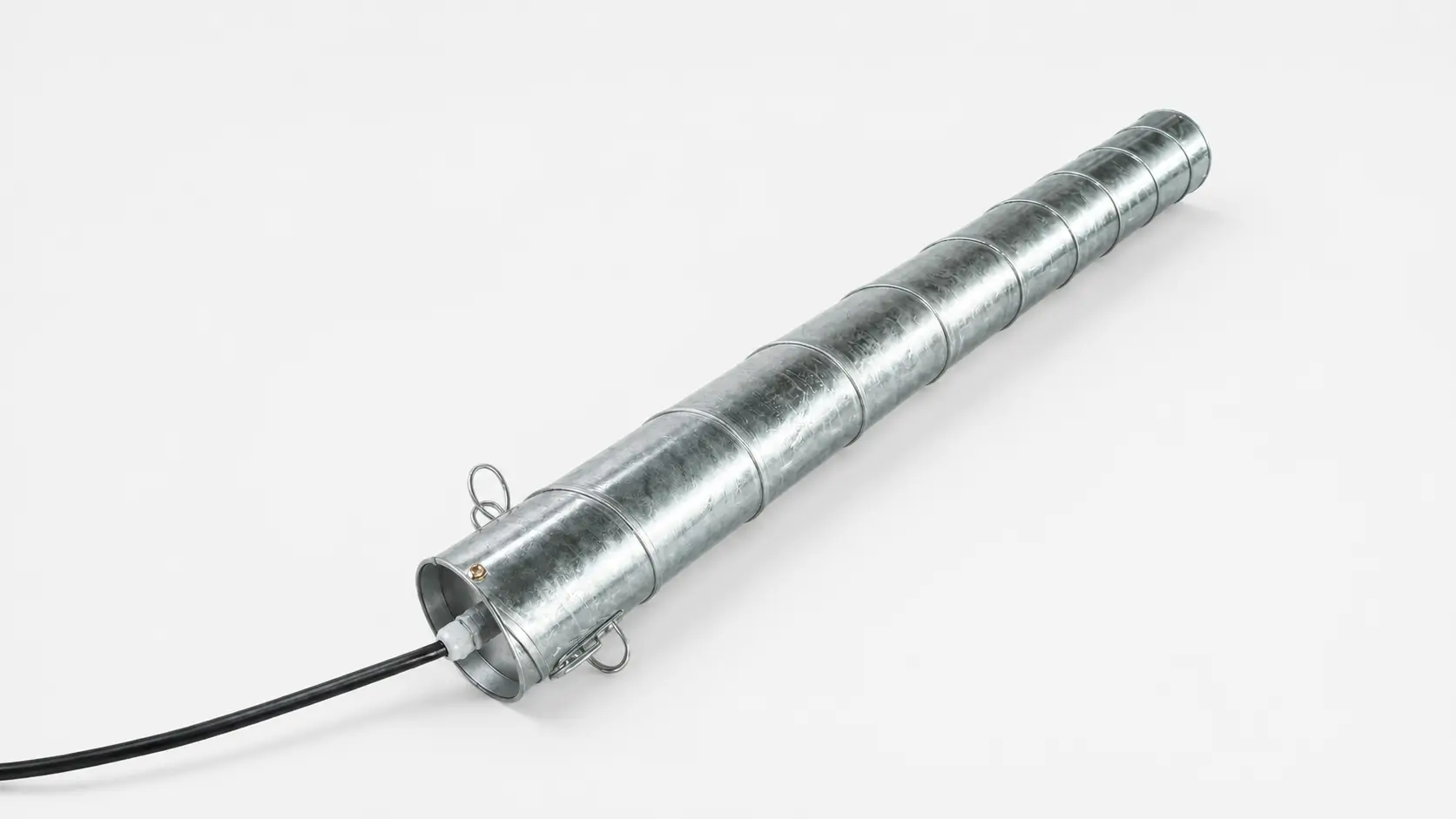

MMO Canister Anodes
Prepackaged MMO anode assemblies with internal MMO anode element, carbonaceous backfill, canister body, cable, and sealing.
Deep groundbed systems requiring packaged anode assemblies and controlled backfill around the active anode.
Current output, canister size, backfill, cable length, sealing, borehole depth, and installation method.

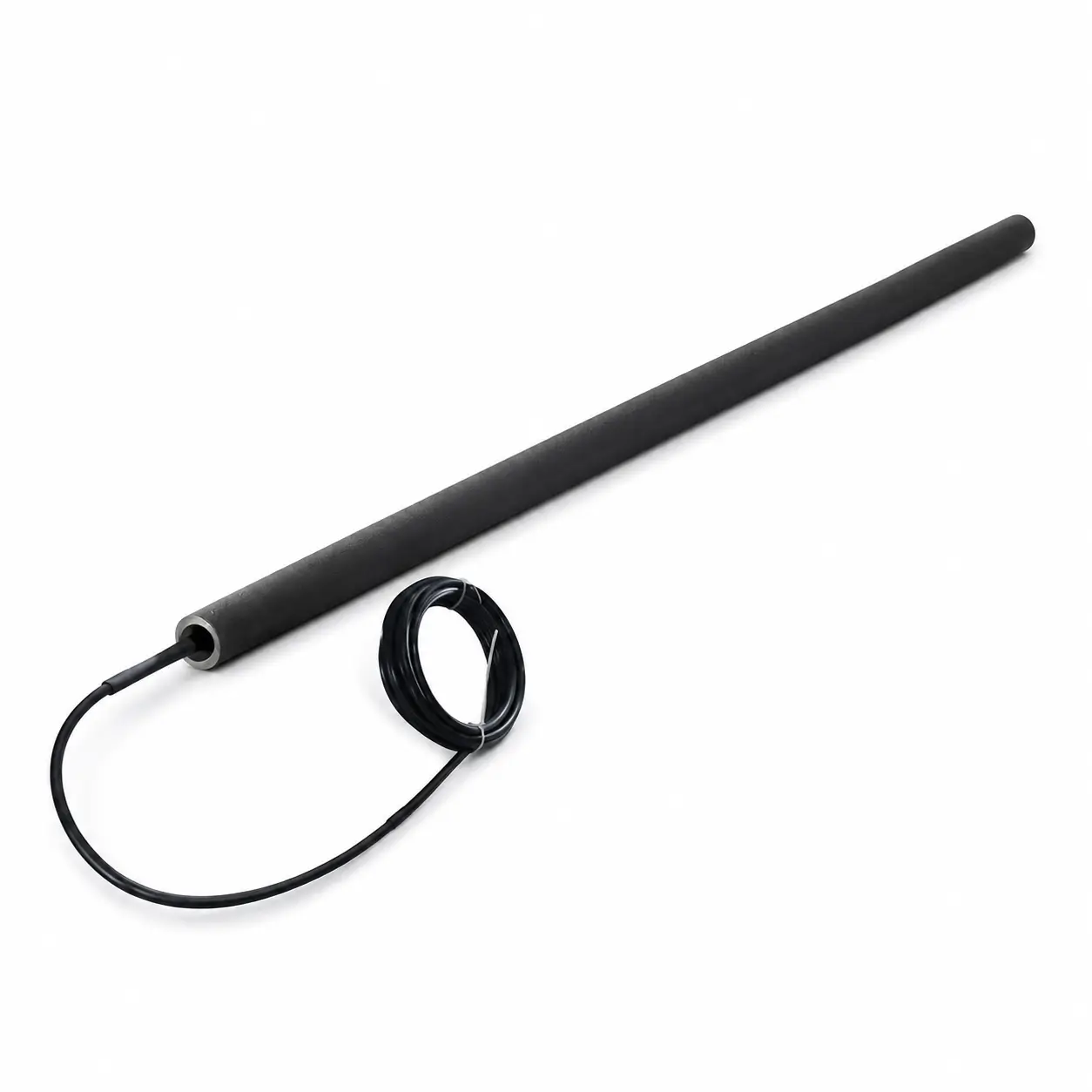

MMO Tubular Anodes
MMO coated titanium tubular anodes used where a durable cylindrical anode form is suitable for groundbed installation.
Deep or shallow groundbed projects where bare tubular anodes can be installed with project-specified backfill.
Tube diameter, length, coating area, current output, backfill contact, cable connection, and installation environment.
MMO Rod Anodes
Compact MMO coated titanium rod anodes for selected groundbed, pilot, or custom ICCP layouts.
Compact groundbed designs, custom CP systems, or project-specific applications requiring rod geometry.
Rod diameter, coated length, current output, connection design, backfill, and installation space.
Custom Deep Groundbed Anode Assemblies
Project-specific MMO anode assemblies with custom anode form, cable length, sealing, labels, packing, and documentation.
Non-standard deep well CP systems, EPC projects, and engineered groundbed designs.
Groundbed layout, soil data, current demand, cable specification, project standard, and delivery requirements.

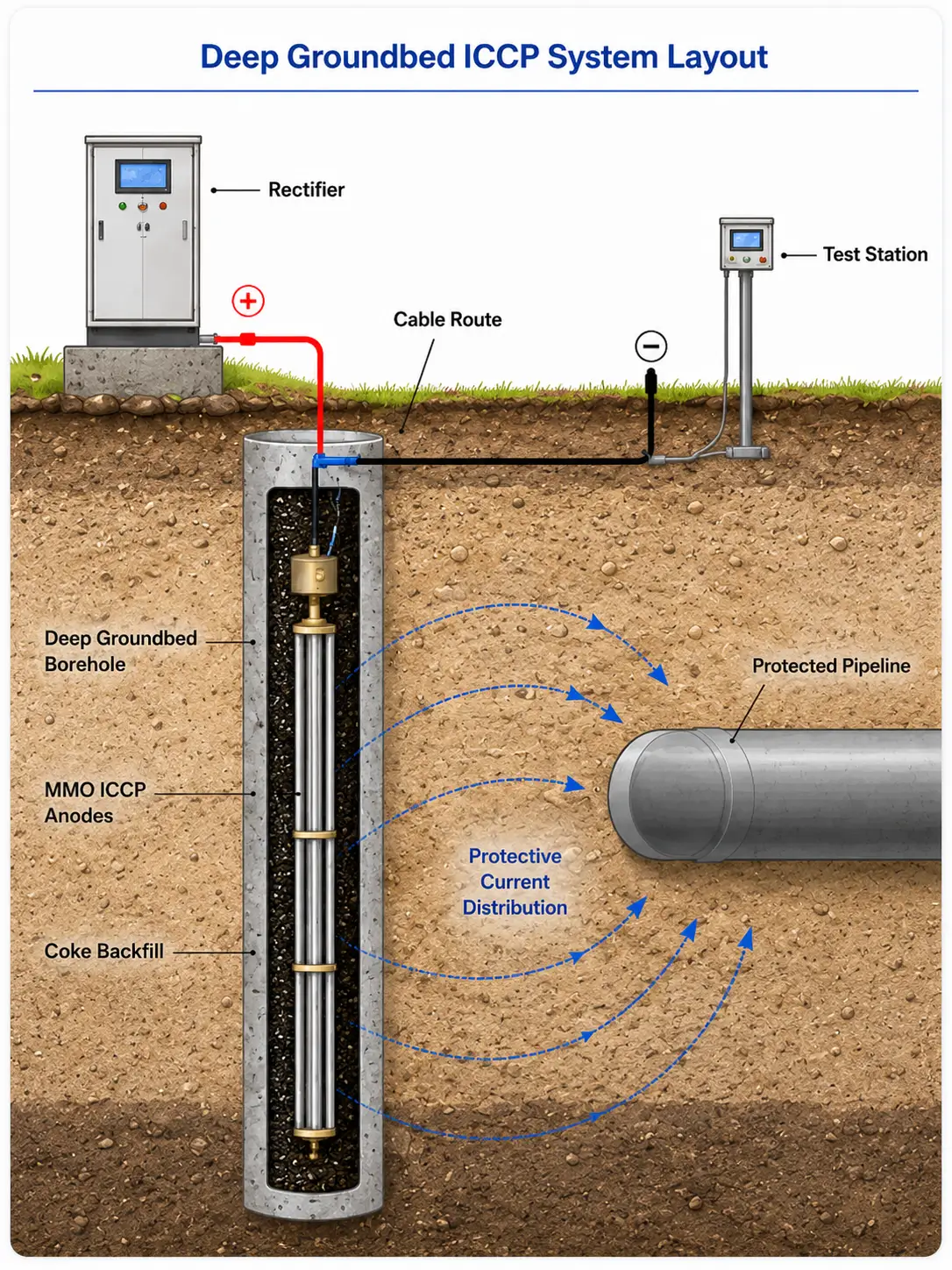

Where Deep Groundbed ICCP Anodes Are Commonly Used
Deep groundbed ICCP systems are commonly used when large buried or semi-buried structures require a centralized or remote anode bed. Selection should be reviewed according to soil resistivity, current demand, structure geometry, anode bed depth, cable route, site availability and monitoring requirements.
| Application | Protected Structure | Why Deep Groundbed May Fit | Key Review Factors |
|---|---|---|---|
|
|
Long-distance buried pipelines | Remote anode bed can supply protective current over long pipeline sections. | Pipeline length, coating condition, soil resistivity, cable route |
|
|
Multiple tanks and buried piping | One remote groundbed may support multiple protected structures. | Tank layout, current distribution, interference risk, monitoring points |
|
|
Buried tanks and nearby piping | Useful when current discharge needs to be away from the protected tank. | Tank size, coating condition, local site limitations |
|
|
Foundations, utilities, buried steel assets | Suitable for large underground steel systems requiring remote current source. | Structure geometry, soil chemistry, current demand |
|
|
Pipelines, station piping, tank farms | Commonly reviewed for complex CP zones and buried process structures. | Site layout, safety requirements, project standard |
|
|
Structures separated from anode bed location | Anode bed can be installed away from the protected asset. | Distance, cable route, land availability, output requirement |
Not sure whether deep groundbed is suitable for your project?
Share your soil resistivity data, structure layout, required current output, available groundbed location and cable route for engineering review.
Key Design Parameters for Deep Groundbed Anode Selection
Accurate deep groundbed design starts with reliable project data. The anode form, current output, cable length, backfill, sealing method, and documentation should be reviewed based on the full ICCP system design.

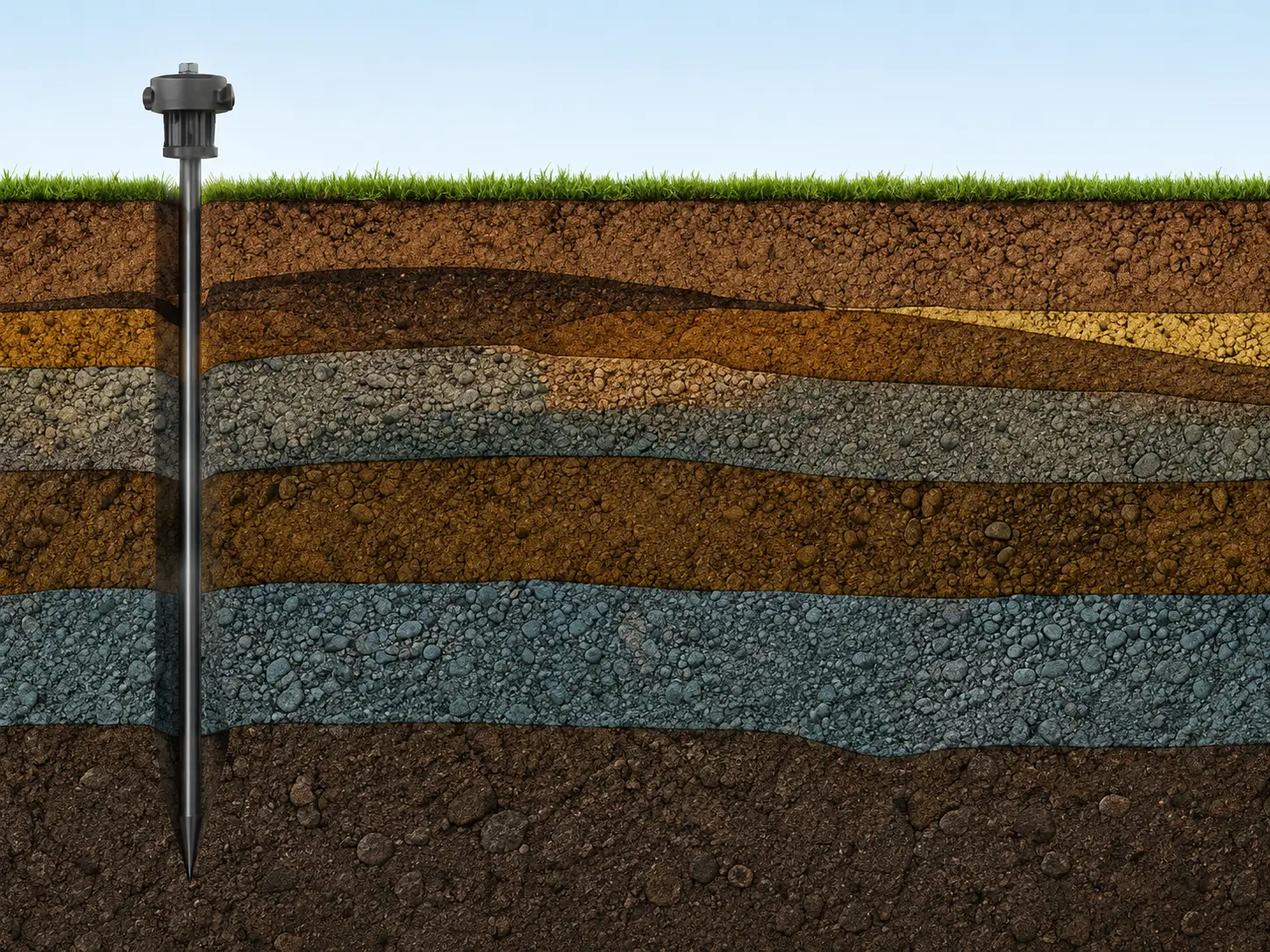

Soil Resistivity Profile
- Soil resistivity at different depths
- Affects current discharge and anode performance
- Critical for groundbed layout
Borehole Depth & Dia
- Borehole depth and diameter
- Available installation space
- Impacts anode spacing, backfill volume and cable length
Current Demand
- Total current and current per anode
- Current density and operating profile
- Affects anode quantity and coating loading
Design Life Target
- Expected service life target
- Reviewed with coating loading, output and environment
- Supports long-term performance

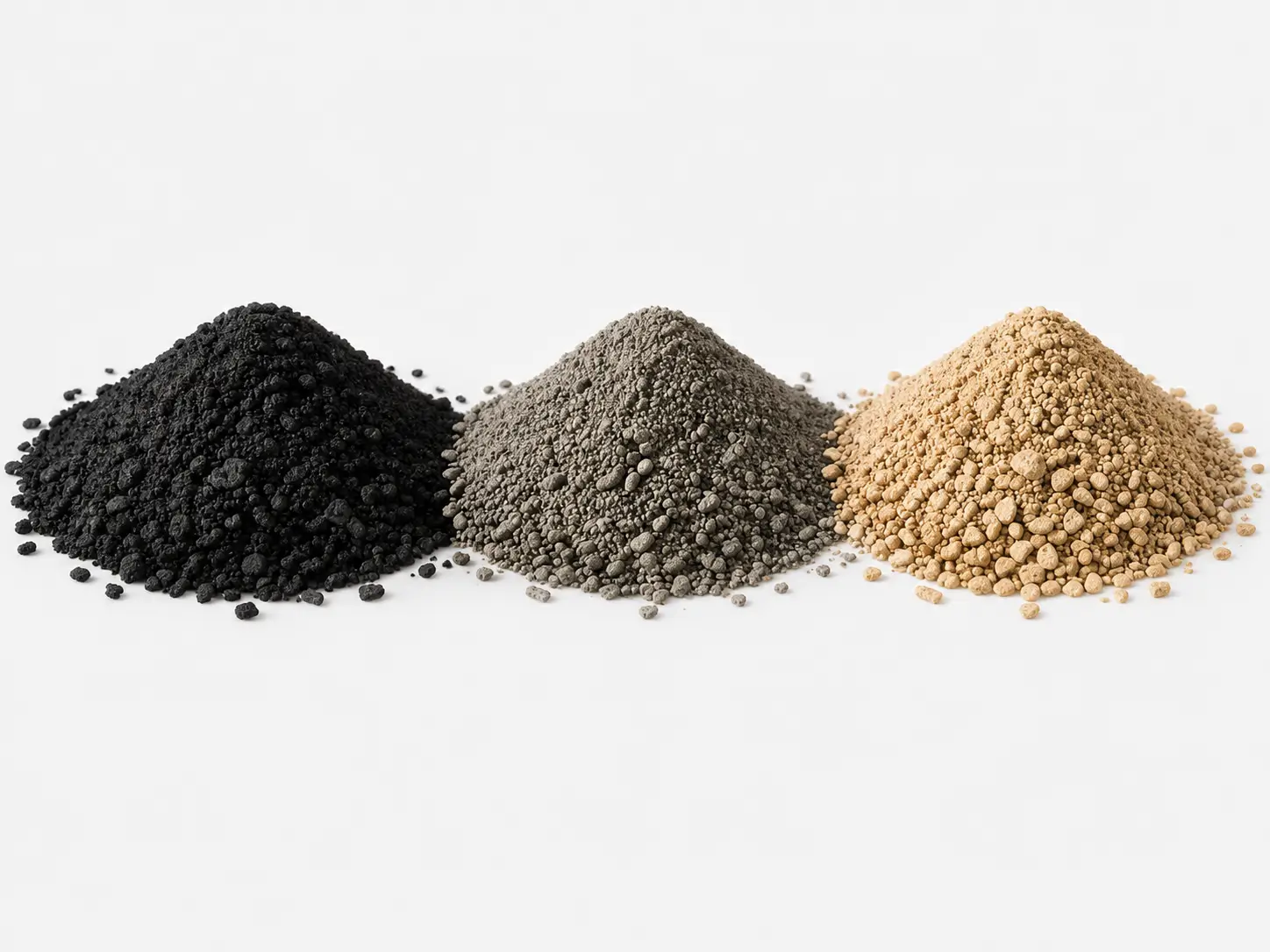

Backfill Requirement
- Carbonaceous backfill or coke breeze
- Backfill conductivity and quality
- Important for current distribution

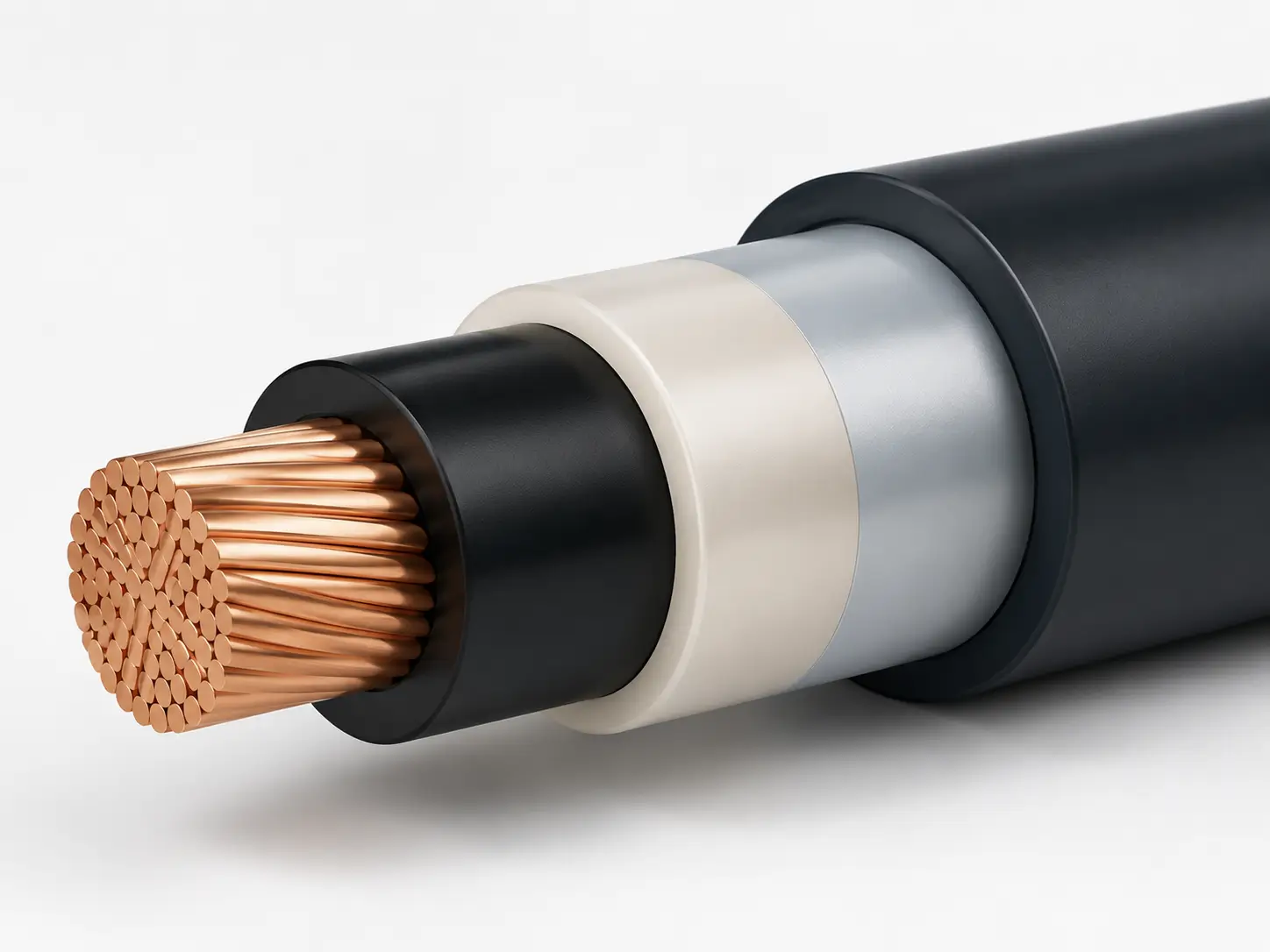

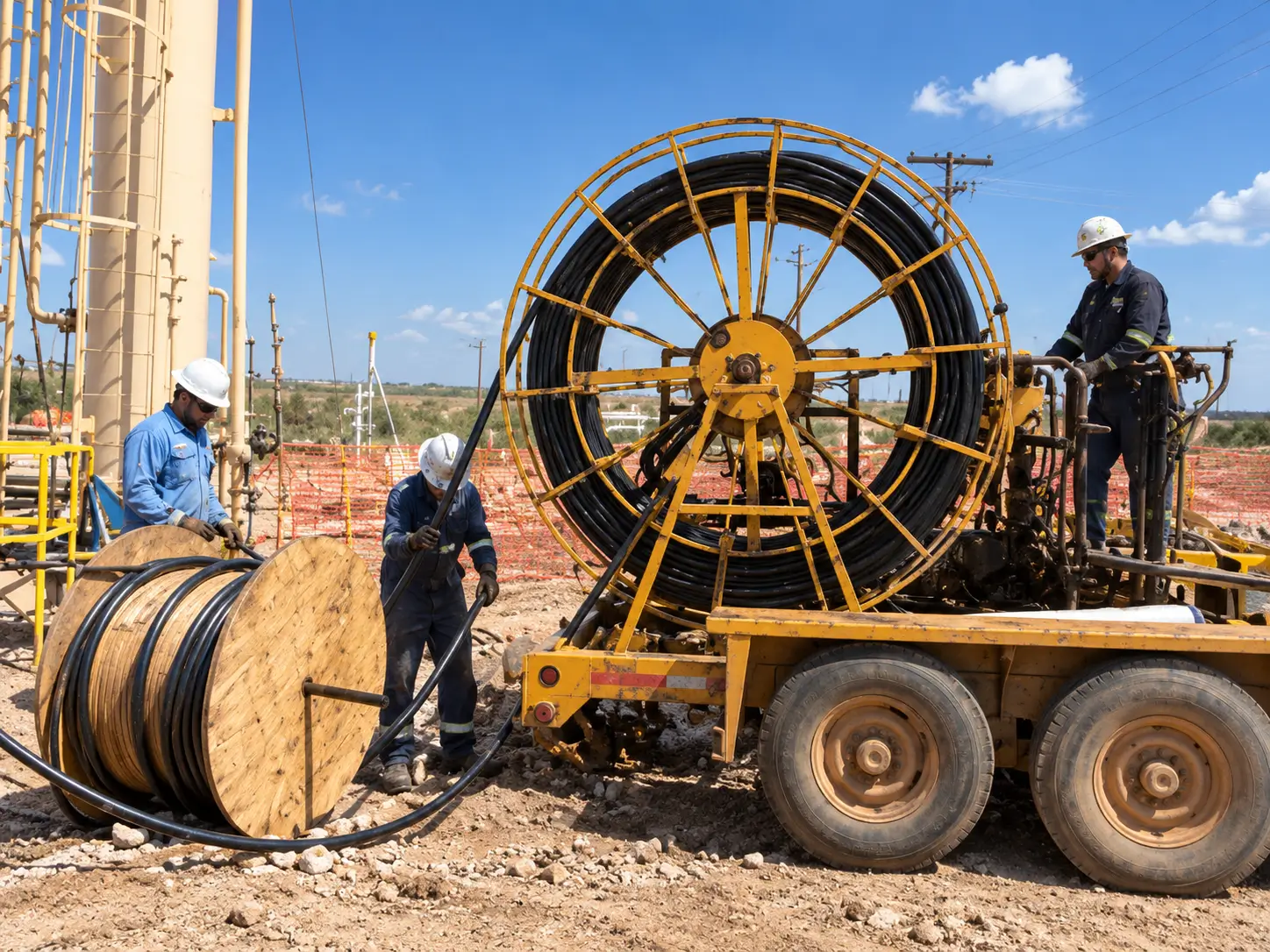

Cable Length & Spec
- Cable length, insulation type and voltage rating
- Cross-section, sealing method and route
- Match the installation layout

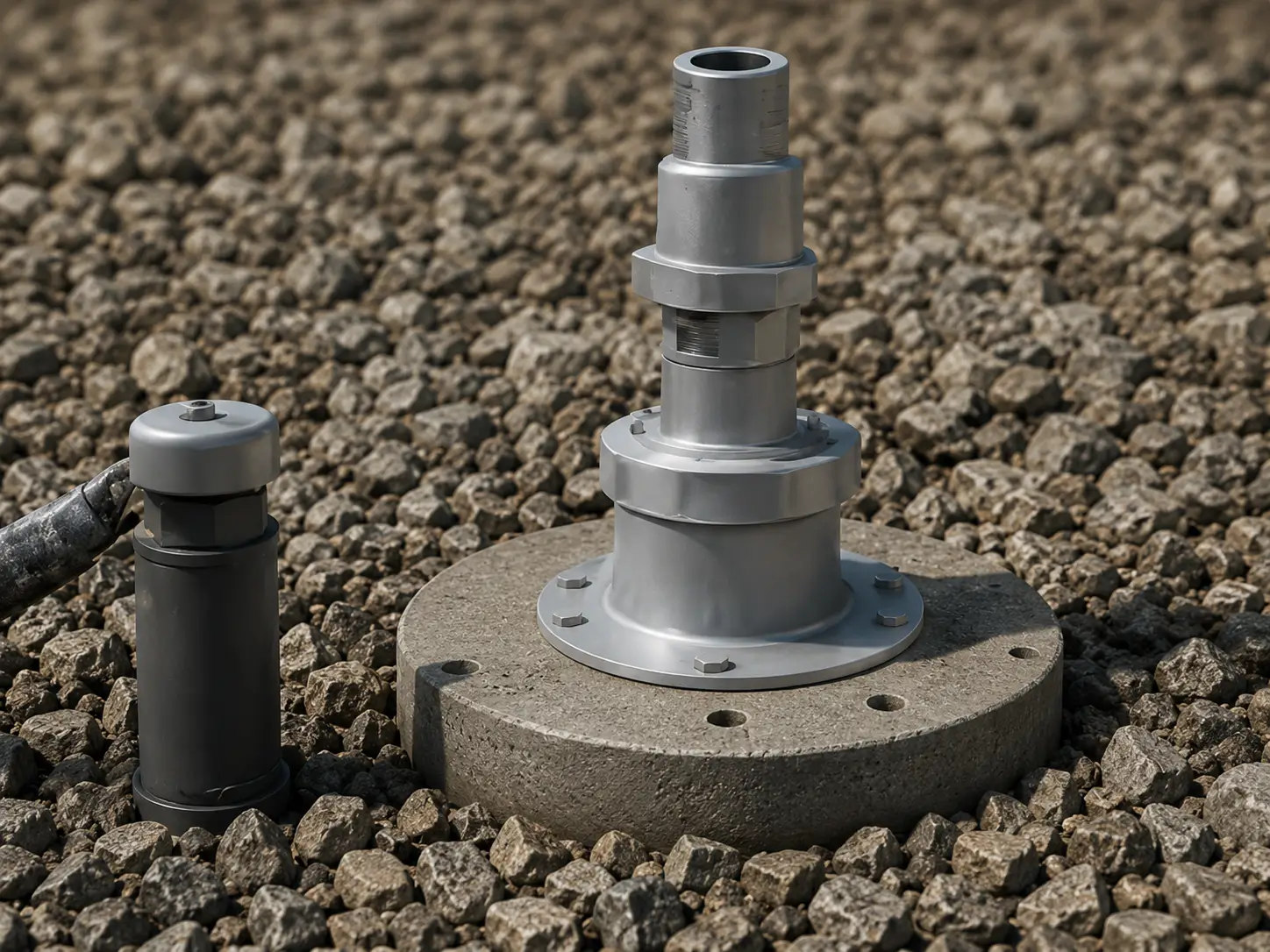

Venting / Site Require
- Some systems require venting
- Site-specific gas management
- Review land availability and safety requirements
Document Requirements
- MTC, coating records and dimensional inspection
- Cable / sealing records, labels and packing list
- Prepare documents when required
Share Your Project Data for Engineering Review
Provide soil resistivity, structure information, required current output, available groundbed location, and installation constraints for accurate deep groundbed anode design.

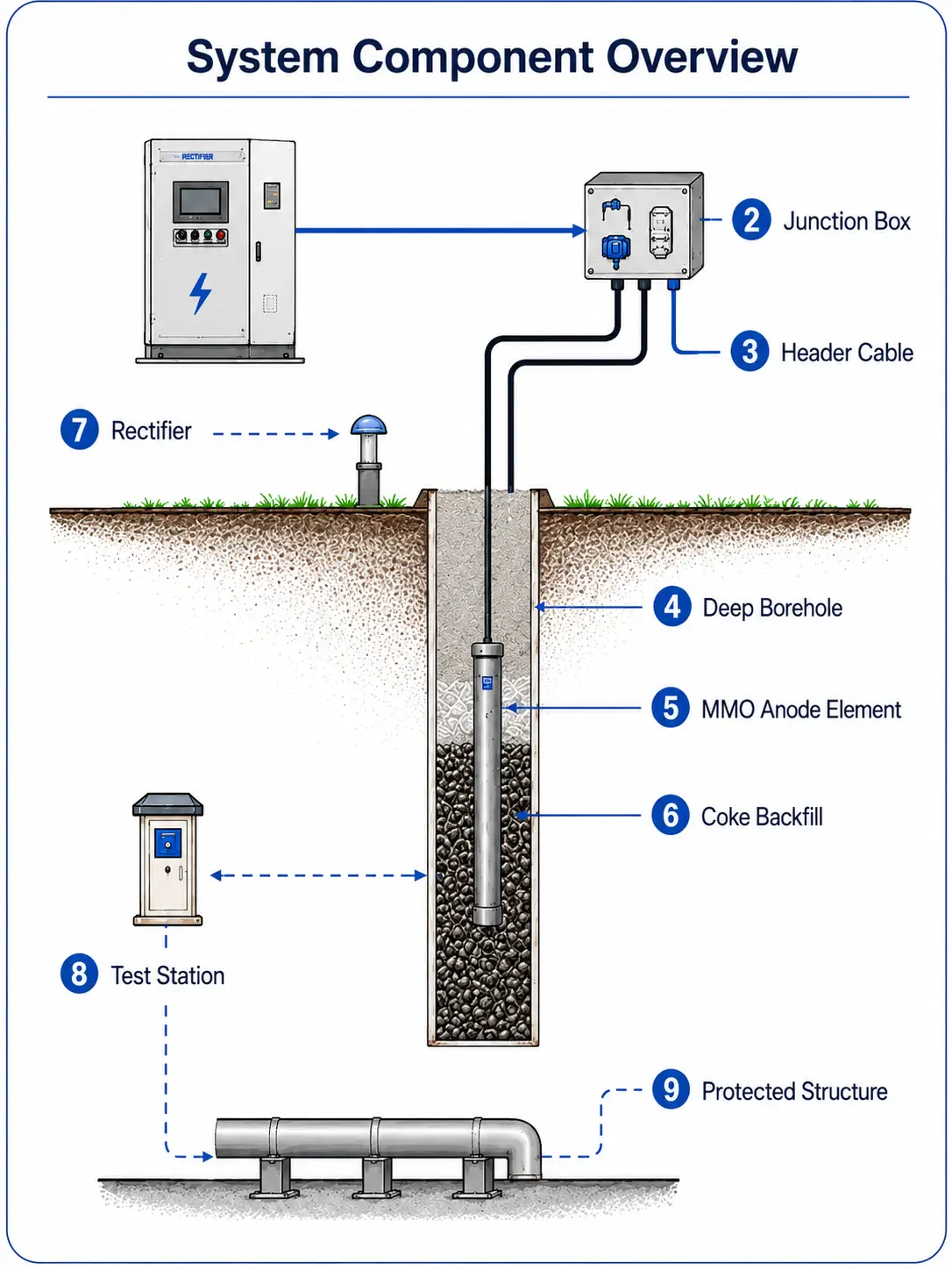

Complete Deep Groundbed ICCP System Components to Review
A deep groundbed ICCP system is more than the anode itself. Review the main components of the complete assembly together to support reliable current discharge, installation coordination, commissioning and long-term operation.
| Component | Function in the System | What to Confirm |
|---|---|---|
|
|
Provides current output through durable coated titanium anode. | Anode type, active area, capacity, coating and expected life. |
|
|
Enables low-resistance current discharge and stable anode performance. | Backfill type, particle size, dryness, fill density and contact quality. |
|
|
Transports current from rectifier to the anode element. | Cable size, insulation rating, length, cable sealing and labeling. |
|
|
Houses the anode and coke backfill within the subsurface environment. | Depth, diameter, casing, centralization and site conditions. |
|
|
Provides connection point and routes current to multiple groundbeds if needed. | Box rating, connections, header cable size and routing plan. |
|
|
Manages gas buildup and supports safe operation where required. | Vent pipe size, routing, outlet location and fittings. |
|
|
Allows verification of system performance and potential measurements. | Test station type, reference electrode, location and accessibility. |
|
|
Provides records for installation, commissioning and future maintenance. | As-builts, data sheets, test results, warranty and O&M manuals. |
Buyer Note: Deep groundbed system review should consider both the physical components and the installation environment. Share your layout drawing, soil data, current demand, cable routing and documentation requirements for engineering review.
Soil Resistivity, Backfill and Current Output Must Be Reviewed Together
For deep groundbed ICCP systems, anode selection cannot be based only on canister size or tube length. Soil resistivity, borehole depth, backfill quality, current output, cable sealing, and design life all affect the final recommendation.
*Anode performance and output are reviewed according to project requirements and based on operating conditions.
Soil Resistivity
Soil resistivity affects groundbed resistance, current discharge conditions, and anode quantity.
Backfill Contact
Carbonaceous backfill helps improve contact between the anode and surrounding groundbed environment.
Current Output per Anode
Output per anode should be reviewed according to CP design, coating loading, backfill, and design life.
Cable Sealing Reliability
Cable sealing and connection quality are important for buried and deep well installations.
Deep Groundbed Installation Risk Factors to Review
Many deep groundbed problems are caused by incomplete soil data, poor cable sealing, unsuitable backfill contact, incorrect spacing, or unclear installation conditions. Reviewing these issues before production helps improve anode selection and project planning.
Missing Soil Resistivity Data
Without a soil resistivity profile, groundbed resistance and anode output assumptions may be less reliable.
Incorrect Borehole Depth
Depth should be reviewed according to soil profile, current requirement, and CP system layout.
Poor Backfill Placement
Insufficient or uneven backfill contact can affect current discharge around the anode.
Cable Damage or Weak Sealing
Cable insulation, sealing, and strain relief are critical in buried and deep well environments.
Interference with Nearby Structures
Pipelines, grounding systems, tanks, and utilities may require interference review.
Limited Monitoring Access
Test stations, reference electrodes, and commissioning data should be considered early.
Buyer Note:
If your project already has a CP design drawing, soil resistivity report, borehole design, or current demand calculation, share it with Hele Titanium for anode form and documentation review.

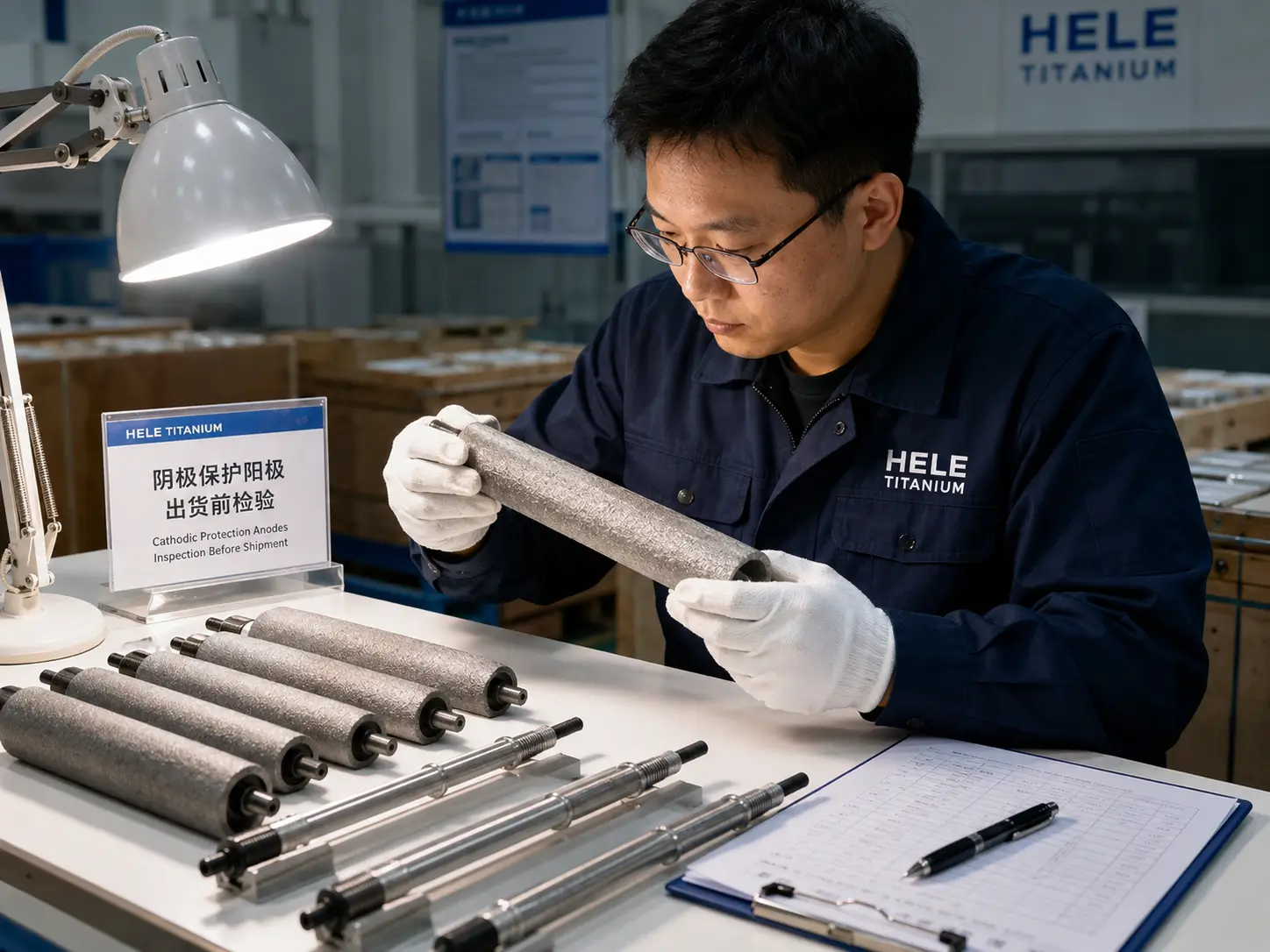

Quality & Documentation Support for Deep Groundbed Anode Projects
Deep groundbed anode project quality depends on internal MMO anode quality, coating control, current output design, canister or tube dimensions, backfill assembly, cable connection, sealing quality, packing protection, and final documentation.
MMO Anode Element Review
MMO canister, tubular, or rod anode elements are reviewed according to substrate, size, coating, and output requirements.
Coating Control
Coating formulation, application cycles, drying, thermal treatment, and coating loading are controlled according to project requirements.
Assembly & Dimension Check
Canister size, tube length, rod size, coating area, backfill filling, and connection details are reviewed according to agreed scope.
Cable & Sealing Review
Cable length, insulation, sealing, termination, labels, and connection details can be reviewed when required.
Packing & Labeling
Anodes are packed according to product form, cable protection, coating sensitivity, destination, and shipment requirement.
Project Documentation
MTC, coating records, inspection notes, packing list, product labels, cable / sealing notes, and project-specific QC documents can be prepared when required.
Available Documents May Include:
- MTC
- Coating record
- Dimensional inspection record
- Cable / sealing inspection notes when required
- Canister assembly notes when required
- Visual inspection notes
- Packing list
- Product labels
- Project-specific QC documents
- Third-party inspection support when required
Explore More ICCP Anode Applications
If your project is not a deep groundbed system, explore other ICCP anode application pages to compare suitable installation methods and anode forms.
ICCP Anode Installation Configurations
A complete overview of deep groundbed, shallow groundbed, tank bottom, concrete, marine, distributed, and localized ICCP layouts.
View Installation ConfigurationsICCP Anodes for Tank Bottom Protection
For storage tank bottom and under-tank CP systems using ribbon, mesh ribbon, wire, or linear MMO anodes.
View Tank Bottom ICCP AnodesICCP Anodes for Reinforced Concrete Protection
For bridges, piers, decks, and chloride-contaminated concrete using wire, mesh ribbon, ribbon, or disc anodes.
View Concrete ICCP AnodesICCP Anodes for Marine Structures
For jetties, piers, harbors, seawalls, offshore structures, and water intake systems using tubular, disc, or rod anodes.
View Marine ICCP AnodesICCP Anodes for Pipelines & Buried Structures
For buried pipelines, underground tanks, and buried steel structures using canister, tubular, or linear anode systems.
View Pipeline & Buried Structure ICCP AnodesDeep Groundbed ICCP Anode FAQ
Common questions regarding deep groundbed anode selection, specification, and project review.
What is a deep groundbed ICCP system?
Where are deep groundbed anodes commonly used?
What anode forms are used in deep groundbed systems?
What is the difference between MMO canister anodes and MMO tubular anodes?
Why is soil resistivity important for deep groundbed design?
What is carbonaceous backfill or coke breeze used for?
How do I choose current output per anode?
Can cable length and sealing be customized?
What information is needed for a deep groundbed anode quote?
Can Hele Titanium support project documentation?
Can deep groundbed anodes be used for pipeline CP?
Can deep groundbed anodes be used for tank farms and buried structures?
Get Your Deep Groundbed ICCP Anode Recommendation
Tell us your protected structure, soil resistivity data, groundbed design, borehole depth, current demand, design life target, cable length, backfill requirement, and documentation needs. Hele Titanium will help review suitable MMO anode forms and deep groundbed anode configurations for your project.
MMO Canister, Tubular and Rod Anode Support
Multiple anode forms available for different groundbed designs.
Deep Groundbed Current Output and Backfill Review
Output matched to soil profile and CP system demand.
Cable Connection, Sealing and Documentation Support
Reliable sealing and full project documentation when required.
Factory-Direct MMO Anode Manufacturing and Export Packing
Direct control over coating quality and global delivery.
