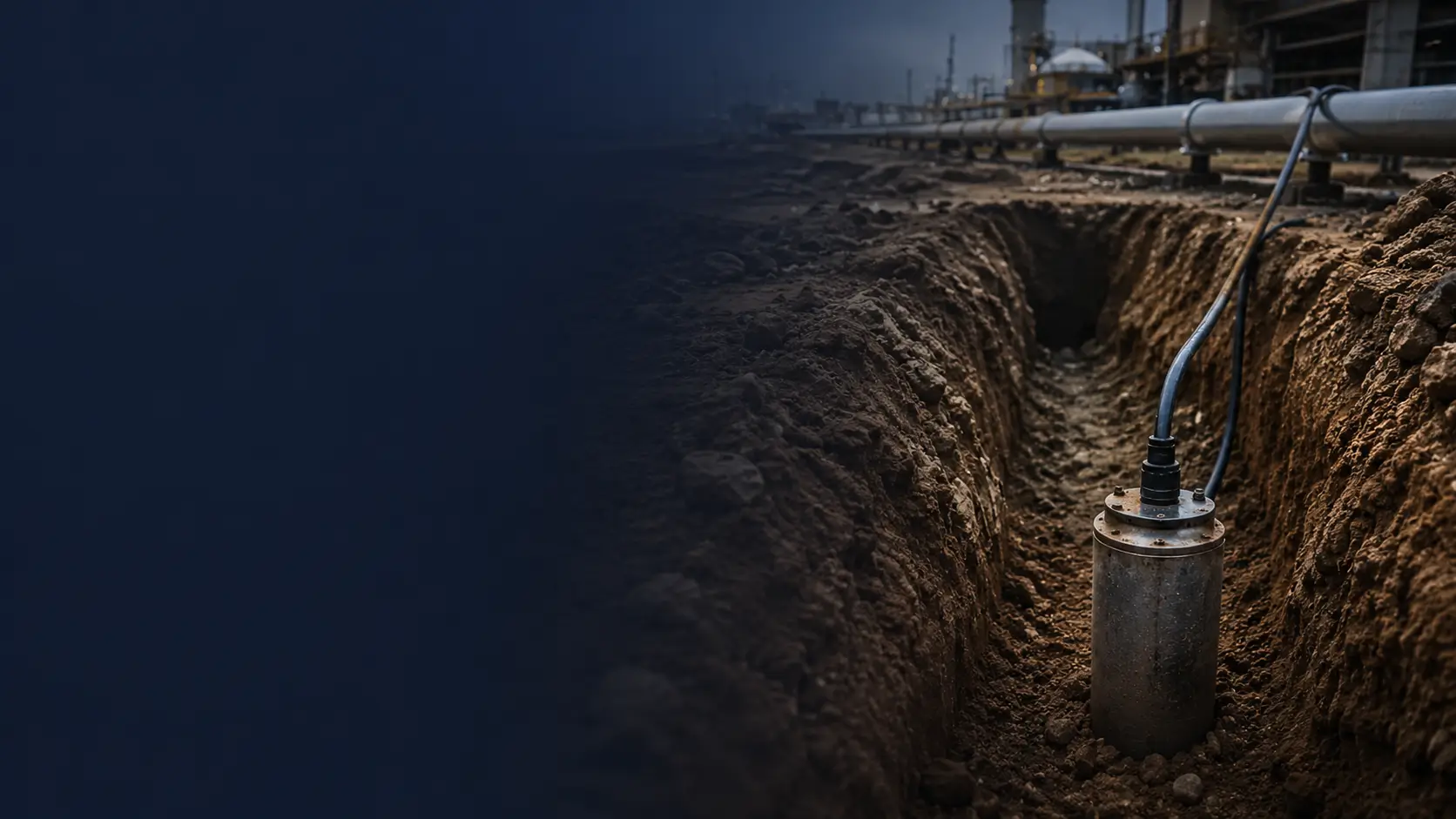

MMO Canister Anode Installation
MMO Anode Element • Carbonaceous Backfill • Canister Assembly

MMO Canister Anode for Groundbed Cathodic Protection

Custom canisterized MMO anodes engineered for deep groundbed, shallow groundbed, pipeline cathodic protection, tank farm protection, underground structures, and soil-based impressed current CP systems.

MMO Canister Anode Engineering

Packaged MMO Anode Assemblies for Reliable Groundbed Installation

MMO canister anodes are selected when an impressed current cathodic protection system requires a packaged anode assembly for groundbed installation. The canister structure, MMO anode element, carbonaceous backfill, cable connection, and sealing design all affect installation convenience and long-term CP system performance.

Compared with bare MMO tubular or rod anodes, canisterized MMO anodes are supplied as a packaged assembly with backfill around the active anode element. This can help improve current discharge conditions, support easier field installation, and provide a controlled anode environment inside the groundbed.

Hele Titanium supports custom MMO canister anodes based on current output, groundbed type, soil resistivity, design life target, canister size, cable length, sealing method, backfill requirement, packing, labels, and project documentation.

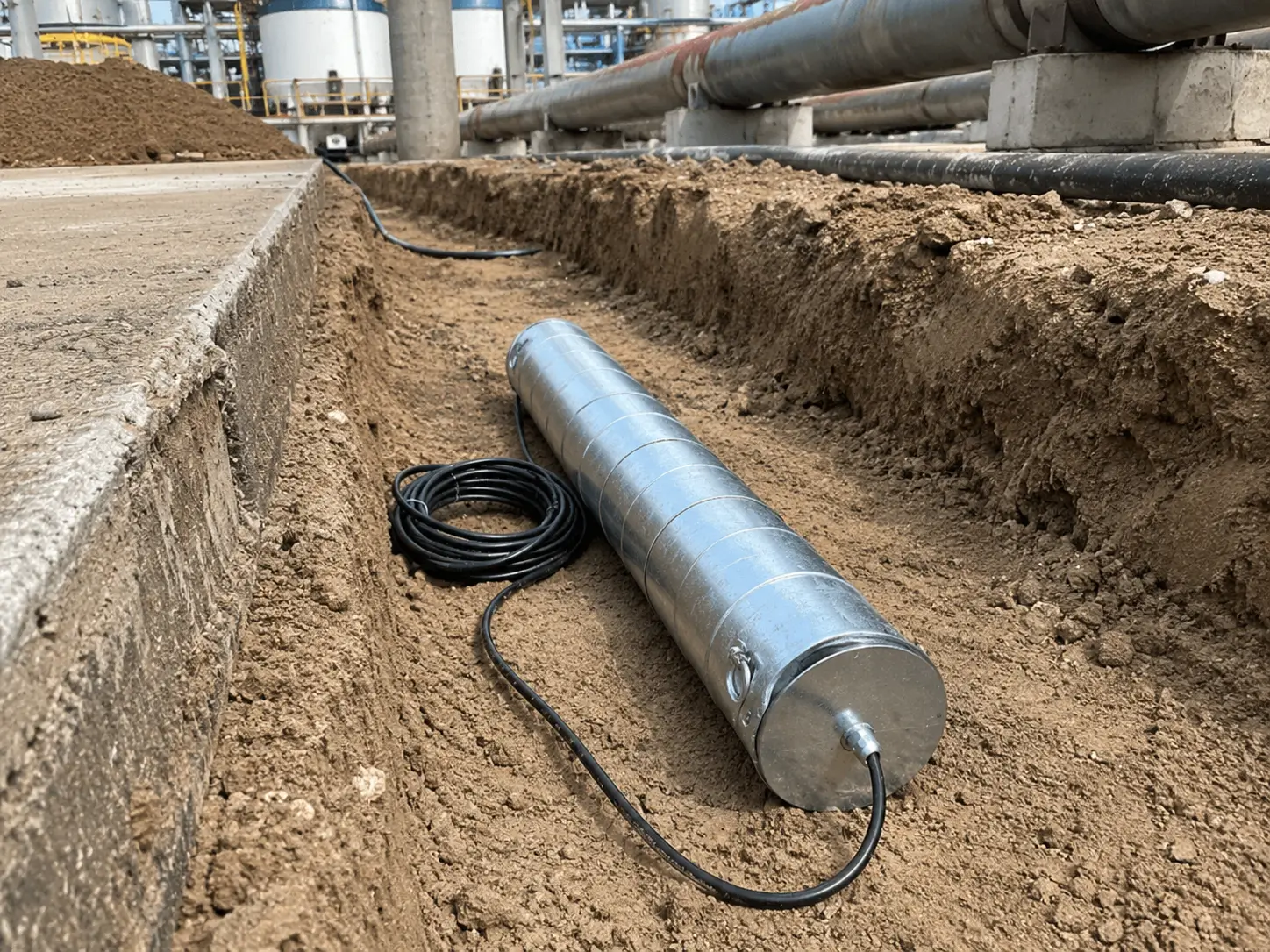

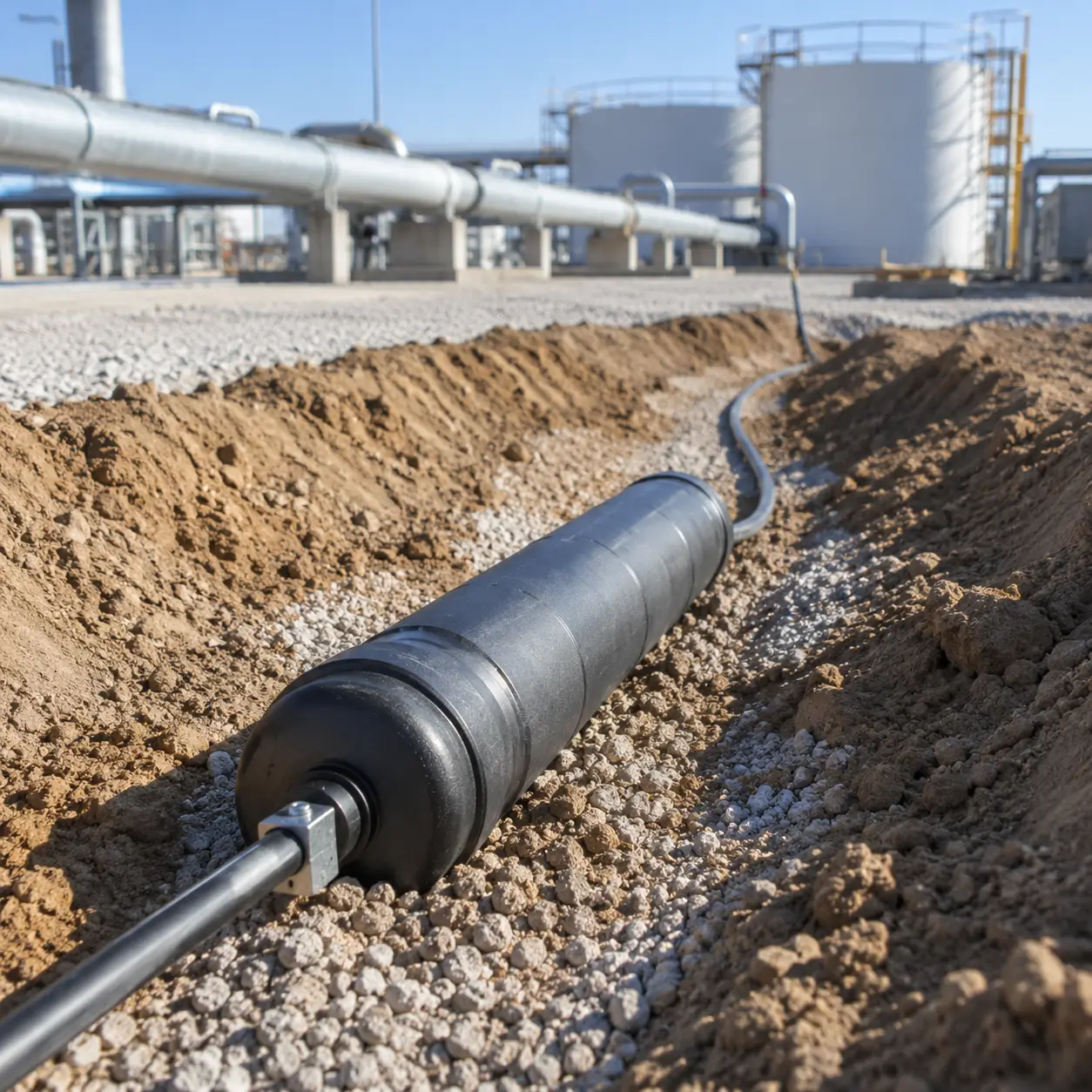

Engineer inspecting MMO canister anode

Packaged Assembly

Element, backfill, canister, cable, and sealing supplied as one unit.

Packaged Groundbed Assembly

MMO anode element, backfill, canister body, cable, and sealing can be supplied as one assembly.

Deep & Shallow Groundbed Support

Canisterized MMO anodes can be reviewed for deep well, shallow horizontal, or vertical groundbed layouts.

Current Output Review

Current output and design life should be reviewed according to soil resistivity, backfill, and CP system design.

Cable Sealing & Documentation

Cable connection, sealing, labels, packing, and project documents can be supported when required.

What Is an MMO Canister Anode?

An MMO canister anode is a prepackaged anode assembly used in impressed current cathodic protection systems. It normally contains an MMO coated titanium anode element inside a canister, surrounded by carbonaceous backfill or project-specified backfill material.

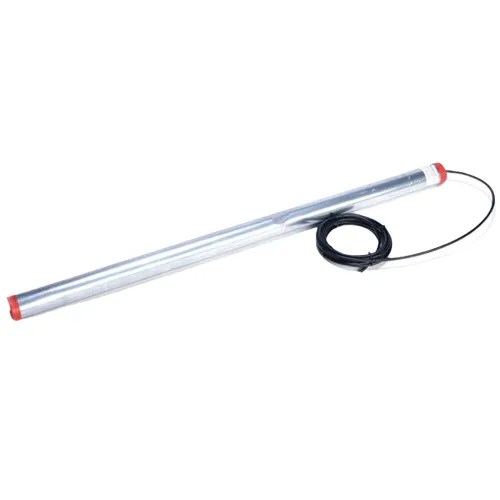

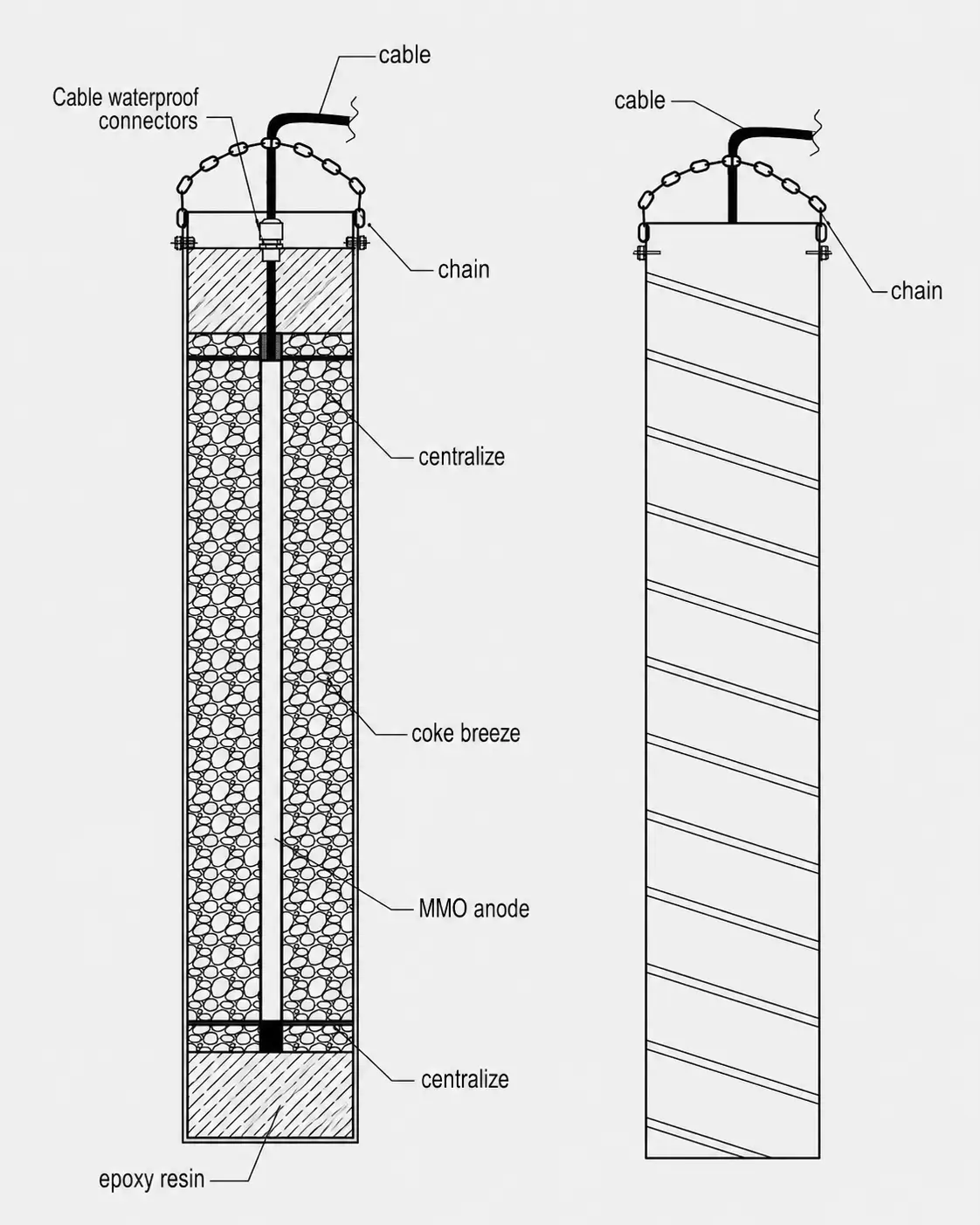

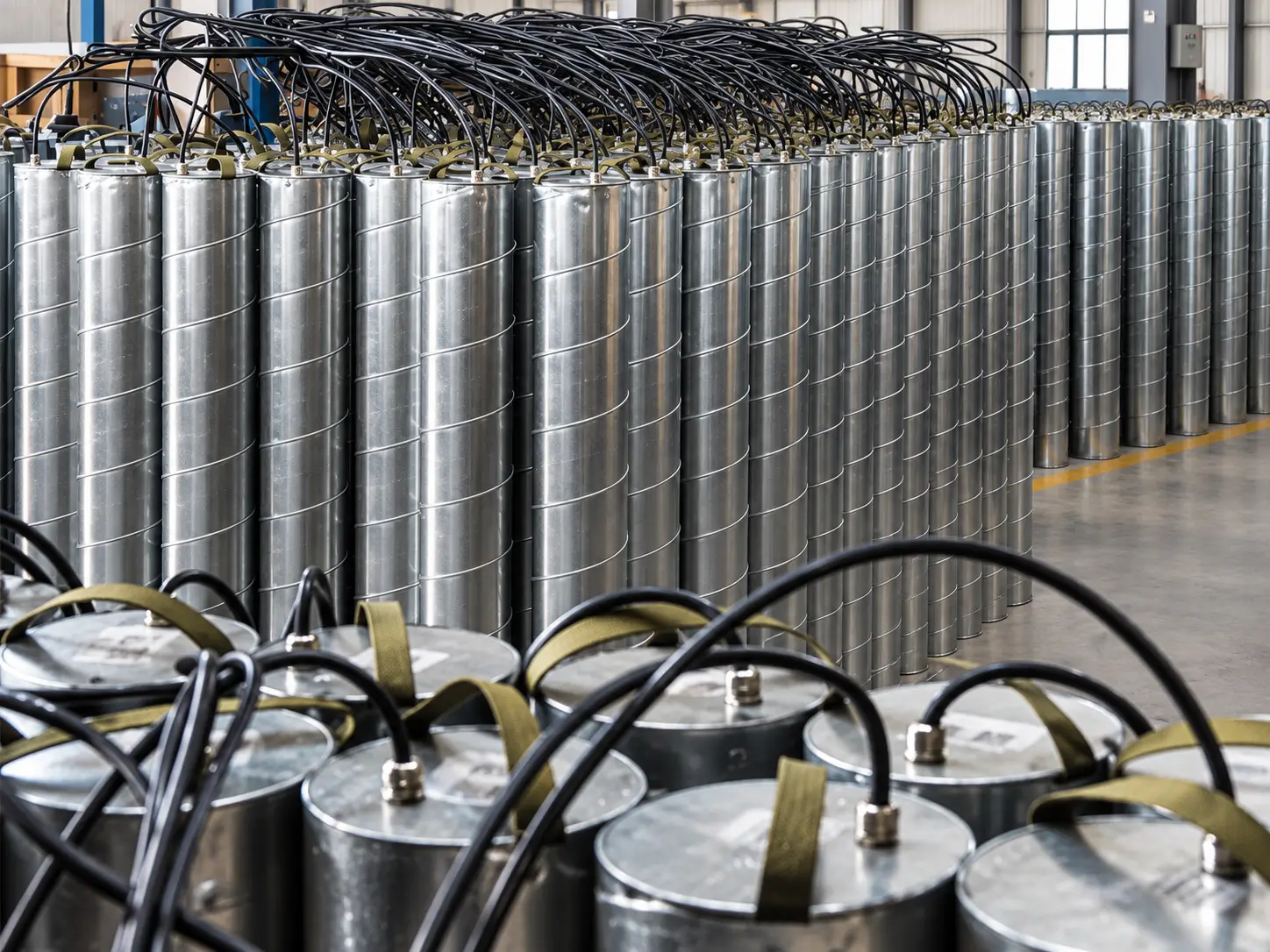

MMO canister anode structure

MMO canister anode structure

A pre-packaged anode assembly for ICCP groundbed systems.

MMO canister anodes combine the active MMO-coated titanium anode element, conductive carbonaceous backfill, canister housing, and cable sealing into one installation-ready assembly. This design helps support current discharge into soil or backfill environments in deep or shallow groundbed systems.

Key Points

  • MMO-coated titanium anode element
  • Carbonaceous backfill inside the canister
  • Cable connection and sealing design
  • Suitable for deep or shallow groundbed installation
  • Used for pipeline CP, tank farm CP, and buried steel protection
Component What It Does Why It Matters
MMO Anode Element Provides the active electrochemical current output inside the canister. The coating type and anode size affect current output and design life.
Canister Body Holds the anode element and backfill as one packaged assembly. Supports installation, handling, and stable groundbed placement.
Carbonaceous Backfill Surrounds the anode element and supports current discharge conditions. Helps improve contact between the active anode and the surrounding groundbed environment.
Cable & Sealing Connects the anode to the CP power system and protects the connection area. Electrical continuity and sealing quality are important for long-term reliability.

Engineering Note

Final canister anode design should be reviewed according to current requirement, backfill condition, installation depth, cable length, environment, and design life target.

MMO Canister Anode Options We Supply

Different MMO canister anode configurations are used depending on groundbed layout, current output, soil condition, installation depth, and cable connection requirements. Hele Titanium can support standard and custom canisterized MMO anodes according to project requirements.

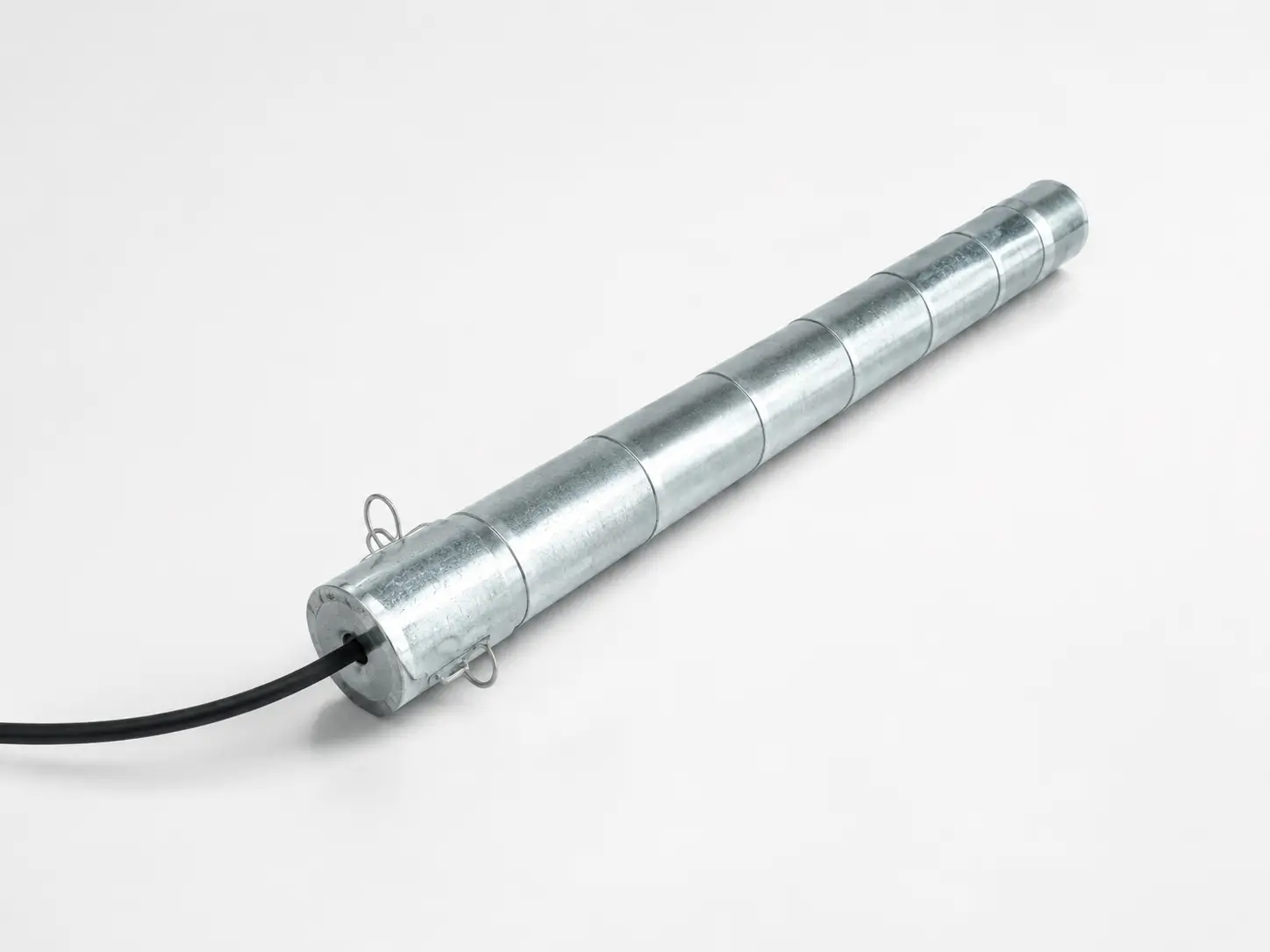

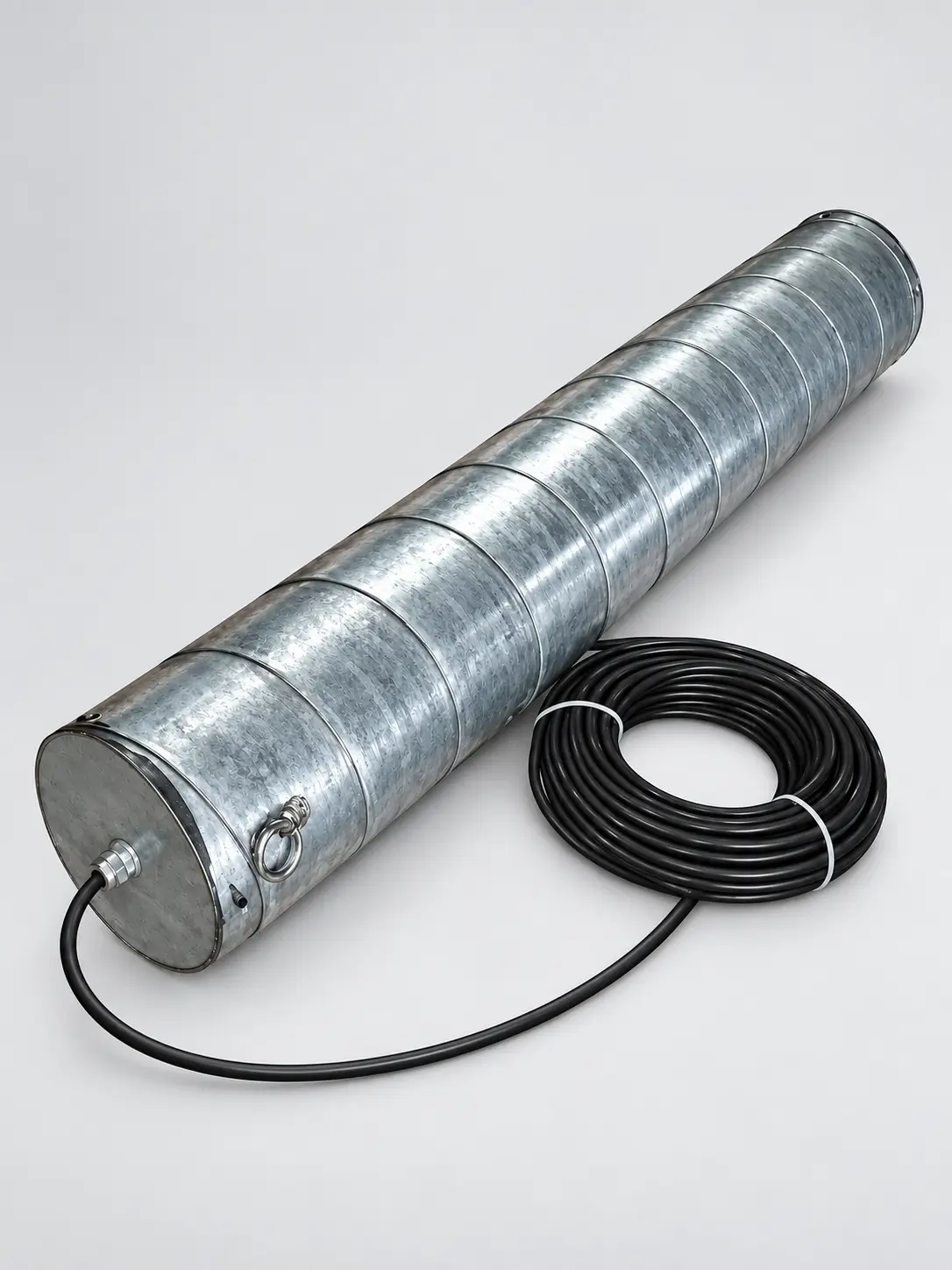

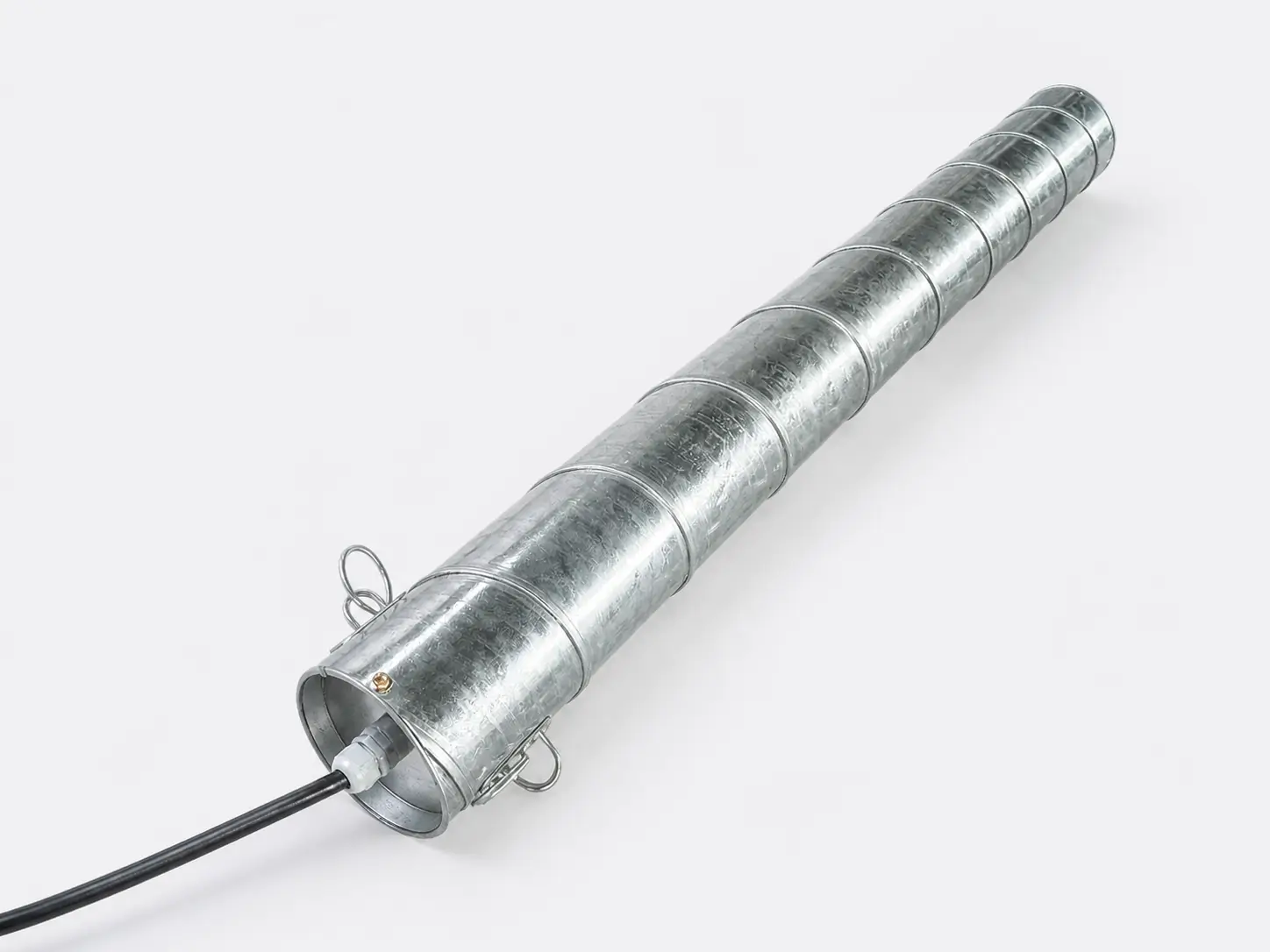

Standard MMO Canister Anode

Standard MMO Canister Anode

Packaged MMO anode assembly for soil-based impressed current cathodic protection groundbeds.

Best For: Pipeline CP, tank farm CP, underground structures, and general groundbed installations.

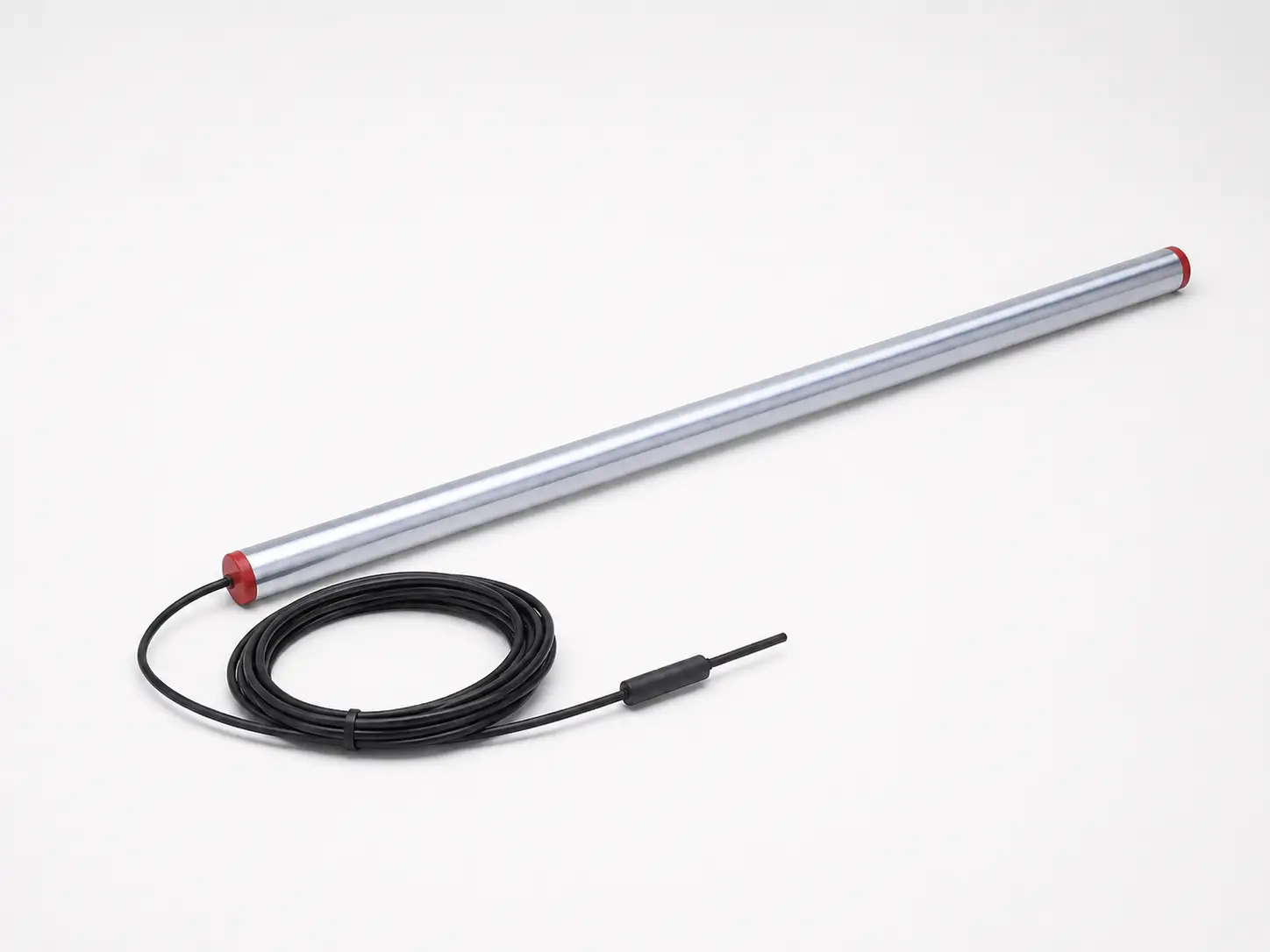

Deep Groundbed MMO Canister Anode

Deep Groundbed MMO Canister Anode

Canisterized MMO anode designed for vertical deep well groundbed systems and high-current CP projects.

Best For: Pipeline networks, tank farms, buried structures, and large impressed current CP systems.

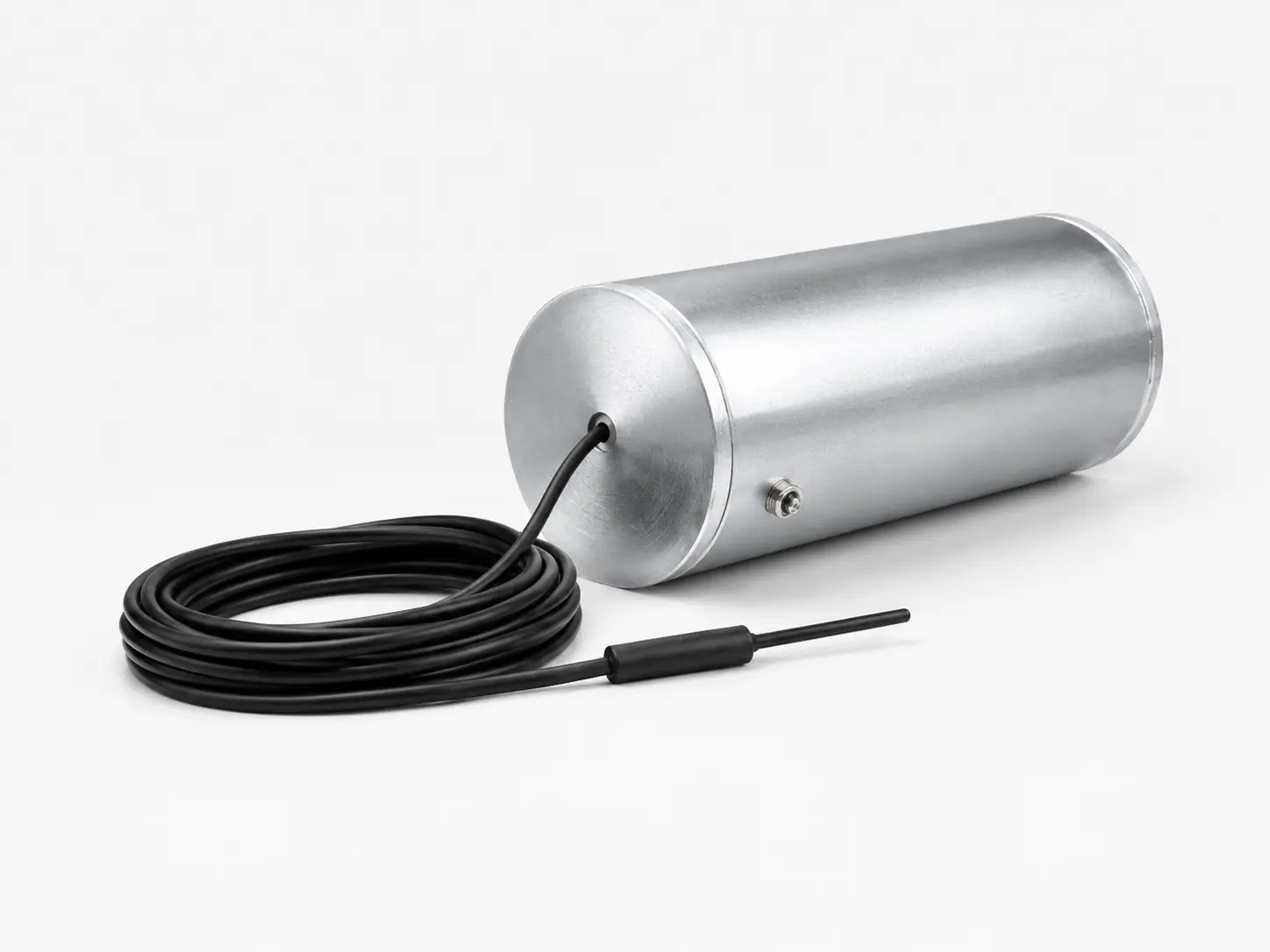

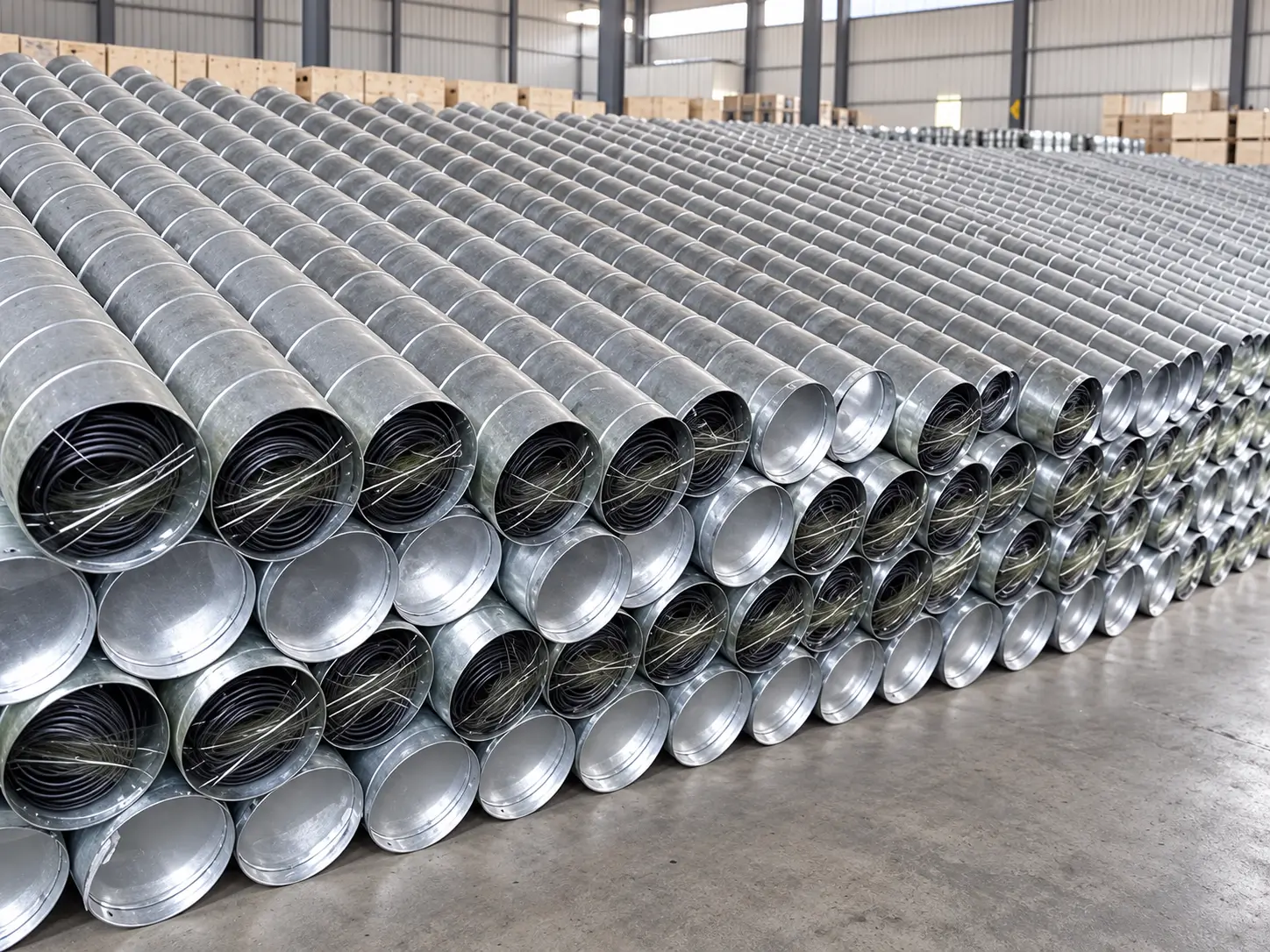

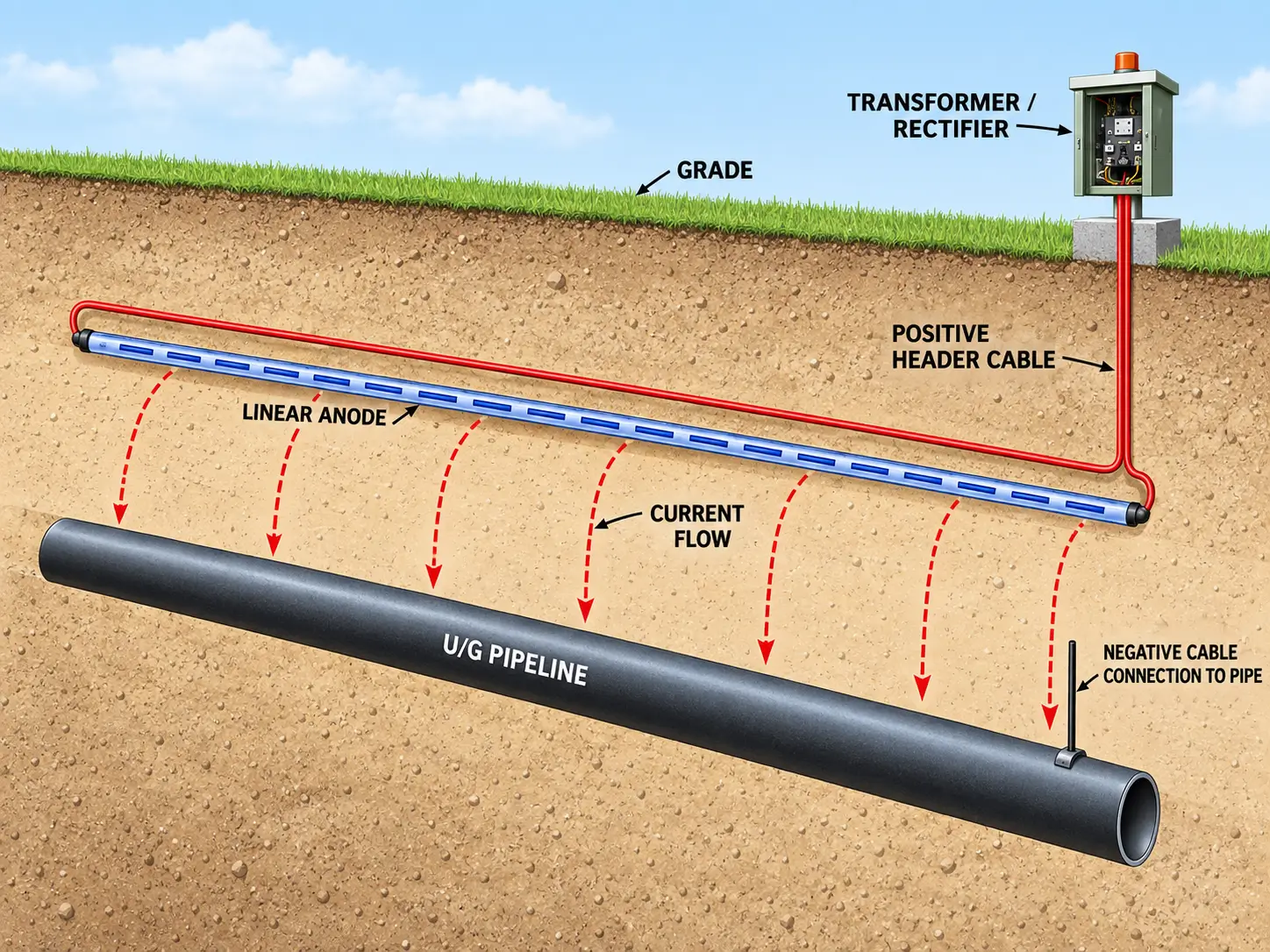

Shallow Groundbed MMO Canister Anode

Shallow Groundbed MMO Canister Anode

Packaged MMO canister anode for shallow vertical or horizontal groundbed installations.

Best For: Local CP systems, smaller groundbeds, tank areas, and site-limited installation layouts.

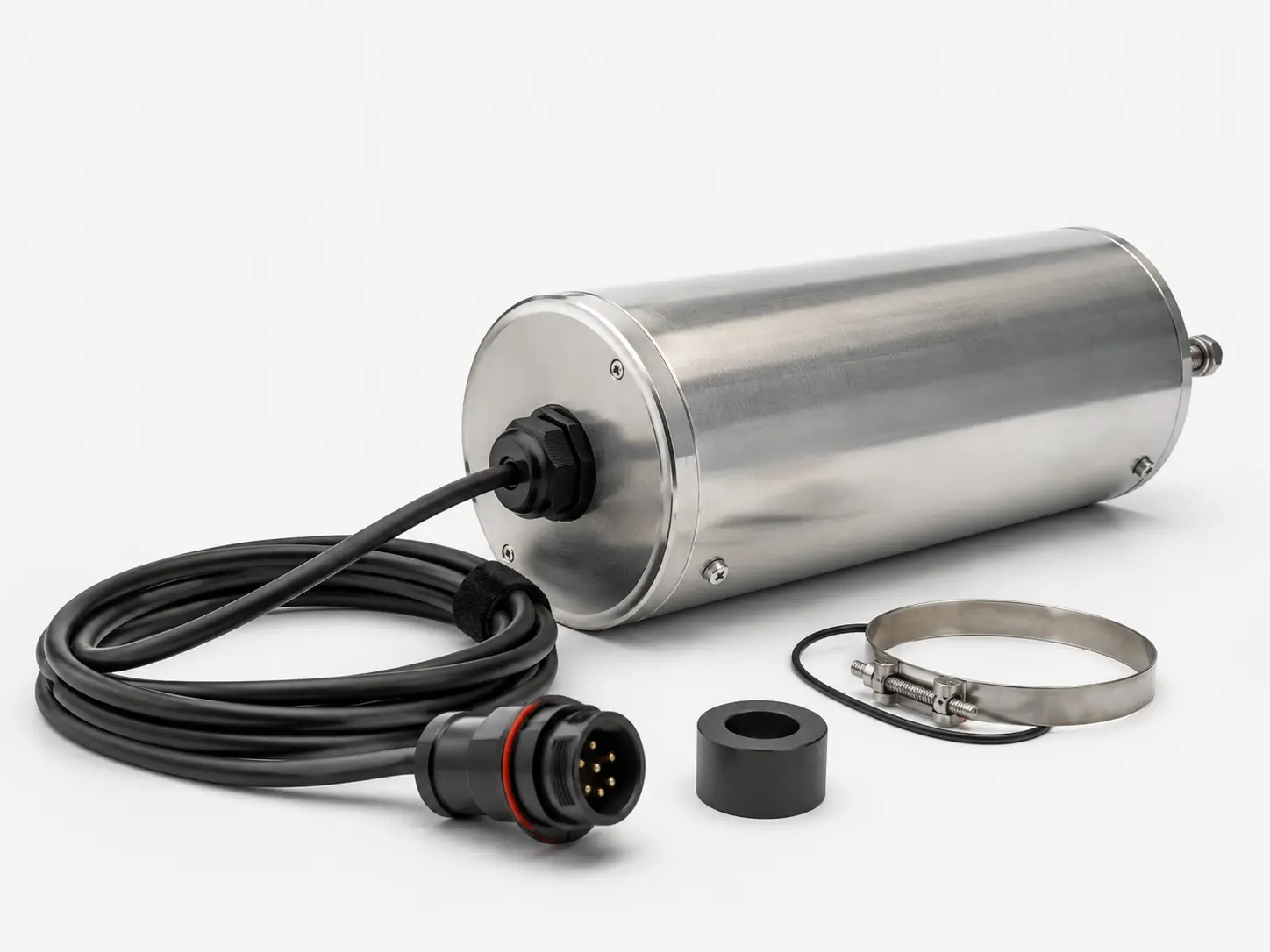

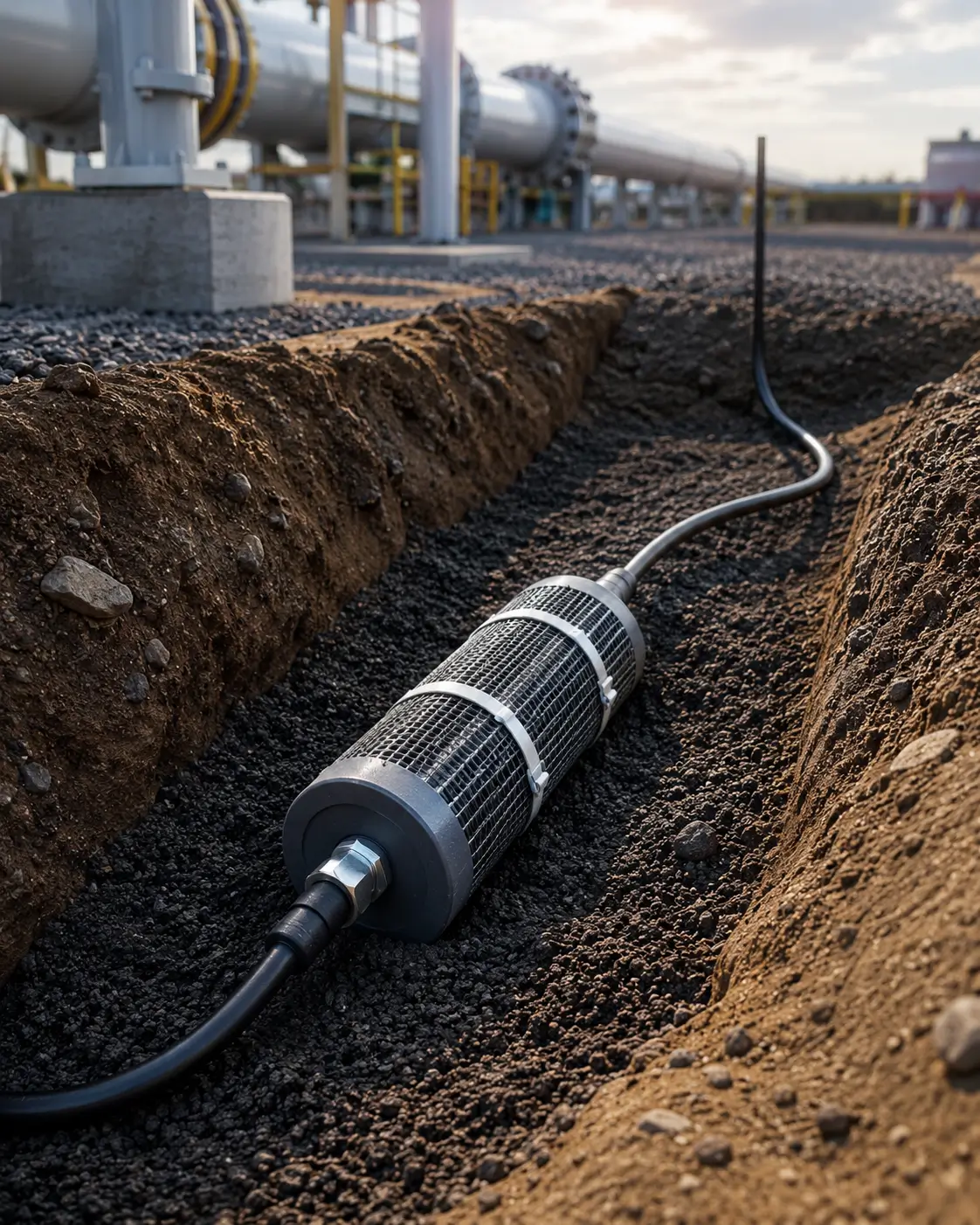

Custom MMO Canister Anode Assembly

Custom MMO Canister Anode Assembly

Drawing-based assemblies with custom anode element, canister size, backfill, cable, labels, and docs.

Best For: Project-specific CP systems, non-standard groundbed designs, and OEM cathodic protection projects.

Where MMO Canister Anodes Are Commonly Used

MMO canister anodes are commonly used when a packaged anode assembly is required for soil or groundbed cathodic protection. The final canister size, internal anode element, backfill, cable design, current output, and installation method should be reviewed according to the CP system design.

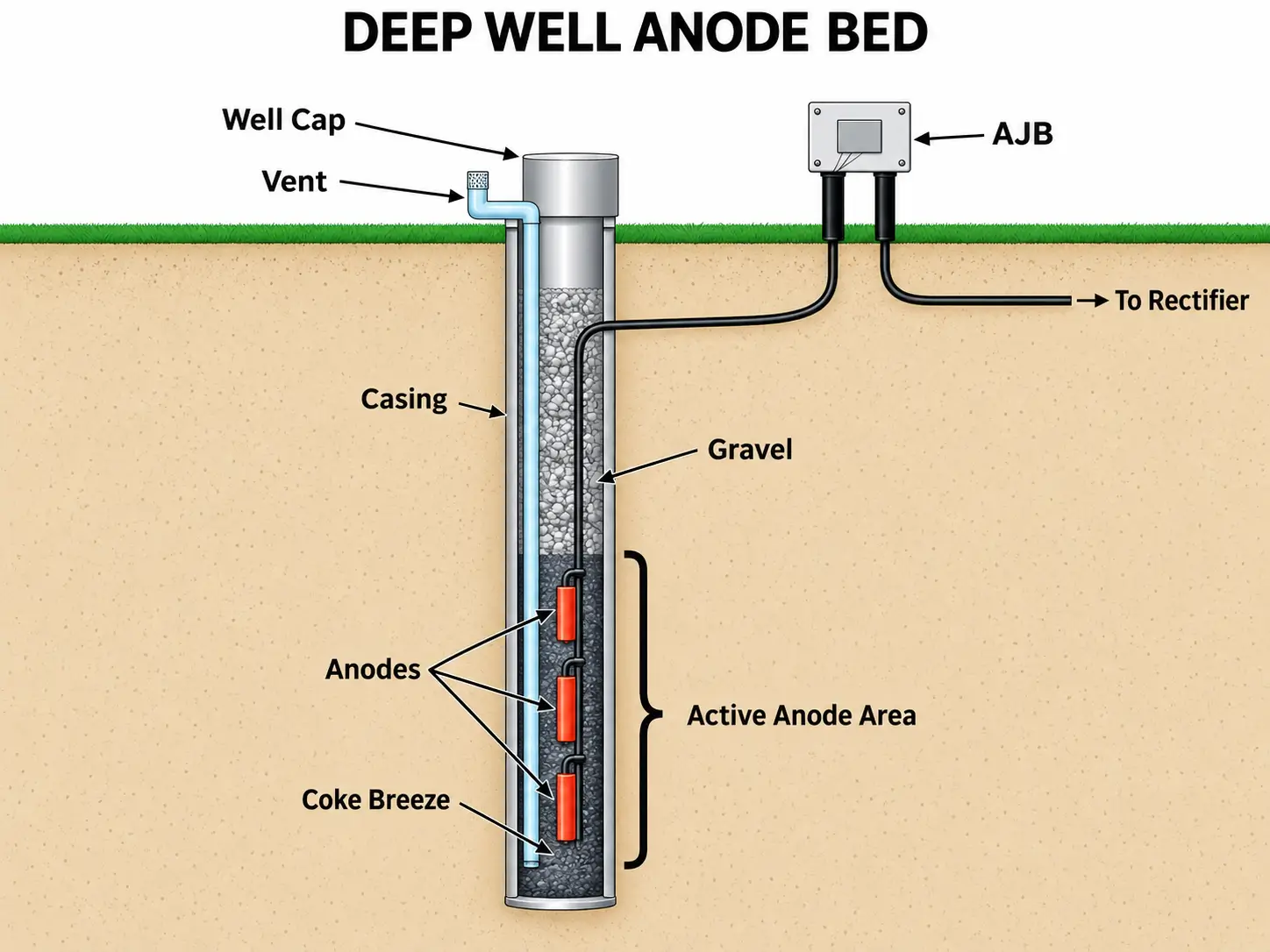

Deep Groundbed Cathodic Protection

Why It Fits:

Canisterized anodes can be installed in vertical deep well groundbeds for current discharge into lower-resistivity soil layers.

Key Review Factors:

Borehole depth, soil resistivity profile, current output, venting, backfill, cable length, and installation method.

Pipeline Cathodic Protection

Why It Fits:

Packaged MMO anodes can support impressed current protection for buried pipeline systems.

Key Review Factors:

Pipeline length, coating condition, soil resistivity, current demand, groundbed location, and cable route.

Tank Farm Cathodic Protection

Why It Fits:

Canister anodes can be used in groundbed systems protecting storage tanks and nearby buried structures.

Key Review Factors:

Tank layout, soil condition, current distribution, spacing, installation depth, and monitoring points.

Technical Specifications

MMO canister anodes are prepackaged MMO-coated titanium anode assemblies designed for impressed current cathodic protection groundbed systems. They are commonly used for pipelines, aboveground tanks, underground tanks, storage tanks, shallow vertical groundbeds, horizontal surface groundbeds, and soil or fine sand environments.

Basic Specifications

Item Specification
Product Category MMO Canister Prepacked Anode
Anode Substrate Titanium
Coating IrO₂ / Ta₂O₅ MMO coating
Coating Thickness 5–10 μm
Coating Uniformity ≥85%
Backfill Material Carbonaceous backfill / coke breeze or project-specified backfill
Applicable Environment Soil, fine sand, sand backfill
Typical Applications Pipeline CP, aboveground tank CP, underground tank CP, storage tank protection, shallow vertical or horizontal groundbeds
Design Life Reference 25 years under rated operating conditions
Custom Support Anode size, canister size, cable length, backfill type, sealing design, connection method, packing, labels, and documentation can be customized according to project requirements

Anode Size & Canister Dimensions

Item No. Anode Type Anode Dimensions Canister Dimensions
HL-CSA-38 Solid Stick Φ1.5 in / 2.5 in × 60 in / Φ38 / 63 × 1524 mm Φ7.9 in × 78.7 in / Φ200 × 2000 mm
HL-CSA-51 Solid Stick Φ2 in / 3 in × 60 in / Φ51 / 76 × 1524 mm Φ7.9 in × 78.7 in / Φ200 × 2000 mm
HL-CSA-76 Solid Stick Φ3 in / 4 in × 60 in / Φ76 / 102 × 1524 mm Φ7.9 in × 78.7 in / Φ200 × 2000 mm
HL-CTA-58 Tubular Φ2.3 in × 84 in / Φ58 × 2134 mm Φ7.9 in × 118.1 in / Φ200 × 3000 mm
HL-CTA-71 Tubular Φ2.8 in × 84 in / Φ71 × 2134 mm Φ7.9 in × 118.1 in / Φ200 × 3000 mm
HL-CTA-96 Tubular Φ3.8 in × 84 in / Φ96 × 2134 mm Φ7.9 in × 118.1 in / Φ200 × 3000 mm
HL-CTA-124 Tubular Φ4.8 in × 84 in / Φ122 × 2134 mm Φ9.8 in × 118.1 in / Φ250 × 3000 mm

Note: The dimensions above are nominal standard options. Non-standard anode sizes, canister dimensions, cable length, backfill configuration, and project-specific packaging can be customized upon request.

Engineering Notes

  • Final current output should be reviewed according to soil resistivity, backfill condition, groundbed layout, installation depth, and CP system design.
  • Carbonaceous backfill helps improve contact between the MMO anode element and the surrounding groundbed environment.
  • Cable connection and sealing quality are critical for long-term electrical continuity and service reliability.
  • Custom output, service life, cable length, canister dimensions, and documentation can be reviewed
Custom MMO Canister Anode Assembly

What We Need From You

  • • Application & Structure
  • • Groundbed type
  • • Soil resistivity data
  • • Required current output
  • • Design life target
  • • Installation depth
  • • Canister size preference
  • • Cable length & spec
  • • Backfill requirement
  • • Quantity & delivery

Custom MMO Canister Anodes Built Around Your Groundbed Design

MMO canister anode design should be reviewed according to groundbed type, soil resistivity, current output, installation depth, canister size, internal MMO anode element, backfill, cable route, sealing method, and design life target.

1

Groundbed Layout Review

Review deep well, shallow vertical, horizontal, or custom groundbed layout according to site conditions.

2

Current Output Review

Review total current demand, output per canister, soil resistivity, backfill, and design life target.

3

Internal Anode Element

Select MMO tubular, rod, or custom anode element according to current output and canister design.

4

Backfill & Canister Design

Review canister size, backfill material, packing density, and installation handling requirements.

5

Cable & Sealing Design

Customize cable length, insulation type, connection method, sealing, strain relief, and labeling.

6

Documentation Support

MTC, coating records, dimensional inspection notes, cable / sealing records, labels, packing documents can be prepared.

Groundbed Design, Backfill and Current Output Must Be Reviewed Together

For MMO canister anodes, the canister assembly cannot be selected only by physical size. Soil resistivity, current output, groundbed depth, backfill material, internal MMO anode size, cable sealing, and design life all affect the final recommendation.

Soil Resistivity

Soil resistivity affects current discharge conditions, groundbed resistance, and anode selection.

Backfill Quality

Carbonaceous backfill around the MMO anode element supports current discharge and groundbed performance.

Current Output per Canister

Output per canister should be reviewed according to CP design, anode element, backfill, and service life target.

Cable Sealing Reliability

Cable connection and sealing quality are important for buried and deep groundbed installations.

Quality Control for MMO Canister Anodes

MMO canister anode quality depends on internal MMO anode element quality, titanium substrate condition, coating application, canister assembly, backfill filling, cable connection, sealing quality, dimensional accuracy, packing protection, and final documentation.

Internal MMO Anode Review

The MMO tubular, rod, or custom anode element is reviewed according to substrate, size, coating, and current output requirements.

Coating & Surface Review

Surface preparation, MMO coating application, coating coverage, and visual condition are reviewed according to project requirements.

Canister & Backfill Assembly

Canister dimensions, backfill material, filling condition, and assembly consistency are checked according to agreed specifications.

Cable & Sealing Check

Cable length, connection method, sealing area, strain relief, labels, and continuity-related details are reviewed when required.

Dimensional & Visual

Canister size, total length, cable exit, labels, surface condition, and packing condition are reviewed according to inspection scope.

Packing & Documentation

MTC, coating record, dimensional notes, cable / sealing inspection notes, labels, packing list, and project documents can be prepared.

Available Documents May Include:

  • MTC
  • Coating record
  • Dimensional inspection record
  • Canister assembly notes
  • Cable / sealing notes
  • Visual inspection notes
  • Packing list
  • Product labels
  • Project-specific QC documents

Installation Considerations for MMO Canister Anodes

Proper installation helps MMO canister anodes perform as intended in groundbed cathodic protection systems. Groundbed layout, installation depth, backfill placement, cable routing, sealing protection, and electrical testing should be reviewed before installation.

Installation Factor Why It Matters
Groundbed Layout Deep well, shallow vertical, or horizontal layout affects current discharge and groundbed resistance.
Installation Depth Depth should match soil resistivity profile, current requirement, and CP system design.
Backfill Contact Good contact between canister, backfill, and surrounding soil supports current discharge.
Cable Routing Proper routing helps protect cable insulation and maintain electrical continuity.
Cable Sealing Protection Sealing quality is important for buried, wet, or deep groundbed installations.
Spacing Between Anodes Anode spacing affects groundbed performance and current distribution.
Venting / Site Requirement Some deep groundbed designs may require venting or site-specific installation review.
Testing & Commissioning Electrical checks help confirm continuity and correct installation before operation.

Buyer Note:

MMO canister anode installation should be reviewed together with the full cathodic protection and groundbed design. Share your soil data, layout, current requirement, and installation plan for engineering review.

Compare MMO Canister Anodes with Other MMO Anode Forms

MMO canister anodes are best used when a packaged anode assembly is required for groundbed installation. Other MMO anode forms may be more suitable when the project requires distributed linear output, compact localized output, cylindrical mounting, or direct installation without canister packaging.

MMO Linear Anode

Best Used When: Distributed current output is required along a long protected area.

View MMO Linear Anode →

MMO Wire Anode

Best Used When: Flexible embedded linear current output is needed.

View MMO Wire Anode →

MMO Ribbon Anode

Best Used When: Flat long-area current distribution is required.

View MMO Ribbon Anode →

MMO Mesh Ribbon Anode

Best Used When: Larger contact area or concrete embedment is needed.

View MMO Mesh Ribbon Anode →

MMO Tubular Anode

Best Used When: A durable cylindrical anode is required without packaged canister backfill.

View MMO Tubular Anode →

MMO Disc Anode

Best Used When: A compact localized anode surface is required.

View MMO Disc Anode →

MMO Rod Anode

Best Used When: A rod-shaped electrode is needed for cell, CP, or pilot systems.

View MMO Rod Anode →

Not sure which MMO anode form is suitable?

MMO Canister Anode FAQ

What is an MMO canister anode?
An MMO canister anode is a prepackaged assembly consisting of an MMO coated titanium anode element, carbonaceous backfill, and a canister body, usually supplied with a sealed cable for impressed current cathodic protection groundbed installations.
Where are MMO canister anodes commonly used?
They are commonly used in soil-based CP systems, including deep groundbeds, shallow vertical or horizontal groundbeds, pipeline cathodic protection, tank farm protection, and protection of buried structures.
What is the difference between an MMO canister anode and an MMO tubular anode?
An MMO tubular anode is the bare coated titanium tube. A canister anode is the packaged assembly that includes the tubular (or rod) anode element surrounded by backfill inside a canister, ready for direct soil installation.
What is inside an MMO canister anode?
It contains the active MMO coated titanium anode element (usually tubular or rod), a specific carbonaceous backfill (like coke breeze), and the internal cable connection with protective sealing.
What backfill is used in canisterized MMO anodes?
Typically, high-quality carbonaceous backfill, such as calcined petroleum coke breeze or metallurgical coke, is used to lower contact resistance and support current discharge.
How do I choose canister size and current output?
Selection depends on soil resistivity, total current requirement, groundbed design, installation depth, and design life target. We can review these parameters to recommend the suitable configuration.
Can MMO canister anodes be used in deep groundbeds?
Yes, they are frequently used in vertical deep well groundbeds. The assembly is lowered into the borehole, often alongside venting pipes and additional backfill.
Can MMO canister anodes be used in shallow groundbeds?
Yes, they can be installed in shallow vertical holes or horizontal trenches when deep well installation is not suitable for the project site.
Can you customize cable length and sealing?
Yes, cable length, insulation type (such as XLPE/PVC or Kynar/HMWPE), and connection sealing can be customized according to project requirements.
What information is needed for a canister anode quote?
Please provide application, groundbed type, soil resistivity, required current output, design life, canister size (if known), cable length/spec, quantity, and delivery destination.
What documents can be provided?
Documents such as MTC, coating records, dimensional inspection notes, cable/sealing inspection notes, packing lists, and project-specific QC documents can be supported when required.
How should MMO canister anodes be packed and shipped?
They are typically packed in sturdy export wooden cases or on pallets, with cables carefully coiled and protected to prevent damage during transit to the project site.

Get Your Custom MMO Canister Anode Recommendation

Tell us your application, protected structure, soil resistivity, groundbed type, current output requirement, design life target, installation depth, cable length, backfill requirement, and delivery destination. Hele Titanium will help review the suitable MMO canister anode configuration for your project.

Custom Canisterized MMO Anode Assemblies

Current Output, Backfill and Groundbed Design Review

Cable Connection, Sealing and Documentation Support

Factory-Direct Export Packing and Project Support

Hele Titanium Logo

Email: sales@heletitanium.com

Address: Titanium Valley, Baoji City, Shaanxi Province, China

Send MMO Canister Anode Inquiry

Your information is secure. We will review your groundbed CP requirements and reply promptly.
