ICCP System for Marine Vessels

Understanding Corrosion and Its Impact on Marine Hulls

Corrosion is a natural electrochemical process where metals deteriorate, commonly resulting in rust when exposed to environmental factors like seawater.

In the maritime industry, corrosion can severely impact the structural integrity of vessels, causing damage to hulls, rudders, propellers, and other critical underwater components.

This not only compromises vessel safety but also leads to frequent, costly maintenance and reduced operational efficiency due to increased drag on corroded surfaces. Given these challenges, implementing effective corrosion prevention is essential for marine operators aiming to protect their assets and optimize performance.

The ICCP System: A Superior Solution to Corrosion Control

Impressed Current Cathodic Protection (ICCP) systems provide an advanced, long-term solution for marine corrosion. Unlike sacrificial anode systems that rely on regular anode replacement, ICCP systems use an external power supply to deliver a controlled current through anodes, protecting vessels’ submerged surfaces against corrosion.

An ICCP system comprises:

• ICCP Anodes: Durable and highly conductive, these anodes create a protective current to counteract the electrochemical activity that causes corrosion.
• Reference Electrodes: These monitor the electrical potential at the seawater/hull interface, enabling the system to maintain optimal protection levels.
• Transformer Rectifiers: Serving as the power source, these units regulate current output to adapt to changing seawater resistivity.
• Automatic Control Systems: These components continuously adjust the current output based on environmental conditions, ensuring optimal protection with minimal manual intervention.

How ICCP Systems Work

ICCP systems operate by producing a steady flow of DC current through strategically placed anodes on the hull, which neutralizes the electrochemical reactions responsible for corrosion. Reference electrodes measure the voltage at the seawater/hull interface and relay data to the control panel. The system then automatically adjusts the current flow, maintaining consistent, effective corrosion protection regardless of changes in seawater resistivity or hull paint loss.

Key Advantages of ICCP Systems

ICCP systems operate by producing a steady flow of DC current through strategically placed anodes on the hull, which neutralizes the electrochemical reactions responsible for corrosion. Reference electrodes measure the voltage at the seawater/hull interface and relay data to the control panel. The system then automatically adjusts the current flow, maintaining consistent, effective corrosion protection regardless of changes in seawater resistivity or hull paint loss.

1.

   Enhanced Component Lifespan: Protects underwater components like rudders, propellers, and shafts from electrolysis, reducing wear and extending their operational life.

2. Reduced Maintenance and Operating Costs: Automated current adjustments eliminate the need for frequent manual intervention and dry-docking.
3. Reliable Protection in Varying Conditions: Unlike sacrificial anodes, ICCP systems respond dynamically to environmental changes, such as salinity shifts and paint erosion.
4. Cost Efficiency: Once installed, an ICCP system provides lifelong protection, minimizing the cost of hull maintenance and fuel by maintaining a smooth, corrosion-free hull surface.
5. Enhanced Fuel Efficiency: With a cleaner hull surface, vessels experience less drag, leading to improved fuel economy.
6. Superior to Sacrificial Anode Systems: ICCP systems offer controllable, precise corrosion protection that adapts to different maritime conditions, making them an ideal choice for large vessels and complex underwater structures.

For over two decades, ICCP systems have provided ship operators with 24/7 protection against the effects of electrolysis across a wide range of vessels—from oil tankers and LNG carriers to workboats and pleasure crafts. Their reliability and effectiveness in extending asset longevity make ICCP systems the preferred choice in the maritime industry for comprehensive, low-maintenance corrosion control.

Comparing Sacrificial Anode and ICCP Systems

Offshore Platforms and Subsea Structures

Key Components of ICCP Systems

Impressed Current Cathodic Protection (ICCP) Systems are designed with an integrated set of components, each playing a critical role in providing effective, long-lasting corrosion protection for marine and offshore structures. Here’s an overview of the essential components and their functions in the ICCP system:

1. ICCP Anodes

• The Challenge: Underwater surfaces of vessels and structures are constantly exposed to corrosive saltwater, leading to electrochemical reactions that deteriorate metal over time.
• Solution with ICCP Anodes: Durable and highly conductive, ICCP anodes release a controlled current to counteract corrosion. Installed on the hull or submerged surface, these anodes provide consistent, long-lasting protection and typically have a service life that matches the vessel or structure itself. ICCP anodes prevent electrochemical activity that causes corrosion, reducing maintenance needs and extending operational life.

2. Reference Electrodes

• The Challenge: Effective corrosion protection requires precise monitoring of the electrochemical environment at the seawater/metal interface to ensure optimal current levels.
• Solution with Reference Electrodes: Reference electrodes continuously monitor the electrical potential of the structure’s surface in relation to the seawater, providing real-time data to the control system. This feedback allows the ICCP system to adjust current output to respond to changing environmental conditions, maintaining consistent protection levels and ensuring the system operates at peak efficiency.

3. Transformer Rectifier Units

• The Challenge: Delivering the correct current to submerged surfaces requires a stable, adjustable power source, particularly in variable marine environments.
• Solution with Transformer Rectifiers: Acting as the power supply for ICCP systems, transformer rectifier units convert AC power to DC, delivering a stable and adjustable current. These units regulate the current output based on feedback from the reference electrodes, allowing the ICCP system to maintain consistent corrosion protection regardless of changes in seawater salinity or temperature.

4. Automatic Control Panel

• The Challenge: Maintaining consistent corrosion protection requires continuous adjustments, as environmental factors can shift due to changes in location, weather, or salinity.
• Solution with Automatic Control Panel: The ICCP control panel acts as the system’s “brain,” processing data from reference electrodes and adjusting current to the anodes as needed. This automation ensures that the ICCP system remains adaptable, protecting underwater surfaces effectively without manual intervention. By automating these adjustments, the control panel reduces operational oversight and guarantees optimal corrosion protection under varying conditions.

5. Power Distribution Network and Cables

• The Challenge: To ensure reliable performance, the ICCP system needs a robust network to carry power from the control panel to the anodes and electrodes.
• Solution with Power Distribution Network: High-quality cables and connectors are used to ensure stable and safe current flow between system components. This power distribution network is designed to withstand marine conditions, ensuring consistent performance and system longevity.

Together, these components work in harmony to deliver a state-of-the-art corrosion protection solution. By automating and adapting to environmental changes, ICCP systems protect valuable marine assets, reduce maintenance costs, and extend the operational life of vessels, offshore platforms, and underwater structures.

How to Select the Right ICCP System

Selecting the correct ICCP (Impressed Current Cathodic Protection) System is crucial for ensuring long-lasting, effective corrosion protection for marine vessels and underwater structures. With a range of configurations available, choosing the right system involves evaluating your specific operational environment, structure requirements, and maintenance goals. Here’s a guide to help you navigate the key factors in choosing the ideal ICCP System:

1. Assess the Structure and Corrosion Risk

• Structural Type: Different types of vessels and offshore structures have varying corrosion exposure. Larger vessels or structures operating in highly corrosive saltwater environments, such as oil tankers, LNG carriers, or offshore rigs, typically require more robust ICCP solutions.
• Corrosion Conditions: Consider the electrochemical environment, such as salinity, temperature, and water flow. High-salinity and high-temperature environments may demand systems with larger transformer rectifiers and additional anodes for optimal protection.

2. Determine the Required Components

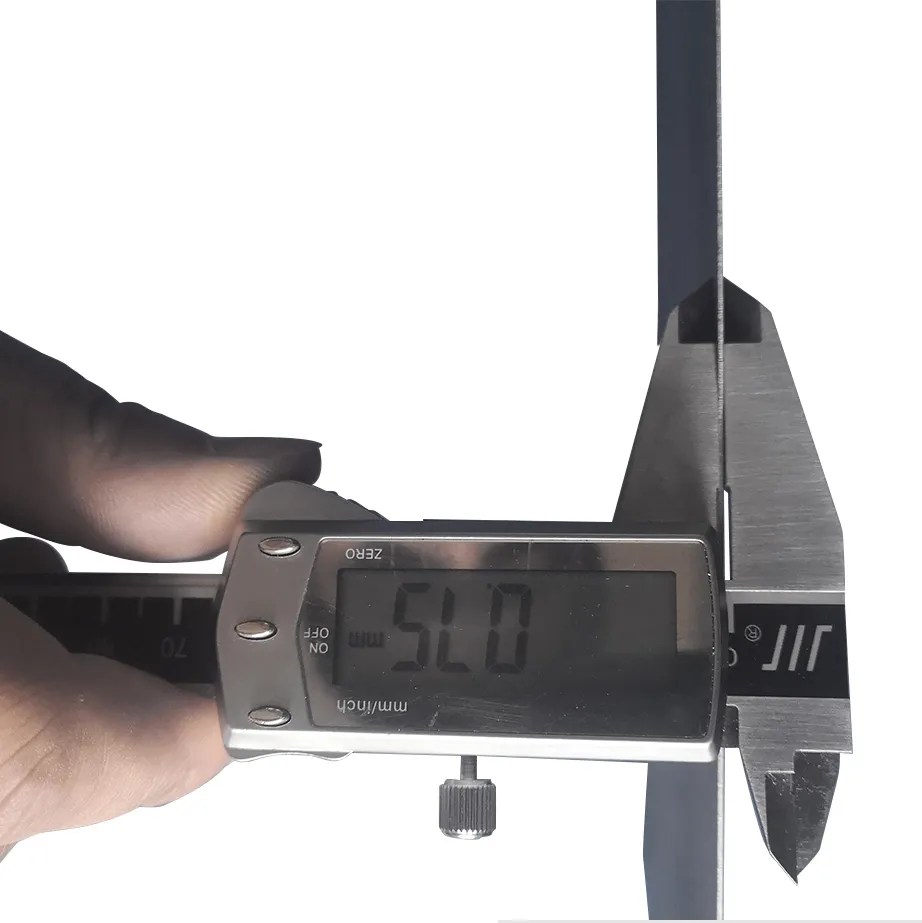

• ICCP Anodes: Based on the structure’s size and layout, choose the appropriate number and placement of ICCP anodes. Durable mixed metal oxide (MMO) anodes are ideal for long-term protection.
• Reference Electrodes: Ensure the system includes reference electrodes positioned to provide accurate monitoring of electrochemical activity across the structure. These electrodes allow the control system to adjust for optimal protection dynamically.
• Transformer Rectifier and Control System: Select a transformer rectifier unit that meets the power requirements of your structure, with automated control for efficient current adjustments in varying conditions. The control system should be user-friendly and capable of monitoring real-time data from reference electrodes.

3. Consider Environmental Adaptability

• Automatic Adjustments: ICCP Systems that automatically adjust current based on environmental feedback, such as changes in salinity or paint erosion, provide more reliable and efficient protection. Systems with this capability reduce the need for manual oversight and ensure that corrosion protection adapts to operational changes.
• Long-Term Durability: Look for ICCP components designed to withstand marine conditions, including durable cables, anodes, and secure connectors that maintain stable performance despite exposure to seawater.

4. Evaluate Maintenance and Lifespan Requirements

• System Longevity: A high-quality ICCP System should offer a service life that aligns with the operational life of the vessel or structure, minimizing maintenance needs and providing reliable, uninterrupted protection.
• Ease of Maintenance: Choose systems with accessible components and automated monitoring to simplify maintenance. This feature will help reduce dry-docking frequency and lower long-term operational costs.

5. Consult with ICCP Experts

• Working with a professional ICCP supplier ensures your system is tailored to your unique requirements. Experienced suppliers can provide guidance on system configuration, anode placement, and real-time monitoring, delivering a customized solution that optimizes corrosion protection and cost efficiency.

By carefully assessing your structure’s corrosion risk, component needs, and operational conditions, you can select an ICCP System that maximizes protection, reduces maintenance costs, and extends the lifespan of your valuable assets. With the right system, your vessels and structures will be safeguarded against corrosion, enhancing operational efficiency and reducing the need for costly repairs.

How to Install an ICCP System?

Installing an Impressed Current Cathodic Protection (ICCP) System requires precision and adherence to marine installation standards to ensure optimal corrosion protection. Here is a general guide to help you understand the key steps involved in the installation process.

1. Planning and Preparation

• Evaluate the Structure: Conduct a thorough assessment of the vessel or structure to determine the most effective placement of ICCP anodes, reference electrodes, and control panels. This step considers factors such as hull shape, size, and areas most susceptible to corrosion.
• Choose the Right Components: Based on the assessment, select ICCP anodes, reference electrodes, transformer rectifiers, and cables suited to the specific corrosion risks and structural needs of your application.
• Prepare the Installation Area: Clean and prepare the installation surfaces on the hull and other mounting areas to ensure secure attachment and effective current flow.

2. Installing the Anodes

• Position Anodes: Following the design plan, install ICCP anodes on the underwater surfaces of the hull. Placement is critical for uniform current distribution; typical locations include the bow, stern, and areas where dissimilar metals may interact, like near propellers or shafts.
• Secure Anodes: Weld or fasten the anodes onto the hull securely, ensuring they remain stable against water pressure and vibrations. Ensure the electrical connections to the anodes are watertight to prevent any disruption in current flow.

3. Mounting Reference Electrodes

• Select Optimal Locations: Install reference electrodes at strategic points on the hull to monitor the electrochemical potential and provide real-time feedback to the control system.
• Secure the Electrodes: Mount the electrodes securely, typically close to anodes or areas requiring precise monitoring. Proper placement of reference electrodes ensures accurate data on corrosion levels and helps the control system maintain optimal current output.

4. Installing the Transformer Rectifier and Control Panel

• Position the Control System: Install the transformer rectifier and control panel in a dry, protected area inside the vessel where it’s easily accessible for monitoring and maintenance.
• Connect Power and Control Cables: Run high-quality cables from the control panel to the anodes and reference electrodes, ensuring all connections are waterproof and securely insulated. Route cables to avoid interference and ensure smooth current flow.
• Set Up Real-Time Monitoring: Connect reference electrodes to the control panel to enable real-time monitoring of the hull’s electrochemical potential. This setup allows the ICCP system to adjust the current output based on environmental feedback.

5. Testing and Calibration

• Conduct Initial Testing: After installation, conduct a series of tests to confirm proper connectivity, current flow, and functionality. This initial testing ensures all components are operating as expected and that the system is providing effective protection.
• Calibrate the System: Adjust the current output levels on the control panel based on the reference electrode readings, calibrating the system for optimal performance. Calibration should account for the structure’s specific environment and corrosion susceptibility.

6. Final Inspection and Commissioning

• Perform a Full System Check: Conduct a comprehensive inspection of all components, connections, and operational parameters. Ensure that the anodes, reference electrodes, control panel, and cables are functioning correctly.
• Commission the System: Once testing and calibration are complete, formally activate the ICCP system. Monitor initial performance to verify that the system provides consistent, controlled corrosion protection.

7. Post-Installation Maintenance Planning

• Schedule Regular Inspections: Set up a maintenance plan that includes regular inspections of anodes, reference electrodes, and control systems. This preventive approach ensures long-term performance and early identification of any wear or issues.
• Monitor System Performance: Regularly check the control panel’s readings to confirm the system maintains proper protection levels. Adjust settings as needed based on changes in salinity, environmental conditions, or hull condition.

Following these steps will help you achieve a successful ICCP system installation, providing reliable, long-term corrosion protection for your vessel or structure. Proper installation and ongoing maintenance are essential for maximizing system performance and ensuring your marine assets remain protected against the harsh effects of corrosion.

In Summary

Corrosion poses a significant threat to marine vessels and underwater structures, impacting hulls, pipelines, and offshore installations. Impressed Current Cathodic Protection (ICCP) Systems have become the preferred solution, providing reliable, adaptable corrosion protection that extends the lifespan of valuable marine assets. While selecting the right ICCP System may seem complex, expert guidance ensures you receive the most effective protection.
