Titanium Mesh Manufacturer — Woven, Expanded & MMO Coated Mesh
Factory-direct titanium mesh for electrochemical, filtration, and industrial applications. From woven and expanded mesh to MMO/Pt coated anode mesh, we manufacture mesh engineered to your specification.
Titanium Mesh Manufacturer — Woven, Expanded & MMO Coated Mesh
Factory-direct titanium mesh for electrochemical, filtration, and industrial applications. From woven and expanded mesh to MMO/Pt coated anode mesh, we manufacture mesh engineered to your specification.
Titanium Mesh Buying Essentials
Define these parameters before quotation to match the mesh with the intended manufacturing process and application.
Mesh Form & Material Standard
Confirm whether the requirement is woven, expanded, perforated or welded titanium mesh, then match the raw-material specification to the actual mesh construction.
Opening & Structural Dimensions
Specify the geometry that defines the selected mesh form rather than relying on a single mesh-size description.
Expanded: SWD · LWD · Strand Width · Thickness
Overall Size & Fabrication
Define the required sheet, roll, panel or custom-part dimensions together with cutting, forming, welding, framing or other drawing-based fabrication requirements.
Inspection & Documentation
Confirm dimensional inspection, surface condition, material traceability and documentation requirements according to the mesh form, drawing and purchase order.
Send the mesh form, grade, opening or diamond dimensions, overall size, quantity and fabrication requirements for review.
Titanium Mesh Forms & Custom Fabricated Options
Choose titanium mesh by construction, supply form and fabrication requirement. Woven, expanded, perforated and welded mesh use different dimensional parameters and raw-material specifications, with custom cutting, forming and fabrication reviewed to your drawing or purchase requirements.
01 — Woven Titanium Wire Mesh
Titanium wire mesh woven for industrial screening, filtration, electrochemical and general processing applications.
Feedstock Reference: ASTM B863 titanium wire when applicable.

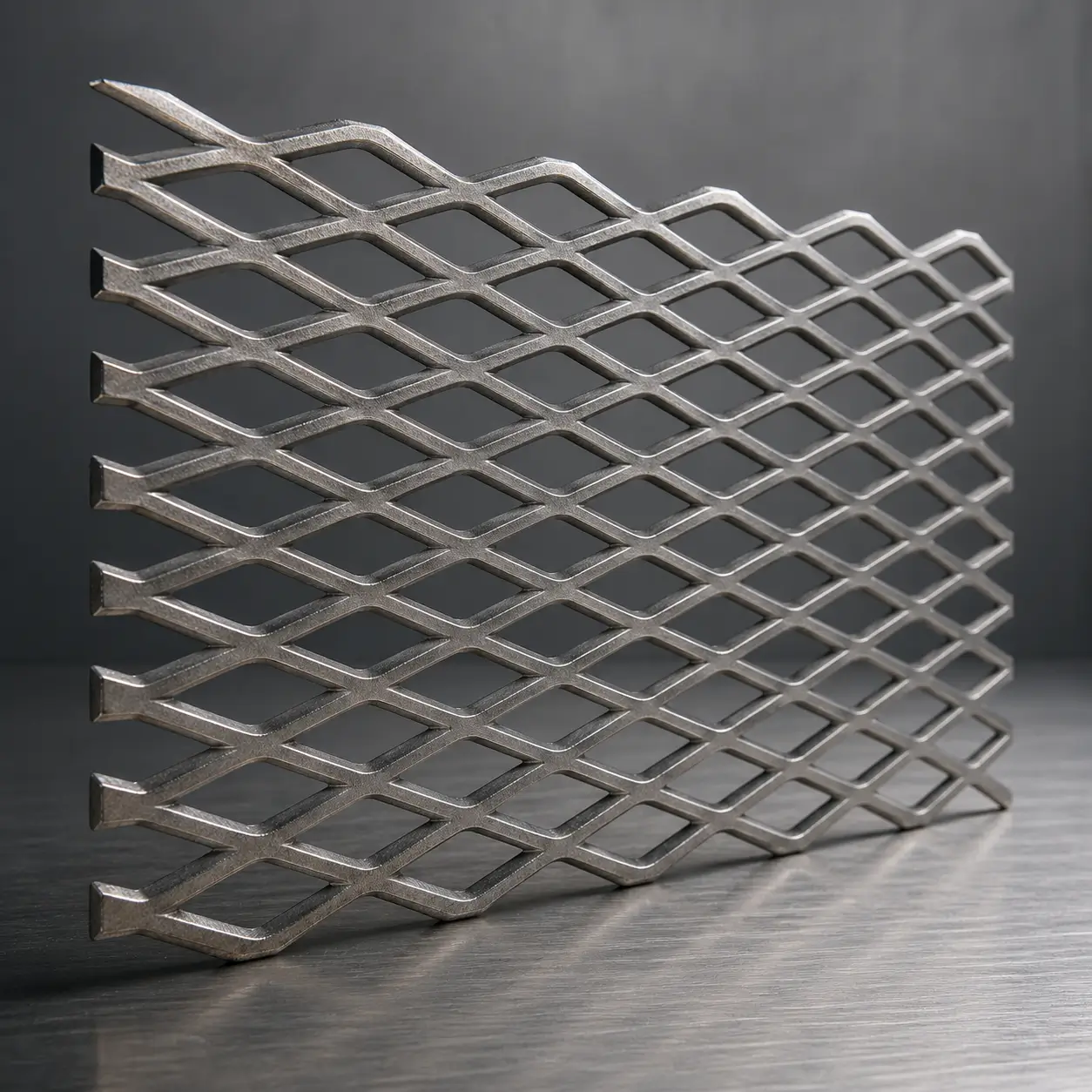

02 — Expanded Titanium Mesh
Expanded titanium mesh manufactured from titanium sheet or strip and specified by material thickness, diamond geometry, strand dimensions and raised or flattened condition.
Form: Raised · Flattened
Feedstock Reference: ASTM B265 titanium sheet or strip when applicable.

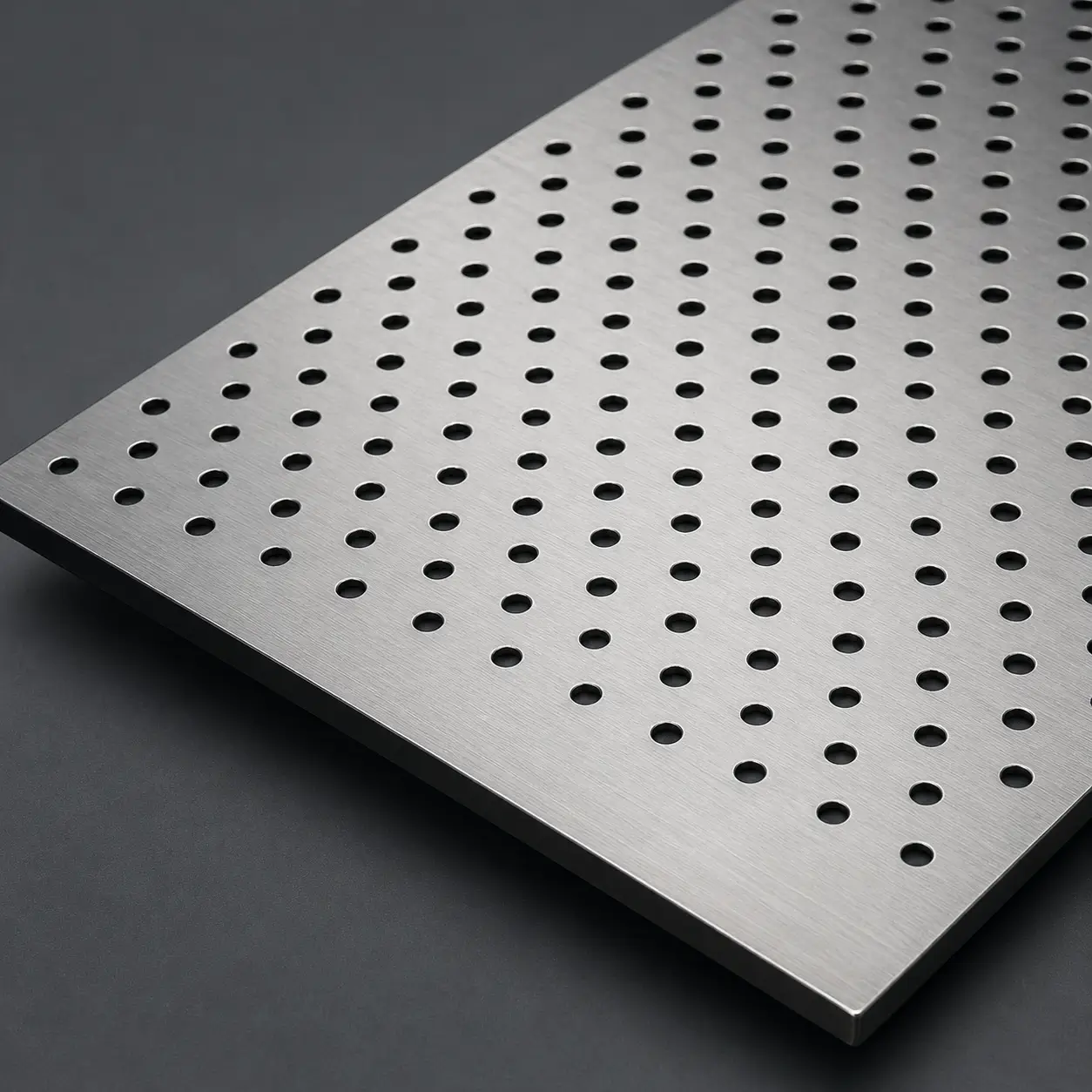

03 — Perforated Titanium Sheet
Perforated titanium sheet manufactured with defined hole geometry and pattern for screening, airflow, process equipment and drawing-based industrial components.
Also Define: Sheet Size · Edge Margin · Burr Direction
Feedstock Reference: ASTM B265 titanium sheet when applicable.

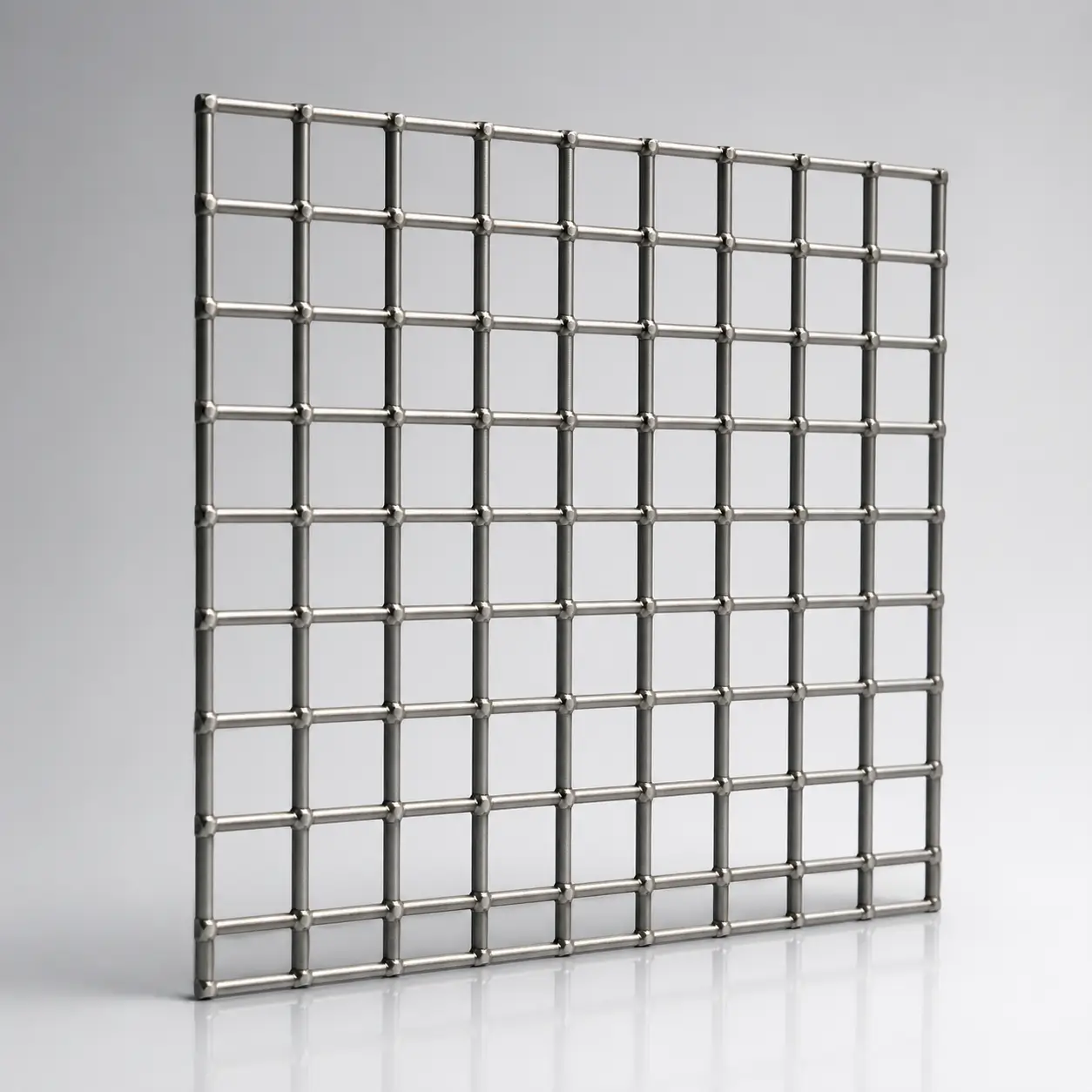

04 — Welded Titanium Wire Mesh
Welded titanium wire mesh and panels manufactured according to specified wire diameter, opening, pitch, panel size, edge condition and fabrication requirements.
Optional: Frame · Flatness · Custom Fabrication
Feedstock Reference: ASTM B863 titanium wire when applicable.
05 — Titanium Mesh Sheet & Roll
Titanium mesh can be supplied in sheet, roll or cut-size formats according to the mesh construction, required width, length, handling and downstream processing requirements.
Supply Forms: Sheet · Roll · Cut Size

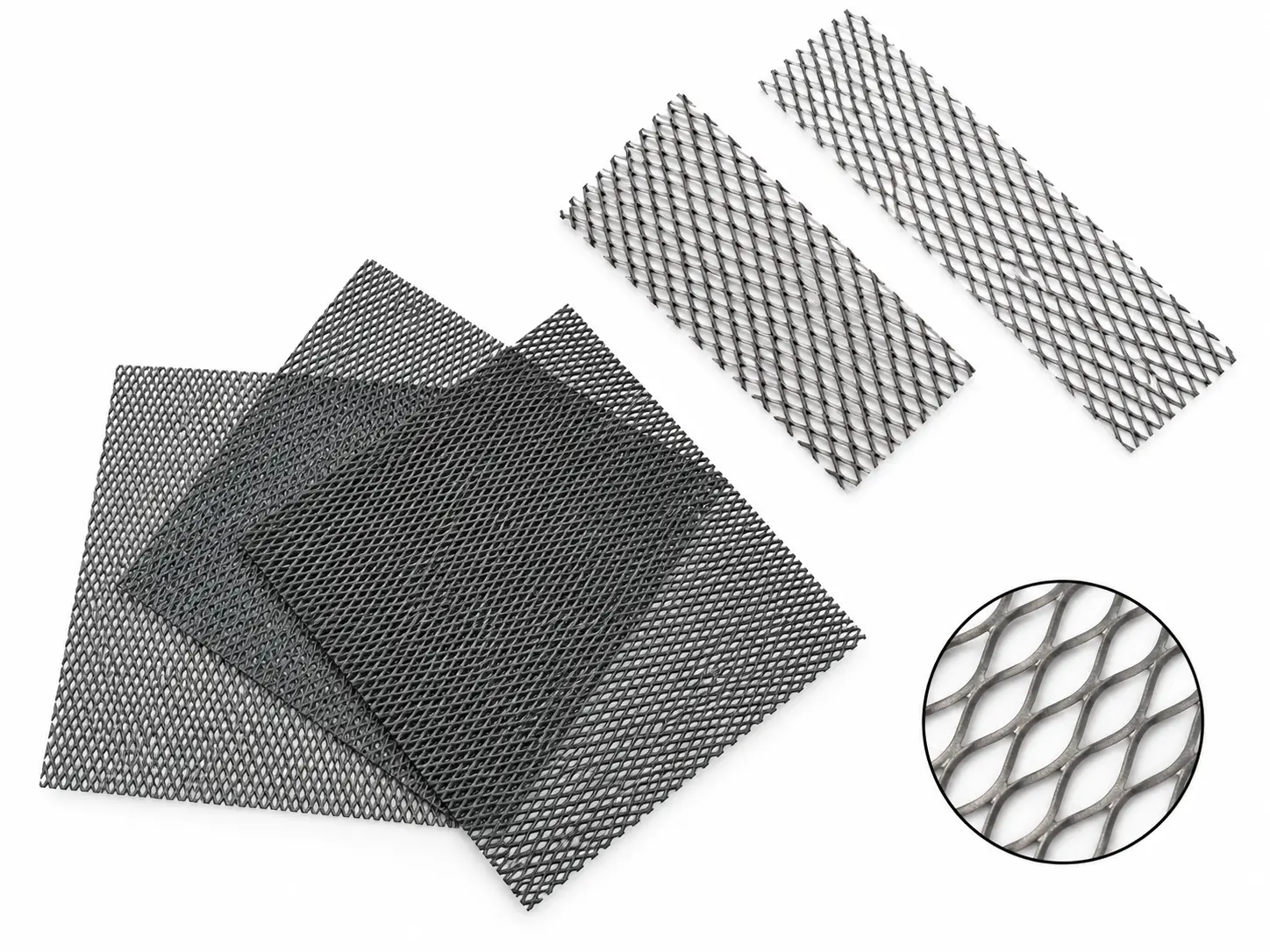

06 — Custom-Cut Titanium Mesh Parts
Titanium mesh can be precision cut into discs, screens, panels and drawing-based profiles for OEM fabrication, filtration, electrochemical and industrial assemblies.
Drawing Formats: PDF · DWG · DXF · STEP

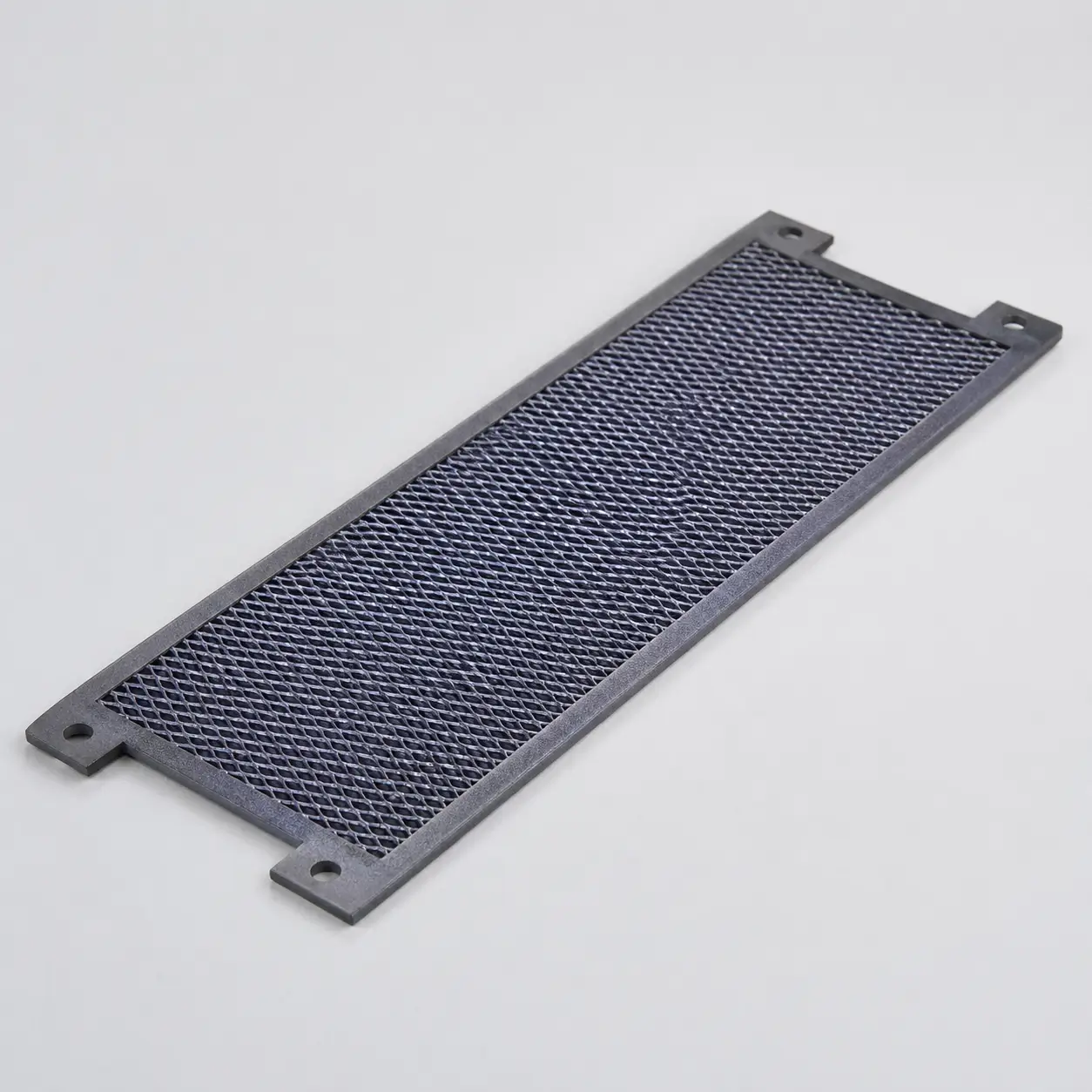

07 — Framed & Fabricated Titanium Mesh
Titanium mesh assemblies can be manufactured with cutting, forming, rolling, welding, framing, tabs, hooks and other drawing-based fabrication requirements.
Specify: Drawing · Geometry · Tolerance · Assembly Requirement
08 — Titanium Mesh Anode Substrate
Bare titanium mesh substrate can be manufactured for electrode and anode fabrication with mesh geometry, grade, dimensions, active-area requirements and connection features reviewed to the project specification.
Need a Finished Anode?
How to Choose the Right Titanium Mesh
Select the mesh form, titanium grade, structural dimensions, overall size, fabrication and inspection requirements according to the intended process, service environment and final component design.
Choose the Mesh Form
Start by selecting the mesh construction that matches the required opening geometry, strength, flow characteristics and downstream fabrication.
Choose: Woven · Expanded · Perforated · Welded · Fabricated Part
Confirm Grade & Feedstock Specification
Specify the titanium grade and the applicable raw-material specification according to the selected mesh construction and purchase requirements.
Typical Review: Grade · UNS · Material Specification · Condition
Define the Mesh Geometry
Define the dimensional parameters that apply to the selected mesh type rather than using one generic “mesh size” value.
Woven: Mesh Count · Wire Diameter · Aperture · Weave · Open Area
Expanded: Sheet Thickness · SWD · LWD · Strand Width · Raised / Flattened
Perforated: Hole Size / Shape · Pitch · Pattern · Open Area
Welded: Wire Diameter · Opening / Pitch · Weld Pattern
Define Overall Size & Supply Form
Specify the required sheet, roll, panel or custom-part dimensions together with quantity and handling requirements.
Specify: Width × Length · Roll Length · Panel Size · Cut Shape · Quantity
Confirm Fabrication & Surface Requirements
Define any cutting, forming, rolling, welding, framing, tabs, hooks, edge treatment or surface requirements needed for the final component.
Fabrication: Cut · Form · Roll · Weld · Frame · Tab / Hook
Confirm Inspection & Documentation
Define dimensional inspection, surface inspection, material traceability and documentation requirements according to the drawing, applicable specification and purchase order.
Review: MTC · Heat / Lot No. · Dimensional Report · Surface Inspection · Third-Party Inspection*
Footnote
*Applicable grade, feedstock specification, dimensions, surface condition, fabrication route and inspection scope vary by mesh type and purchase requirements.
Need help choosing the right titanium mesh?
Common Titanium Grades for Titanium Mesh
Titanium mesh grade selection depends on corrosion environment, strength requirement, mesh structure, forming method, coating requirement and application needs. Hele Titanium commonly supports CP titanium and titanium alloy grades for mesh products according to project requirements.
Grade 1 / Grade 2
Commercially Pure Titanium
Excellent corrosion resistance, high ductility and good weldability. Commonly selected for expanded mesh, woven mesh, MMO coated mesh and corrosion-resistant mesh components.
Typical Applications
- Chemical processing equipment and piping
- Marine equipment and seawater systems
- MMO anodes and electrochemical applications
- General corrosion-resistant mesh components
Grade 5 / Ti-6Al-4V
Titanium Alloy α+β
High strength, good toughness and excellent fatigue resistance. Selected when higher strength, lightweight performance or structural support is required.
Typical Applications
- Aerospace-style structures and components
- High-strength machined or fabricated mesh parts
- Pumps, valves, fittings and industrial components
- Performance and lightweight titanium components
Grade Selection Note
Final titanium grade selection should be reviewed according to corrosion environment, strength requirement, mesh opening, thickness, forming method, coating requirement, application and documentation needs.
Custom Titanium Mesh Fabrication to Drawing
Titanium mesh can be cut, formed, rolled, welded, framed and assembled into drawing-based components according to the required mesh form, dimensions, tolerance, edge condition and final assembly requirements.
Precision Cutting & Custom Shapes
Titanium mesh can be cut into discs, panels, screens and custom profiles according to the specified geometry, dimensions and edge requirements.
Review: Disc · Panel · Profile · Cut Shape · Edge Condition
Forming, Rolling & Bending
Mesh parts can be formed or rolled into application-specific geometries where the selected mesh construction, grade and dimensions allow the required fabrication route.
Fabrication: Form · Roll · Bend · Cylinder · Curved Profile
Welding, Framing & Assembly
Titanium mesh can be welded to frames, supports or other titanium components according to the drawing, joint design and dimensional requirements.
Fabrication: Weld · Frame · Support · Assembly
Tabs, Hooks & Connection Features
Tabs, hooks, mounting features and project-specific connection details can be incorporated into custom titanium mesh components according to the final assembly or equipment design.
Options: Tab · Hook · Mounting Feature · Connection · Custom Detail
Drawing-Based Manufacturing
For custom mesh components, provide the mesh type, titanium grade, structural dimensions, overall geometry, tolerance, fabrication details and quantity. Drawings help confirm manufacturability, inspection points and final quotation requirements.
Drawing Formats: PDF · DWG · DXF · STEP · IGES
Footnote
Fabrication method and achievable tolerance depend on mesh construction, grade, thickness, geometry and final component requirements.
Titanium Mesh Inspection & Shipment Documentation
Material traceability, mesh geometry, dimensional inspection, surface condition and shipment documentation are reviewed according to the mesh form, drawing, applicable raw-material specification and purchase order.
Material & Traceability Review
Titanium grade, UNS designation, applicable feedstock specification and heat or lot information are checked against the agreed purchase requirements. Review: Grade · UNS · Heat / Lot No. · MTC
Mesh Geometry & Dimensional Inspection
Mesh geometry and overall dimensions are inspected using the parameters applicable to the selected mesh construction.
Woven: Wire Diameter · Aperture · Mesh Count · Width / Length
Expanded: Sheet Thickness · SWD · LWD · Strand Width · Overall Thickness
Surface & Fabrication Inspection
Surface condition, edge quality, flatness and drawing-based fabrication features are reviewed according to the mesh type and agreed component requirements. Review: Surface · Edge Condition · Flatness · Weld / Frame · Custom Features
Final Documents & Shipment Records
Agreed inspection records, material documents, identification, packing and shipment documents can be prepared according to the order and destination requirements. Documents: MTC · Dimensional Report · Packing List · Identification · Shipping Records
Available Quality Records
Sample documents available upon request:
Sample MTC: Grade · Heat / Lot · Chemical / Mechanical Data
Dimensional Report: Aperture · Wire / Strand Dimensions · Overall Size
Fabricated Record: Drawing Dimensions · Edge / Weld / Frame Inspection
Packing & Identification: Product Label · Packing Method · Shipment Marking
Titanium Mesh for Industrial Applications
Titanium mesh is manufactured for filtration, electrochemical, chemical-processing and custom industrial applications, with mesh form, grade, geometry and fabrication reviewed against the actual service and equipment requirements.

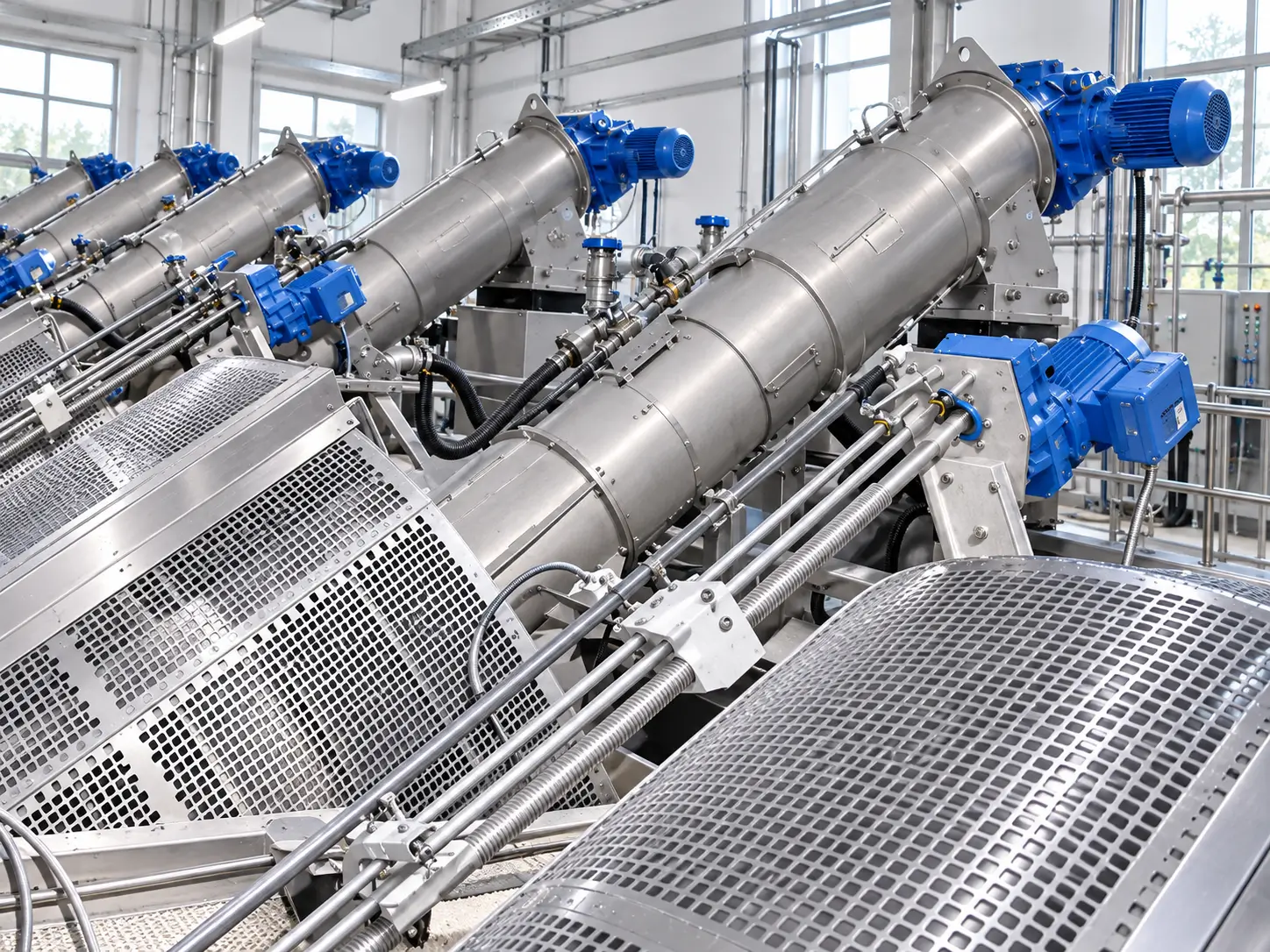

Filtration & Process Screening
Screening & Filtration
Woven, perforated and selected fabricated titanium mesh can be manufactured for screening, separation and filtration systems where aperture, open area, flow characteristics and cleaning requirements must be defined.
Explore Filtration Solutions
Electrochemical Mesh Substrates
Electrodes & Anodes
Expanded and fabricated titanium mesh can be manufactured as bare substrates for electrochemical electrodes and anodes, with geometry, active area, dimensions and connection features reviewed to the final electrode design.
Explore Substrate Solutions

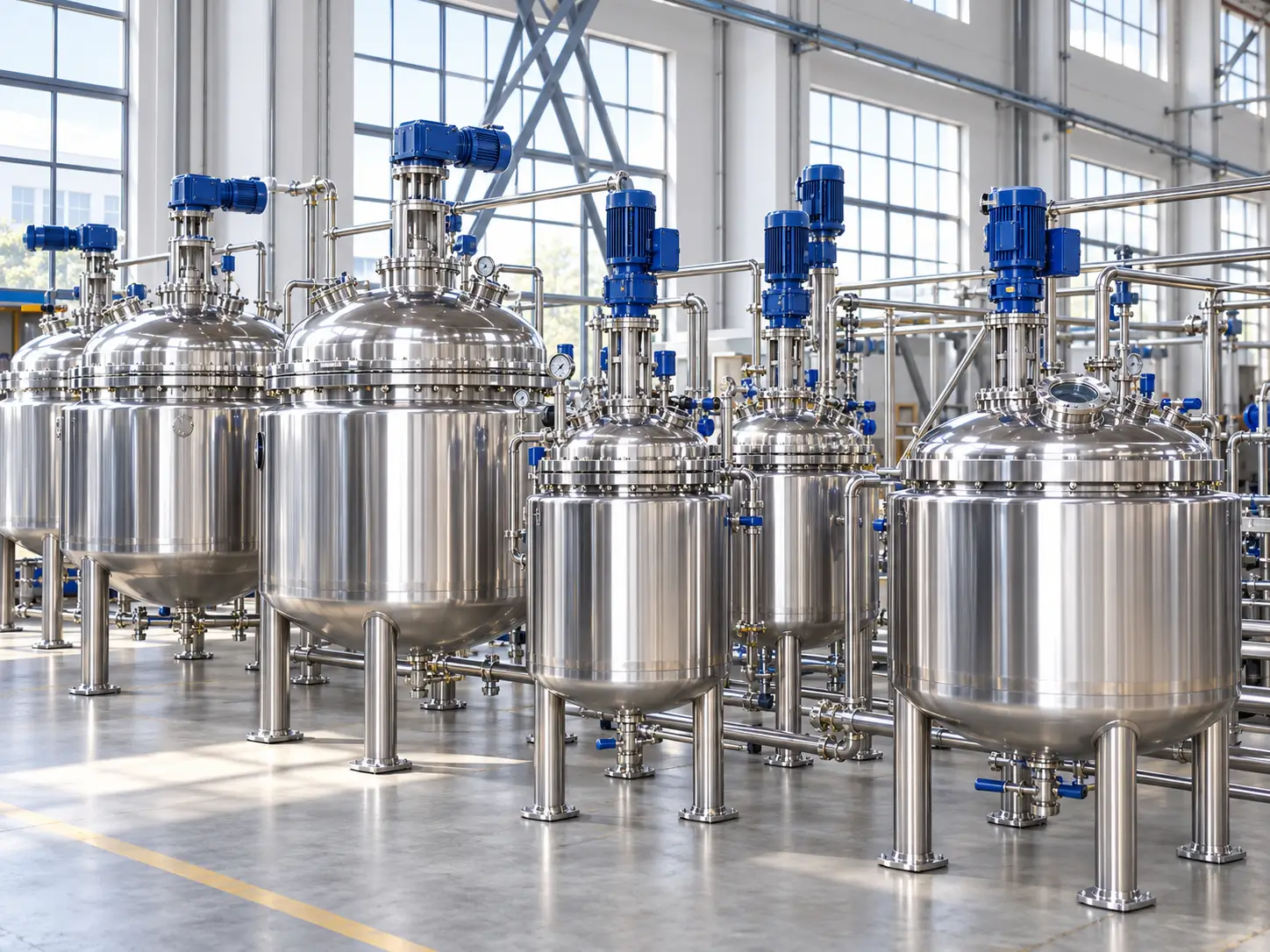

Chemical & Marine Process Equipment
Process Components
Titanium mesh can be manufactured for process equipment, screens, guards and fabricated components where material selection depends on the actual chemical environment, temperature, mechanical loading and fabrication requirements.
Explore Process Equipment

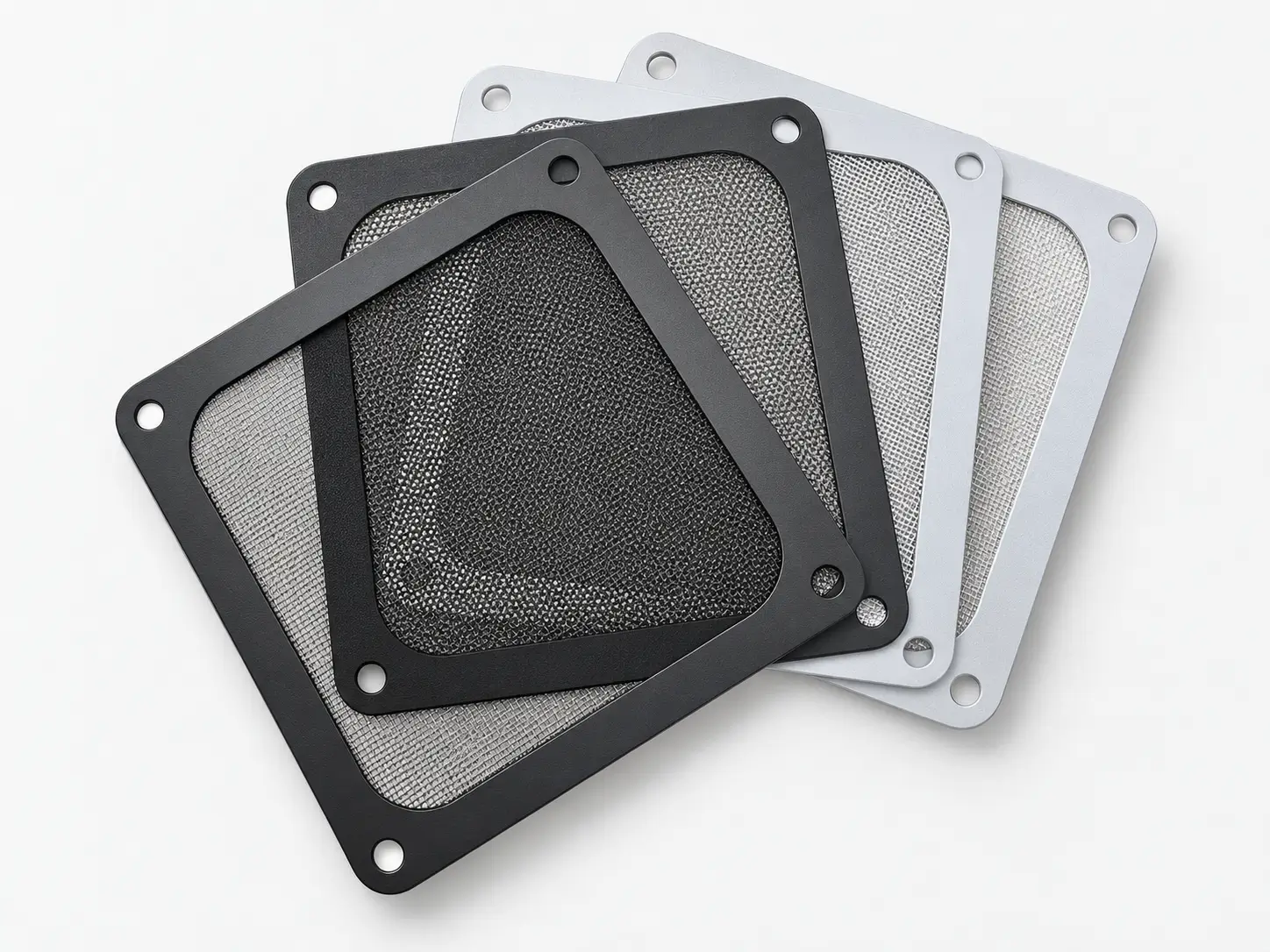

Custom Industrial Mesh Assemblies
OEM & Manufacturing
Titanium mesh can be manufactured into drawing-based panels, screens, cylinders, framed parts and other fabricated assemblies for OEM and equipment-manufacturing projects.
Drawing · Cut Shape · Forming · Welding · Frame · Tolerance
Why Industrial Buyers Choose HELE as Their Titanium Mesh Manufacturer
HELE combines mesh specification review, custom manufacturing, dimensional inspection and export project coordination to support titanium mesh orders from raw mesh to drawing-based fabricated components.
Mesh Specification & Engineering Review
Woven, expanded, perforated and welded mesh requirements are reviewed using the dimensional parameters applicable to each mesh construction before manufacturing.
Custom Mesh Manufacturing
HELE manufactures titanium mesh in standard and drawing-based forms, with cutting, forming, rolling, welding, framing and custom connection features reviewed to the required component geometry.
Inspection & Material Traceability
Material identity, mesh geometry, overall dimensions, surface condition and fabricated features can be inspected against the agreed drawing, specification and purchase requirements.
Export & Project Coordination
Packing, product identification, shipping documentation and destination requirements are coordinated for international OEM, equipment-manufacturing and industrial project orders.
From Mesh Specification to Fabricated Component
Send your mesh type, grade, structural dimensions and drawing requirements for manufacturing and quotation review.
Titanium Mesh FAQs
Find answers to common questions about titanium mesh types, dimensional parameters, material standards, custom fabrication, inspection and quotation requirements.
What is the difference between woven and expanded titanium mesh?
Does mesh count directly determine the aperture or micron size?
What do SWD and LWD mean for expanded titanium mesh?
Which material standards apply to titanium mesh?
Which titanium grades are commonly used for mesh?
Can HELE manufacture custom-cut and fabricated titanium mesh parts?
What inspection and documentation can be supplied?
What information should I provide for a titanium mesh quote?
Inside Our Manufacturing & Quality System
See how we produce, inspect, and document titanium mesh as a direct manufacturing partner.
See how titanium mesh moves from billet or sheet preparation through expanding, weaving, perforating, and optional coating.

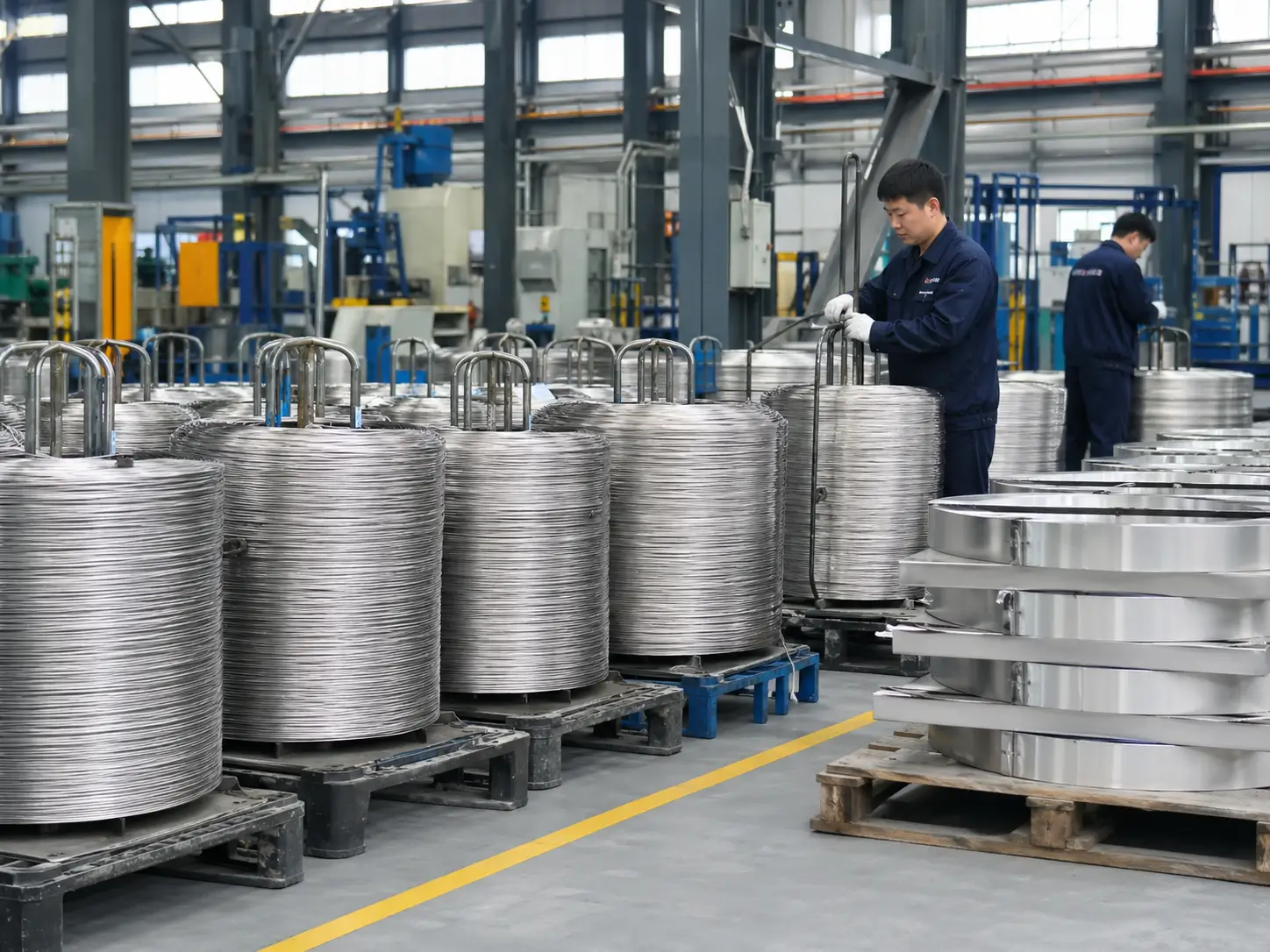

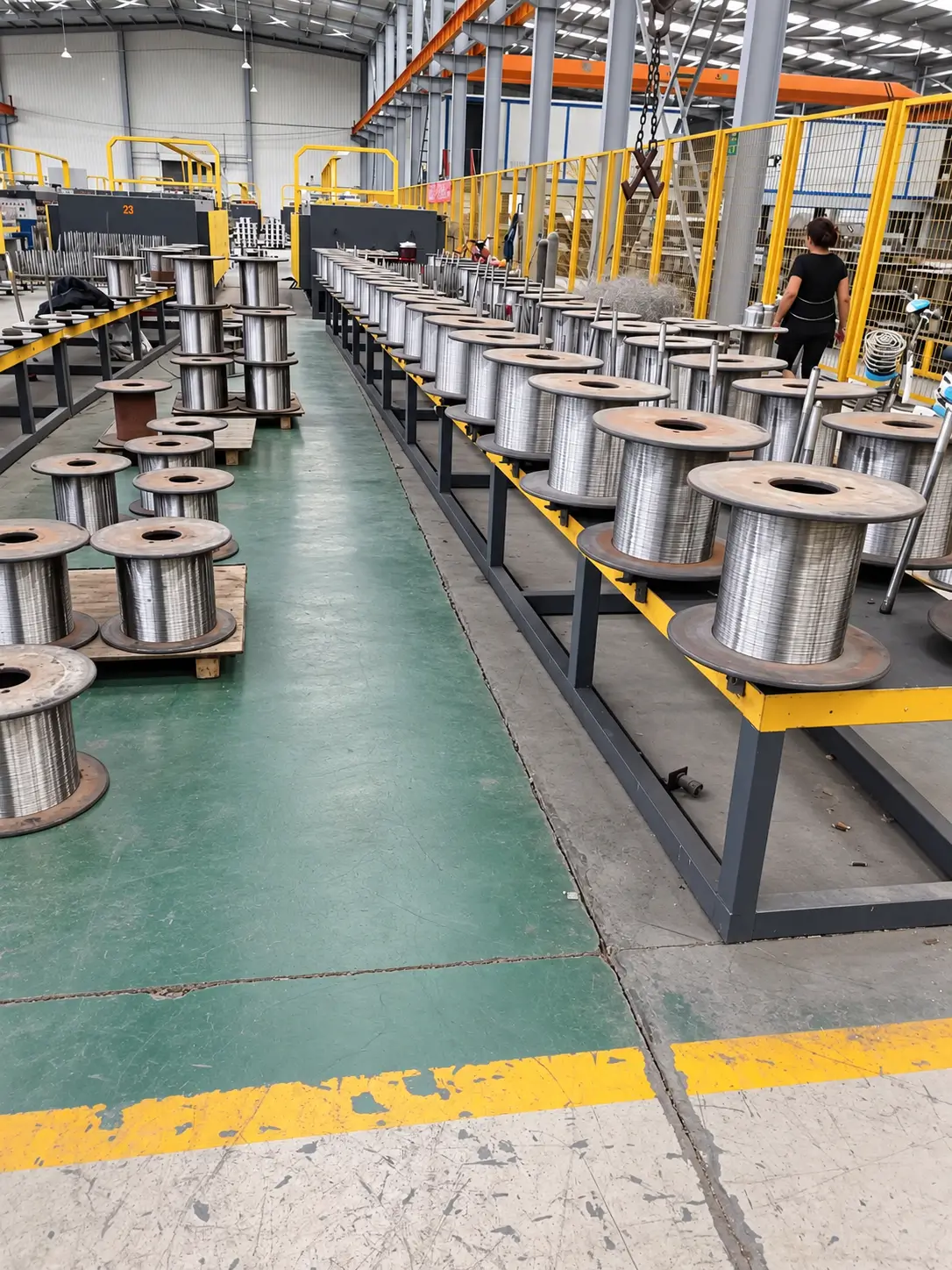

01 Titanium Wire Preparation

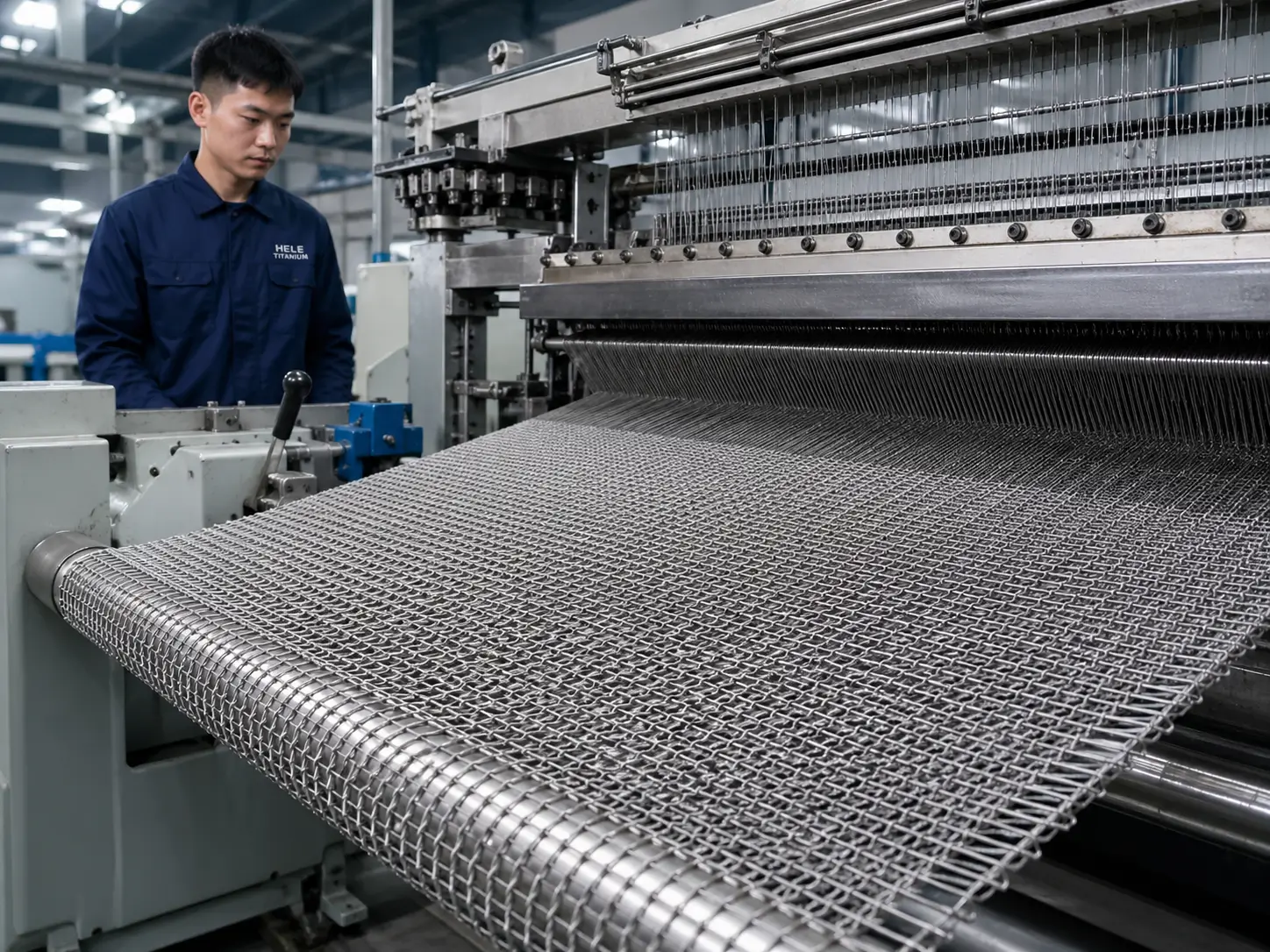

02 Mesh Expanding Process

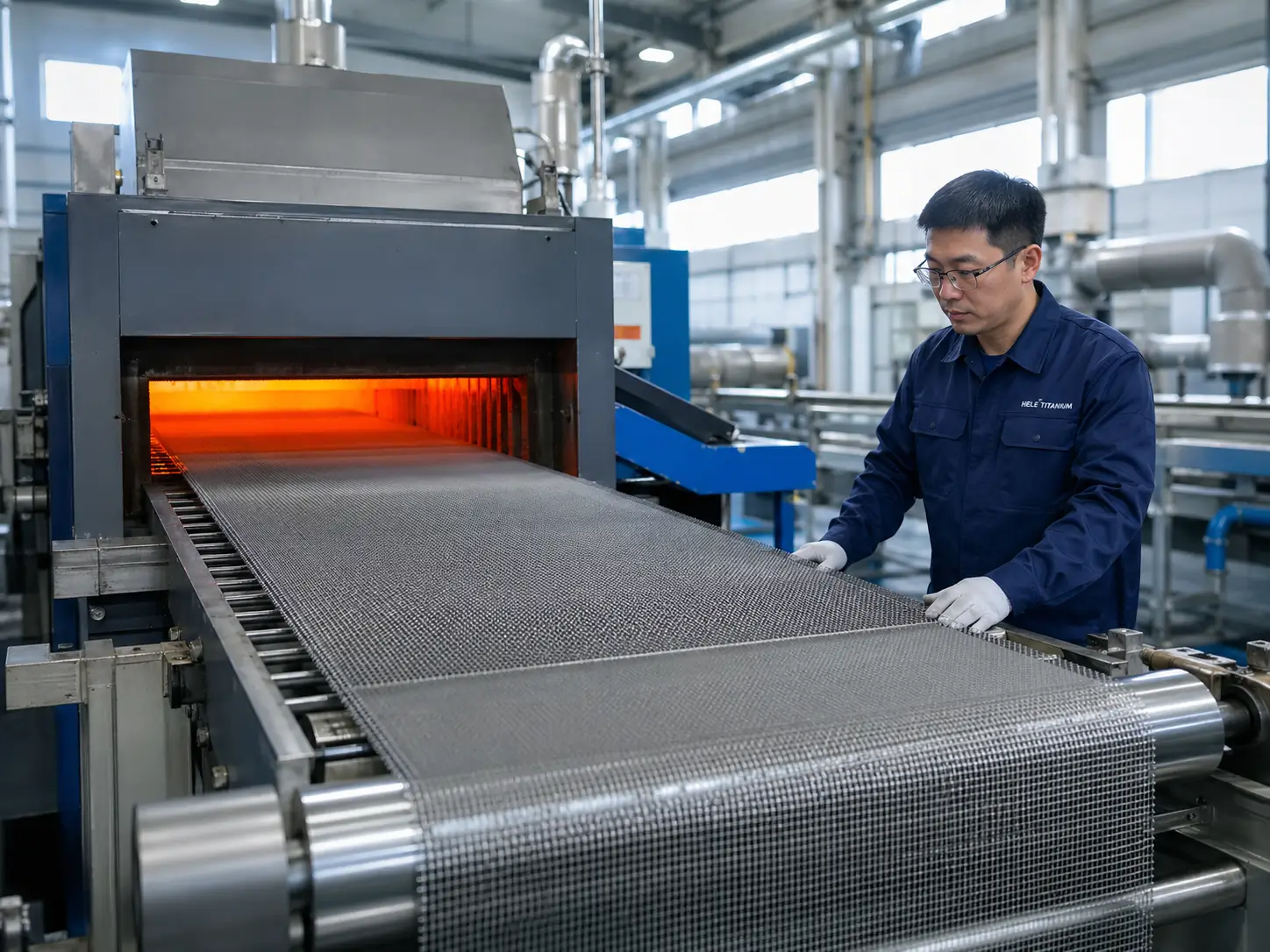

03 Woven Mesh Production

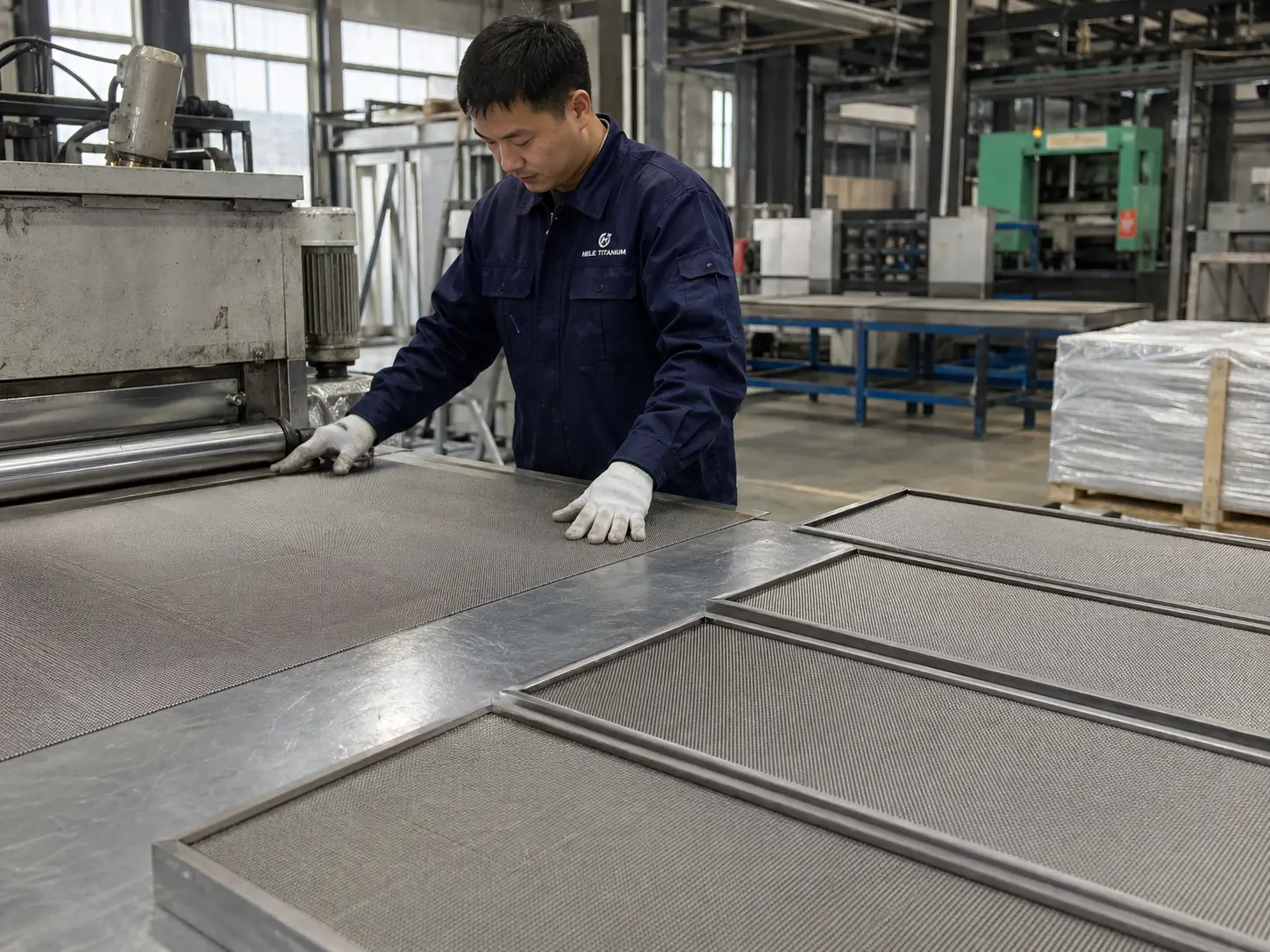

04 MMO Coating or Final Forming

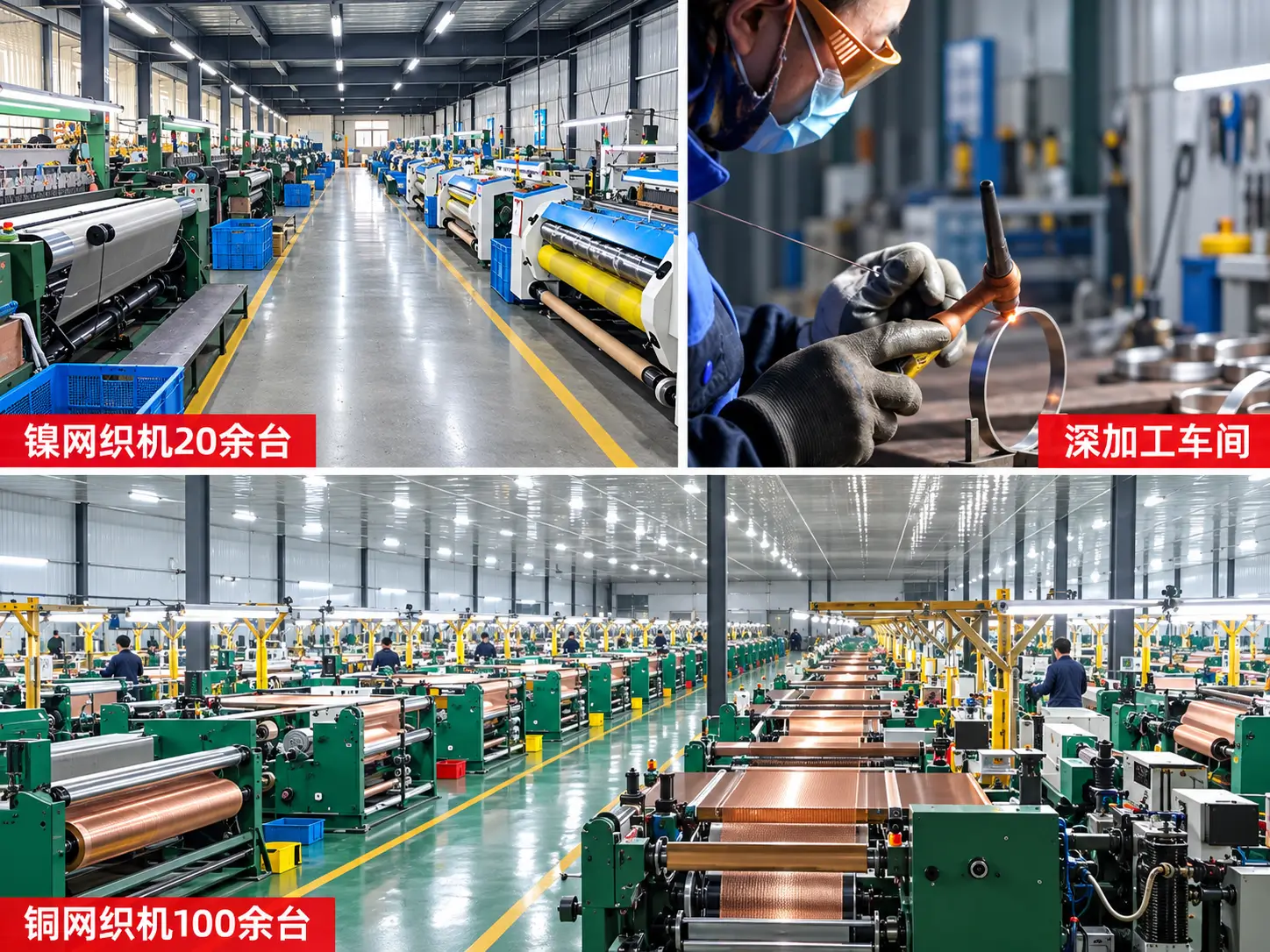

A look inside the production areas where titanium mesh is formed, cut, coated, handled, and packed.

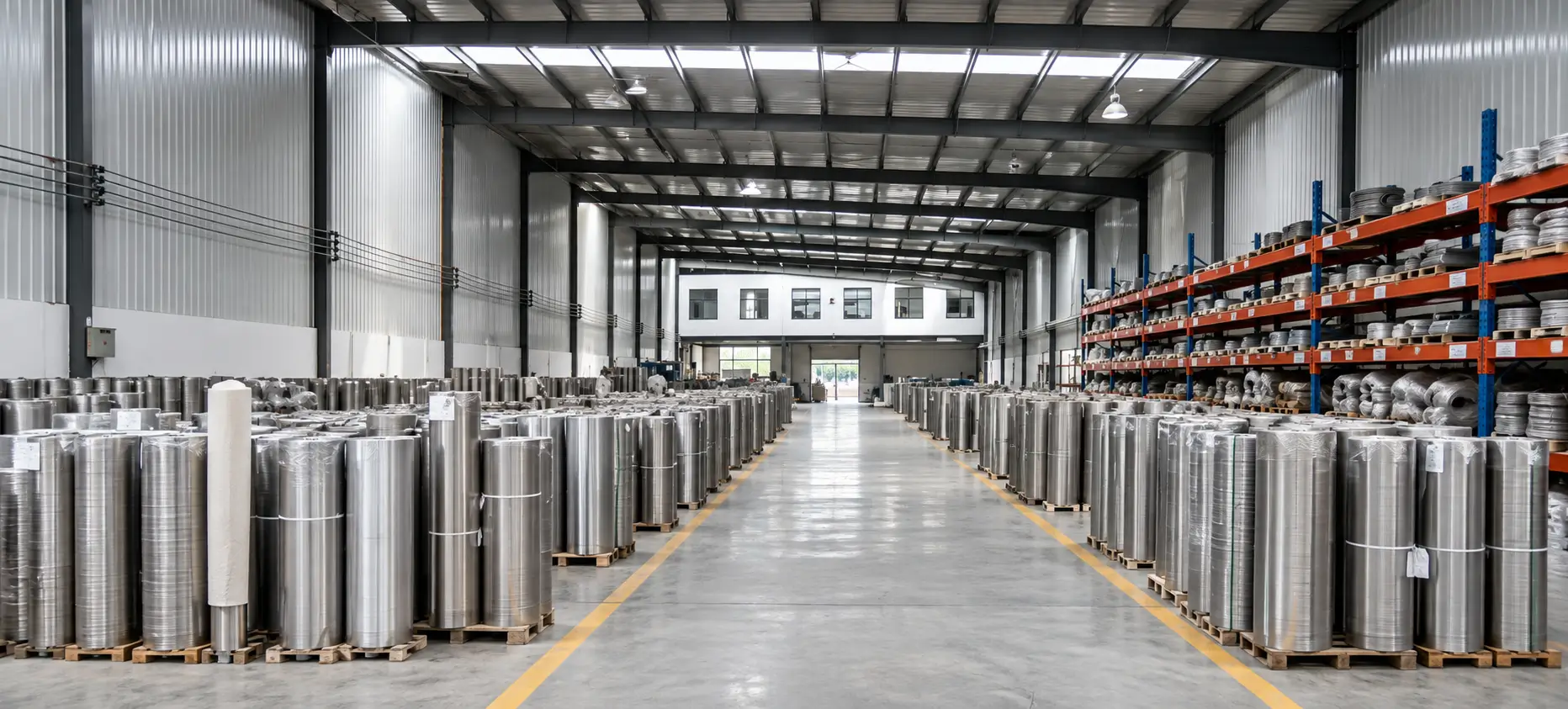

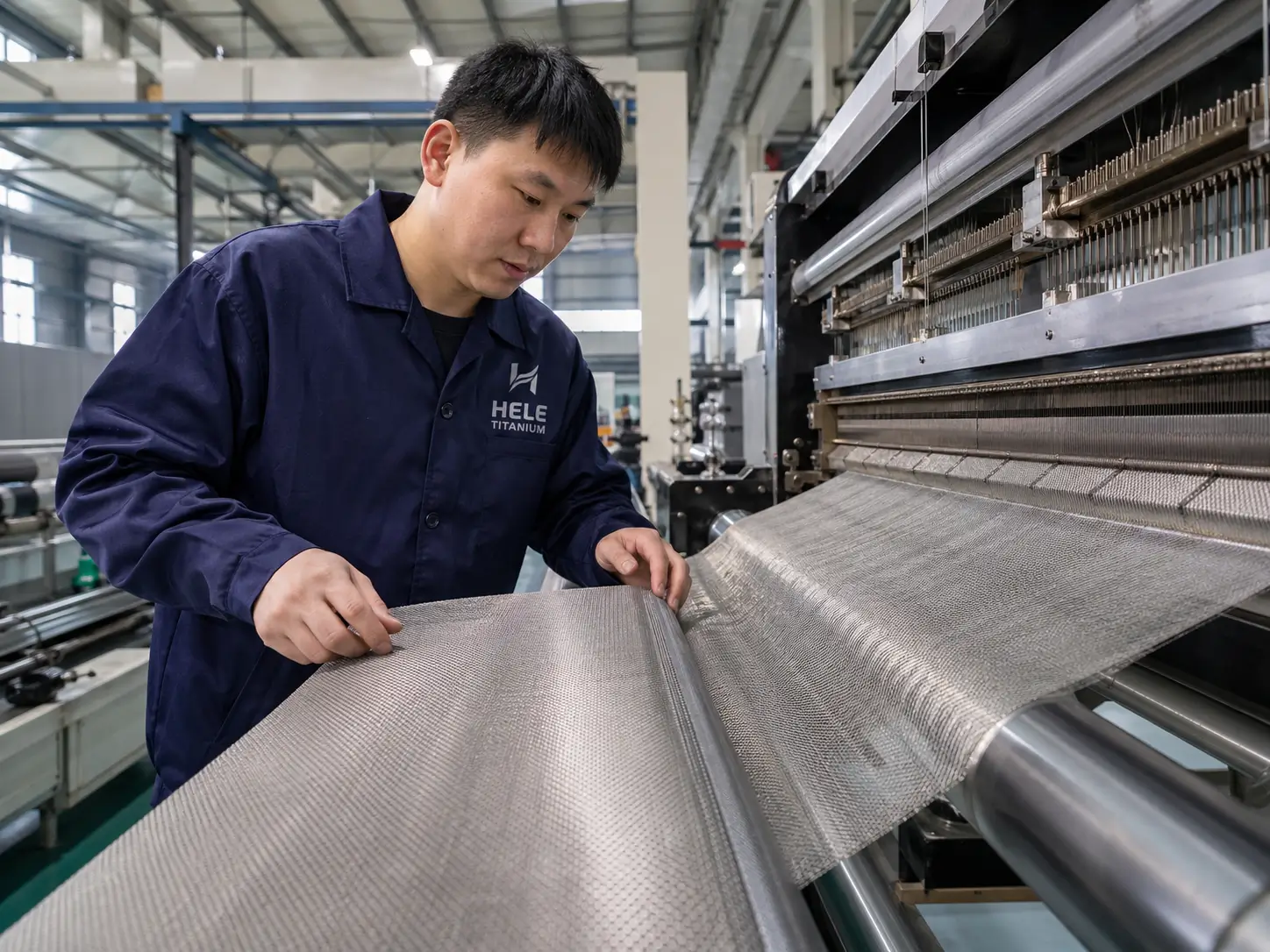

Mesh Production Workshop

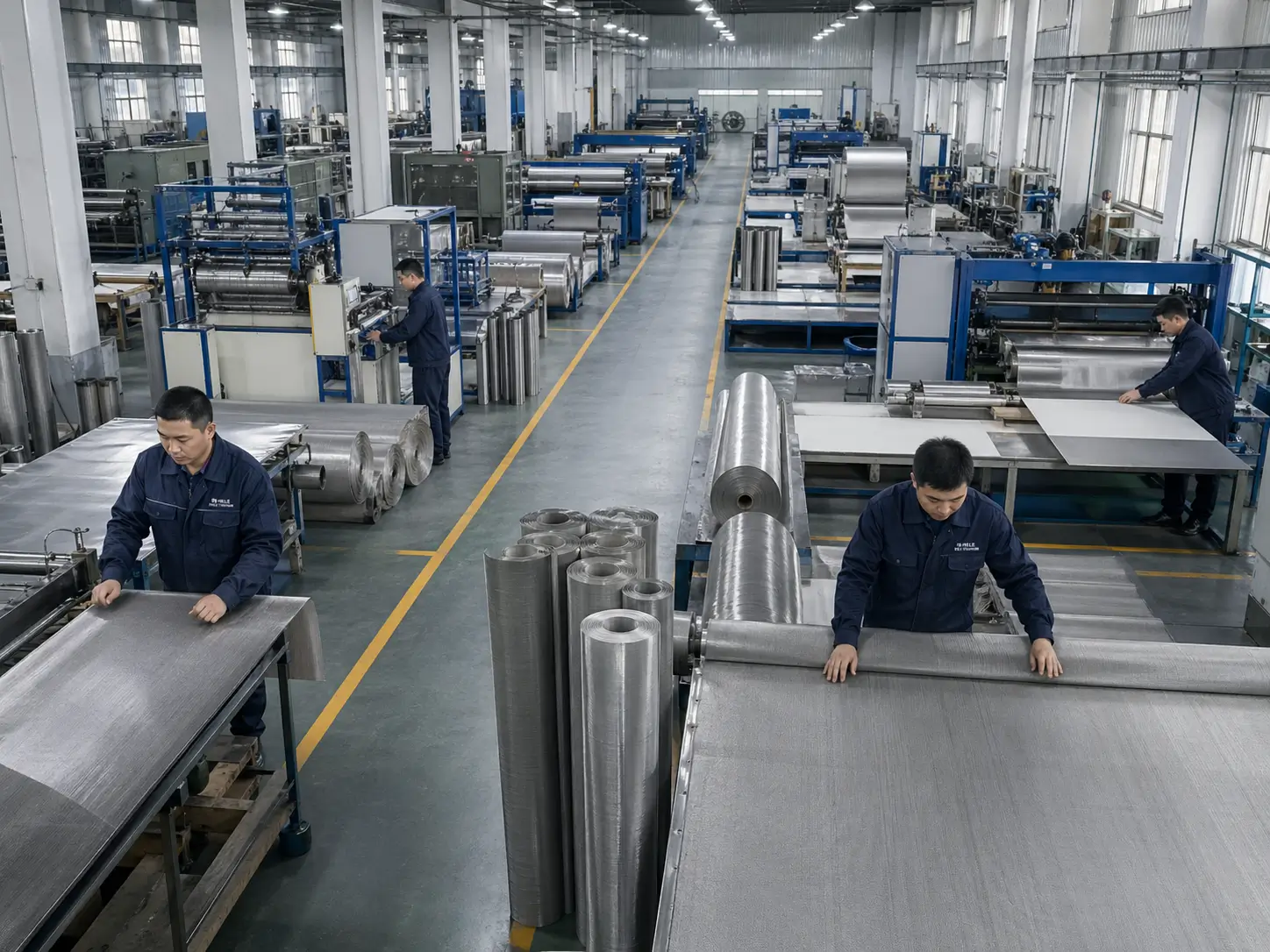

Laser Cutting Area

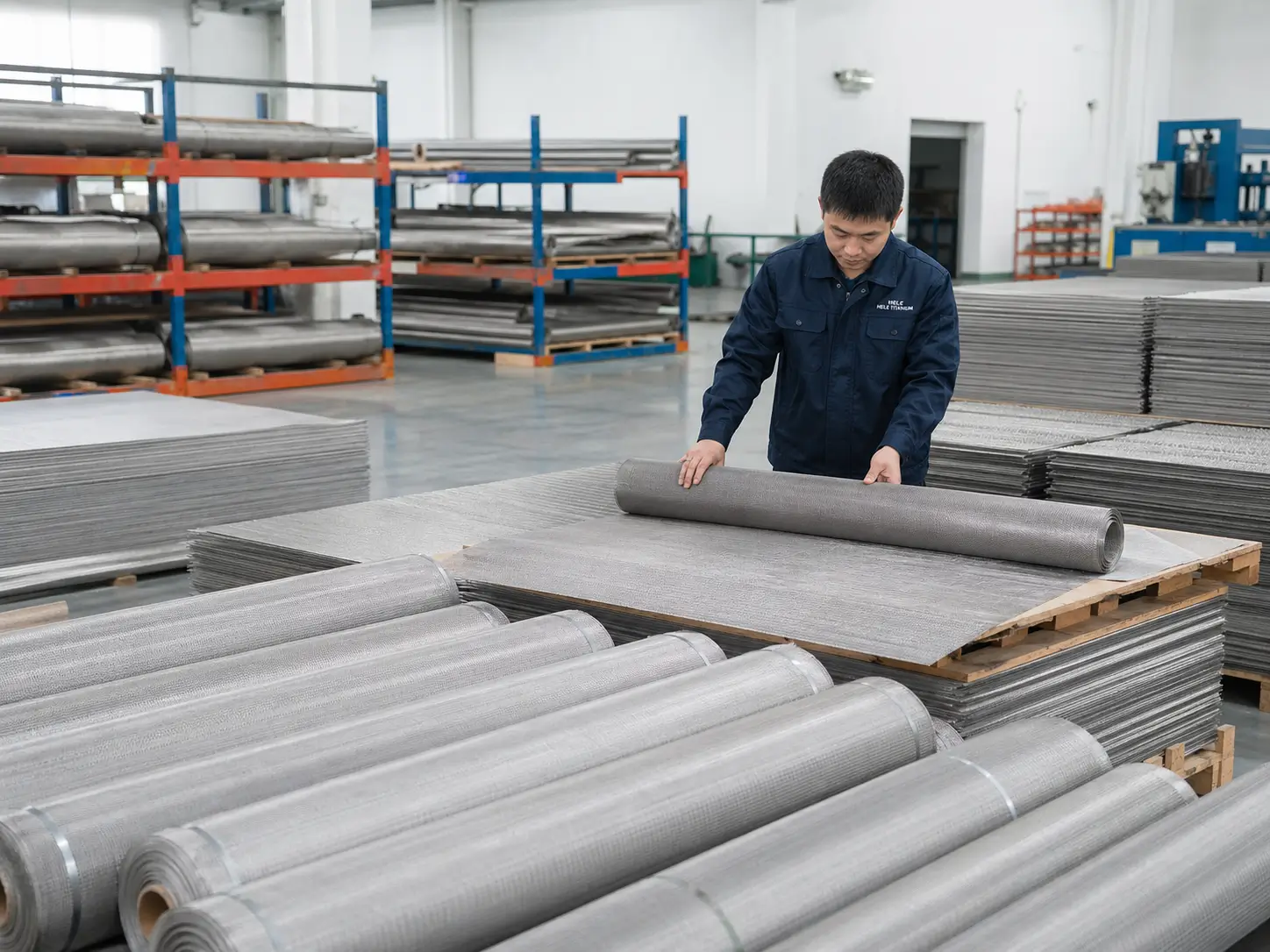

Coating / Assembly Area

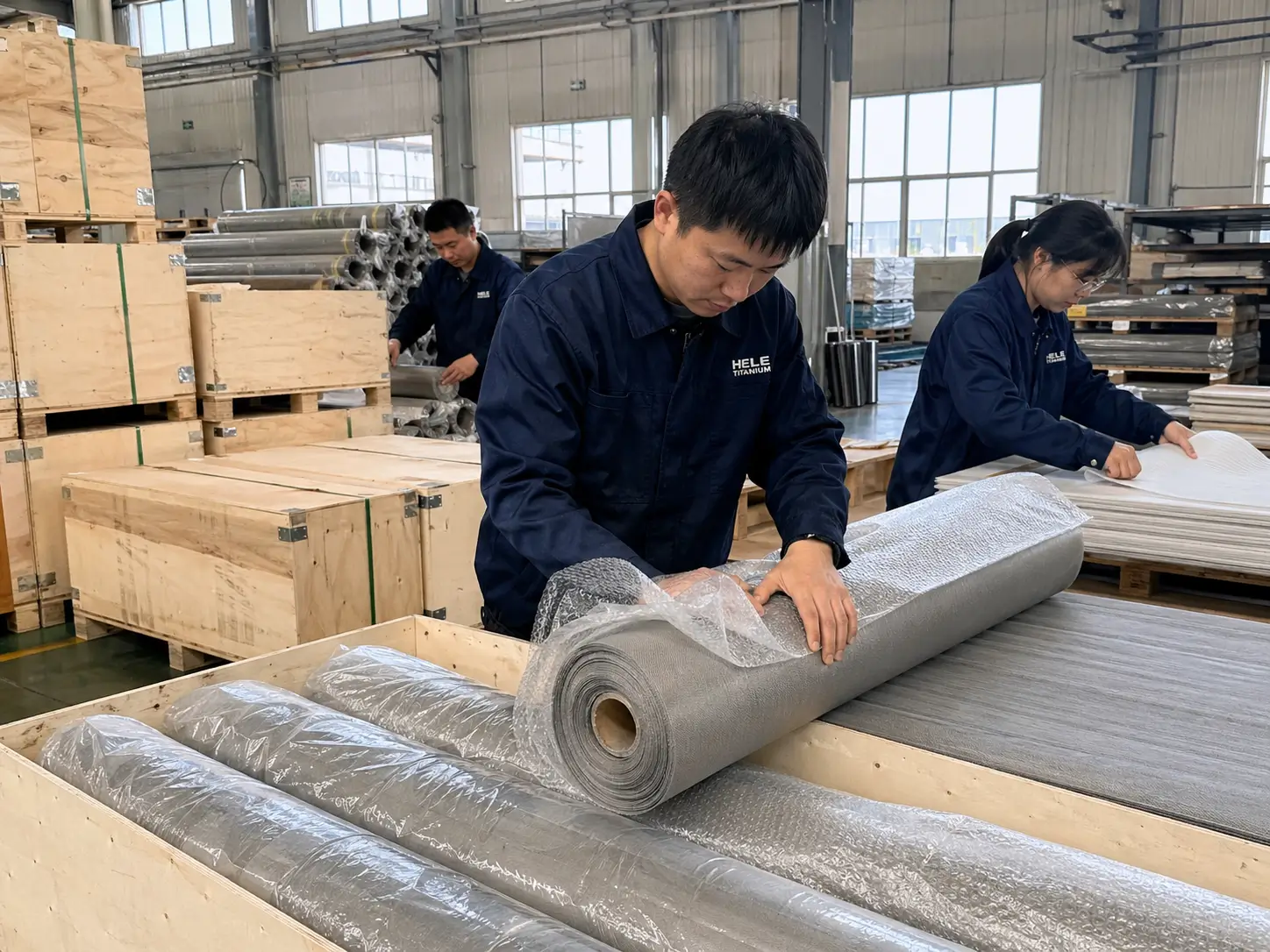

Packaging & Dispatch Area
Our quality system verifies mesh geometry, coating integrity, cleanliness, and traceability before release.

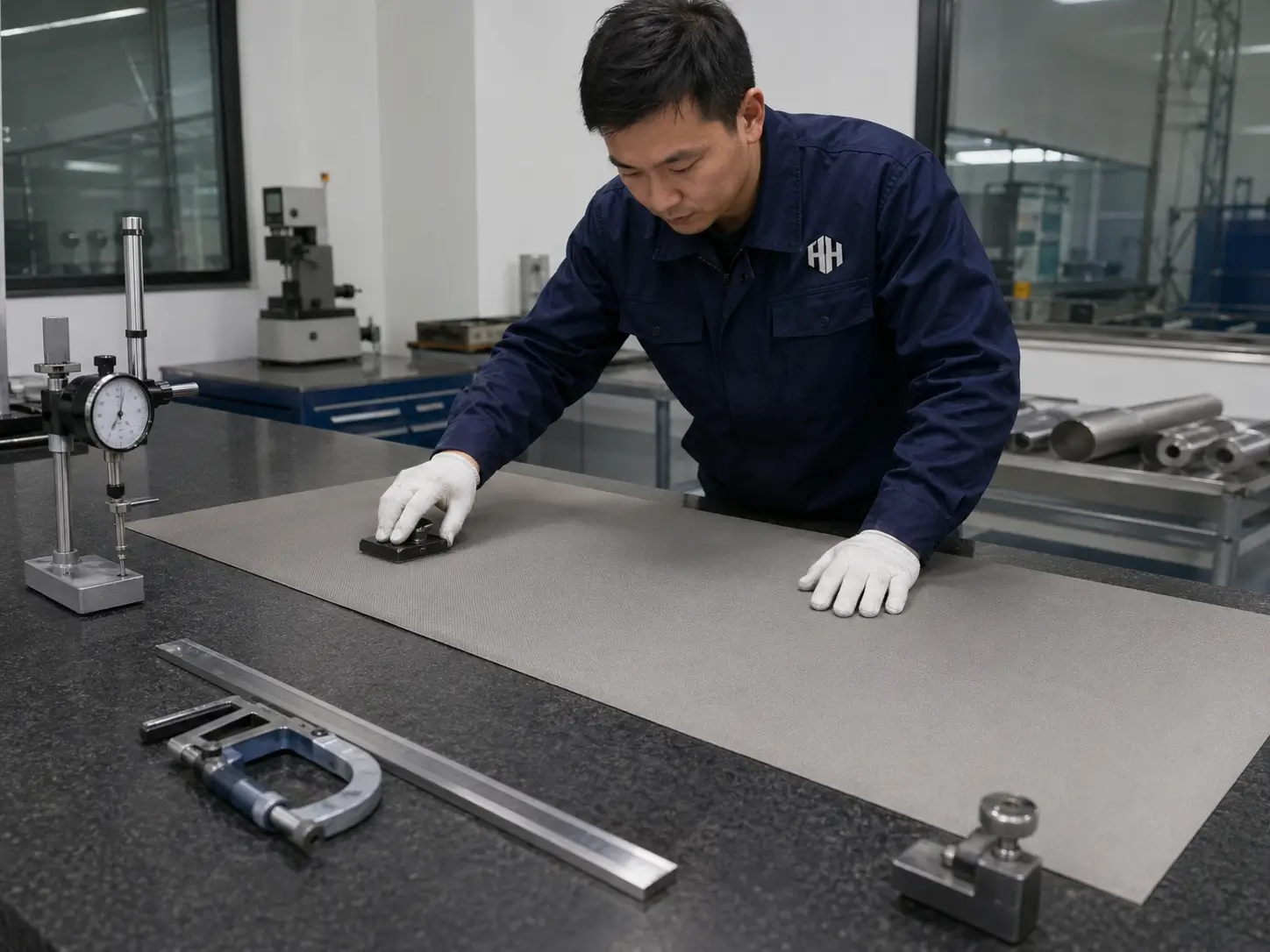

Mesh Count Inspection
LWD / SWD Verification

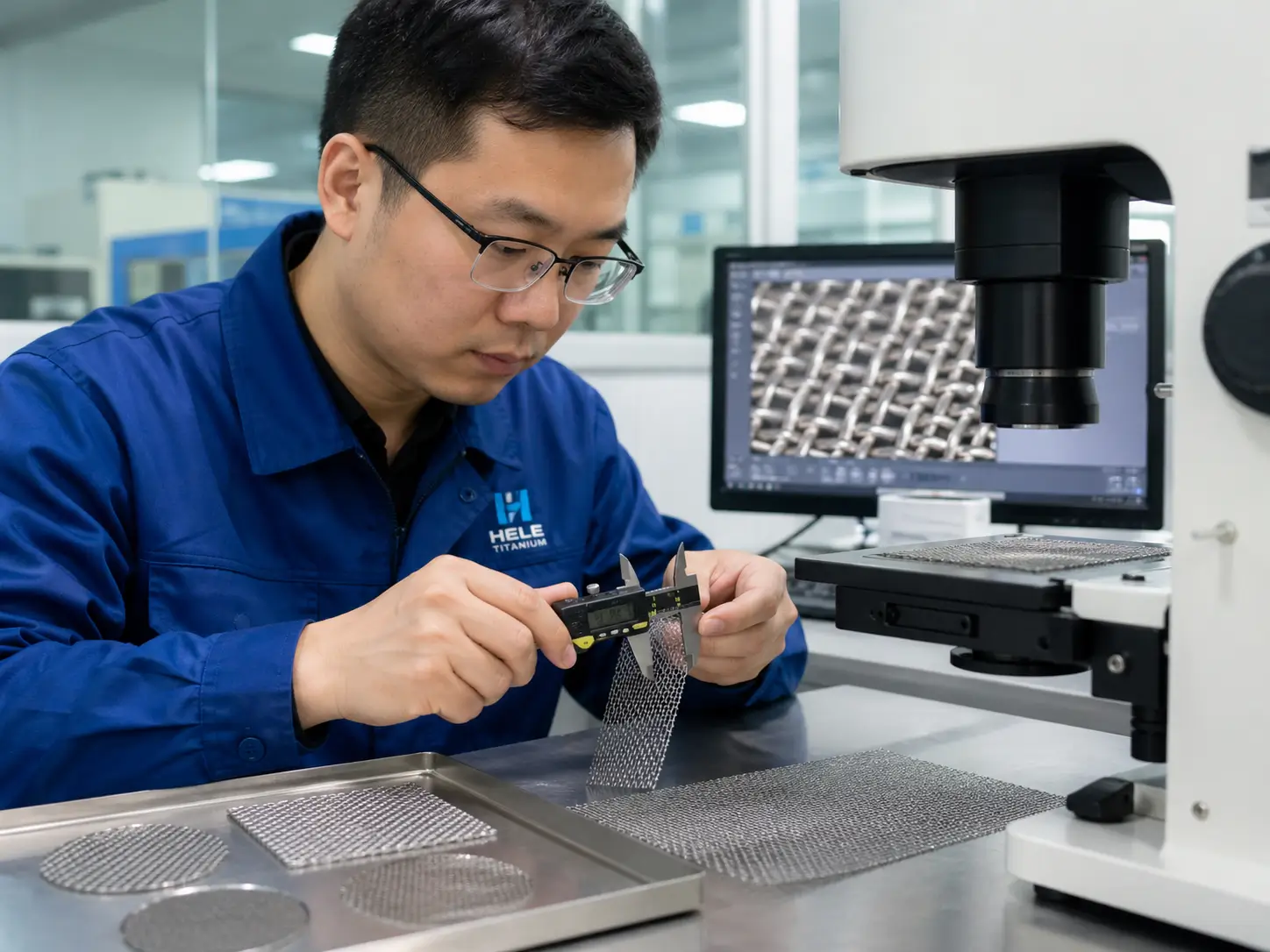

Coating Thickness Check

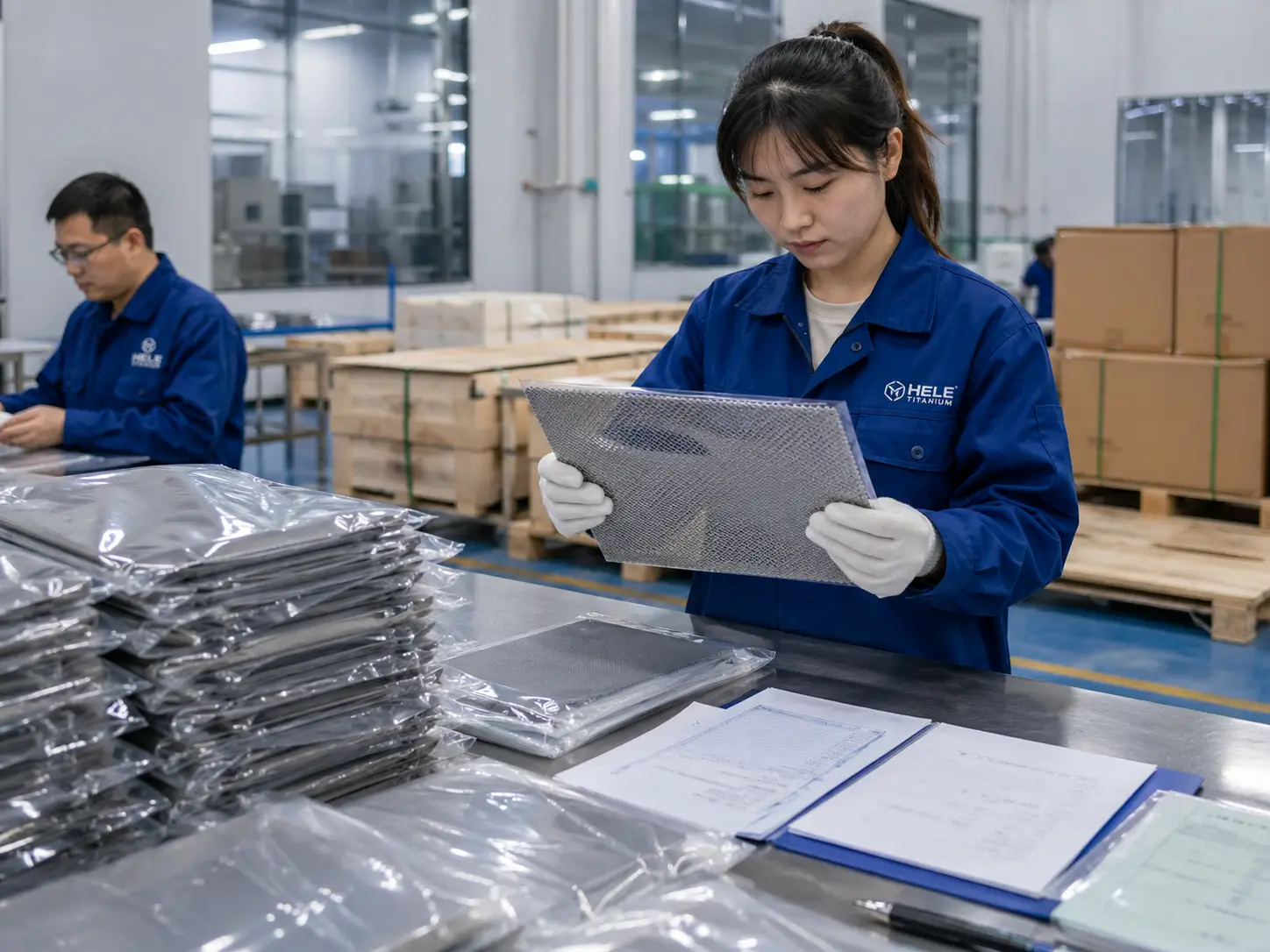

Final Quality Inspection
Documentation and traceability support are essential for both medical and industrial approval requirements.

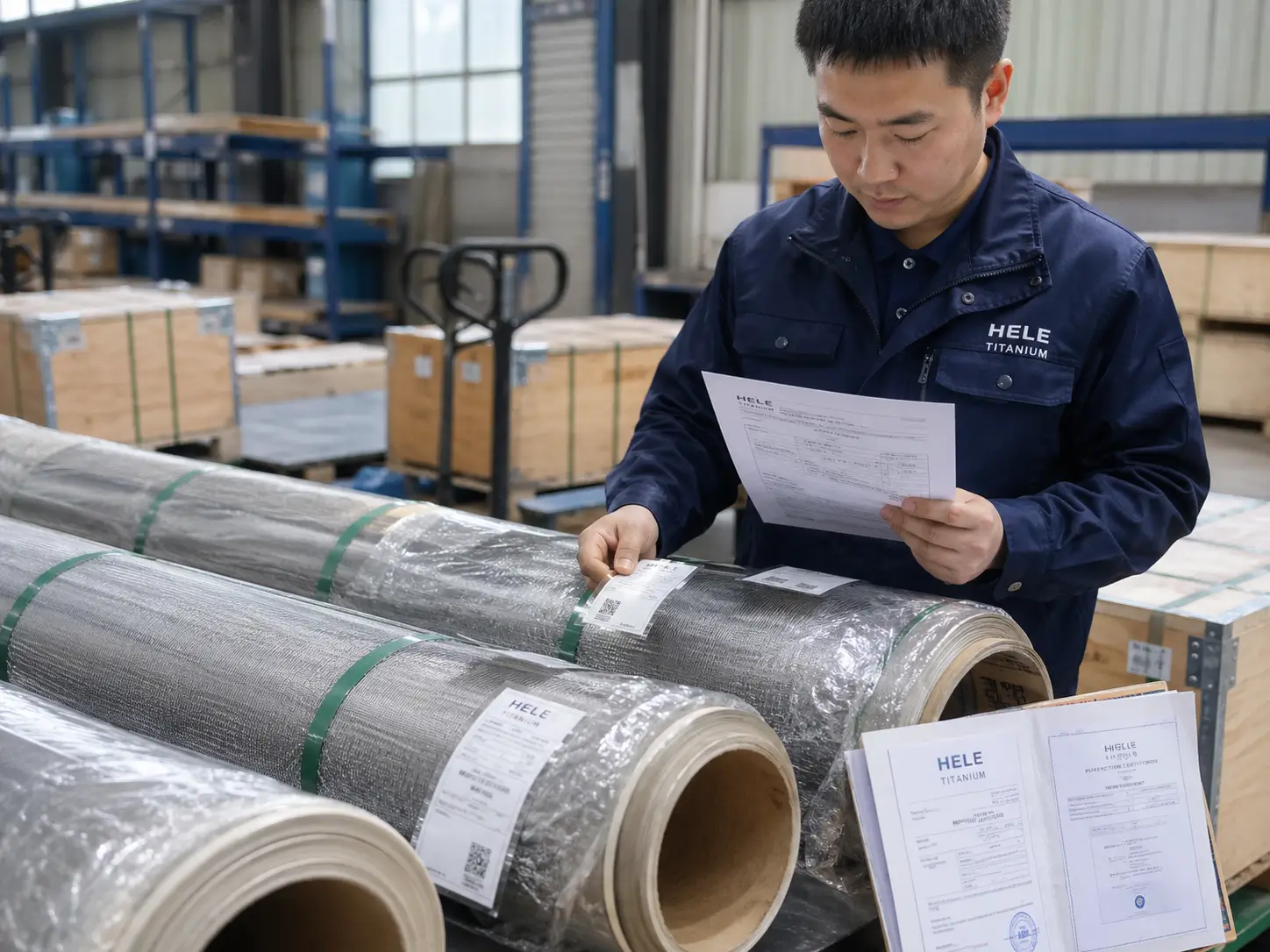

Mill Test Certificate Example
AWS / ASTM Compliance Record
ISO Certificate
Third-Party Inspection Support
Request a Titanium Mesh Quote?
Tell us your application, mesh type, opening, thickness, grade, and coating requirement. Our engineering team will recommend the most suitable titanium mesh solution for your project.
-
